SUS304 homogeneous reactor for different flavour soy yogurt

FOB Reference Price:Get Latest Price
US $2,000-7,800 / Pieces | 1 Piece/Pieces SUS304 homogeneous reactor for different flavour soy yogurt (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Paddle
Product Type:
SUS304 homogeneous reactor for different flavour soy yogurt
Application:
Liquid
Additional Capabilities:
high speed mixer
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
BLS
Max. Loading Capacity:
5000L
Voltage:
110V~480V
Power(W):
0.75KW~75KW
Dimension(L*W*H):
1200*700*1300
Certification:
ISO9001:2008
Warranty:
1year
After-sales Service Provided:
Overseas service center available
Name:
SUS304 homogeneous reactor for different flavour soy yogurt
Material:
Stainless Steel 304/316
Heating method:
Steam/Electricity Heating
Stirrer type:
paddle, frame, scraper, High Speed Homogenizer
Capacity:
50-5000L
Pressure:
normal/under pressure
Machine Type:
heating jacketed reactor
SupplyAbility
SupplyAbility:
400 Piece/Pieces per Quarter SUS304 homogeneous reactor for different flavour soy yogurt
Packaging & Delivery
Packaging Details
plywood case
SUS304 homogeneous reactor for different flavour soy yogurt
Port
Shanghai or Ningbo
Lead Time :
25 days after received payment
Product Description

SUS304 homogeneous reactor for different flavour soy yogurt

Brand: L&B
Material : stainless steel 304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.8um
Certification: CE  ISO9001:2008

Product Name:
SUS304 homogeneous reactor for different flavour soy yogurt
Description:
Designed according to ISO9001/GMP standard, widely used for mixing liquid medium in the food-processing, cosmetics and pharmaceutical industries
Heating method
By electricity (oils or water), by steam, by gas
Material:
SS304/SS316L
jacket: dimple jacket/ miller board, hollow jacket or coil pipe jacket etc.
insulation layer: PU Foam
as to the thickness, we can make it according to your requirement.
Optional Configuration
1.manhole
2.CIP spraying ball
3.adjusting feet
4.sample valve
5.temperature gauge
6.pressure gauge
7.level gauge
Capacity:
50L-10000L
Agitator:
With agitator or not
Agitator type
Frame, paddle, scraper, homogenizer, turbo type etc.
Agitator Speed
20-36rpm, 50-300rpm, 760-1450rpm, 2800-3000rpm
Mechanical seal:
SIC/SiC/EPDM(Standard)
Agitator power:
0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW
Sealing option:
Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:
110-480V, 50/60Hz
Motor:
ABB, LOCAL,50hz/ 60hz
Surface treatment:
Inner polished and outside polished
Available connection:
Clamp, Thread Butt weld, Flange
Available standard:
DIN, SMS, 3A, RJT, ISO/IDF

Applicable range:

1. Used as blending tank, mixing tank, preparation tank, fermentation tank, disinfection tank and ageing tank etc.
2. Ideal in fields such as food, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Structure characteristics:

1.Adopt structure of internal tank and external package, with heat preservation materials inside.
2.Materials are all sanitary stainless steel.
3.Humanized structure design and easy to operate.
4.Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.

Configuration of tank:

1)Quick open manhole.
2)Various types of CIF cleaners.
3)Fly and insect resistant sanitary breathing cover.
4)Adjustable triangular bracket.
5)Dismountable materials input pipe assembly.
6)Thermometer (according to customer requirements).
7)Ladder (according to customer requirements).
8)Vertical blender (paddle type or fame type are available if customer require).
9)Jacket (miller board, hollow jacket or coil pipe jacket are available according to customer requirements).
10)Liquid level meter and level controller (according to customer requirements).
11)Eddy-proof board.

Effective volume
Dimension of tank
Total height
Diameter of inlet&outlet
Heat preservation layer
(L)
(mm)
(mm)
(mm)
(mm)
500
840*1000
2250
38
60
600
920*1000
2300
38
60
700
990*1000
2300
38
60
800
950*1220
2500
38
60
900
1010*1220
2500
38
60
1000
1060*1500
2850
51
60
1500
1160*1500
2850
51
60
2000
1340*1500
2900
51
60
3000
1410*2000
3400
51
60
4000
1620*2000
3450
51
60
5000
1810*2000
3500
51
60
6000
1980*2000
3550
51
60
7000
1930*2440
4000
51
60
8000
2060*2440
4000
51
60
9000
2180*2440
4050
51
60
10000
2300*2440
4050
51
60
12000
2270*3000
4600
51
60
15000
2530*3000
4700
51
60
20000
2640*3660
5400
51
60

    It can be customized according to special requirements of our customers. Total height is computed according to the height (800mm) of the discharge outlet. If the height of discharge outlet is changed, total height shall be adjusted.

Detailed Images

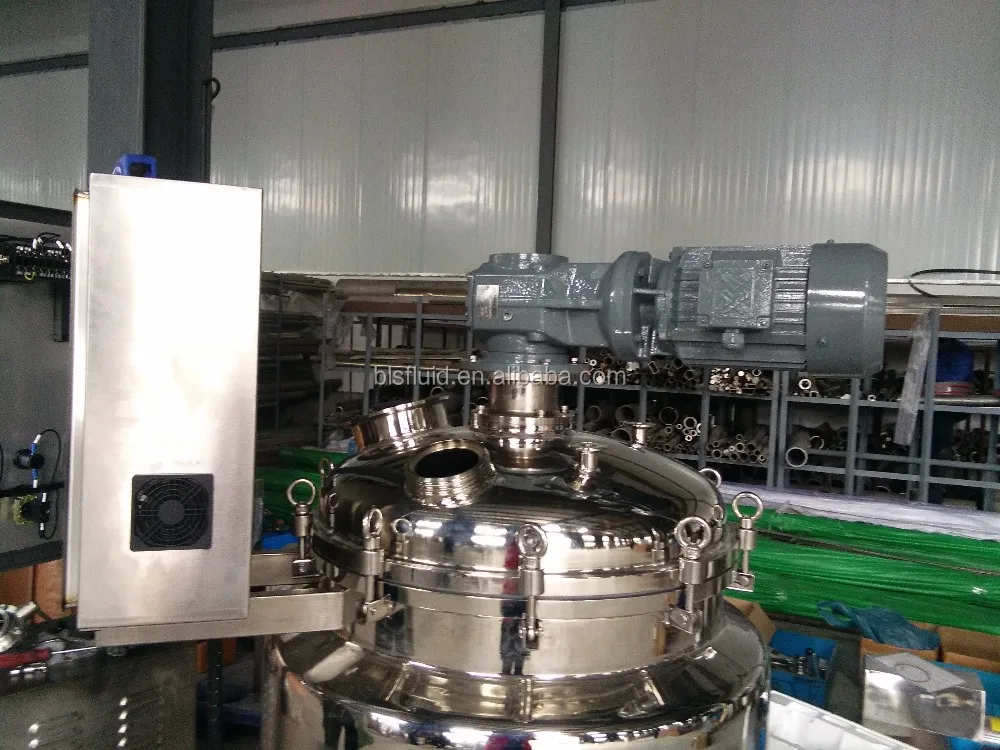

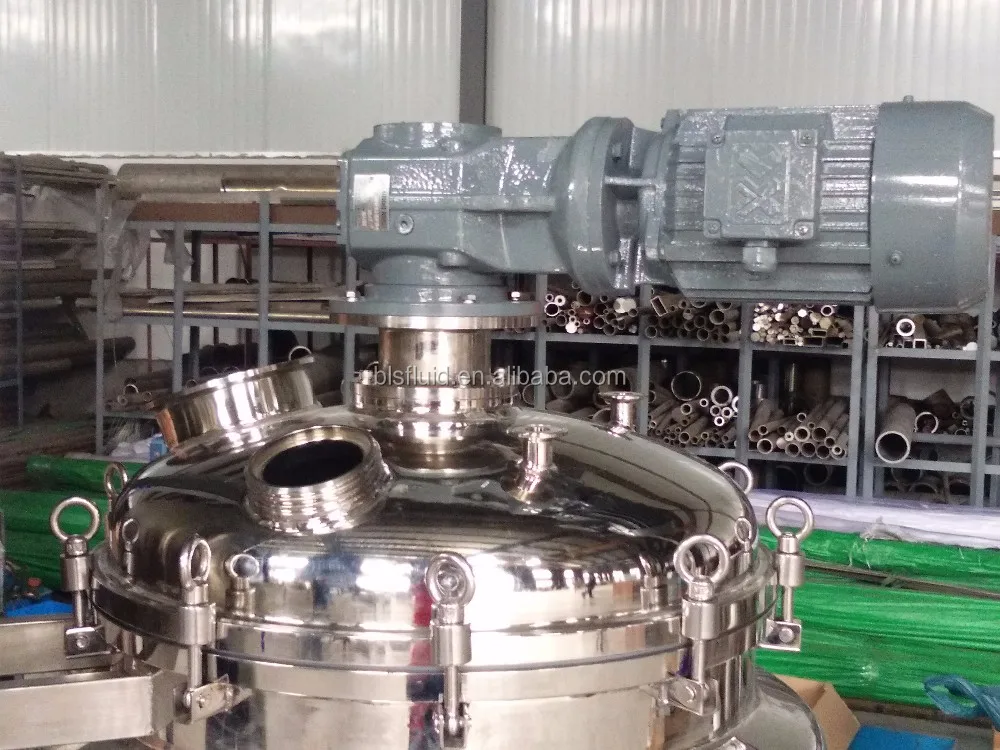

Pure copper motor:

low noise, stable dynamic, sustainable work.


1. SS304 and SS316 sanitary stainless steel

2. sanitary polishing, 3A standard
adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning.


Manhole

Creative handle, quick to open, convenient for production


SS agitator:

1. Rotation speed can be constant speed, also can be equipped with VFD according to real work condition.
2. Agitator can be frame mixer, paddle, scattered disk, scraper, ribbon etc.


Electric control box:

1. intelligent temperature controller, SS304 box


2. PT100  thermal resistance

3. Electric Components: Germany Schneider


Sight glass:

tempered glass material, threaded connection form.

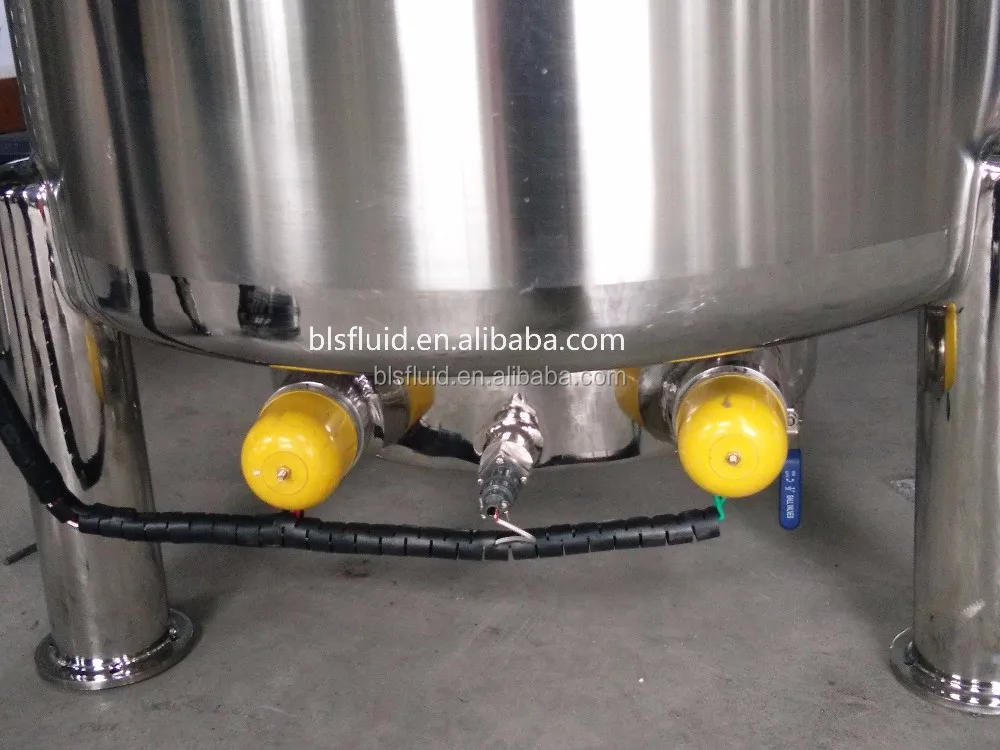

Electrical heated tube:
1. adopt threaded connection form, convenient assembly.

2. pad adopt Import teflon material, Resistant to 300 degrees temperature, difficult to leak.
