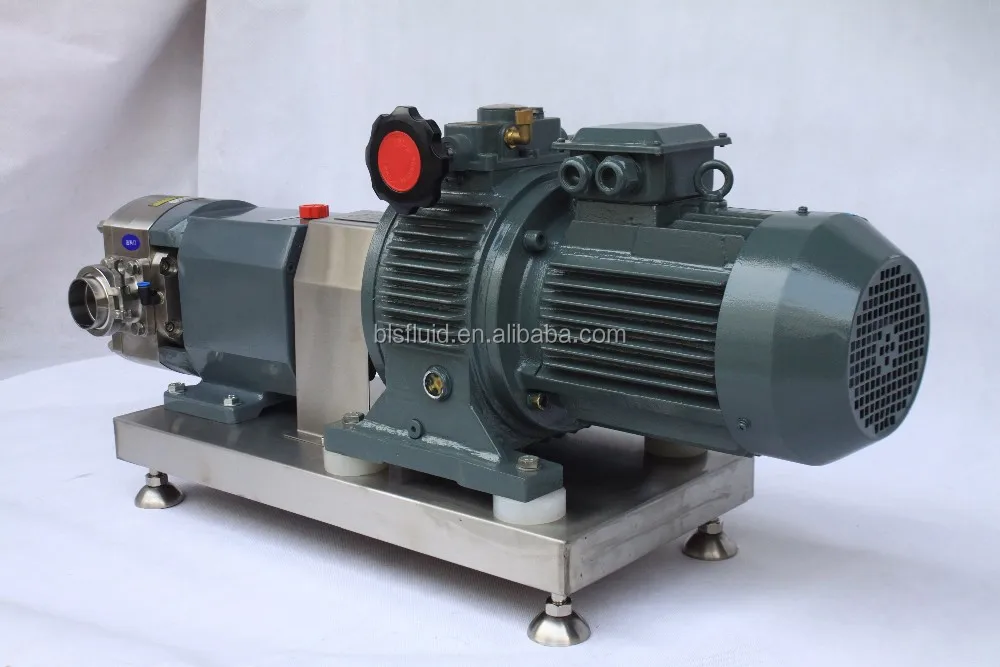

stainless steel Sanitary lobular pump

FOB Reference Price:Get Latest Price
US $1,500-6,000 / Sets | 1 Set/Sets stainless steel Sanitary lobular pump (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
bls
Structure:
Gear Pump
Usage:
Oil
Application:
industrial stainless steel Sanitary lobular pump
Power:
Electric
Fuel:
electric
Pressure:
High Pressure
Wide Application:
beer, food, dairy, beverage, chemical industry, etc.
Type:
Rotary Lobe Pump
Flow:
5600-11000 L/H
Pressure of lift:
7 Bar
Motor power:
5.5 kw
Maximum rotational speed:
600 r/min
Suggested rotational speed:
200-500 rmp
Connection:
threaded, clamped, flanged
Material:
SUS 304/ SUS316
Product name:
stainless steel Sanitary lobular pump
Standard or Nonstandard:
Standard
Theory:
Rotary Pump
Supply Ability
Supply Ability:
200 Set/Sets per Month stainless steel Sanitary lobular pump
Packaging & Delivery
Packaging Details
Plywood Case Packing
stainless steel Sanitary lobular pump
Port
NINGBO
Lead Time :
Shipped in 15 days after payment
Product Description

stainless steel Sanitary lobular pump

    Lobe pump belongs to positive displacement pump, flow can be controlled accurately and can change to variable pump conveniently.

    The rotation speed of lobe pump is very low, normally between 100rpm and 500rpm, the material is sent out smoothly and the component is not changed.

    Lobe pump can transfer high viscosity material, so it also called colloid pump. Lobe pump can be made as rather high output pressure conveniently, suitable to long distance or high resistance dosing transfer.

Operation Principle:

    Rotor pump is also named colloid pump, three-lobe pump, sole pump, etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears) revolve, it produces suction force at the inlet (vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and revolve in the sequence of a-b-c-d. When it revolves to position a, only housing | is filled with medium, when it revolves to position b, housing B encloses medium, and finally it goes to position d, then housing A,B are interlinked and the  medium is transported to the outlet. As this process is repeated, medium (material) is transported continuously.

Special Structure:

1.Butterfly rotor pump: with butterfly rotor, it is superior to other rotor pump when transferring material with high viscosity and larger powder and effectively transports extremely stiff material.

2. Singe butterfly curved rotor pump (powder rotor pump): this pump series are specially design to transport material with larger powder. Its unique shape and curve makes it more outstanding compared to other pumps in delivering material with larger powders. It effectively prevents powders from clashing, which is the top choice of pumps transferring material with powders.

3. Widely used to deliver: various special material, stiff material, mixture with different specific gravity, corrosive material and material with larger power.

Model
L/100R
Rpm
Flow rate
Power
Inlet
(L)
(L/H)
(kw)
BLS-3
3L
200-500
300-800
0.55
Φ25*1.5
BLS-6
6L
200-500
650-1600
0.75
Φ25*1.5
BLS-8
8L
200-500
850-2160
1.5
Φ32*1.5
BLS-12
12L
200-500
1300-3200
2.2
Φ38*1.5
BLS-20
20L
200-500
2100-5400
3
Φ8*1.5
BLS-30
30L
200-400
3200-6400
4
Φ2*1.5
BLS-36
36L
200-400
3800-7600
4
Φ50.8*1.5
BLS-52
52L
200-400
5400-11000
5.5
Φ63.5*1.5
BLS-66
66L
200-400
7100-14000
7.5
Φ63.5*1.5
BLS-78
78L
200-400
9000-18000
7.5
Φ76*2
BLS-100
100L
200-400
11000-22000
11
Φ76*2
BLS-135
125L
200-400
15000-30000
15
Φ89*2
BLS-160
160L
200-400
17000-34000
18.45
Φ102*2
BLS-200
200L
200-400
21600-43000
22
Φ102*2
Detailed Images



Pump Materail:

1.SS304 and SS316 sanitary stainless steel
2.  sanitary polishing, 3A standard
    adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning.


Various Rotors:

1. Single impeller: transfer medium with a little large grains, not serious to damage grains
2. Double impeller: transfer medium with middle or small grains, low damage rate, low impulse, the capacity is smaller than tri-impeller
3. Tri-impeller: common type, capacity and performance is better than other rotors



Speed adjustment:

Standard stepless and frequency control can be avaible



Sealing option:

Sanitary single mechanical seal/Double mechanical seal with cooling system



Available inlet/outlet connection:

Clamp, Union, Flange etc.



Motor device

Pure copper motor: low noise, stable dynamic, sustainable work.
