industrial commercial ice cream machine with emulsifier

FOB Reference Price:Get Latest Price
US $2,000-25,500 / Sets | 1 Set/Sets industrial commercial ice cream machine with emulsifier (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Agitator
Product Type:
cooling jacket ice cream maker
Application:
Liquid
Additional Capabilities:
homogenizer
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
bls
Max. Loading Capacity:
20000L
Voltage:
110-480V
Power(W):
0.55-5.5kw
Dimension(L*W*H):
customized
Certification:
ISO
Warranty:
12 months
After-sales Service Provided:
Overseas service center available
Material:
Stainless Steel 304 / SUS316L
Usage:
industrial commercial ice cream machine with emulsifier
Cooling method:
water cooling mixing tank
Name:
industrial commercial ice cream machine with emulsifier
Function:
ice cream making machine price
Jacket:
double layer
Pressure:
ordinary pressure
Machine Type:
Cooling Jacket Homogenizer tank
blender:
homogenizer
Type:
industrial commercial ice cream machine with emulsifier
SupplyAbility
SupplyAbility:
200 Sheet/Sheets per Month industrial commercial ice cream machine with emulsifier
Packaging & Delivery
Packaging Details
plywood case
industrial commercial ice cream machine with emulsifier
Port
shanghai/ningbo
Lead Time :
Shipped in 25 days after payment
Product Description

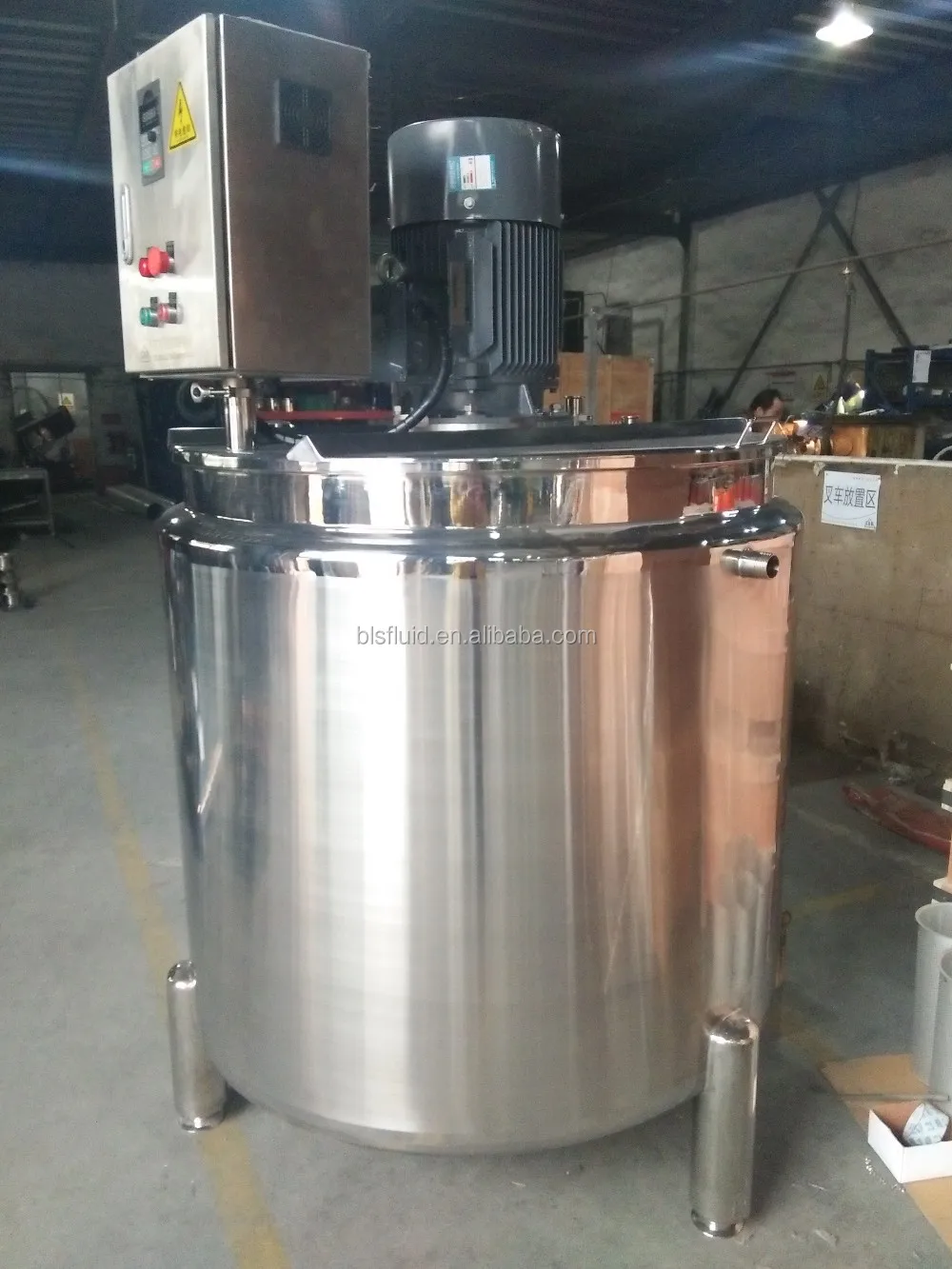

industrial commercial ice cream machine with emulsifier

1. Used as blending tank, mixing tank, preparation tank, fermentation tank, disinfection tank and ageing tank etc.
2. Ideal in fields such as food, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Structure characteristics of industrial commercial ice cream machine with emulsifier:

1.Adopt structure of internal tank and external package, with heat preservation materials inside.
2.Materials are all sanitary stainless steel.
3.Humanized structure design and easy to operate.
4.Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.

Configuration of industrial commercial ice cream machine with emulsifier:

1)Quick open flat cover or manhole.
2)Various types of CIF cleaners.
3)Fly and insect resistant sanitary breathing cover.
4)Adjustable triangular bracket.
5)Dismountable materials input pipe assembly.
6)Thermometer (according to customer requirements).
7)Ladder (according to customer requirements).
8)Vertical blender (paddle type or fame type are available if customer require).
9)Jacket (miller board, hollow jacket or coil pipe jacket are available according to customer requirements).
10)Liquid level meter and level controller (according to customer requirements).
11)Eddy-proof board.

Volume (L)
Dimension D*h (mm*mm)
Height (mm)
In/Outlet diameter (mm)
1000
1060*1220
2550
51
1500
1160*1500
2850
51
2000
1340*1500
2900
51
3000
1410*2000
3400
51
4000
1620*2000
3450
51
5000
1810*2000
3500
51
6000
1930*2000
3550
51
7000
1930*2440
4000
51
8000
2060*2440
4000
51
9000
2180*2440
4050
51
10000
2300*2440
4050
51
12000
2270*3000
4600
51
15000
2530*3000
4700
51
20000
2640*3660
5400
51
Detailed Images



Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.

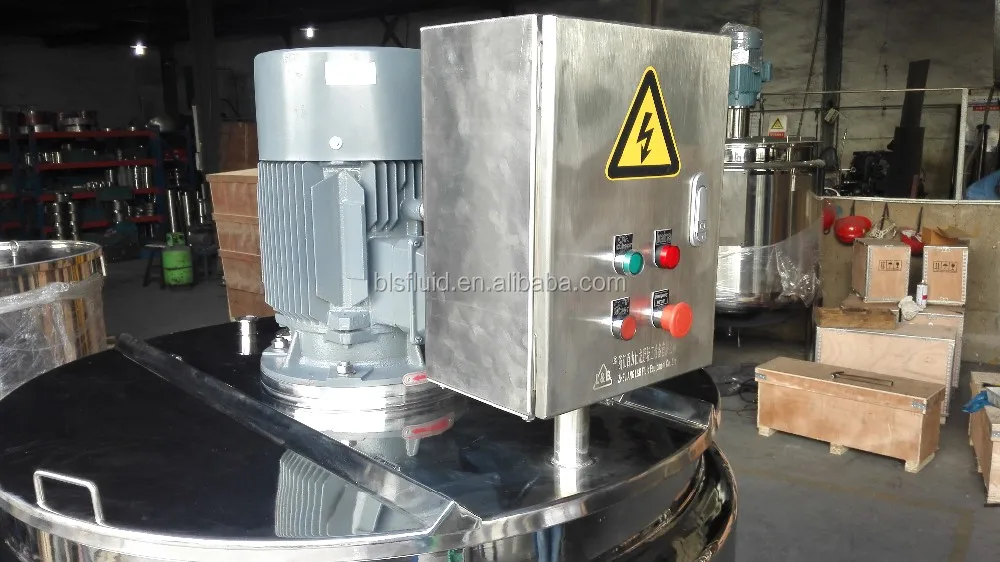

Motor device


1. Pure copper motor: low noise, stable dynamic, sustainable work.

2. Dust proof engine base: inside stainless steel bearing, with dust cover to avoid dust and grease dirt into tank.




Handle/Manhole

    Creative handle, quick to open, convenient for production

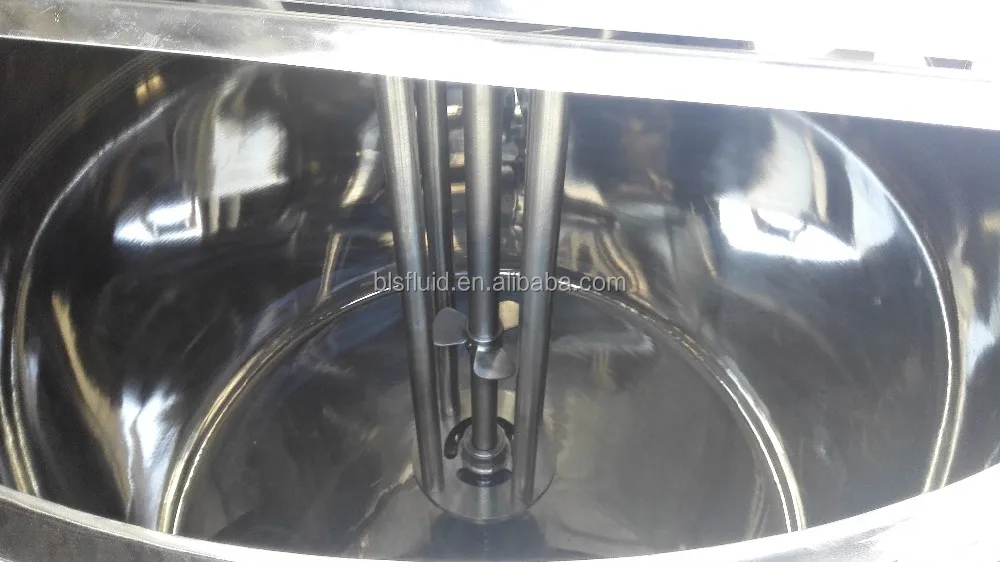

SS agitator:


1. Rotation speed can be constant speed, also can be equipped with VFD according to real work condition.

2. Agitator can be frame mixer, paddle, scattered disk, scraper, ribbon etc.

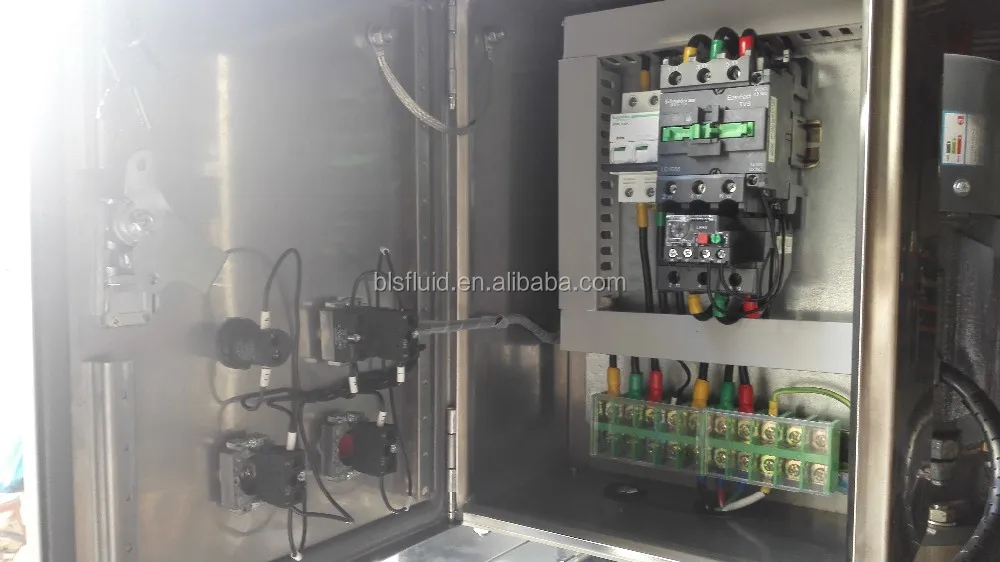

Electric control box:

1. intelligent temperature controller, SS304 box

2. PT100 thermal resistance

3. Germany Schneider Electric Components

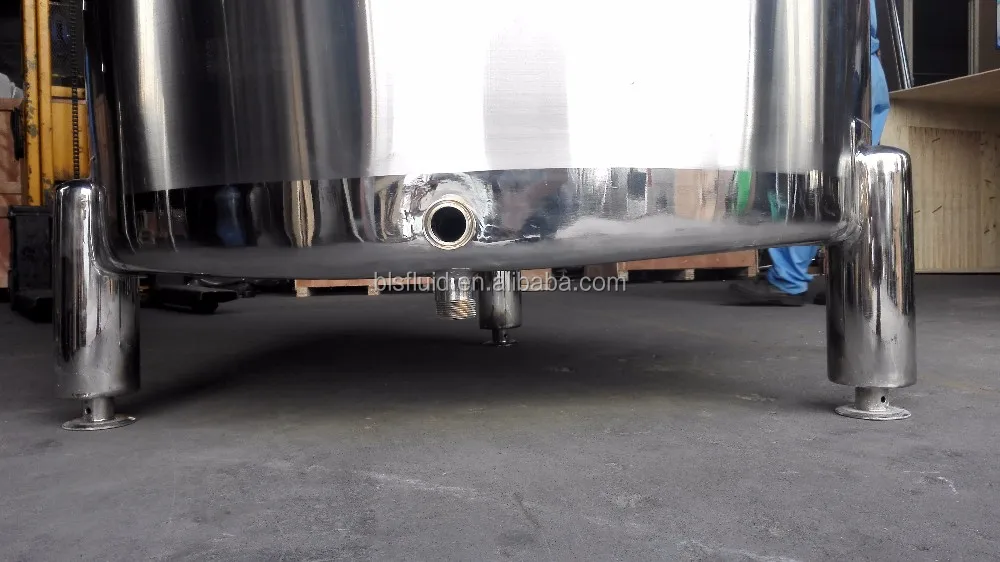

Bottom type

Flat bottom: suitable for the liquid and material with no viscosity

Conical bottom: suitable for the thick liquid and material with high viscosity

Shell bottom: suitable for the both with or without viscosity

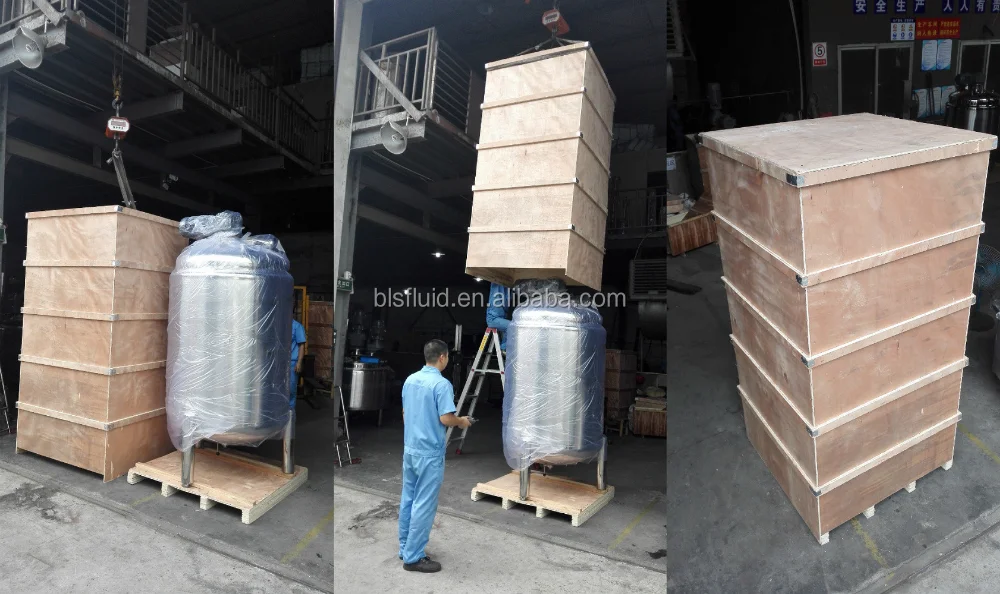

Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
