industrial steel mixer machinery for hot melt glue

FOB Reference Price:Get Latest Price
US $3,200-18,000 / Sets | 1 Set/Sets industrial steel mixer machinery for hot melt glue (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Agitator
Product Type:
mixer machinery for hot melt glue
Application:
Viscous Fluid, machinery for hot melt glue
Additional Capabilities:
stainless steel mixer
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
bls
Max. Loading Capacity:
5000L
Voltage:
110-480V
Power(W):
0.75KW~45KW
Dimension(L*W*H):
Referring
Certification:
ISO9001
Warranty:
12 Months
After-sales Service Provided:
Overseas service center available
material:
SUS304, SUS316L
volume:
100-5000L
Mixers types:
frame, scraper, homogenizer etc
Sealing mechanism:
mechanical sealing avaible
Heating methods:
steam, electric heating and heat guiding oil
Function:
glue melter
Usage:
hot melt glue machine
Type:
industrial hot melt glue machine
Product name:
industrial steel mixer machinery for hot melt glue
Supply Ability
Supply Ability:
150 Set/Sets per Month industrial steel mixer machinery for hot melt glue
Packaging & Delivery
Packaging Details
plywood case
industrial steel mixer machinery for hot melt glue
Port
ningbo
Lead Time :
Shipped in 25 days after payment
Product Description

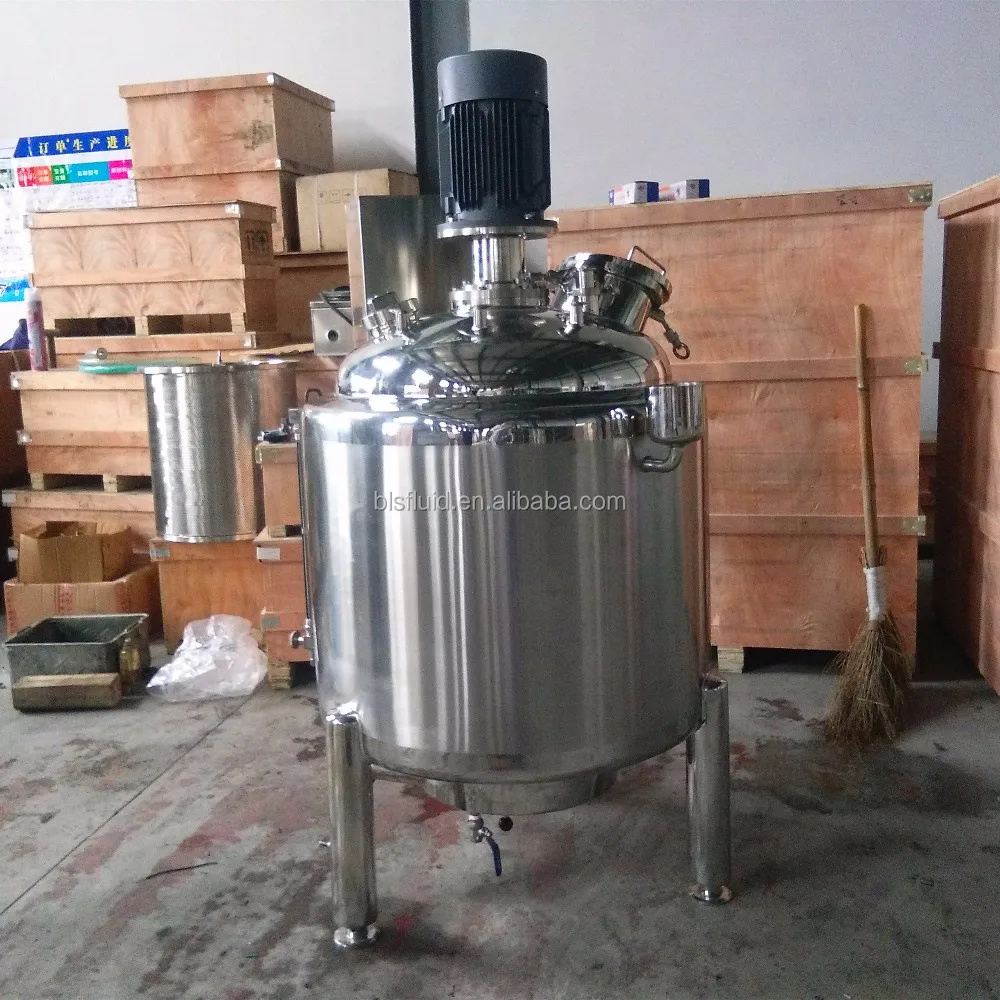

industrial steel mixer machinery for hot melt glue

    It is widely used in food, chemical industry, cosmetics, dyestuff, medicine, and so on to complete the heating, stirring, polymerization, sterilization and other process, the use of high temperature, It is a prerequisite for participating in the full mixing of the reactants. For physical changes such as heating, cooling, and liquid extraction and gas absorption, a stirrer is required to achieve good results, and the reactor can be designed according to the customer's requirements.

Reference parameters :

1. Tank body: stainless steel (SUS304, SUS316L) material, the inner surface of the mirror polishing,
2. Can be online CIP cleaning, SIP sterilization, in line with health norms
3. Mixing device: optional box-type, anchor type, such as pulp
4. Heating and cooling: steam heating or electric heating can be used
5. Stirring Seal: the use of pressure sanitary mechanical seal device to maintain the working pressure inside the tank and to prevent leakage of materials within the tank.
6. Support type According to the operational requirements of the use of hanging ear-type or floor leg type.

Volume (L)
Dimension D*h (mm*mm)
Height (mm)
In/Outlet diameter (mm)
Heat preservation layer
1000
1060*1220
2550
51
60
1500
1160*1500
2850
51
60
2000
1340*1500
2900
51
60
3000
1410*2000
3400
51
60
4000
1620*2000
3450
51
60
5000
1810*2000
3500
51
60
6000
1930*2000
3550
51
60
7000
1930*2440
4000
51
60
8000
2060*2440
4000
51
60
9000
2180*2440
4050
51
60
10000
2300*2440
4050
51
60
12000
2270*3000
4600
51
60
15000
2530*3000
4700
51
60
20000
2640*3660
5400
51
60
Detailed Images



Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.



Motor device

1. Pure copper motor: low noise, stable dynamic, sustainable work.

2. Dust proof engine base: inside stainless steel bearing, with dust cover to avoid dust and grease dirt into tank.



SS agitator:

1. Rotation speed can be constant speed, also can be equipped with VFD according to real work condition.

2. Agitator can be frame mixer, paddle, scattered disk, scraper, ribbon etc.

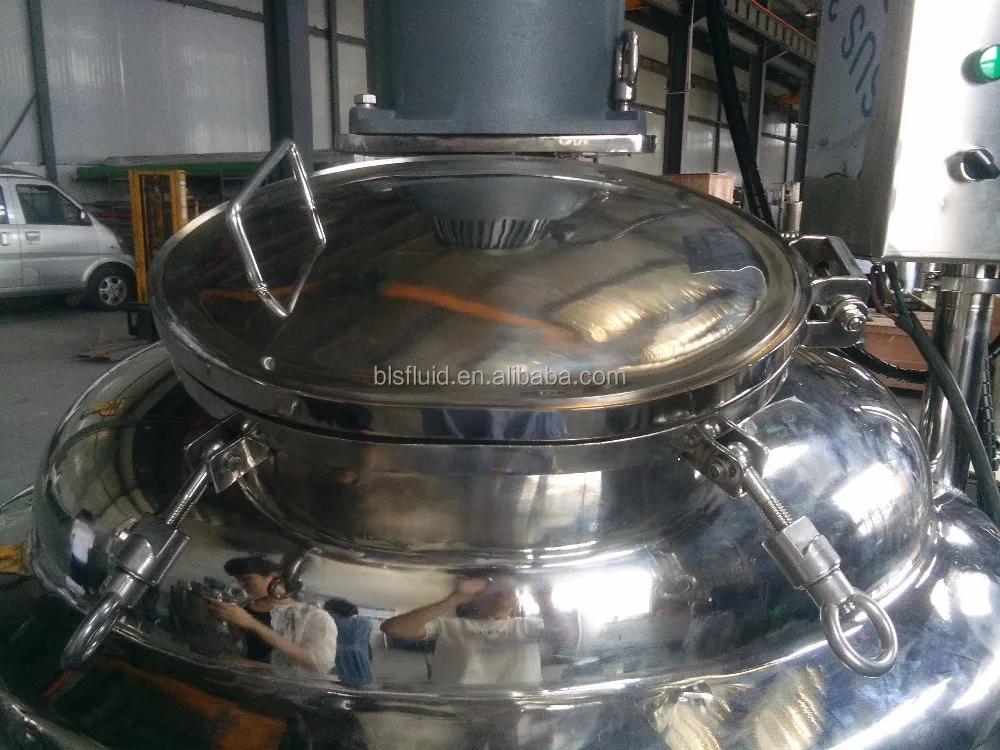

Manhole

    Creative handle, quick to open, convenient for production




"Breathing"


    device to equalize the pressure with the environment in some modes, preventing contamination of the product from the outside (it is necessary to prevent the product from sticking)




Radial thermometer:

    show the inside tank feeding material temperature
