Hot Sale Oil Blending Machine for Base Oil and Additive

FOB Reference Price:Get Latest Price
US $1,500-15,000 / Sets | 1 Set/Sets Hot Sale Oil Blending Machine for Base Oil and Additive (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Agitator
Product Type:
Hot Sale Oil Blending Machine for Base Oil and Additive
Application:
Liquid
Additional Capabilities:
steel Propellant Agitator
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
bls
Max. Loading Capacity:
5000L
Voltage:
110V~480V
Power(W):
0.75KW~45KW
Dimension(L*W*H):
Custom Made
Certification:
CE ISO
Warranty:
12 Months
After-sales Service Provided:
Overseas service center available
Name:
Hot Sale Oil Blending Machine for Base Oil and Additive
stainless steel:
sanitary SUS304/SUS316
Capacity:
50-5000L
Jacket:
single layer, cooling and heating jacket avaible
Agitator:
top entry Propellant agitators
Heating method:
single layer with no heating
Cover:
flat cover with double open lids
Surface:
polish
Type:
single layer oil mixing tank
Usage:
Hot Sale Oil Blending Machine for Base Oil and Additive
Supply Ability
Supply Ability:
200 Unit/Units per Month Hot Sale Oil Blending Machine for Base Oil and Additive
Packaging & Delivery
Packaging Details
standard export packing
Hot Sale Oil Blending Machine for Base Oil and Additive
Port
Ningbo
Lead Time :
15 days Zhejiang L&B cosmetic cream mixing tank mixer Cosmetics
Product Description

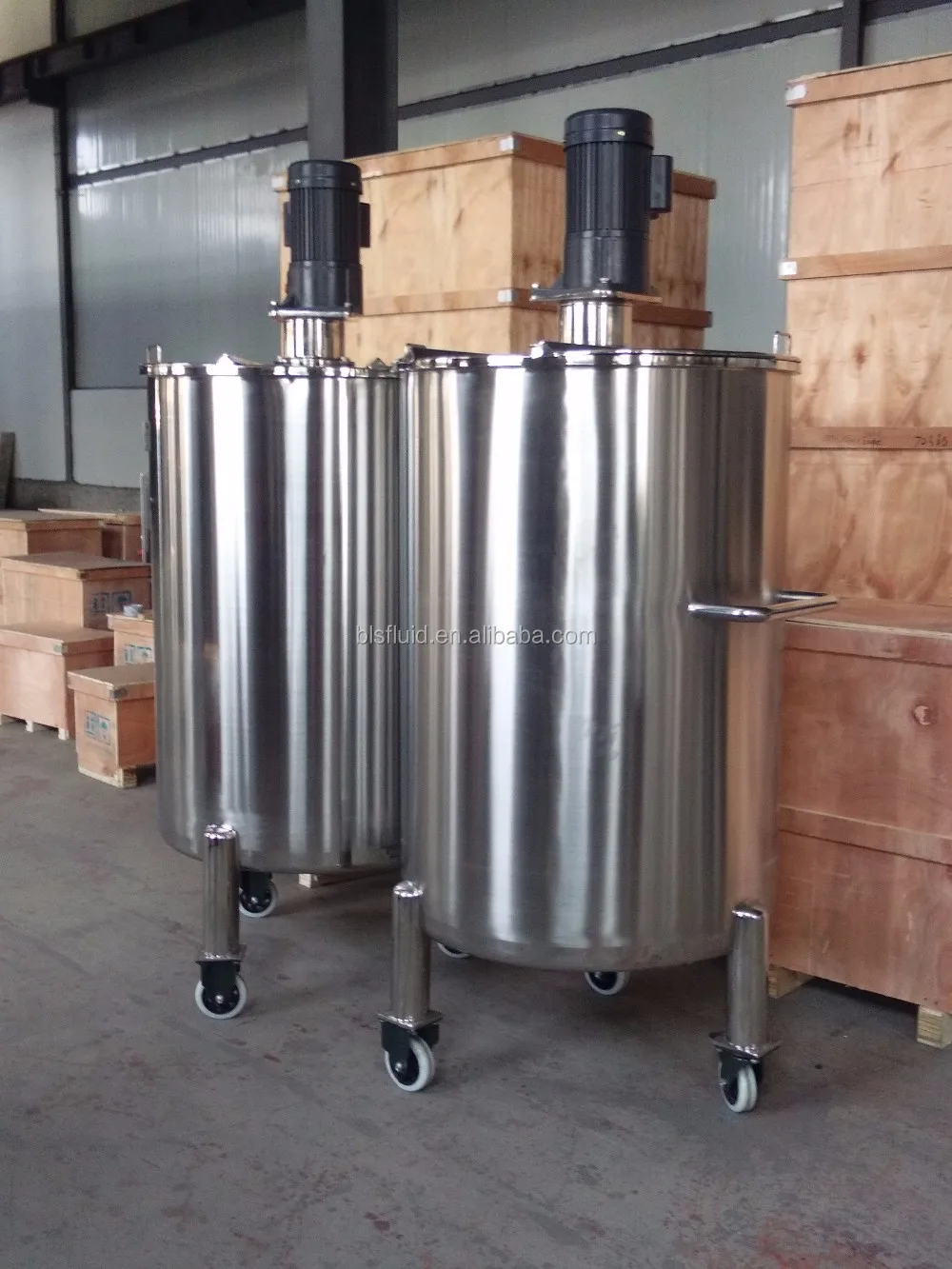

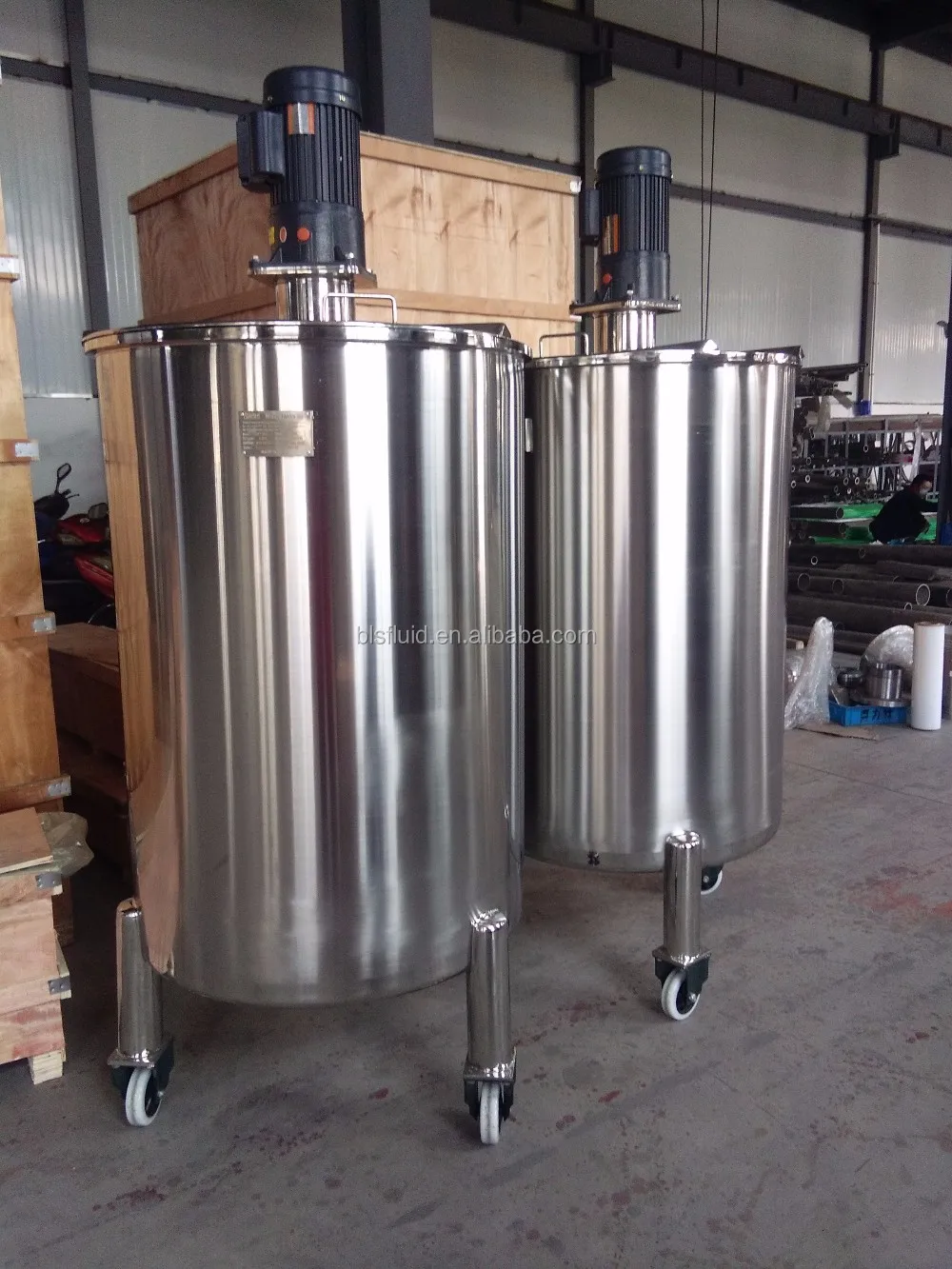

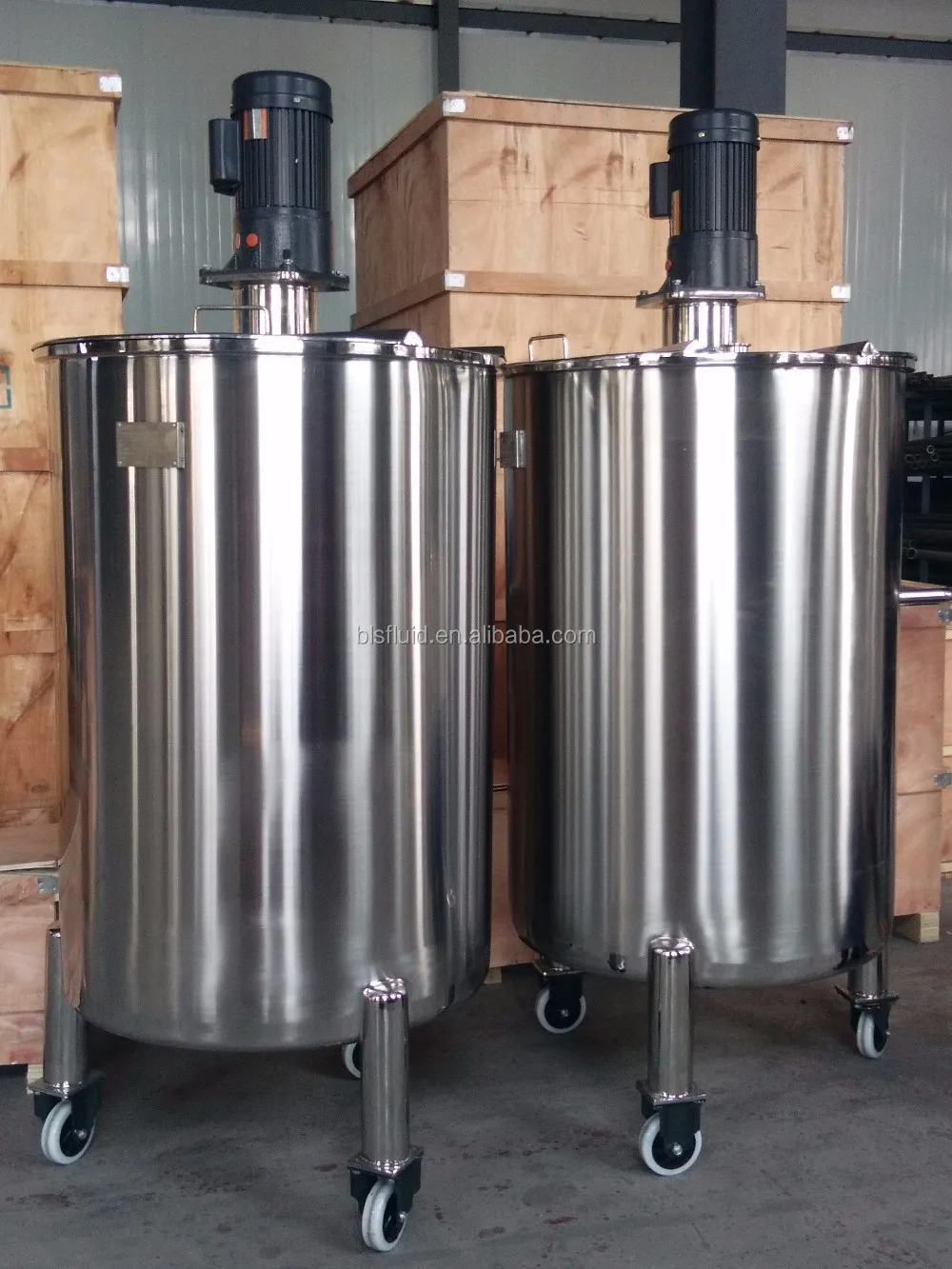

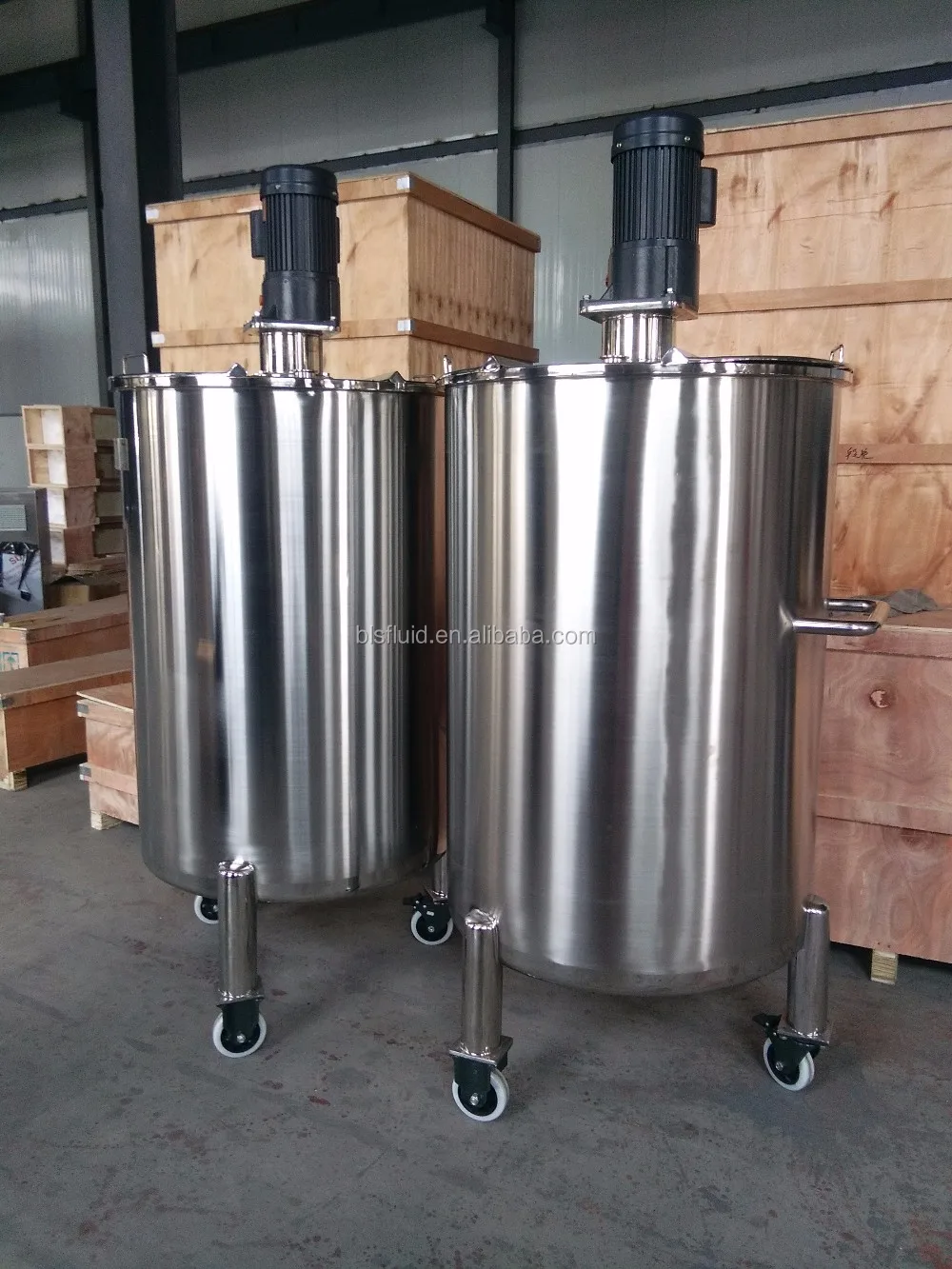

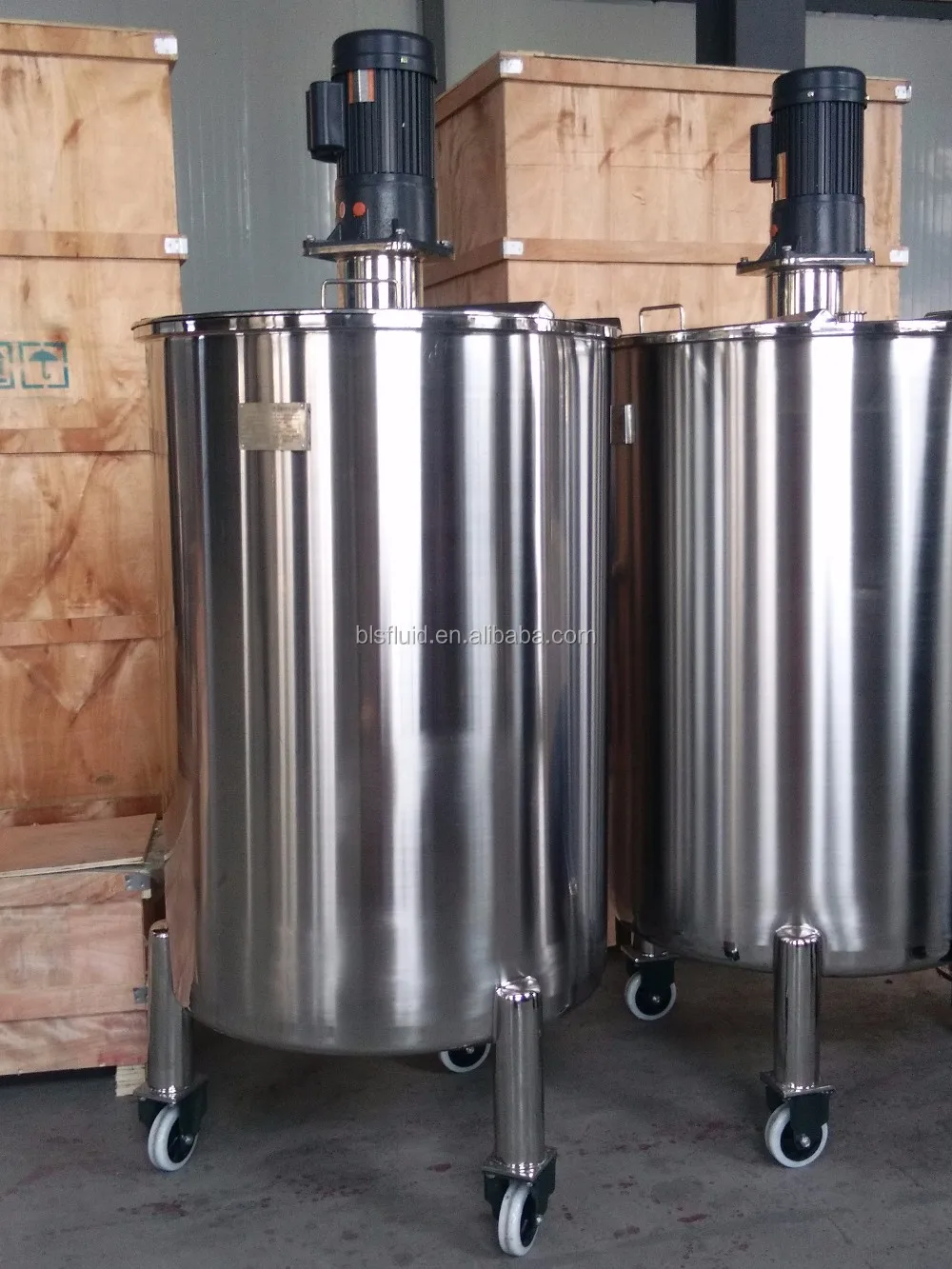

Hot Sale Oil Blending Machine for Base Oil and Additive

Brand: L&B

Material : stainless steel 304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.8um
Certification: CE  ISO9001:2008

Product Name:
Hot Sale Oil Blending Machine for Base Oil and Additive
Description:
Designed according to ISO9001 standard, widely used for mixing and blending liquid media in the food-processing, cosmetics and pharmaceutical industries etc.
Heating method
By electricity (oils or water), by steam, by gas
Material:
SS304/SS316
jacket: miller board, hollow jacket or semi-tube, coil pipe jacket
insulation layer: PU foam
as to the thickness, we can make it according to your requirement.
Optional Configuration
1.manhole
2.CIP spraying ball
3.adjusting feet
4.sample valve
5.temperature gauge
6.pressure gauge
7.level gauge
8.sanitary breathing cover
9.Dismountable materials input pipe assembly
10.Ladder
11.Liquid level meter and level controller
12.Eddy-proof board
Capacity:
50L-10000L

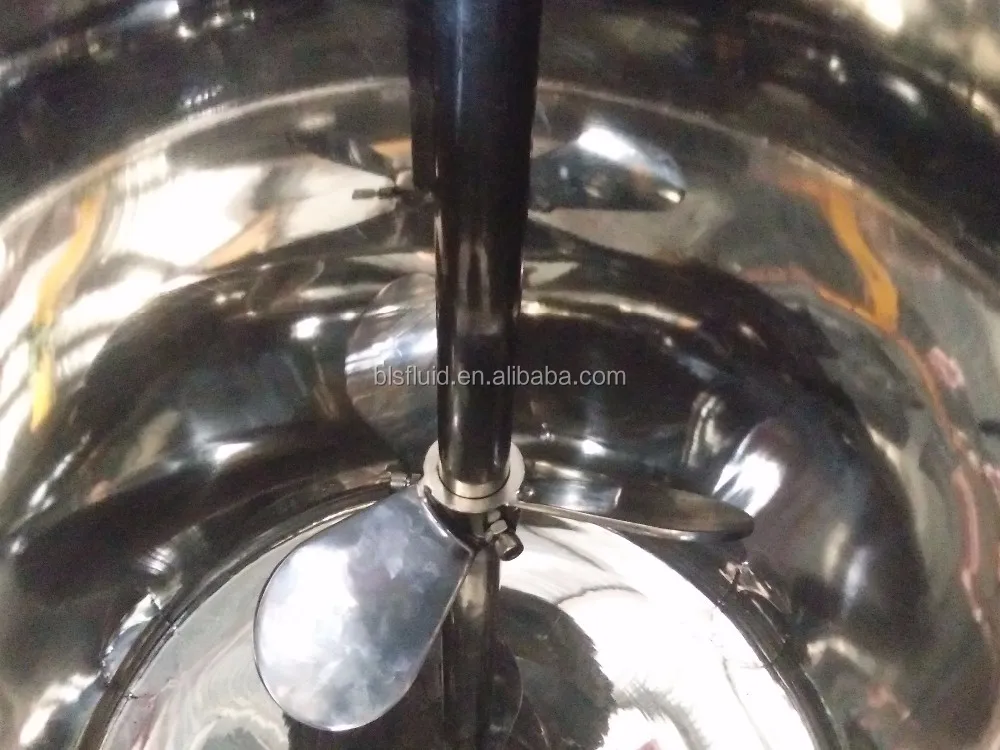

Agitator Type:
Anchor, frame, propeller, oar, turbo, homogenizer, impeller etc or without
Mechanical seal:
SIC/SiC/EPDM(Standard)
Layer
Single, double or three layer
Structure:
cylinder,dished head dished bottom,conical head,conical bottom,flat cover, double hinged lid pressure flange cover etc.
Pressure:
Normal pressure or under pressure
Agitator power:
0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW
Sealing option:
Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:
110-480V, 50/60Hz
Motor:
SIEMENS, ABB, LOCAL etc.
Surface treatment:
Inner polished and outside polished(Inside Ra<0.6 micron,surface mirror plosih Ra<0.9 micron)
Available connection:
Clamp, Thread Butt weld, Flange
Available standard:
DIN, SMS, 3A, RJT, ISO/IDF
Effective volume
Dimension of tank
Total height
Diameter of inlet&outlet
Heat preservation layer
(L)
(mm)
(mm)
(mm)
(mm)
500
840*1000
2250
38
60
600
920*1000
2300
38
60
700
990*1000
2300
38
60
800
950*1220
2500
38
60
900
1010*1220
2500
38
60
1000
1060*1500
2850
51
60
1500
1160*1500
2850
51
60
2000
1340*1500
2900
51
60
3000
1410*2000
3400
51
60
4000
1620*2000
3450
51
60
5000
1810*2000
3500
51
60
6000
1980*2000
3550
51
60
7000
1930*2440
4000
51
60
8000
2060*2440
4000
51
60
9000
2180*2440
4050
51
60
10000
2300*2440
4050
51
60
12000
2270*3000
4600
51
60
15000
2530*3000
4700
51
60
20000
2640*3660
5400
51
60
