Industrial 316L Screw pump for transferring grape juice for wine

FOB Reference Price:Get Latest Price
$3,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Horsepower:
15kw
Maximum Flow Rate:
30m3/h
Maximum Head:
25m
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
L&B
Model Number:
FSL
Structure:
Screw Pump
Usage:
Industrial 316L Screw pump for transferring grape juice for wine, 316L Screw pump for transferring grape juice for wine
Application:
Steel Twin Screw Stainless Steel Chocolate Pump
Power:
Electric
Fuel:
electric
Pressure:
High Pressure
Theory:
steel twin screw pump
material:
stainless steel 304, 316
working pressure:
25Bar
speed:
3600rpm
viscosity:
100000cst
working temperature:
130 ℃
Type:
Steel Twin Screw Pump
Function:
Screw pump for transferring grape juice for wine
Product name:
Industrial 316L Screw pump for transferring grape juice for wine
Supply Ability
Supply Ability:
200 Set/Sets per Month Industrial 316L Screw pump for transferring grape juice for wine
Packaging & Delivery
Packaging Details
plywood case package
Industrial 316L Screw pump for transferring grape juice for wine
Port
shanghai/ningbo
Video Description
Product Description

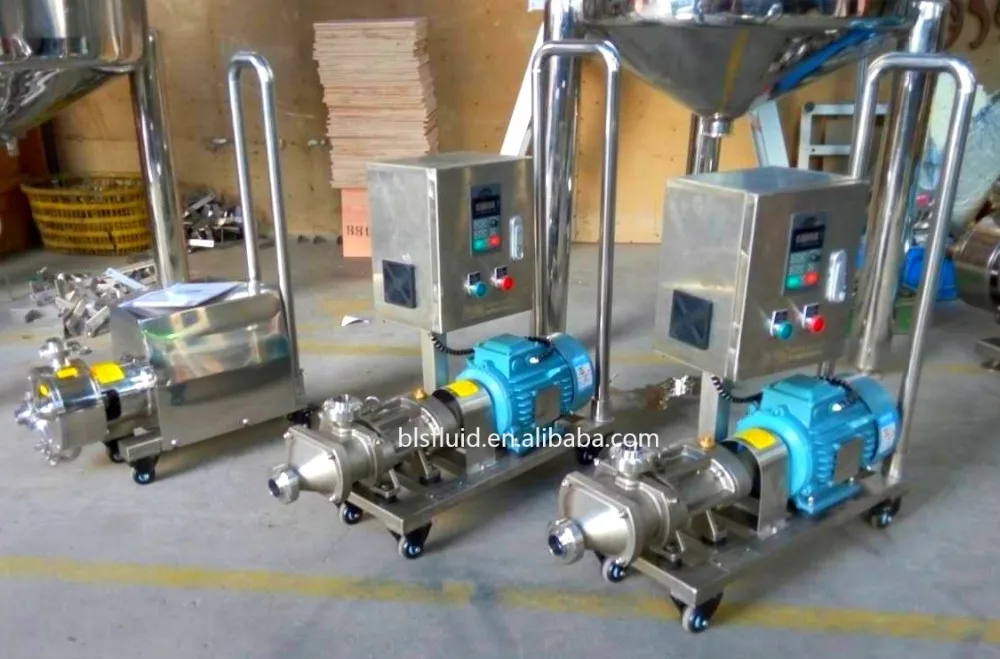

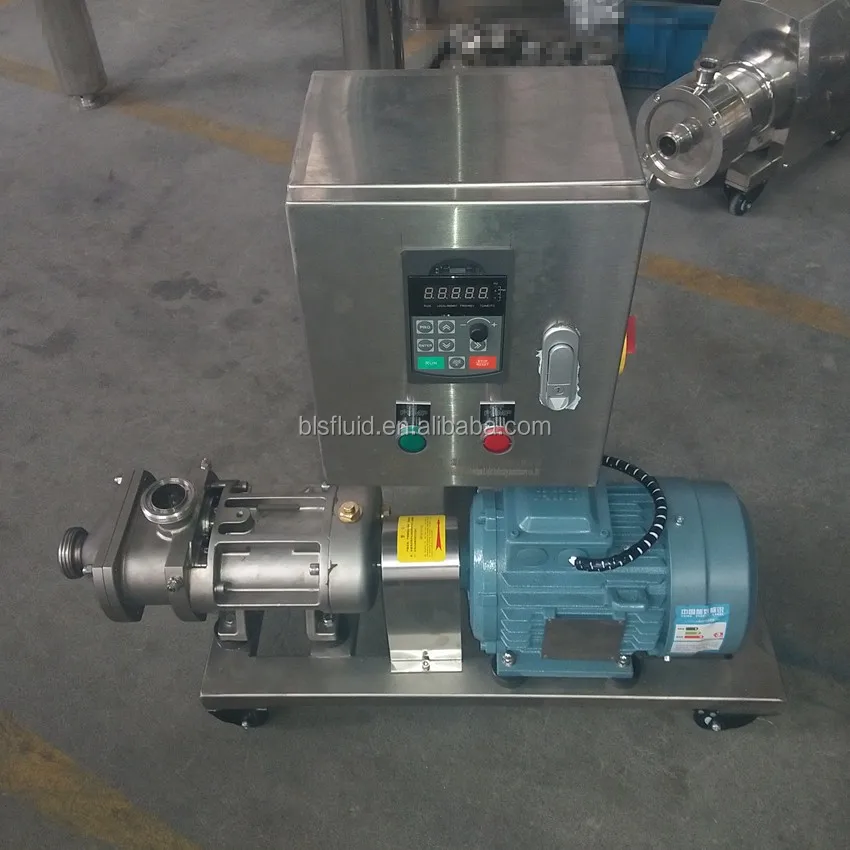

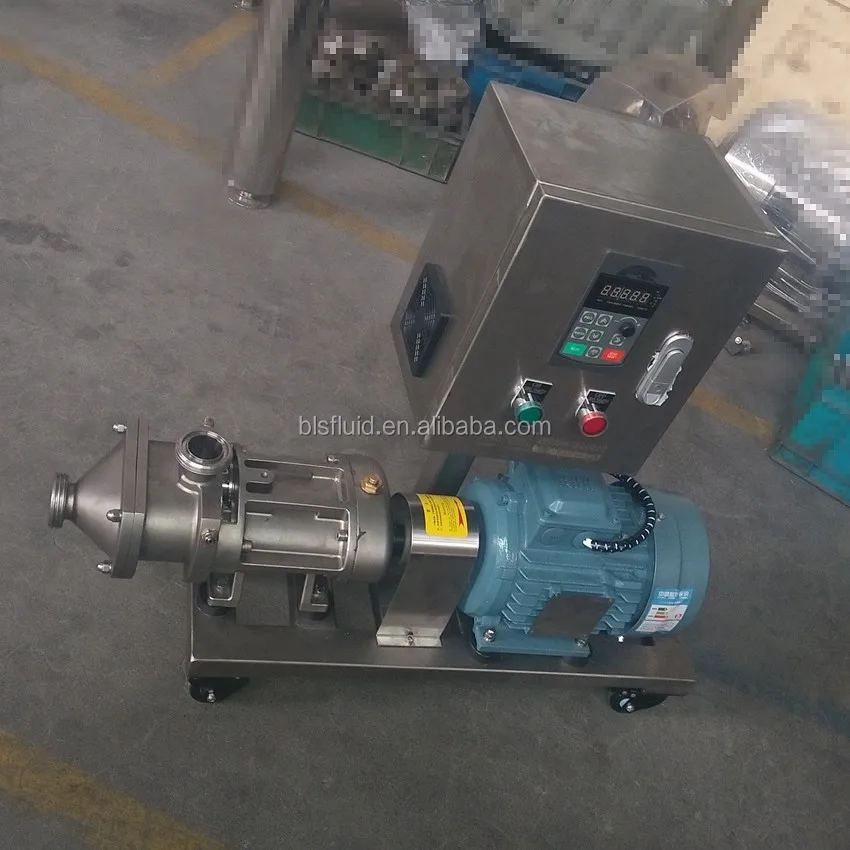

Industrial 316L Screw pump for transferring grape juice for wine

    FSL twin screw pump is mainly for delivery of high viscosity liquids, and belongs to positive displacement pump range. FSL twin screw pump is designs for sanitary use in food, pharmacy, dairy, beverage, etc. Industries. All the sanitary, reliability and rigidity meets the requirements of these industries. Standard design make all the spare parts could be displaced among same model pumps

APPLICATION

    The main advantage of the L&B Twin Screw Pump is its capacity to pump a great variety of viscous liquids, from 11mPa s up to 100000mPa s.
    Furthermore, it is capable of pumping liquid products that require very careful handling and liquids that contain soft solids the causing only a minimum degradation of same.

SIX REASONS TO BELIEVE

1. CIP and SIP – easy cleaning and sterilization
2. High suction performance for more production efficiency
3. Smooth and pulsation-free handling for sensitive products
4. Top resistance to wear leads to safe production and long lifetime
5. Handles the widest range of viscosity
6. Adaptable to the medium – flexible implementation

Model type
Material
Flow T/h
Power kw
RPM
FLS-03-15
304/316
0-3
1.5
1480
FLS-05-22
304/316
0-5
2.2
FLS-10-40
304/316
0-10
4.0
FLS-20-75
304/316
0-20
7.5
FLS-30-150
304/316
0-30
15
Detailed Image


Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.

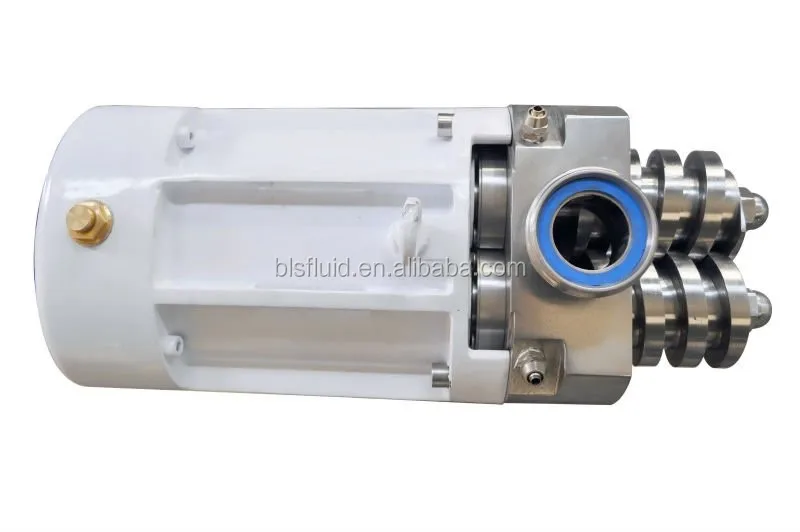

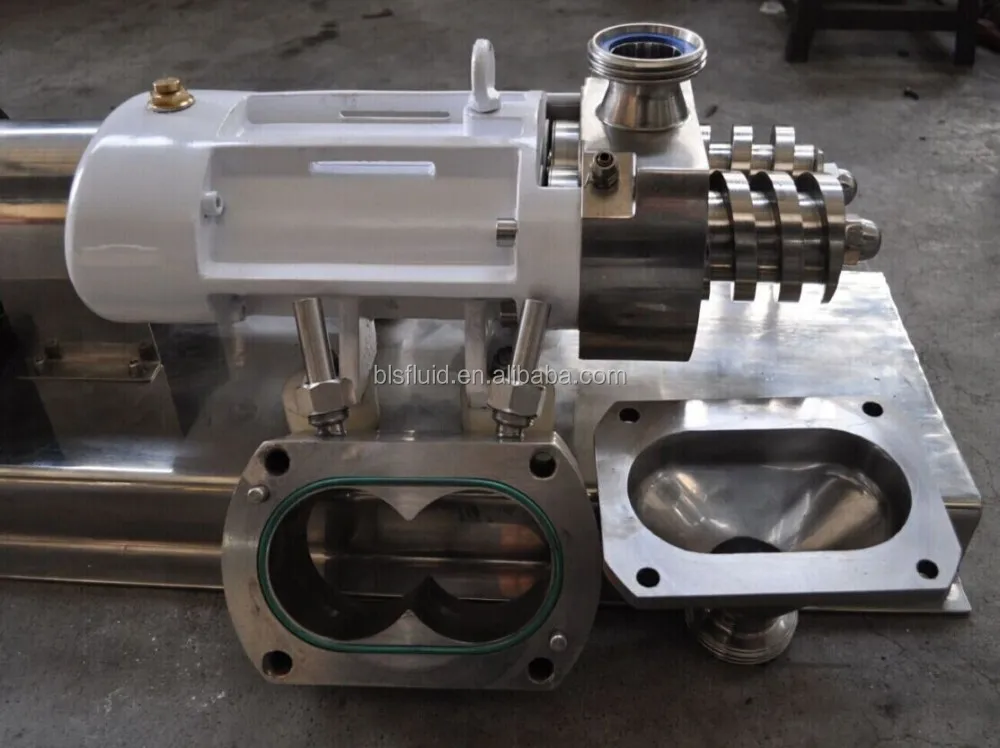

Specially designed twin screw rotors


    mesh with each other, forming a series of dynamic sealing space between them.

    Continuous rotation and meshing of the two rotors makes a continuous formation in the suction part, the liquid continuously moving along in the axis direction to the discharge end.


Jacket aviable


    Cooling and Heating Jacket Available


Seal avaible

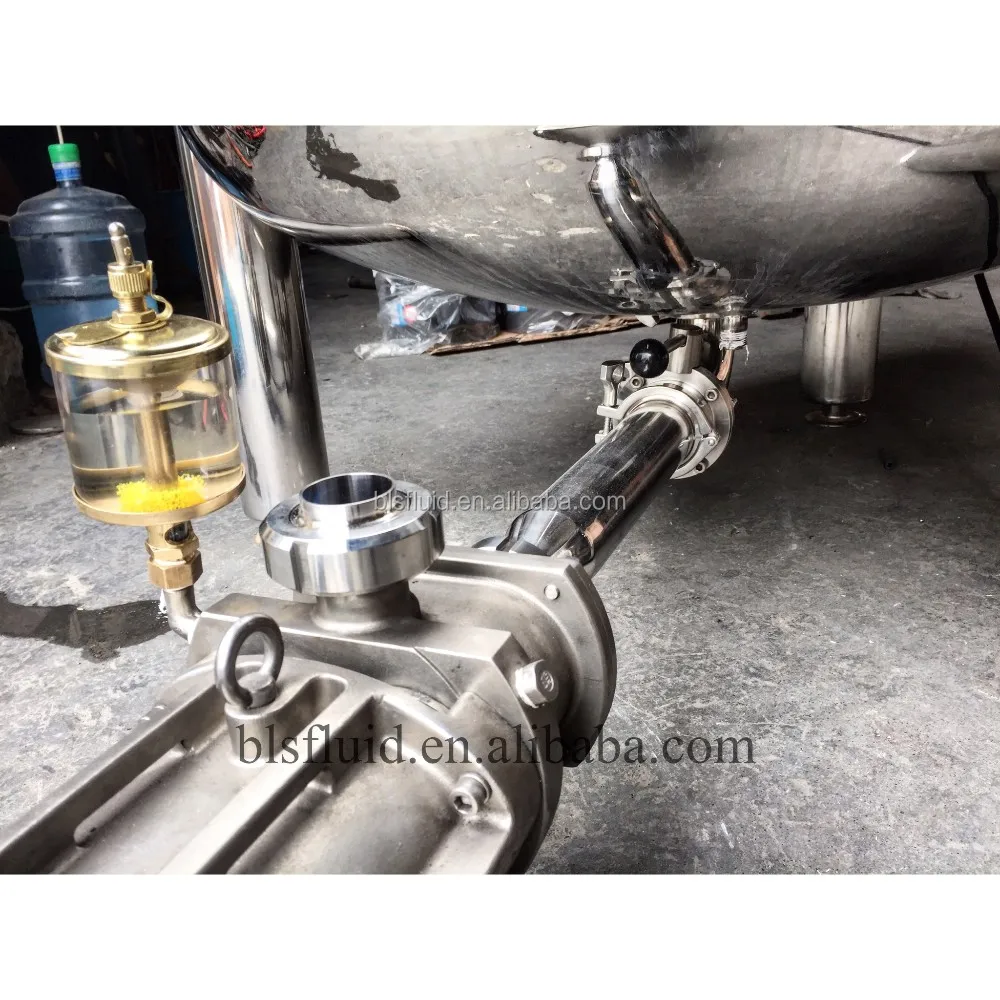

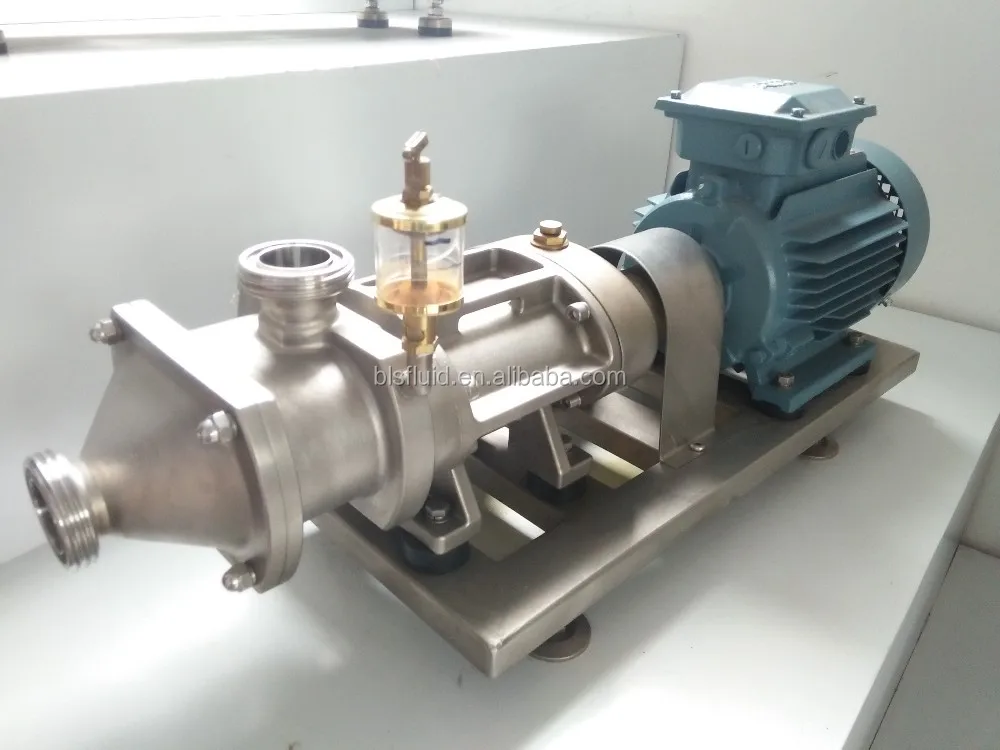

    single seal(normal temperature) with oil cup


Seal avaible

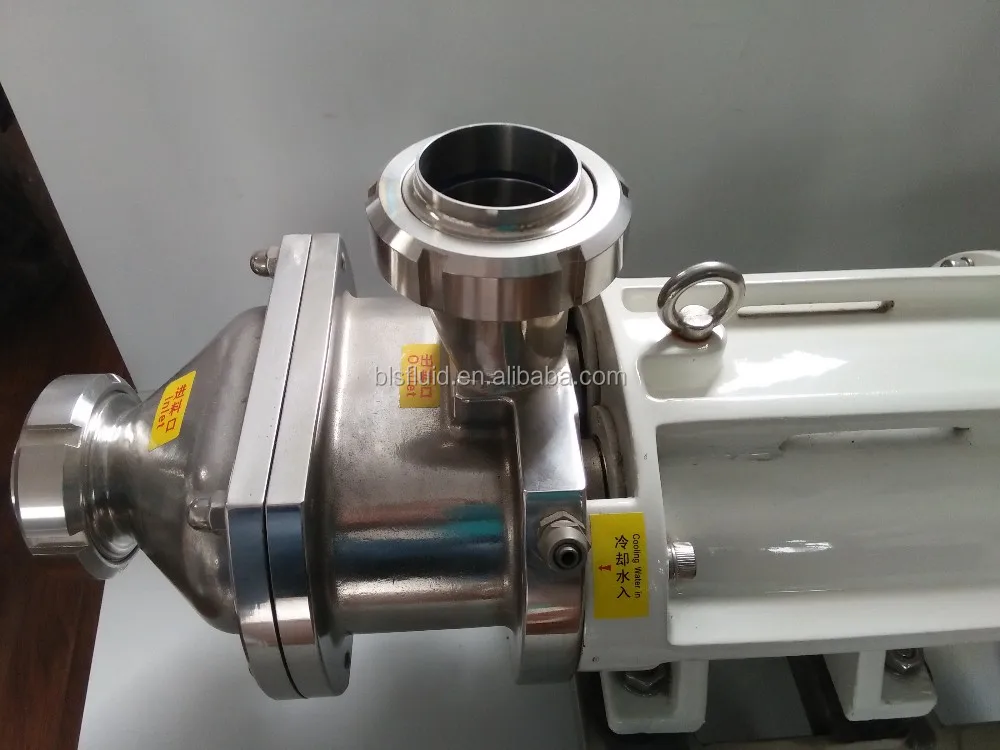

    double seal with cooling water port

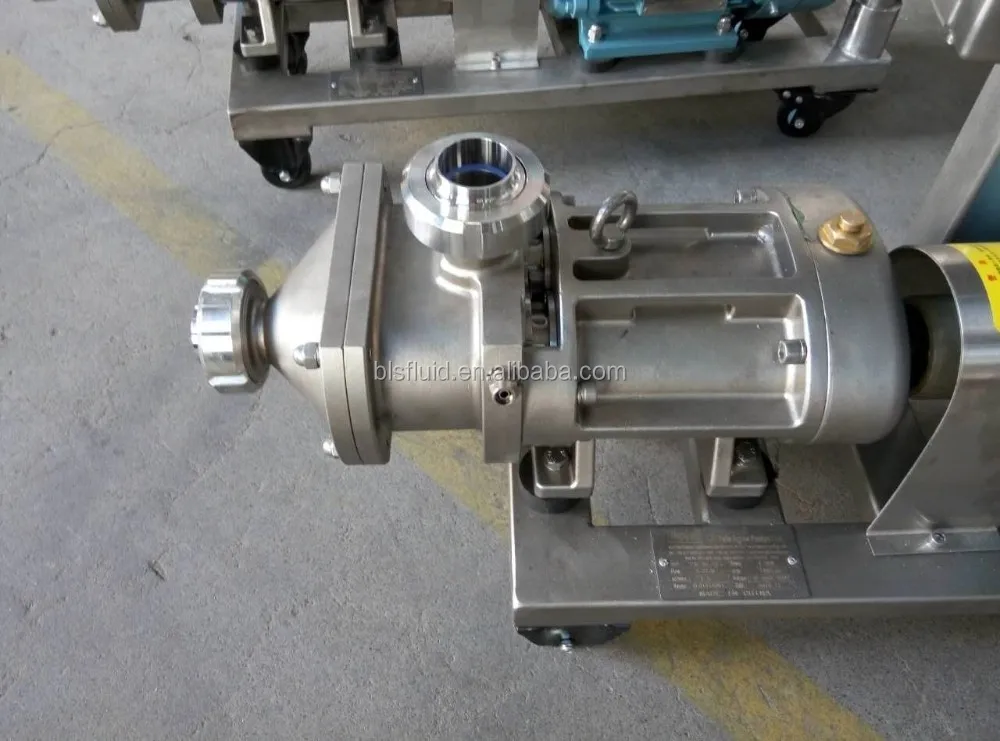

inlet and outlet port connect


    Uinon type standard pump inlet and outlet port connected , clamp and flange avaible

Certifications
Packing & Delivery
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
