Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: L&B
  • Model Number: BLS-8,12...
  • Theory: Rotary Pump
  • Structure: Screw Pump
  • Usage: Water
  • Power: Electric, 1.5-7.5KW
  • Standard or Nonstandard: Standard
  • Fuel: other
  • Pressure: High Pressure
  • Application: Submersible, food,chemical industry
  • Speed: 1480rpm
  • Flow: 0-20T/H
  • Material: stainless steel
  • Name: chocolate transfer pump
  • technical advantage: 20 years manufacture experience
  • products advantage: 10 years export experience
  • voltage: 110-480V
  • Type: Screw pump

Packaging & Delivery

Packaging Details Plywood case chocolate transfer pump
Delivery Time 10-25days high viscosity liquid transfer pump
Product Description

Top quality 316L twin screw food pump for chocolate paste



Brand name:BLS

Certificate:ISO9001:2008,CE

Packaging:plywood case

Delivery time:25 workdays

Technical advantage:20 years manufacture experience, 10 years export experience

Products advantage:High quality and best price



Application field:

High viscosity liquid transfer pump for food industry is also called progressive cavity pump, Is widely used in

delivery of high viscosity products such as chocolate, syrup and jams etc.



Our screw pump is madefrom high purity stainless steel, And with no dead corner design, Very

easy to clean, We have two type of screw pump, : Single screw pump and twin screw pump. Our new designed twin screw pump is CE approved,



Design and features
Different Connection type: Welding; Thread; Clamp; Flange
Different connections standard: DIN, SMS, JIS, ISO.
Sanitary mechanical seal.
Parts in contact with pumped media AISI 316L or 304
Pump support from AISI 304
Inside surface finishing Ra < 0.4 um.
Outside surface finishing Mirror polished
Various rotor available three lobe butterfly lobe etc


Options
Heating chamber (Jacket)
Mechanical seals in SiC/C, SiC/SiC or TgC/SiC.
Cooled or double mechanical seal.
Motors with additional protection. (movable, ABB Explosion proof).
Trolley and/ Switchboard with invertor

Technical Parameters



Model       Flow (T/H)Inlet/Outlet (mm)WeightSpeed (rpm)Outlet pressure (mpa)Power (kw)
FSL-03-150-31.5''/1.25''721480≤ 1.01.5
FSL-05-220-52''811480≤ 1.52.2
FSL-10-400-102.5''961480≤ 1.54.0
FSL-15-550-153''1121480≤ 1.55.5
FSL-20-750-203''1321480≤ 1.57.5

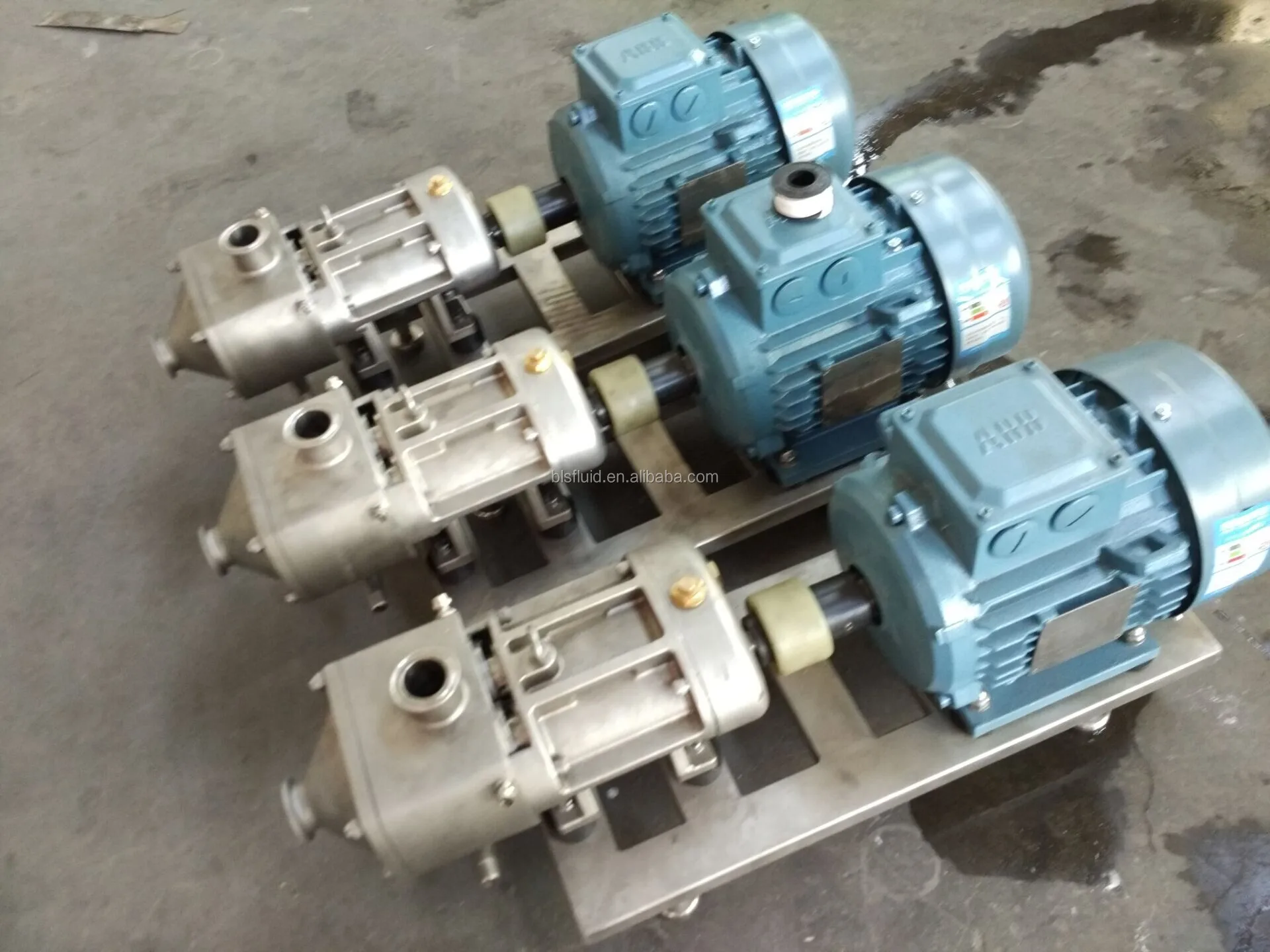

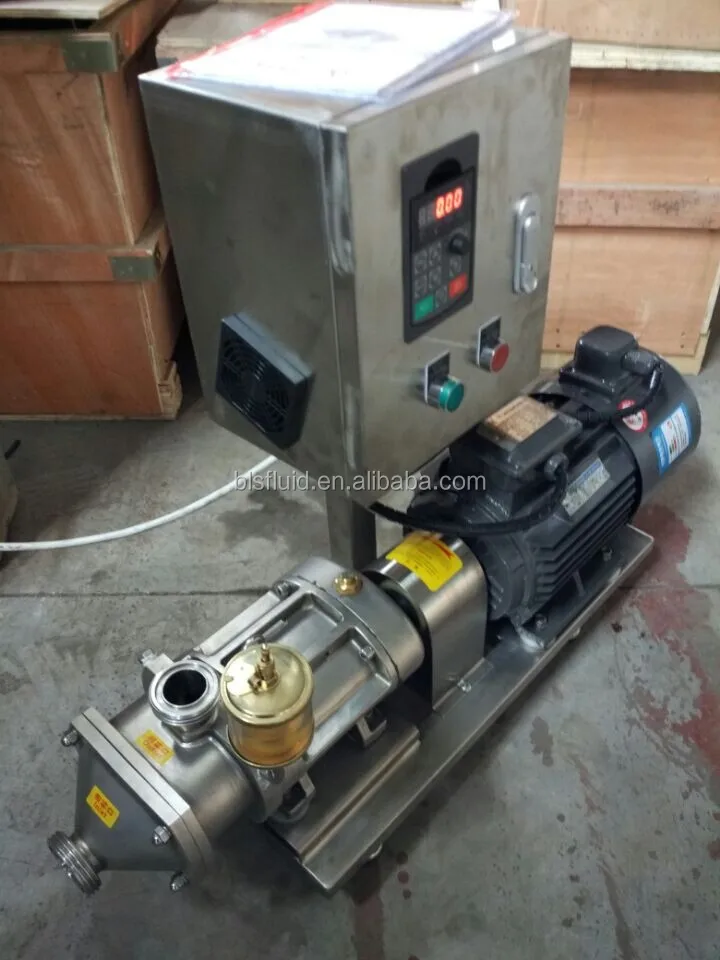

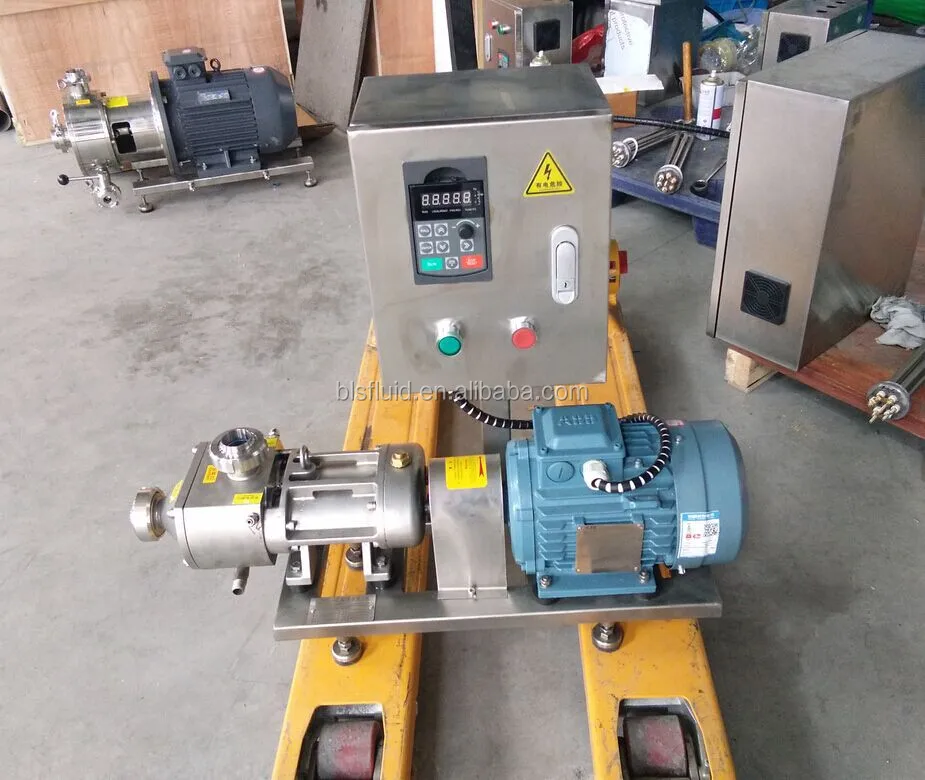

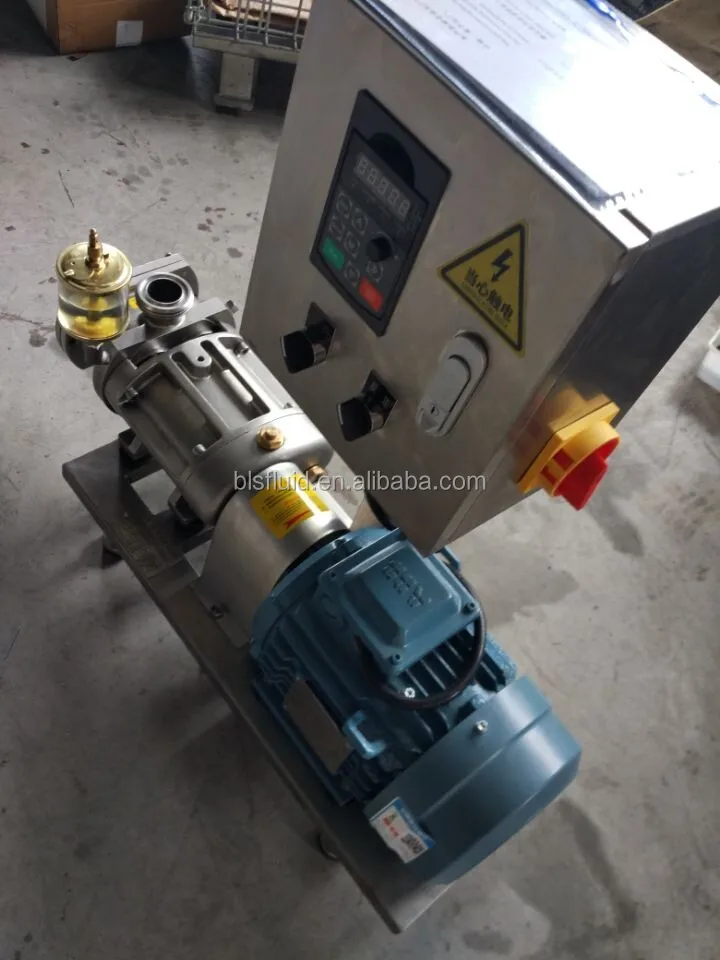

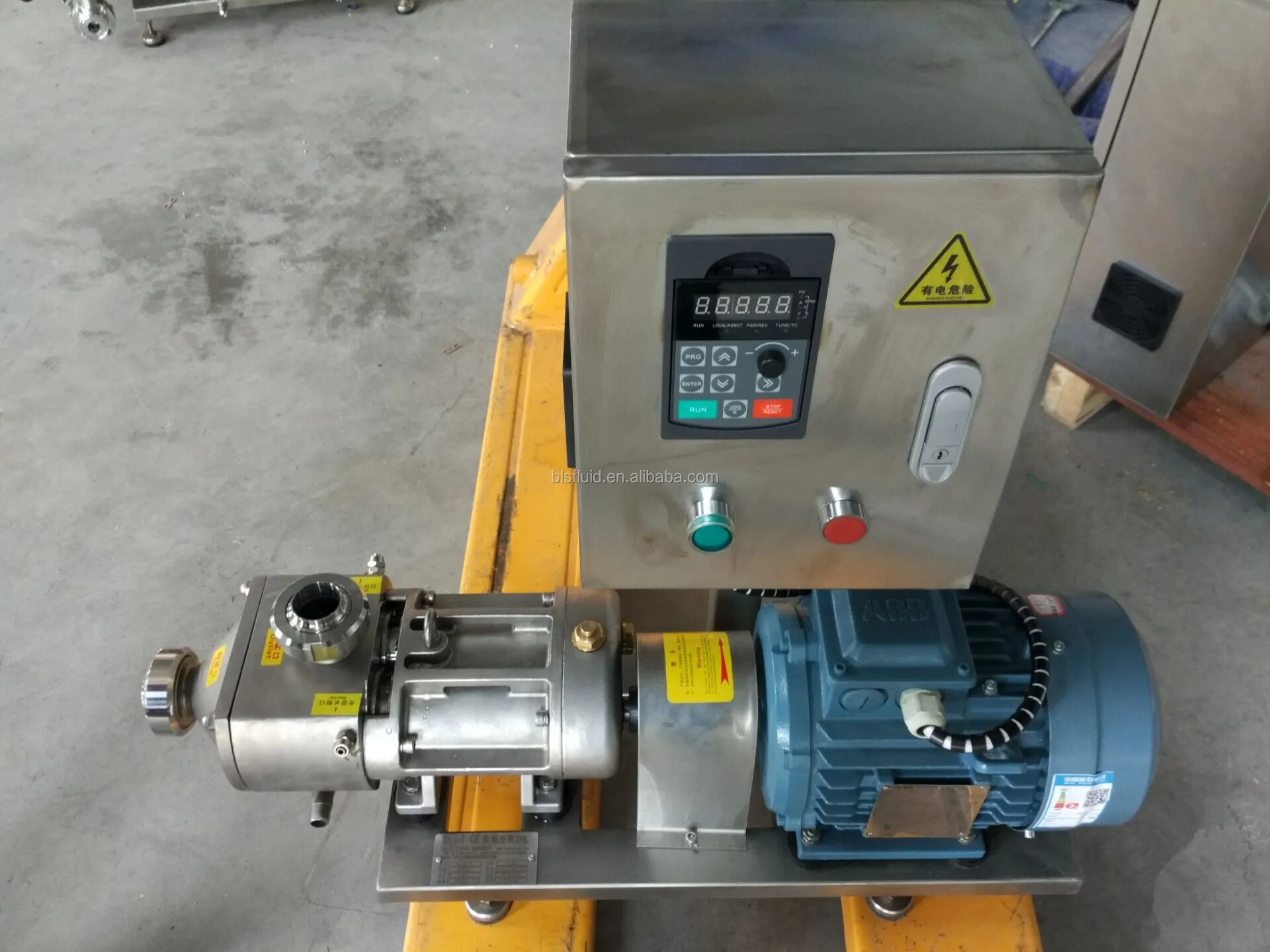

Product Photos

Double Screw Pump
