batch industrial homogenizer/disperser/emulsifier/stirrer

FOB Reference Price:Get Latest Price
US $800-4,000 / Sets | 1 Set/Sets industrial homogenizer (Min. Order)
Model Number:
BRH
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Homogenizer
Product Type:
Cosmetic
Application:
Liquid with Suspended Solids
Additional Capabilities:
Milling
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Max. Loading Capacity:
10000L/h
Voltage:
110-600v
Power(W):
1.1kw-75kw
Dimension(L*W*H):
as per need
Certification:
SGS,CE
Warranty:
2 years
After-sales Service Provided:
Overseas service center available
name:
industrial homogenizer
speed:
0-2800rpm
material:
stainless steel 304/316
capacity:
10-10000L/H
Supply Ability
Supply Ability:
100 Set/Sets per Week industrial homogenizer
Packaging & Delivery
Packaging Details
standard export package
Port
Ningbo
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 >5
Est. Time(day) 15 25 To be negotiated

industrial homogenizer


Brand: BLS
Material: 304(L)  or  316(L)
Finish: Mirror or Matt Polish; Ra<0.8um
Certification:  CE  ISO9001:2000

Working Method:

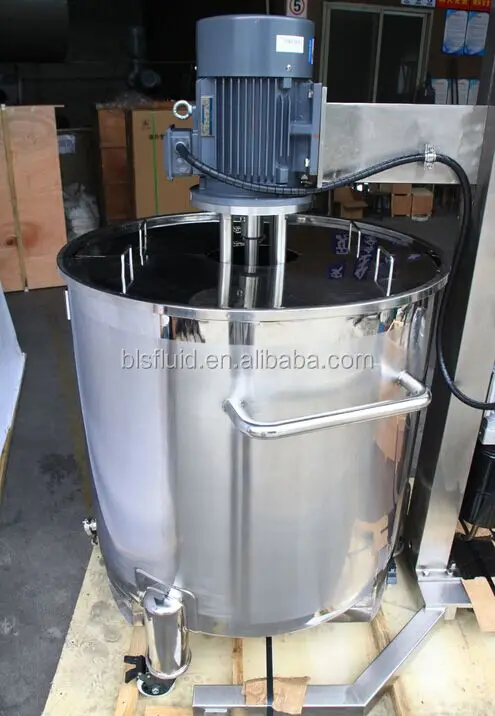

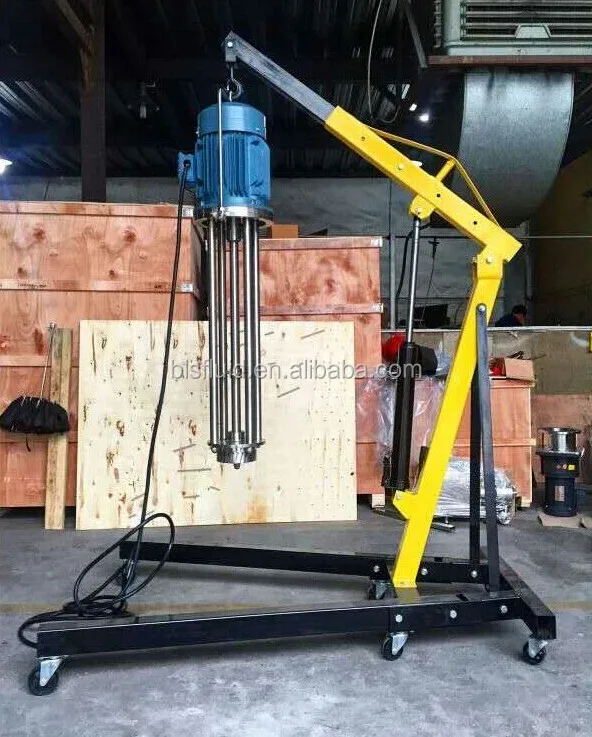

High Shear Batch Emulsifier(mixer) is suitable for mixing, Dispersing, Shearing and Homogenizing all kinds of viscous liquid and pastes. The products could be applied in Food, Beverage, Chemical, Pharmaceutical, Paint& ink industry etc. The Unit consists of a centrally located shaft, connected to a flanged type motor mounted on a steel housing. We have four types of different stators to suit different working condition.

Features of Batch Mixer
All wetted parts are grade 304 or 316 Stainless steel
Mechanical Seal for Sanitary Operation
Quick opening for easy cleaning
Hygienic Design

A-P2

ModelPower(kw)Speed(RPM)Length(mm)Capacity(L)
BRH-801.1280035010-40
BRH-901.5280035010-50
BRH-1002.2280065050-100
BRH-12032800750100-200
BRH-120A42800750100-300
BRH-1405.52800900200-600
BRH-140A7.52800900200-800
BRH-1601128001050500-1500
BRH-18018.528001200600-2000
BRH-2002228001200800-2500
BRH-22030140013551000-3500
BRH-24045140013951500-5000
BRH-27055140016002000-8000
BRH-29075140016503000-10000



A-P3
