Quick Details

  • Condition: New
  • Mixer Type: Homogenizer
  • Product Type: Resin Dispersing Mixer Machine
  • Application: Liquid
  • Additional Capabilities: Batch high shear homoginizer with stand lifter
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: BLS
  • Model Number: BRH
  • Max. Loading Capacity: 10000L
  • Voltage: 110-480V
  • Power(W): 1.1-75KW
  • Dimension(L*W*H): 800*1000*2800mm
  • Certification: ISO9001:2008
  • Warranty: 12 Months
  • After-sales Service Provided: Overseas service center available
  • Name: 22KW Hydraulic Lift Variable Speed Resin Dispersing Mixer Machine
  • Material: Stainless Steel 304/315L
  • Function: mixer machine with lift
  • Capacity: 5-10000L/H
  • Wearing parts: Wearing parts sleeve, mechanical seal
  • Item: high shear homoginizer
  • Sleeve material: graphite bushing, PTFE etc.
  • Machine Type: Batch high shear homoginizer with stand lifter
  • Hot sale: high temperature heat treatment, difficult deformation
  • Speed: 2800rpm/1400rpm

Packaging & Delivery

Packaging Details plywood case package
22KW Hydraulic Lift Variable Speed Resin Dispersing Mixer Machine
Delivery Time 15 days for lift emulsifiers
Product Description

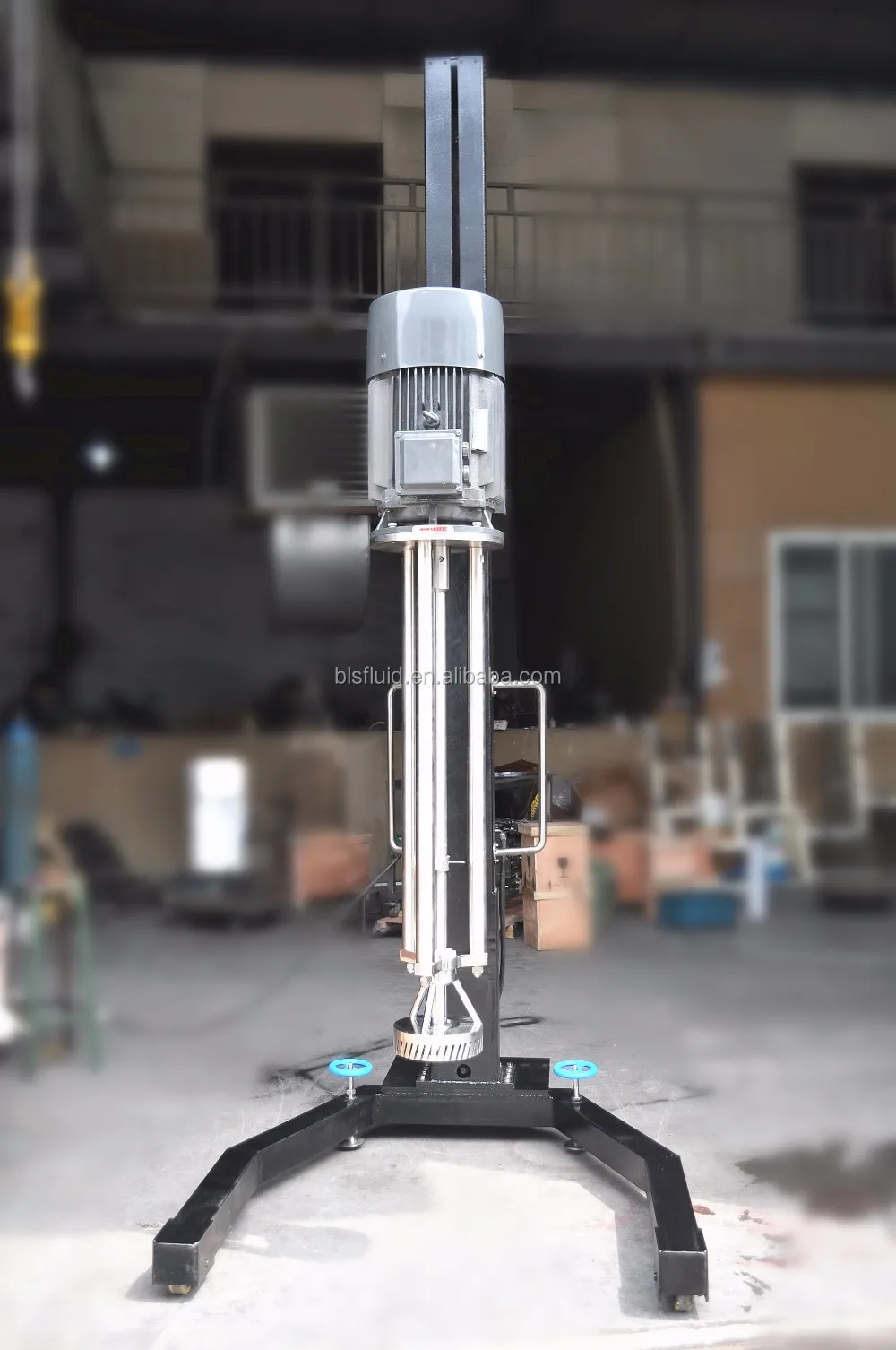

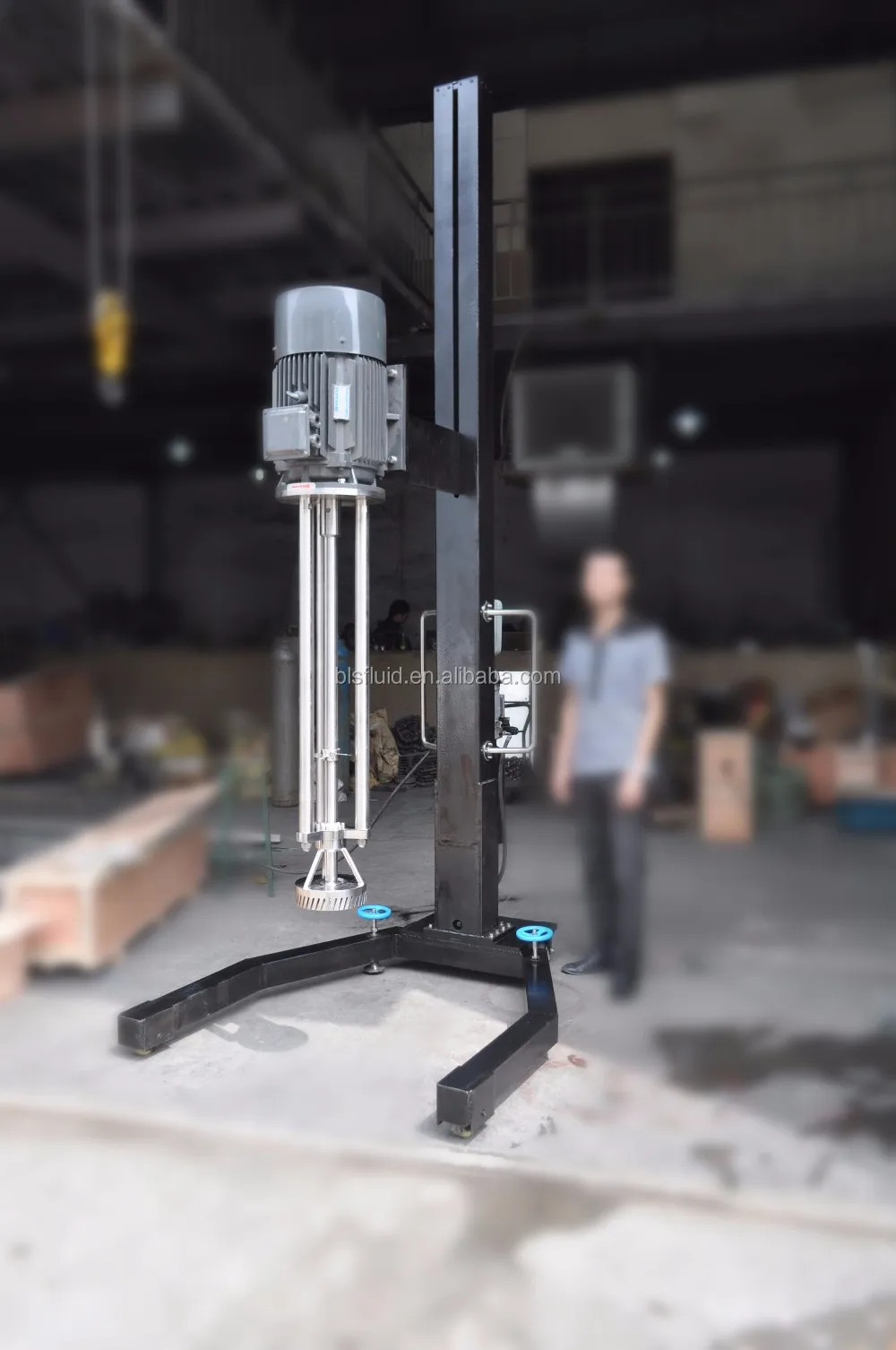

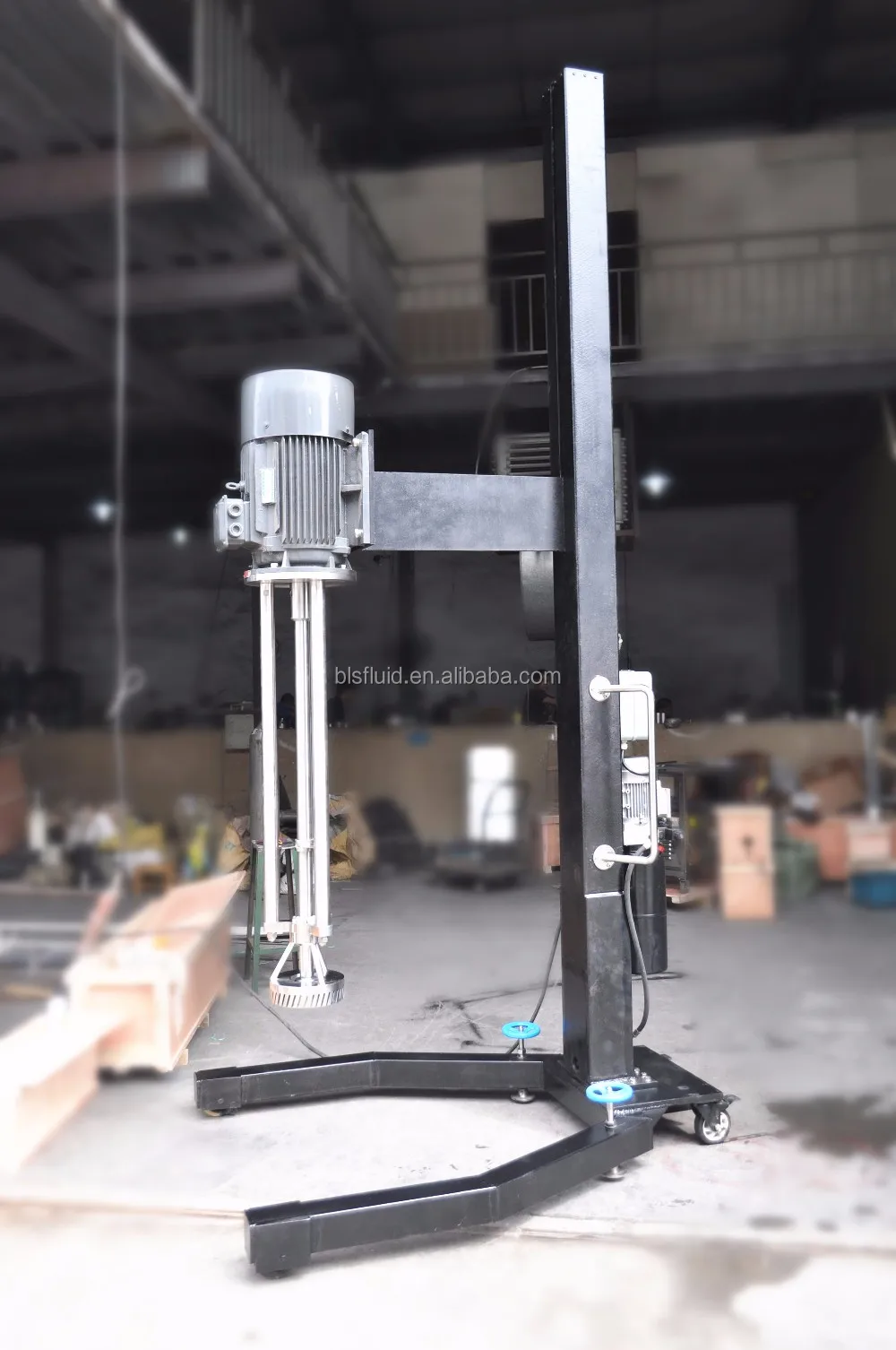

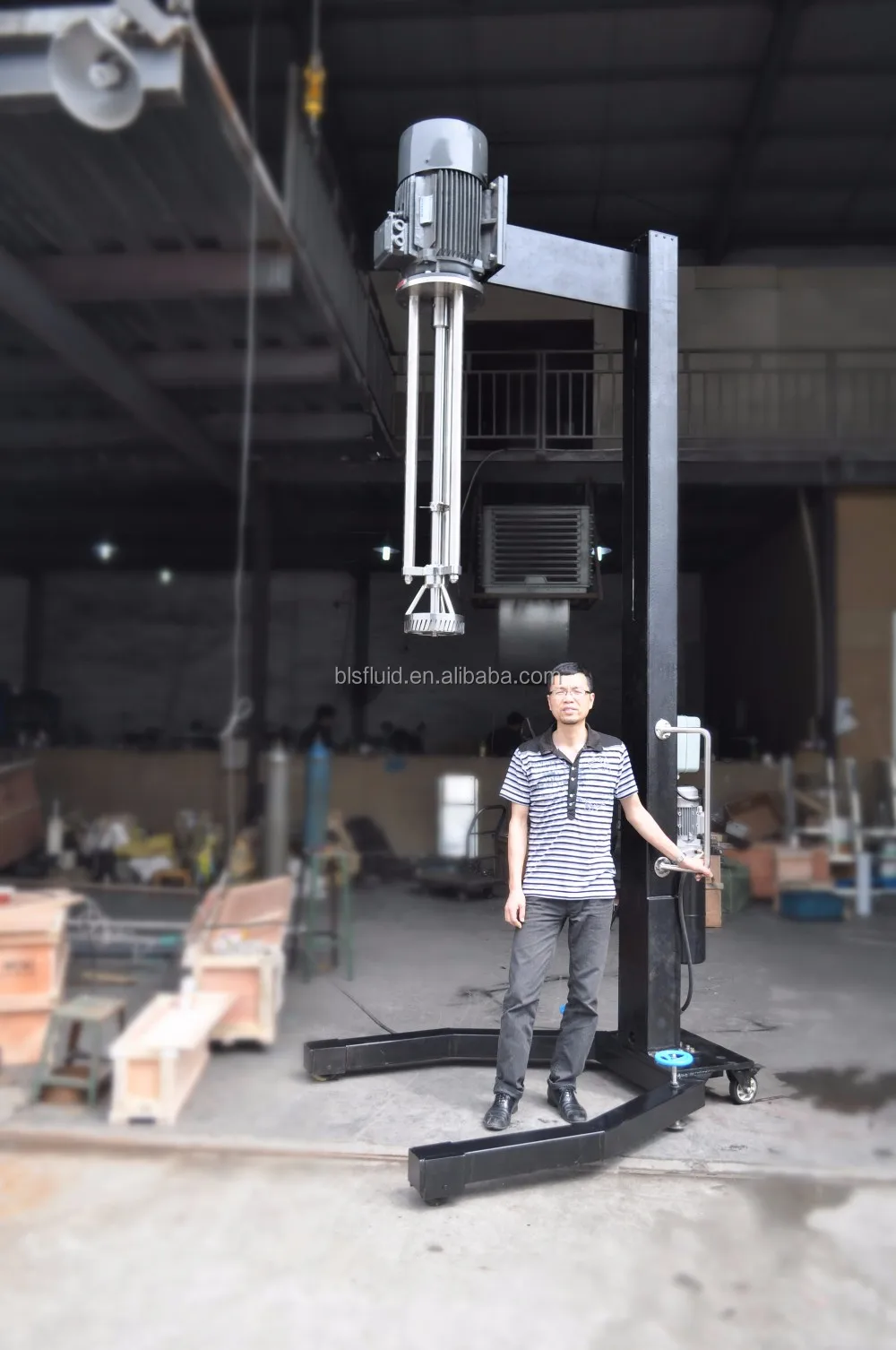

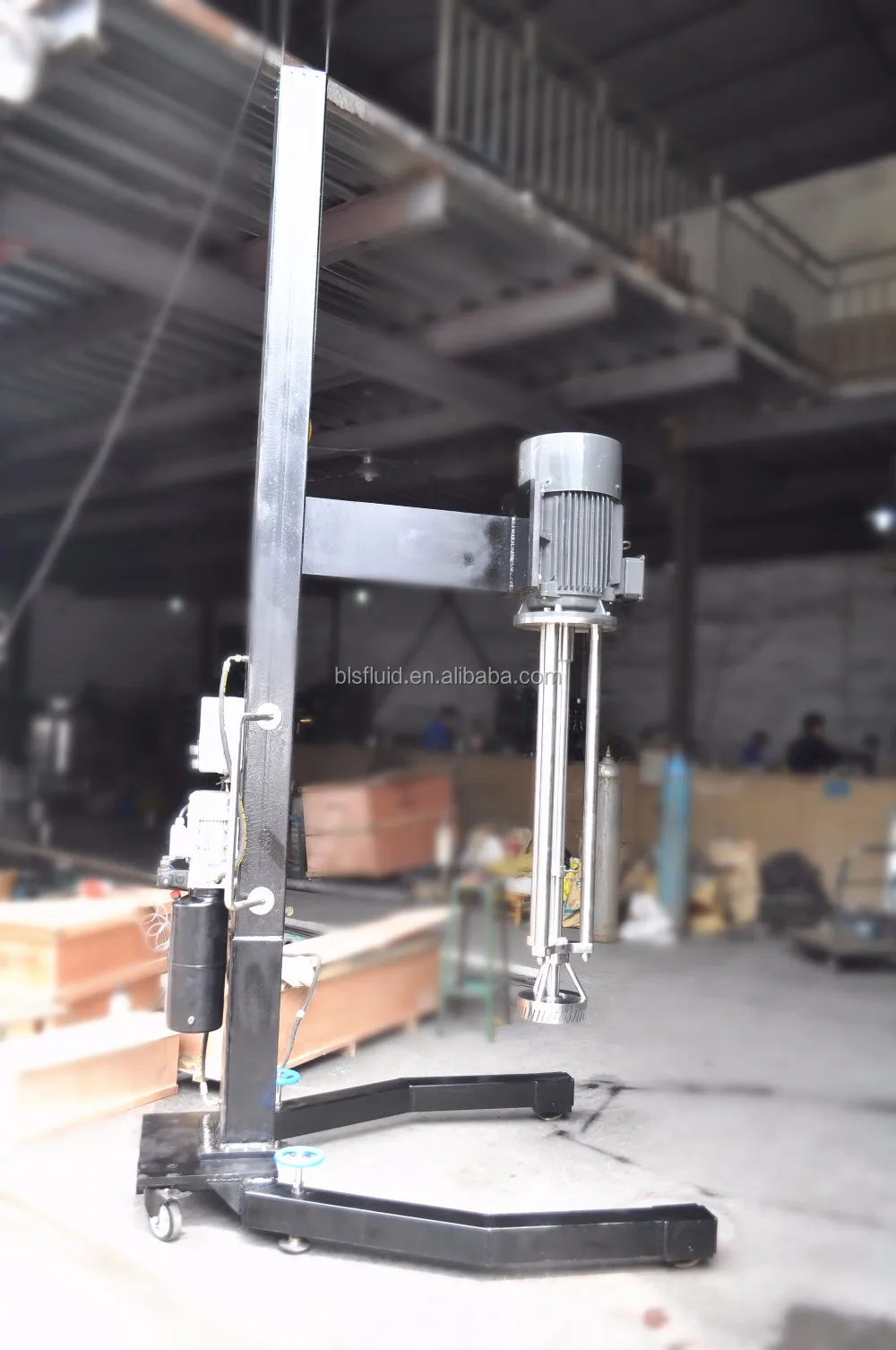

22KW Hydraulic Lift Variable Speed Resin Dispersing Mixer Machine

    It is a kind of vertical installation of emulsification equipment. Stator design for claw type coupling structure, material from the host upper and lower suction at the same time, and around the centrifugal throw, Shear homogeneous efficiency multiplied, to avoid the problem of kettle inside the upper material is easy to produce blind Angle.

Reference parameters
Name
22KW Hydraulic Lift Variable Speed Resin Dispersing Mixer Machine
Brand name
L&B
Material
ss304 and ss316(ss304 suit acid or alkali weak; ss316 suit acid or alkali a bit strong.)
Warranty
mechanical seal warranty period is 6 months, sleeve is 1 month, and  other parts within 12 months
Wearing parts
sleeve, mechanical seal
Sleeve material
graphite bushing, PTFE etc.
Motor power
1.1-75kw
Speed
2800rpm/1400rpm
Capacity
5-10000L/H
Motor
Siemens is optional
Hot sale
high temperature heat treatment, difficult deformation
Different types
1) BRH I: straight tooth, be good at dispersive mixing, suit liquid(exclude oil) and powder mixing;

2) BRH II: oblique tooth, be good at homogeneous emulsifying, suit oil liquid and powder mixing;

3) BRH III and kettle bottom emulsification head: straight tooth and oblique tooth are optional, small capacity, proof pressure(positive pressure≤3 Bar, negative pressure≤1Bar, high pressure≤8Bar).

4) BRH IV: straight tooth and oblique tooth are optional, suit 1.5T-2.5T tank, the whole length can reach 2.5m-2.7m, motor power is more than 30kw(equipped with water-cooling system).
Model
Power (KW)
Speed (RPM)
Capacity (L)
BRH90
1.5
2800-2900
5~50
BRH100
2.2
50~100
BRH120
4
100~300
BRH140
7.5
200~800
BRH160
11
300~1000
BRH180
18.5
500~1500
BRH200
22
1400-1500
800~2000
BRH220
30
1000~3000
BRH240
37
1500~5000
BRH270
55
2000~8000
BRH290
75
3000~10000
Detailed Images



Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.

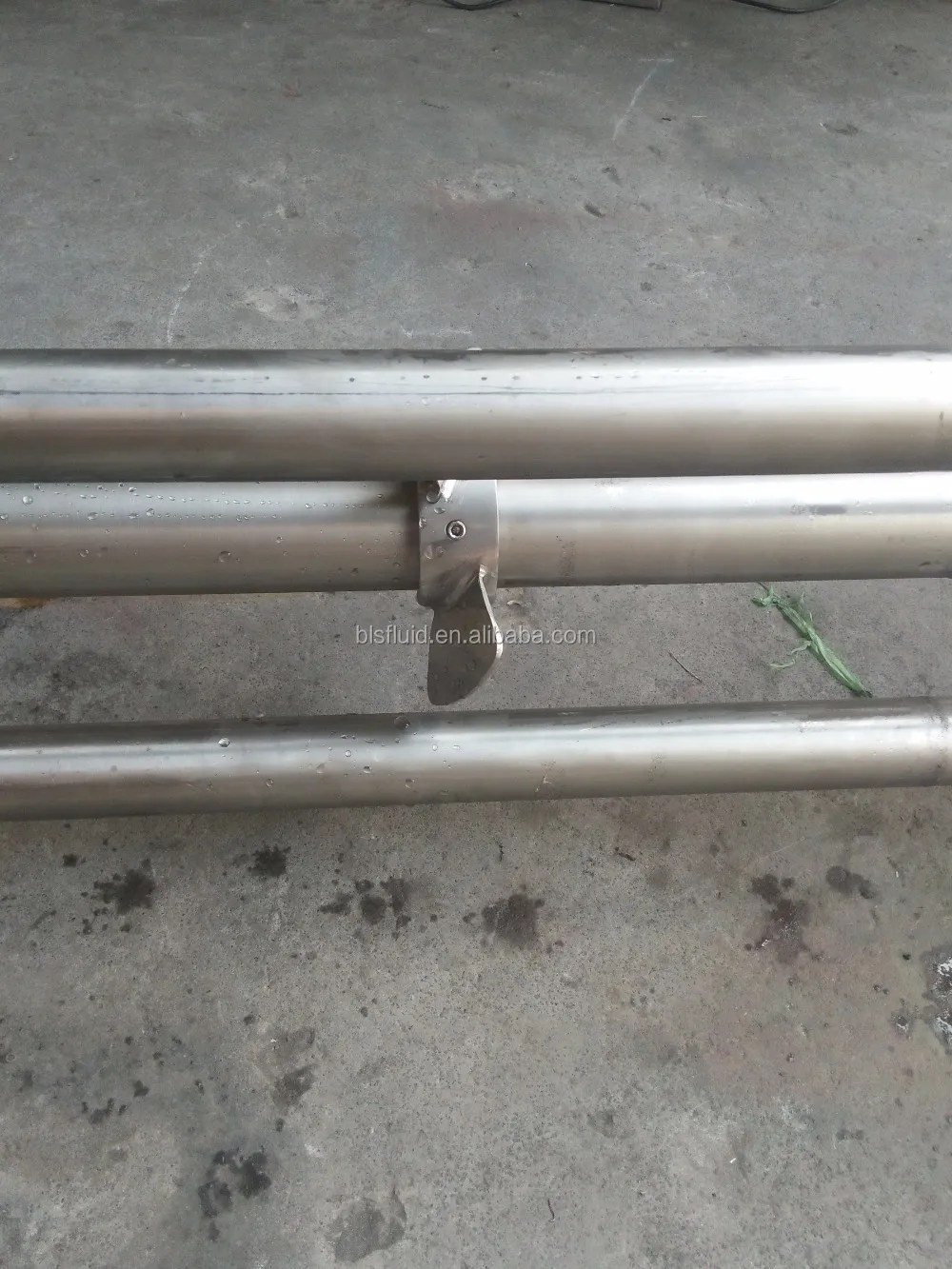

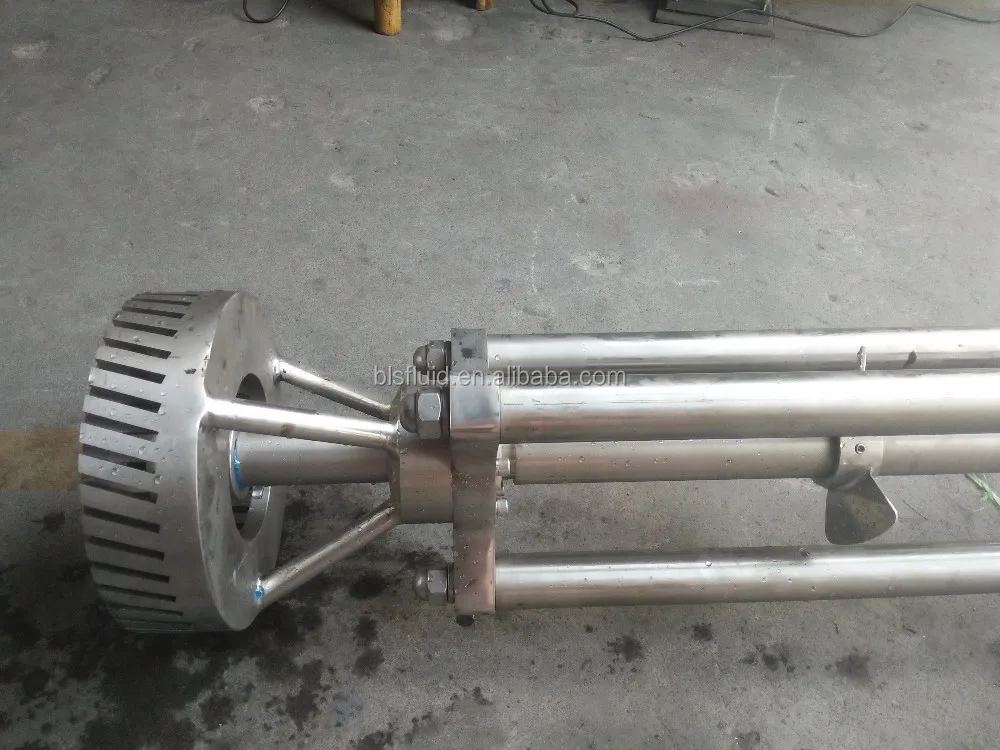

Impeller




Bearing high


    temperature heat treatment, difficult deformation

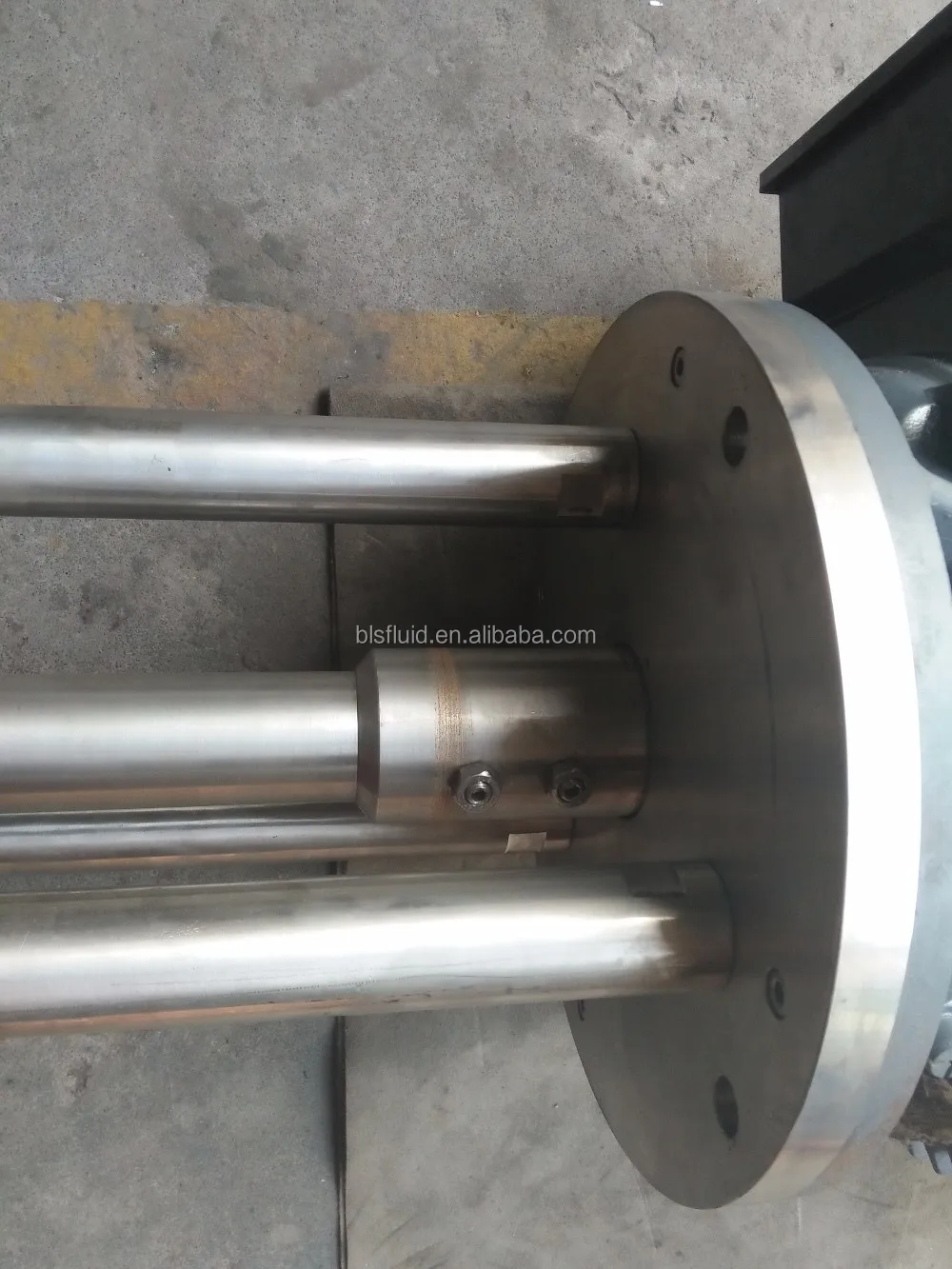

Flange plate




Hydraulic pump

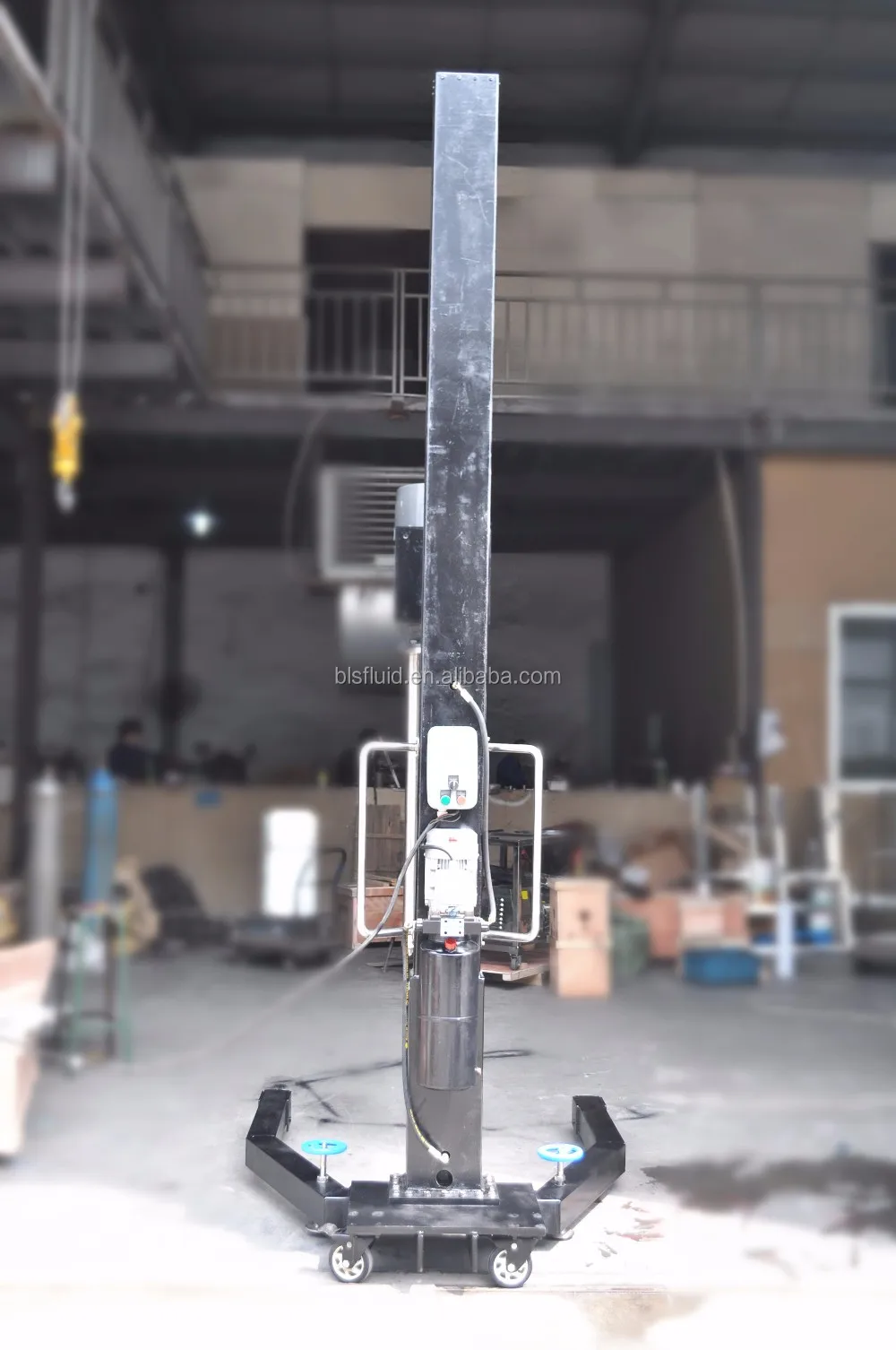

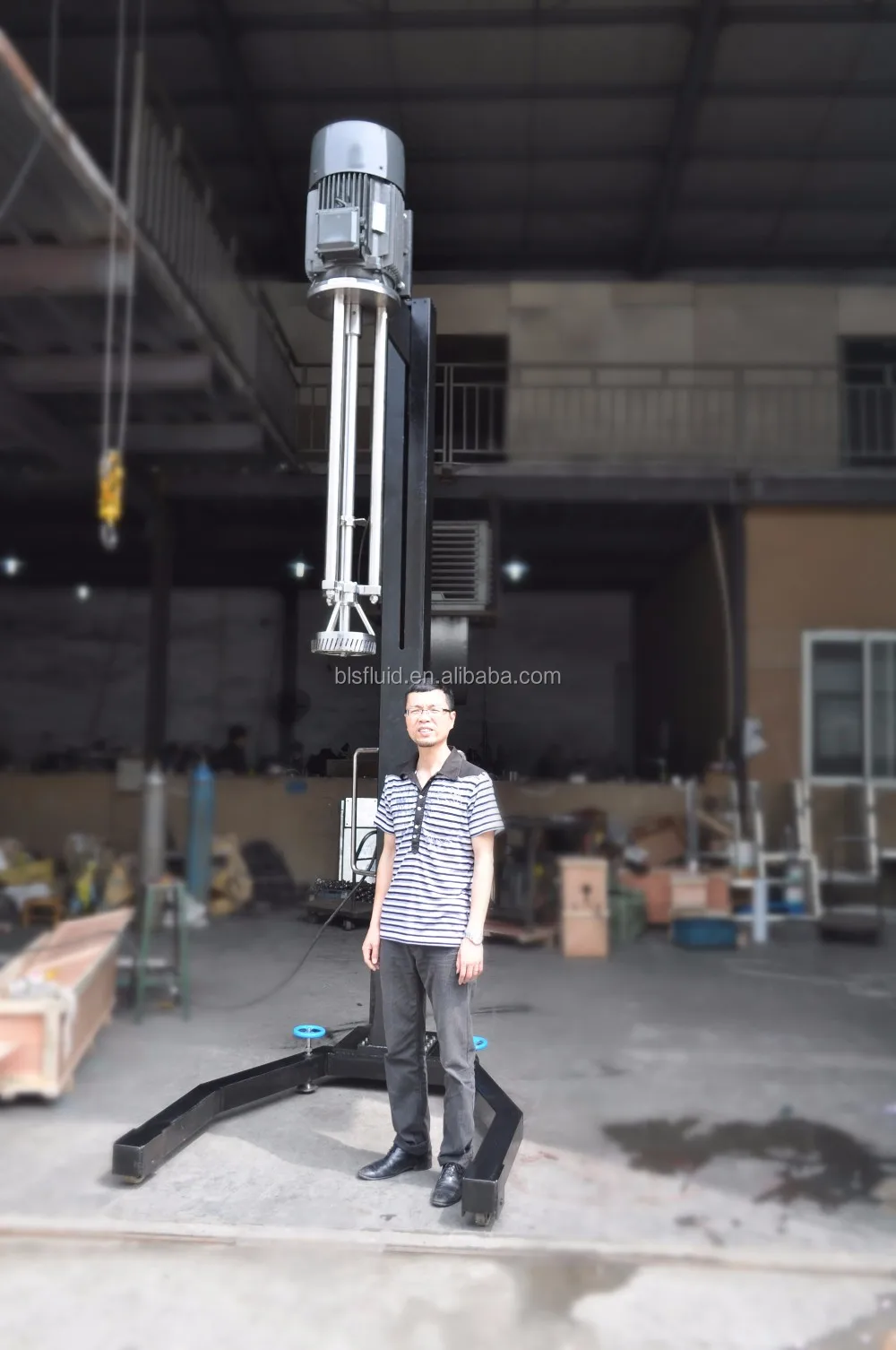

Carbon steel movable stand


Certifications
Packing & Delivery
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
