Quick Details

  • Condition: New
  • Mixer Type: Homogenizer
  • Product Type: Paint
  • Application: Liquid
  • Additional Capabilities: emulsifier
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: BLS
  • Model Number: BRH
  • Max. Loading Capacity: 10000L/h
  • Voltage: 110-480V, 50/60Hz
  • Power(W): 1.1-75kw
  • Dimension(L*W*H): Custom Made
  • Certification: ISO9001:2008
  • Warranty: 12 Months
  • After-sales Service Provided: Overseas service center available
  • Product type: homogenizer
  • Material: SS304 or SS316
  • Speed: 2800RPM/1400RPM
  • Usage: paint homogenizing mixer
  • Function: paint emulsion mixer
  • Capacity: 5-10000L/H
  • Sleeve material: graphite bushing, PTFE etc.
  • Wearing parts: sleeve, mechanical seal
  • Hot sale: high temperature heat treatment, difficult deformation
  • Name: Hand-worked Lifting Stainless Steel Dispersing Emulsifying Mixer

Packaging & Delivery

Packaging Details plywood case
Hand-worked Lifting Stainless Steel Dispersing Emulsifying Mixer
Delivery Time 15 days for High quality homogenizing high shear emulsifier mixe
Product Description

Hand-worked Lifting Stainless Steel Dispersing Emulsifying Mixer

Reference parameters:

* Type: Hand-worked Lifting emulsifier mixer for paint


* Brand name: L&B

* Material: ss304 and ss316(ss304 suit acid or alkali weak; ss316 suit acid or alkali a bit strong.)

* Warranty: mechanical seal warranty period is 6 months, sleeve is 1 month, and  other parts within 12 months

* Wearing parts: sleeve, mechanical seal

* Sleeve material: graphite bushing, PTFE etc.

* Motor power: 1.1-7.5kw

* Speed: 2800rpm

* Capacity: 5-800L/H

* Hot sale: high temperature heat treatment, difficult deformation

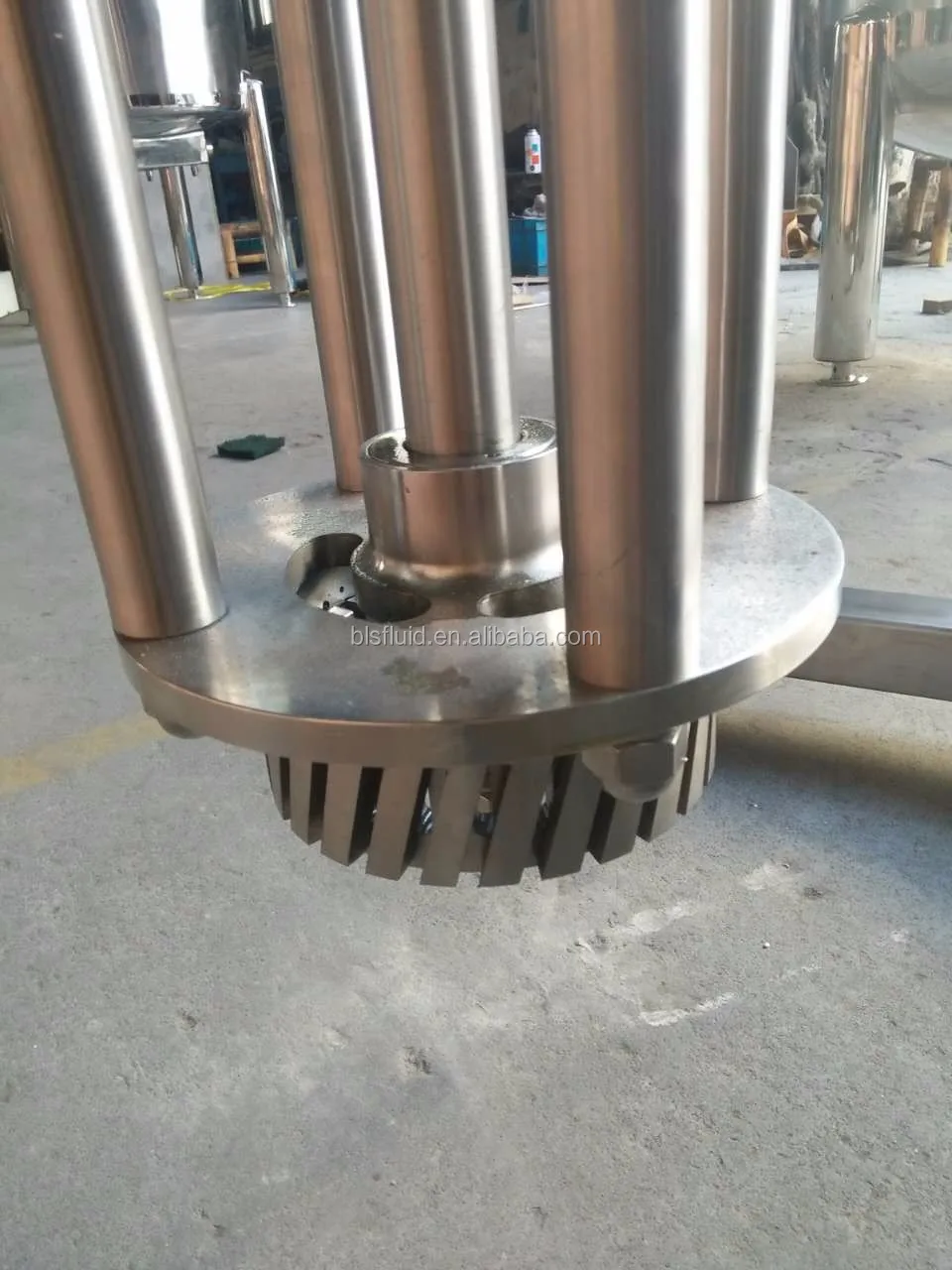

Common Different emulsifier types

1) BRH I: straight tooth, be good at dispersive mixing, suit liquid(exclude oil) and powder mixing;
2) BRH II: oblique tooth, be good at homogeneous emulsifying, suit oil liquid and powder mixing;

Model
Power (KW)
Speed (RPM)
Capacity (L)
BRH90
1.5
2800-2900
5~50
BRH100
2.2
50~100
BRH120
4
100~300
BRH140
7.5
200~800

Applicable range

1. Suitable for all kinds of large and small reaction kettle, uniform, fine on the common container, emulsification.
2. Small capacity of emulsion can be used for mobile lifting.
3. Widely applied in food, beverage, chemical, biochemical, petrochemical, pigments, dyes, paints, pharmaceuticals and other industries.

Detailed Images



Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.

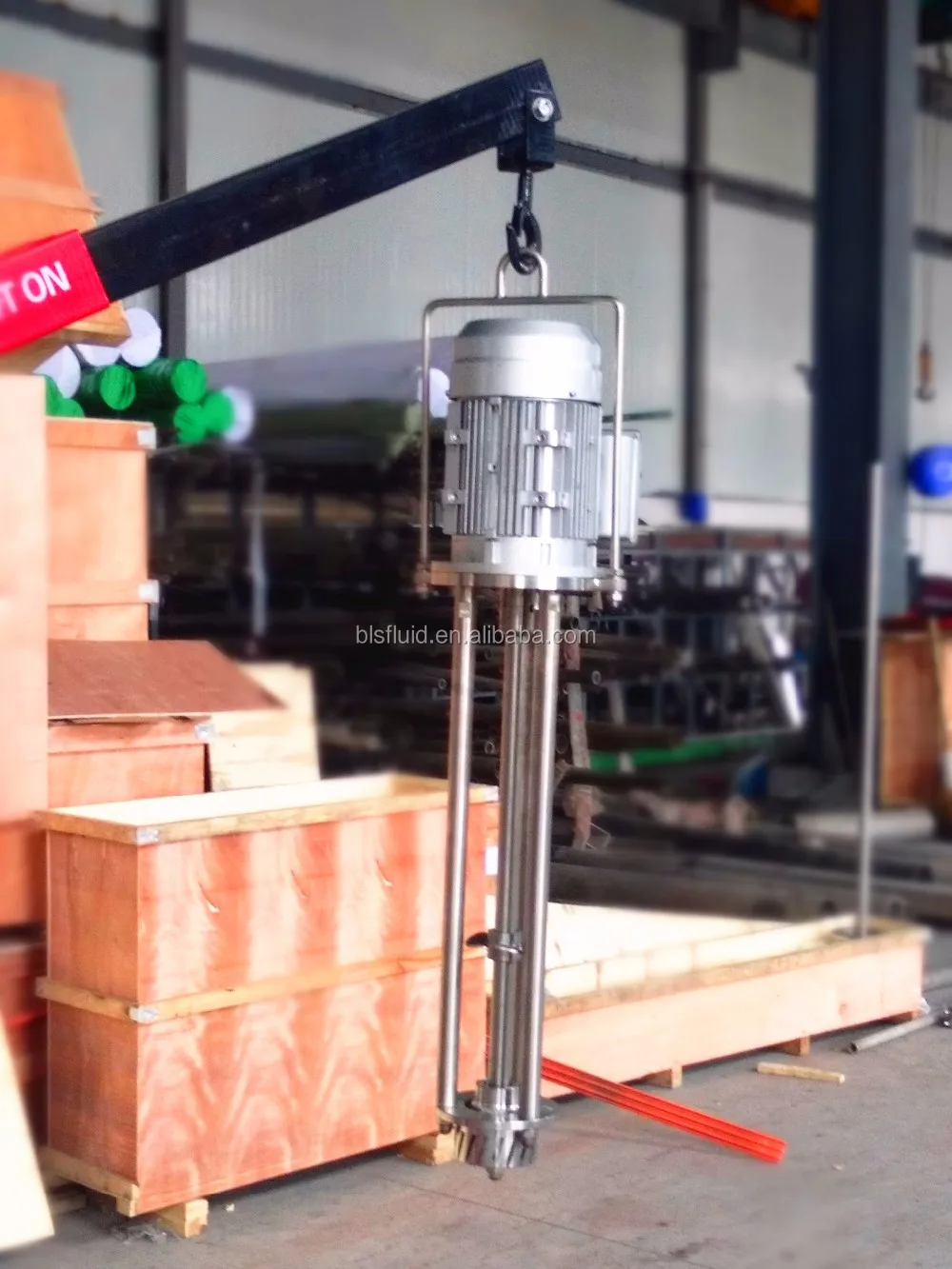

Motor device

    Pure copper motor: low noise, stable dynamic, sustainable work.

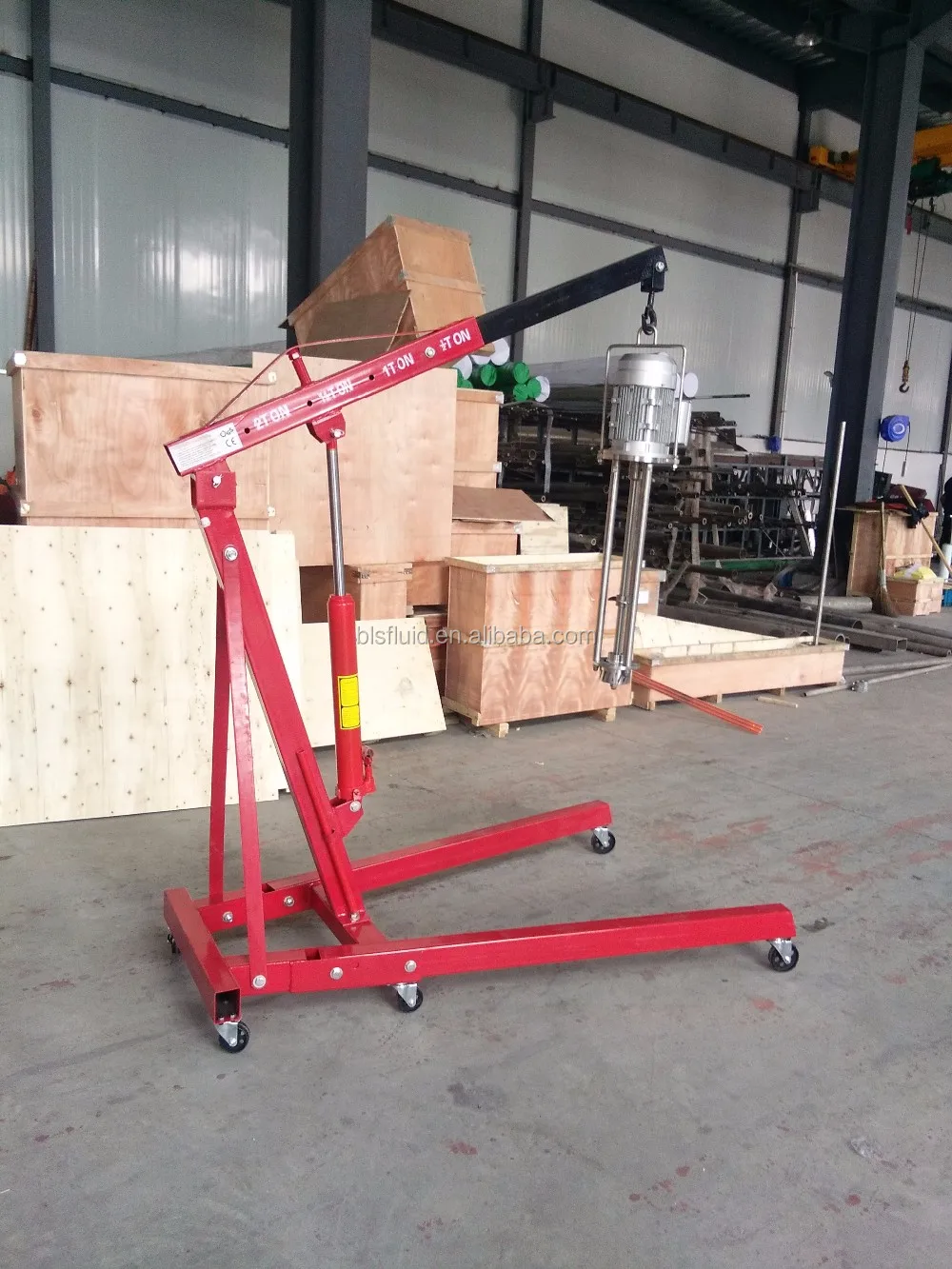

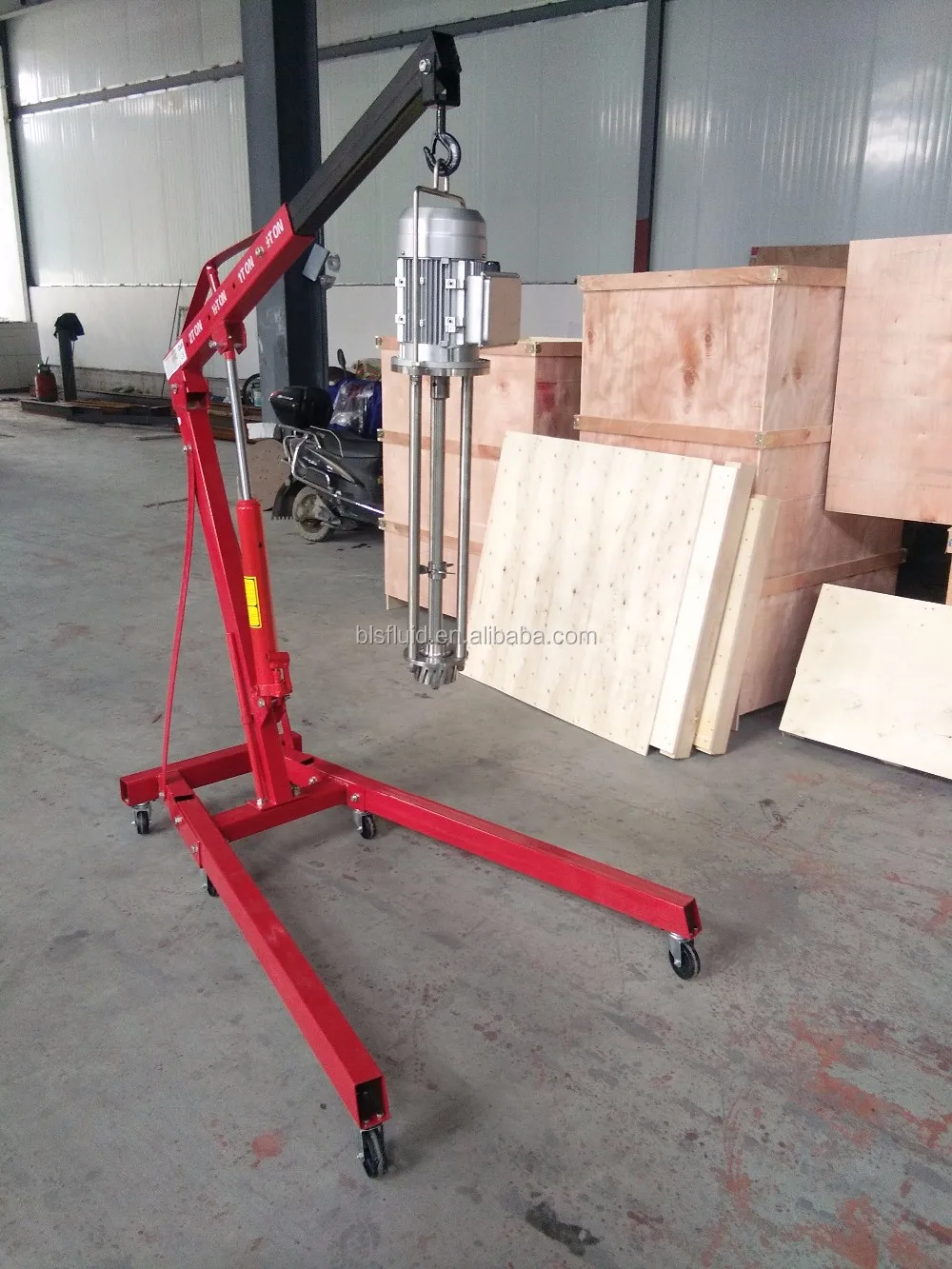

Carbon steel stand with wheels

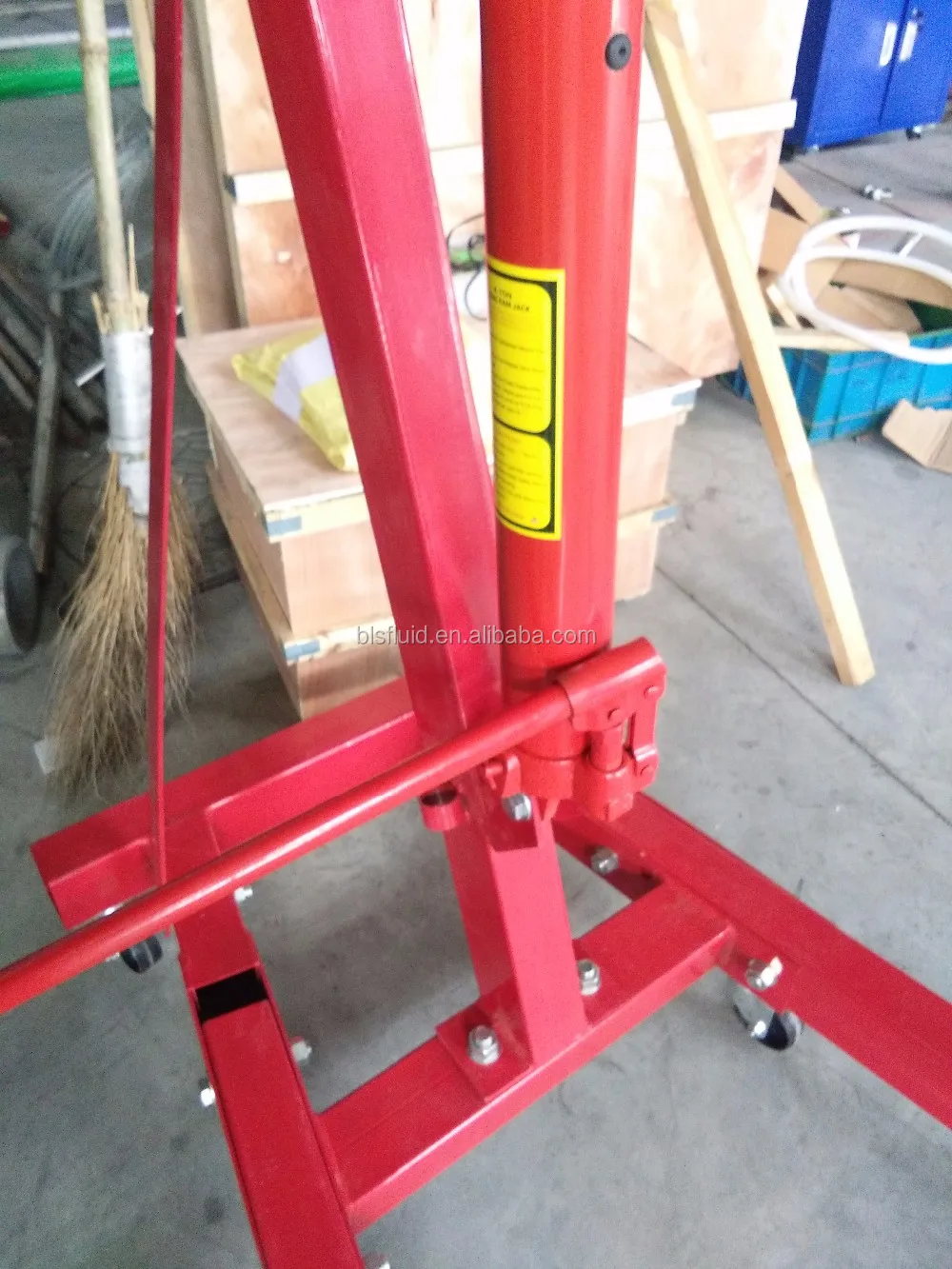

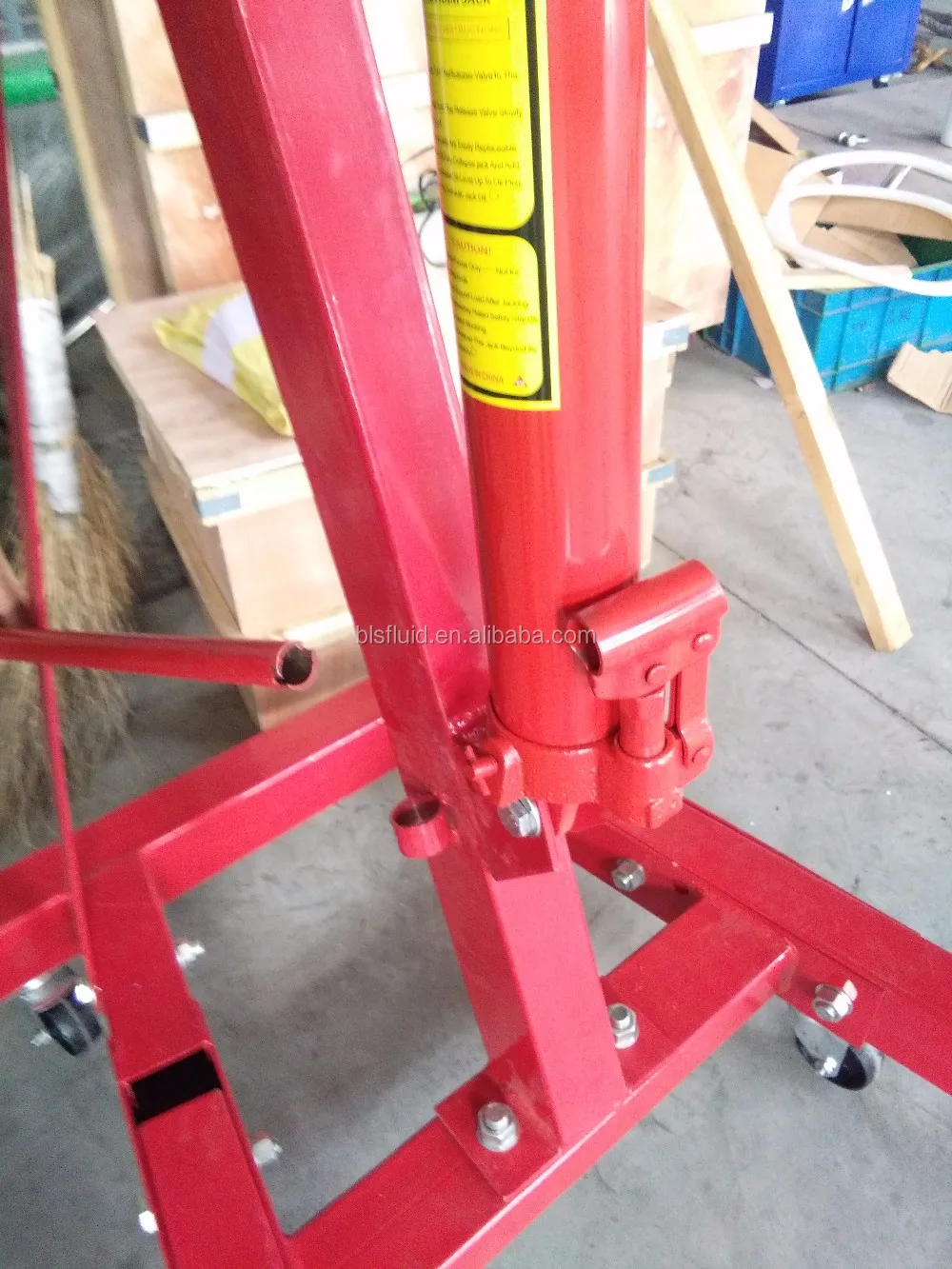

Hand-worked lifting

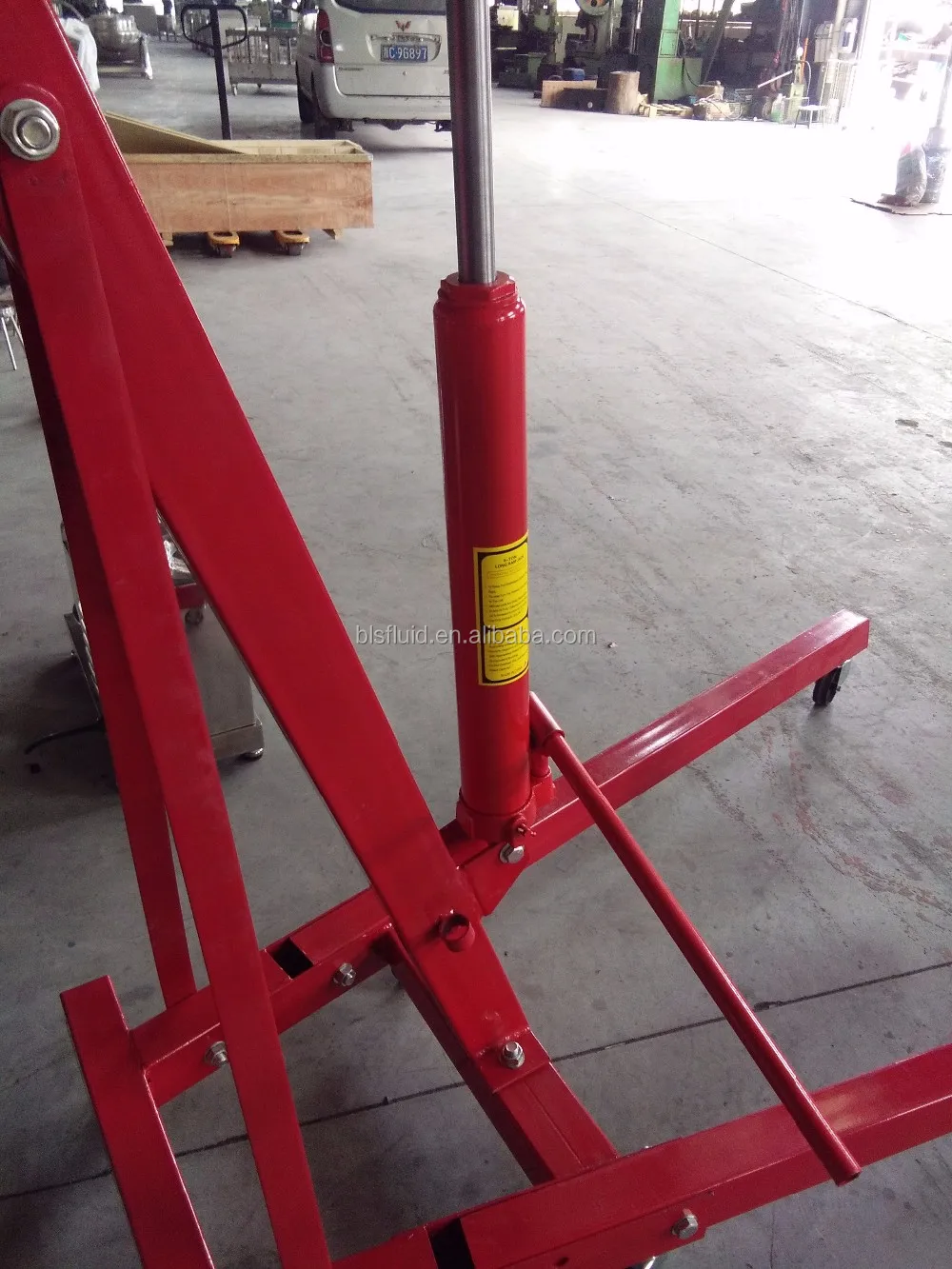

Handle for hand-worked lifting




Emulsifier mixer bearing Treatment


    high temperature heat treatment, difficult deformation


Certifications
Packing & Delivery
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
