L&B sanitary stainless steel Rotary Lobe Pump for mayonnaise and food industry

FOB Reference Price:Get Latest Price
$1,000.00 - $6,000.00 / Sets | 1 Set/Sets (Min. Order)
Horsepower:
0.55kw-45kw
Maximum Flow Rate:
72000L/H
Maximum Head:
30m
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Bailishi lobe pump
Model Number:
BLS-3 lobe pump
Structure:
Gear Pump
Usage:
food, juice, berverage, milk
Application:
food, juice, berverage, milk rotor pump
Power:
Electric, 0.55KW-22KW
Fuel:
Gasoline
Pressure:
High Pressure
Standard or Nonstandard:
Standard
Theory:
Rotary Pump
Material:
SS304/SS316
Name:
liquid transfer pump
Flow:
300-43000l/h
speed:
200-400rpm
Certification:
ISO SGS
Package:
standard package
Products:
effective lobe pump, mobile lobe pimp
Supply Ability
Supply Ability:
300 Set/Sets per Month liquid transfer pump
Packaging & Delivery
Packaging Details
liquid transfer pump
standard export package
Port
Shanghai/Ningbo
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 To be negotiated
Video Description

L&B sanitary stainless steel Rotary Lobe Pump for mayonnaise and food industry

Product Description

yogurt transfer pump is also named colloid pump, three-lobe pump, sole pump, etc. When the 2 simultaneous reverse rotating rotors (with 2-4 gears) revolve, it produces suction force at the inlet (vacuum), which intakes the material delivered.



The 2 rotors divide the rotor housing into many smaller parts and revolve in the sequence of a-b-c-d. When it revolves to position a, only housing | is filled with medium, when it revolves to position b, housing B encloses medium, and finally it goes to position d, then housing A,B and || are interlinked and the medium is transported to the outlet. As this process is repeated, medium (material) is transported continuously. sanitary stainless steel rotor pump



Technical Parameters



lobe pump
Model
(L)
Capacity / per centum Rotate
(RPA)
Speed
(L/H)
Flow
(KW)
Power
BLS-33L 200-500300-8000.55
BLS-66L   200-500650-16000.75
BLS-88L200-500850-21601.5
BLS-1212L200-5001300-32002.2
BLS-2020L200-5002100-54003
BLS-3030L200-4003200-64004
BLS-3636L200-4003800-76004
BLS-5252L200-4005600-110005.5
BLS-6666L200-4007100-140007.5
BLS-7878L200-4009000-180007.5
BLS-100100L200-40011000-2200011
BLS-135135L200-40015000-3000015
BLS-160160L200-40017000-3400018.5

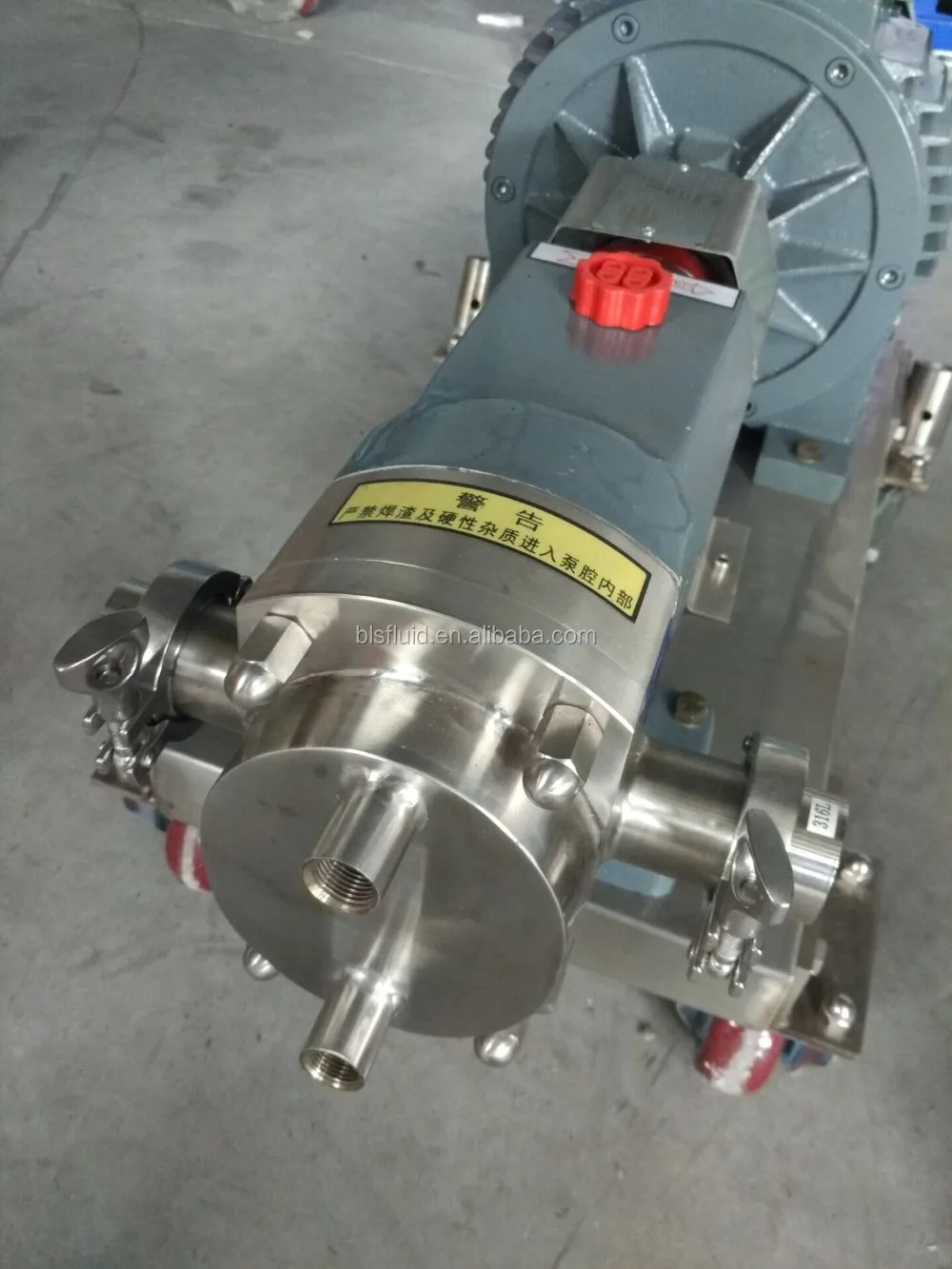

Product Photos

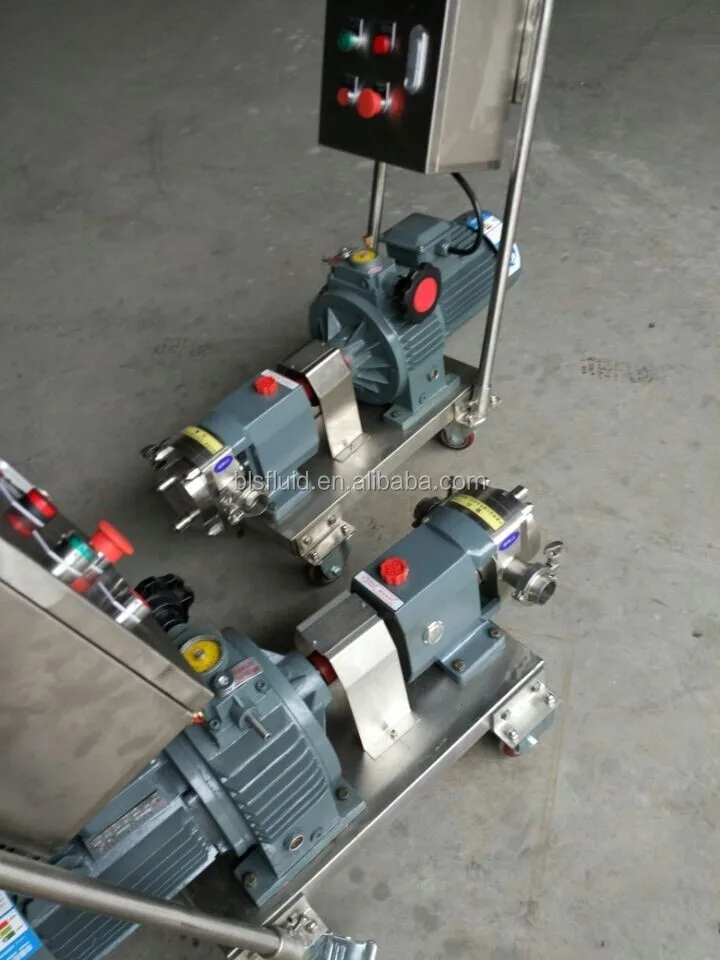

We can customize the lobe pump for you,for example install trolley and control cabinet

we can also make warm jacket in the pump head to keep your liquid warm



the lobe pump also can be connected to the tank to transfer the liquid from the tank to another tank.

Company Information

       Zhejiang L & B Light Industry Machinery Co.,Ltd established in 1995,Located in BinHai Industrial Zone. Wenzhou City.

       Our main products including colloid mills,Stainless Steel Tank, high shear mixer, beer fermenterand Sanitary pumps
etc.

        Meanwhile we also accept customized stainless steel parts and components for all industries.

BLS products could applied in food, beverage, pharmacy, chemical, cosmetics industries etc

       We now exports our goods to United States, Australia, Newzealand and Japan etc.



Certifications

Packaging & Shipping

 If the machines has big quantity and very big volume,we will arrange 20GP Container or 40GP Container ETC.



FAQ



1. Q: How do I pay for my purchase order?

      A:   T/T, L/C



2. Q:  What's the MOQ of yogurt transfer pump?

    A:  Our MOQ of yogurt transfer pump is 1 unit.



3. Q:What's the delivery time?

    A: It will take about 15-35days to finish an order, but the exact time is according to actual situation.



4. Q: Can I have my own customized product?

    A: Of course, you products can be  customed for example color, logo, design, mark, etc.



5. Q: Do you have quality control of yogurt transfer pump?

    A: Yes, we attach great importance to quality control for yogurt transfer pump.



6. Q: How about the warranty control?

     A: One year warranty for the machineries since sold. If quality problem occurs, please feel free to contact us.
