Quick Details

  • Condition: New
  • Mixer Type: Homogenizer
  • Product Type: Stainless Steel 2800rpm Emulsifier in Beverage
  • Application: Liquid
  • Additional Capabilities: homogenizer
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: BLS
  • Model Number: BRH1
  • Max. Loading Capacity: 10000L/H
  • Voltage: 110-480V
  • Power(W): 1.1-75kw
  • Dimension(L*W*H): Referring
  • Certification: ISO9001
  • Warranty: 1 Year
  • After-sales Service Provided: Overseas service center available
  • Material: SUS304,SUS316L
  • Processing: Stainless Steel 2800rpm Emulsifier in Beverage
  • Capacity: 5-10000L/h
  • Processing Types: homogenizer mixers
  • Usage: Stainless Steel 2800rpm Emulsifier in Beverage
  • speed: 2800rpm/1400RPM
  • Function: Stainless Steel 2800rpm Emulsifier in Beverage
  • Sleeve material: graphite bushing, PTFE etc.
  • Type: Stainless Steel 2800rpm Emulsifier in Beverage
  • Name: Stainless Steel 2800rpm Emulsifier in Beverage

Packaging & Delivery

Packaging Details plywood case
Stainless Steel 2800rpm Emulsifier in Beverage
Delivery Time 7 working days
Product Description

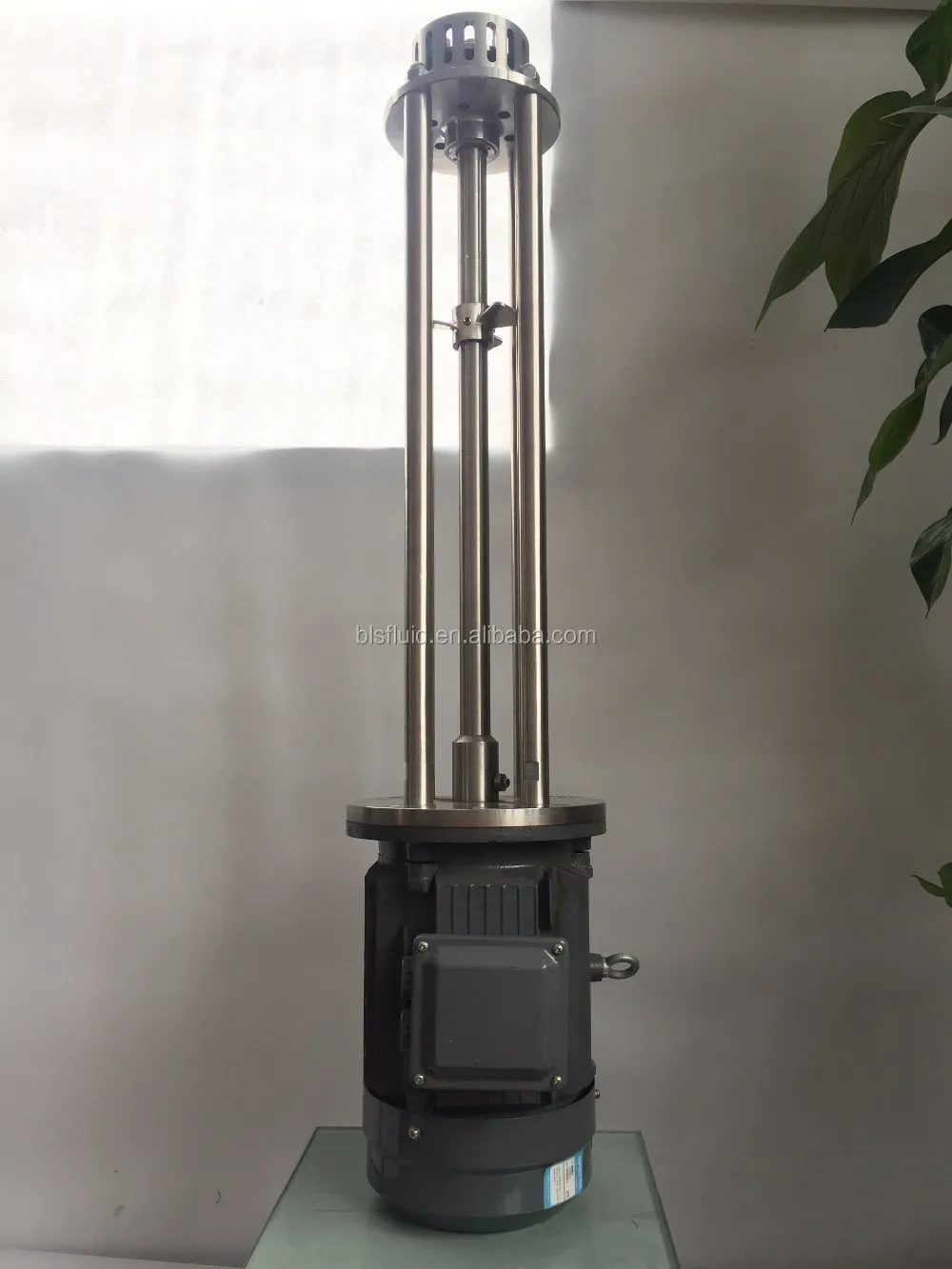

Stainless Steel 2800rpm Emulsifier in Beverage

    It is a kind of vertical installation of emulsification equipment. Stator design for claw type coupling structure, material from the host upper and lower suction at the same time, and around the centrifugal throw, Shear homogeneous efficiency multiplied, to avoid the problem of kettle inside the upper material is easy to produce blind Angle.

Characteristics

1. Simple overall structure, small size, light weight.
2. Humanized structure design and easy to operate.
3. Low noise and smooth operation.

Applicable range:

1. Suitable for all kinds of large and small reaction kettle, uniform, fine on the common container, emulsification.
2. Small capacity of emulsion can be used for mobile lifting.
3. Widely applied in food, beverage, chemical, biochemical, petrochemical, pigments, dyes, paints, pharmaceuticals and other industries.

Model
Power
Speed
Length
Capacity
(kw)
(rpm)
(mm)
(L/H)
BRH-80
1.1
2800
350
10~40
BRH-90
1.5
2800
350
10~50
BRH-100
2.2
2800
650
50~100
BRH-120
3
2800
750
100~200
BRH-120A
4
2800
750
100~300
BRH-140
5.5
2800
900
200~600
BRH-140A
7.5
2800
900
200~800
BRH-160
11
2800
1050
500~1500
BRH-180
18.5
2800
1200
600~2000
BRH-200
22
1400
1200
800~2500
BRH-220
30
1400
1355
1000~3500
BRH-240
45
1400
1395
1500~5000
BRH-270
55
1400
1600
2000~8000
BRH-290
75
1400
1650
3000~10000
Detailed Images



Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.

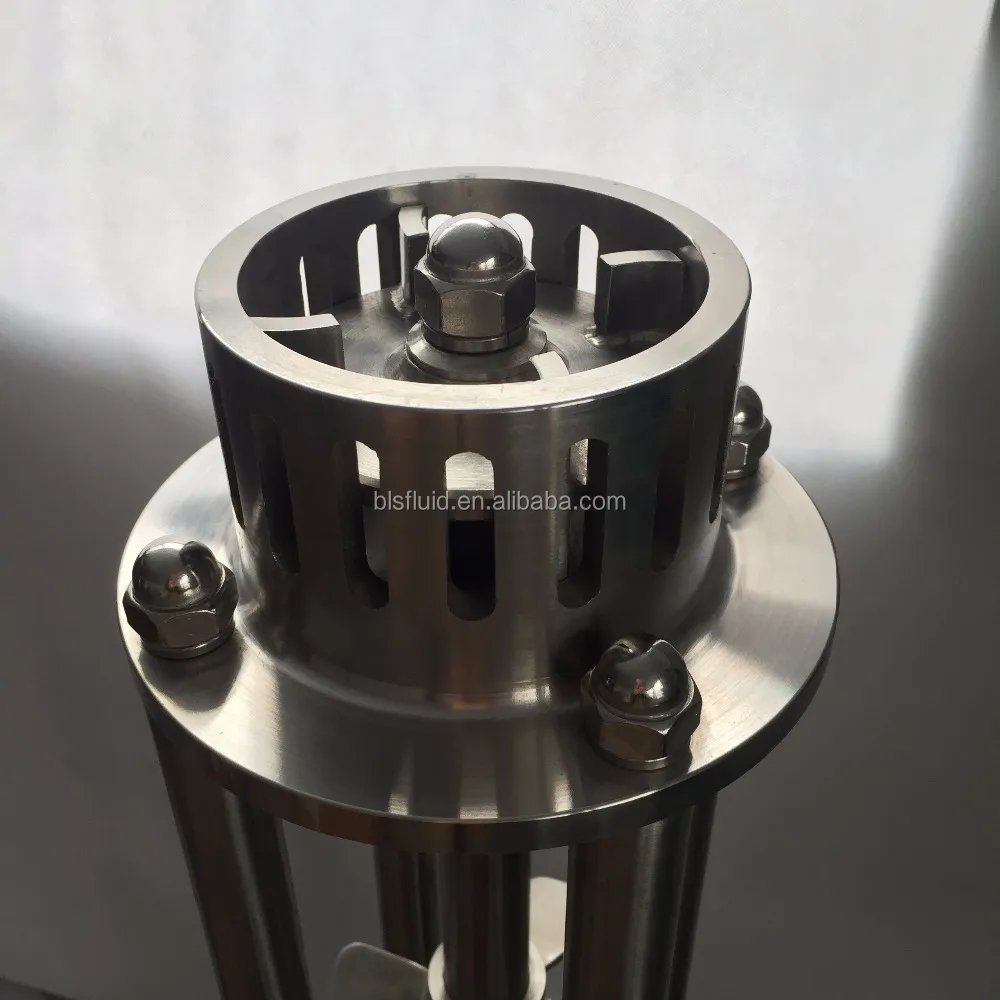

Stator




Rotor




Stainless steel impeller




Spare flange for tank connect




Motor device

1. Pure copper motor: low noise, stable dynamic, sustainable work.
2. Taiwan GPG motor and reducer


stainless steel bearing
