Food grade stainless steel high shear mixer for ice cream

FOB Reference Price:Get Latest Price
US $400-4,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Homogenizer
Product Type:
Food
Application:
Liquid, Dairy, Beverage, Biotechnology, Cosmetic etc
Additional Capabilities:
Mixing
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
L&B
Model Number:
BRT
Max. Loading Capacity:
10000L
Voltage:
220V/380V
Power(W):
1.5-18.5kw
Dimension(L*W*H):
Custom Made
Certification:
ISO, CE
Warranty:
1 Year
After-sales Service Provided:
Overseas service center available
Material:
stainless steel ss304 ss316
Motor:
Siemens, ABB or other brand
Advantage:
mixing no blind angle, high speed
Usage:
emulsifying, homogenizing, mixing
SupplyAbility
SupplyAbility:
8 Set/Sets per Day
Packaging & Delivery
Packaging Details
standard packaging
Port
Ningbo
Lead Time :
Shipped in 7 days after payment
Product Description



Material: 304(L)  or  316(L)
Finish: Mirror or Matt Polish; Ra<0.8um
Certification:  CE  ISO9001:2000 SGS

Package:Wooden case
Advantages:High quality and favorable price


Working Method:
high speed paint mixeris suitable for mixing, Dispersing, Shearing and Homogenizing all kinds of viscous liquid and pastes. The products could be applied in Food, Beverage, Chemical, Pharmaceutical, Paint& ink industry etc. The Unit consists of a centrally located shaft, connected to a flanged type motor mounted on a steel housing. We have four types of different stators to suit different working condition.

Features of high speed paint mixer
All wetted parts are grade 304 or 316 Stainless steel
Mechanical Seal for Sanitary Operation
Quick opening for easy cleaning
Hygienic Design.
Explosion-proof ABB Motor 3 Phase



Technical Parameters



Model

Power(kw)

Speed(RPM)

Length(mm)

Capacity(L)

BRH-80

1.1

2800

350

10-40

BRH-90

1.5

2800

350

10-50

BRH-100

2.2

2800

650

50-100

BRH-120

3

2800

750

100-200

BRH-120A

4

2800

750

100-300

BRH-140

5.5

2800

900

200-600

BRH-140A

7.5

2800

900

200-800

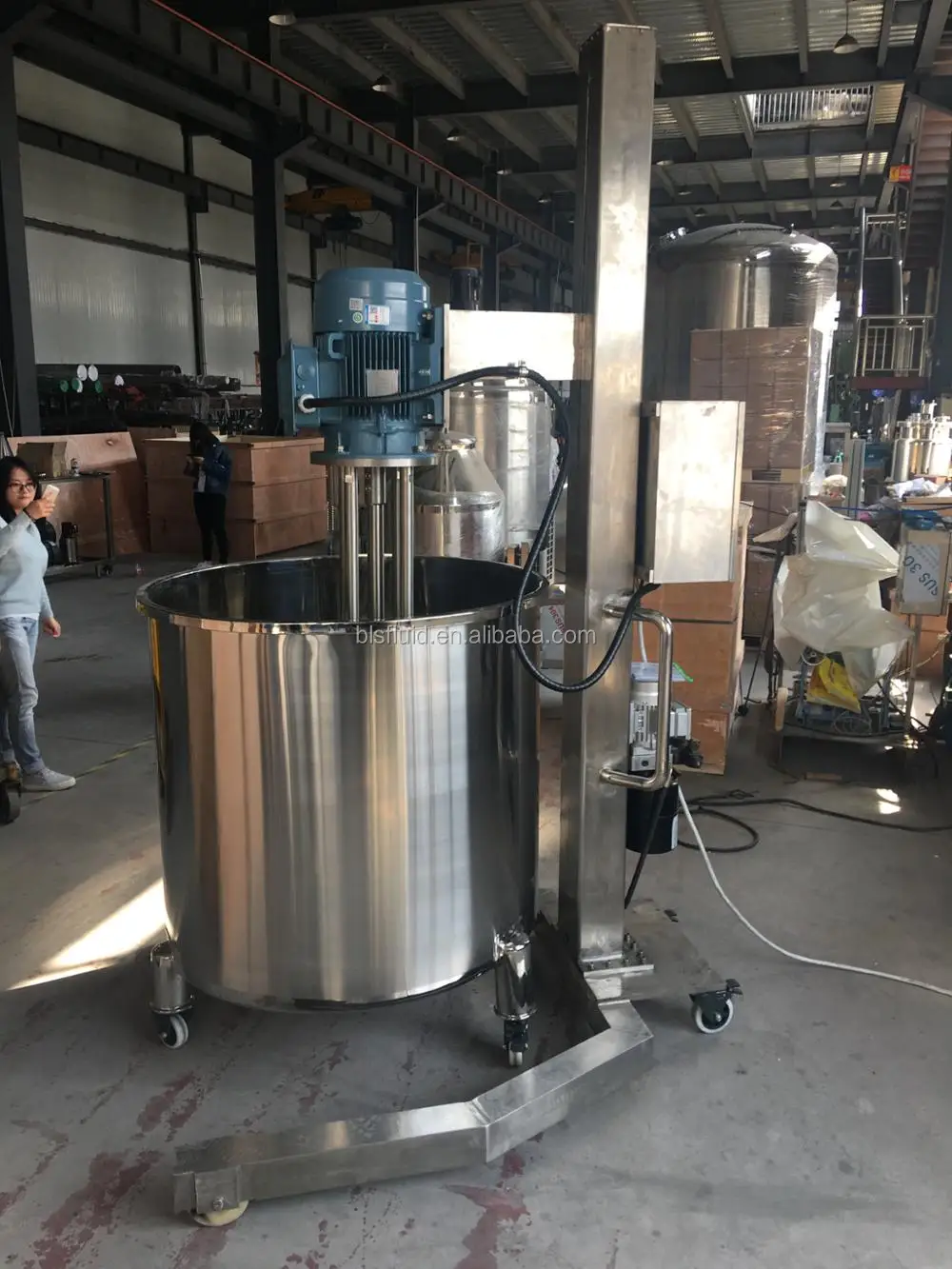

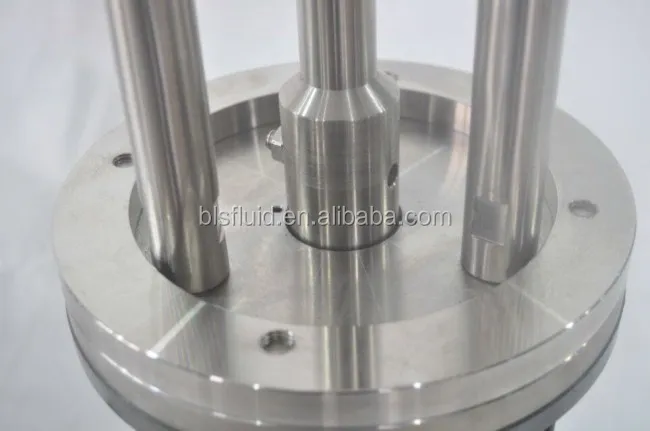

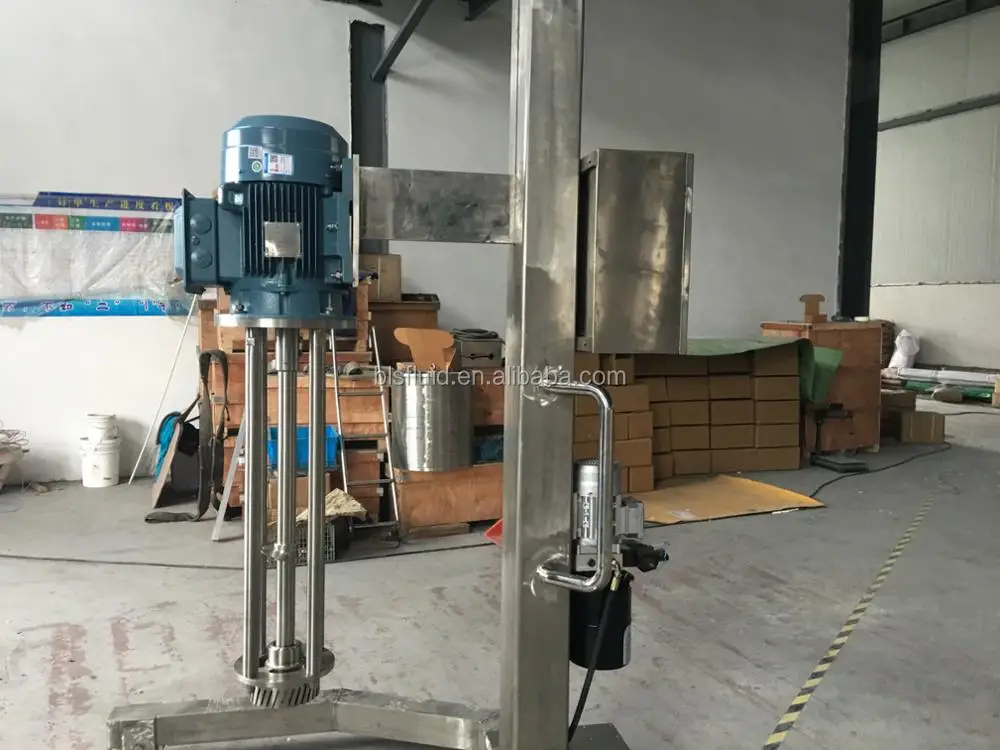

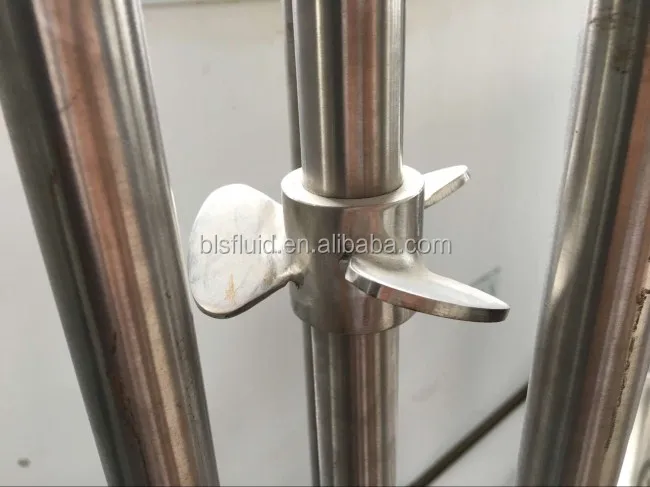

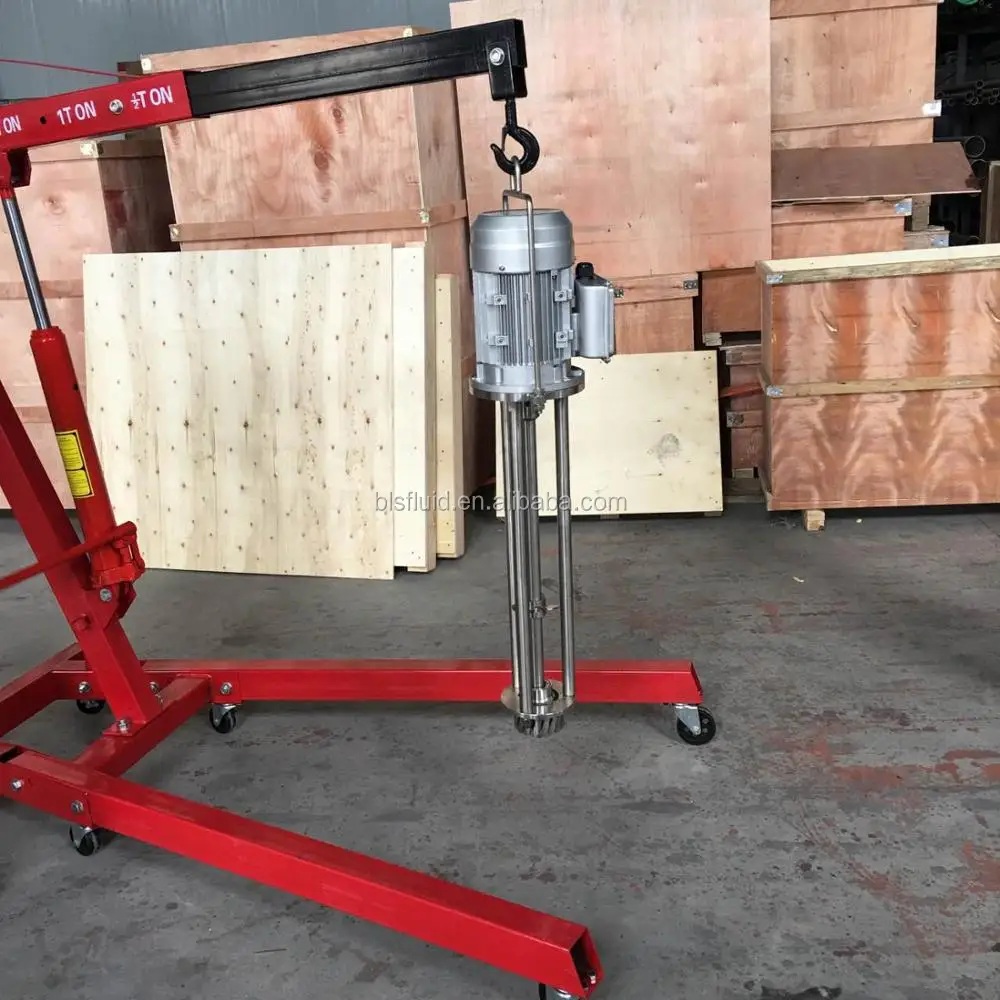

Product Photos






_20171118112218.jpg_20171118110643.jpg_20171118110647.jpga (3).jpga (4).jpg1 (1).jpg1 (9).jpg
