Industrial Steel Skin Care Products Homogenizer at the bottom

FOB Reference Price:Get Latest Price
US $500-7,000 / Sets | 1 Set/Sets Industrial Steel Skin Care Products Homogeniser at the bottom (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Homogenizer
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
BRD
Processing Types:
cosmetic homogenizer
Voltage:
110-480V, 50/60Hz
Power(W):
1.1-75KW
Weight:
according
Dimension(L*W*H):
customized
Certification:
ISO9001
Warranty:
12 Months
After-sales Service Provided:
Overseas service center available
Capacity:
100-12000L
Application:
Industrial Steel Skin Care Products Homogeniser at the bottom
Material:
Stainless Steel 304/316
Wearing parts:
sleeve, mechanical seal
Sleeve material:
graphite bushing, PTFE etc
Motor power:
2.2-75kw
Speed:
2800rpm/1480rpm
Name:
Industrial Steel Skin Care Products Homogeniser at the bottom
Supply Ability
Supply Ability:
500 Set/Sets per Month Industrial Steel Skin Care Products Homogeniser at the bottom
Packaging & Delivery
Packaging Details
plywood case package
Industrial Steel Skin Care Products Homogeniser at the bottom
Port
shanghai/ningbo
Lead Time :
Shipped in 15 days after payment
Product Description

Industrial Steel Skin Care Products Homogeniser at the bottom

    It is a kind of vertical installation of emulsification equipment. Stator design for claw type coupling structure, material from the host upper and lower suction at the same time, and around the centrifugal throw, Shear homogeneous efficiency multiplied, to avoid the problem of kettle inside the upper material is easy to produce blind Angle.

Main Features

1. Simple overall structure, small size, light weight.
2. Humanized structure design and easy to operate.
3. Low noise and smooth operation.

Product Application

1. Suitable for all kinds of large and small reaction kettle, uniform, fine on the common container, emulsification.
2. Small capacity of emulsion can be used for mobile lifting.
3. Widely applied in food, beverage, chemical, biochemical, petrochemical, pigments, dyes, paints, pharmaceuticals and other industries.

Name
Industrial Steel Skin Care Products Homogeniser at the bottom
Brand name
L&B
Material
ss304 and ss316(ss304 suit acid or alkali weak; ss316 suit acid or alkali a bit strong.)
MOQ
one set
Warranty
mechanical seal warranty period is 6 months, sleeve is 1 month, and  other parts within 12 months
Wearing parts
sleeve, mechanical seal
Sleeve material
graphite bushing, PTFE etc.
Motor power
1.1-75kw
Speed
2800rpm/1480rpm
Package
plywood case
Deliver
with 10 working days after received the payment
Payment terms
T/T advance
Capacity
5-10000L/H
Motor
explosion-proof motor(Siemens is optional)
Hot sale
high temperature heat treatment, difficult deformation
Types
intermittent type, strapdown streaming type and tank bottom type
Models
BRH I, BRH II, BRH III, BRH IV, BRJ
Difference of various homogenizers:
BRH I
straight tooth, be good at dispersive mixing, suit liquid(exclude oil) and powder mixing.
BRH II
oblique tooth, be good at homogeneous emulsifying, suit oil liquid and powder mixing.
BRH III
straight tooth and oblique tooth are optional, small capacity, proof pressure(positive pressure≤3 Bar, negative pressure≤1Bar, high pressure≤8Bar).
BRD /tank bottom type
straight tooth and oblique tooth are optional, suit 1.5T-2.5T tank, the whole length can reach 2.5m-2.7m, motor power is more than 30kw(equipped with water-cooling system).
BRJ
with shear, good at emulsifying, best at dispersion, suit ≤10T tank, with water-cooling mechanical seal(it must be equipped with water-cooling system in bearing).
Main technical parameters of Industrial Steel Skin Care Products Homogeniser at the bottom
Model
Power
Speed
Length
Capacity
(kw)
(rpm)
(mm)
(L/H)
BRH-80
1.1
2800
350
10~40
BRH-90
1.5
2800
350
10~50
BRH-100
2.2
2800
650
50~100
BRH-120
3
2800
750
100~200
BRH-120A
4
2800
750
100~300
BRH-140
5.5
2800
900
200~600
BRH-140A
7.5
2800
900
200~800
BRH-160
11
2800
1050
500~1500
BRH-180
18.5
2800
1200
600~2000
BRH-200
22
1400
1200
800~2500
BRH-220
30
1400
1355
1000~3500
BRH-240
45
1400
1395
1500~5000
BRH-270
55
1400
1600
2000~8000
BRH-290
75
1400
1650
3000~10000

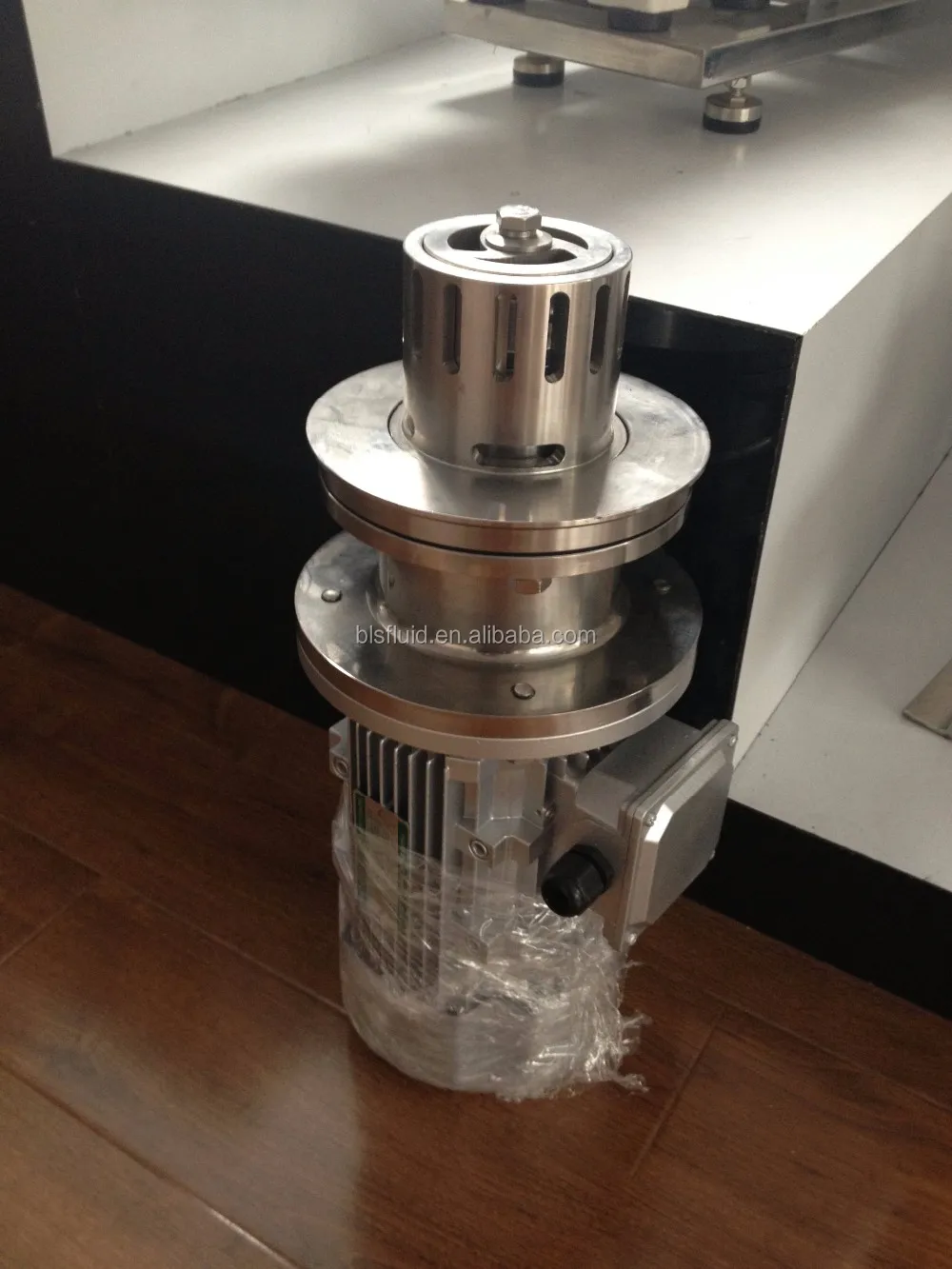

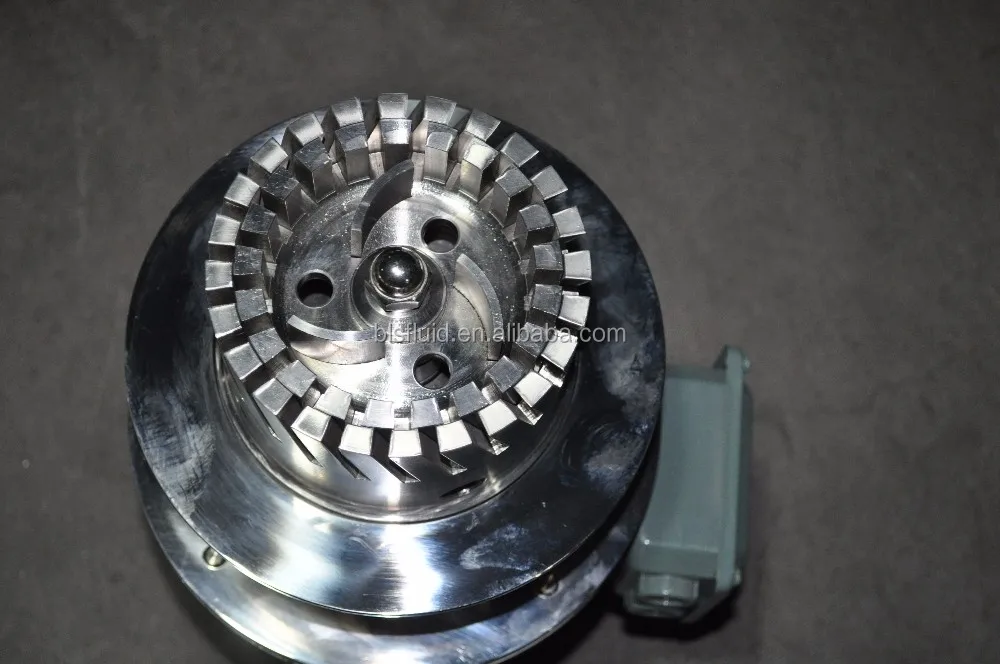

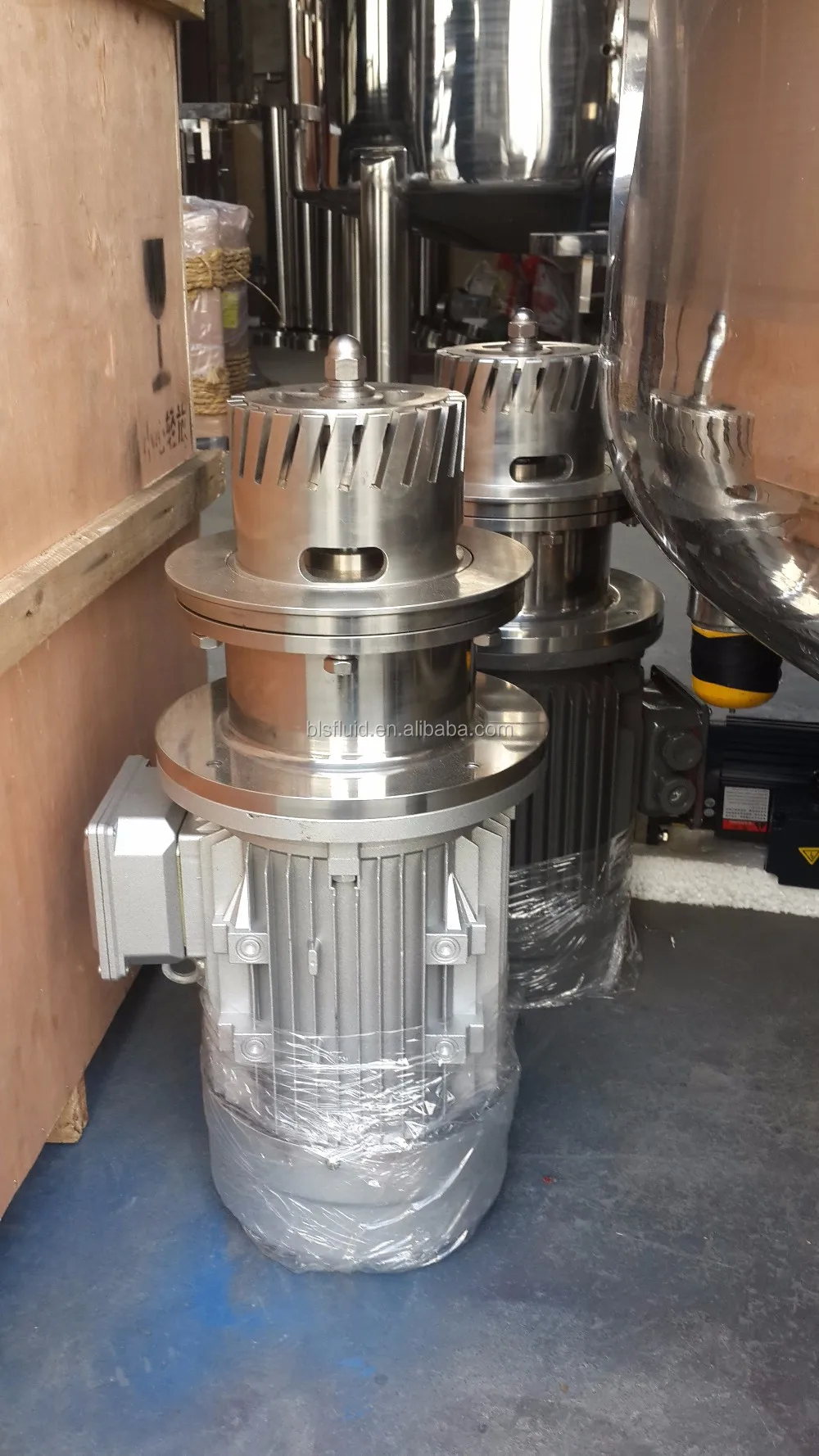

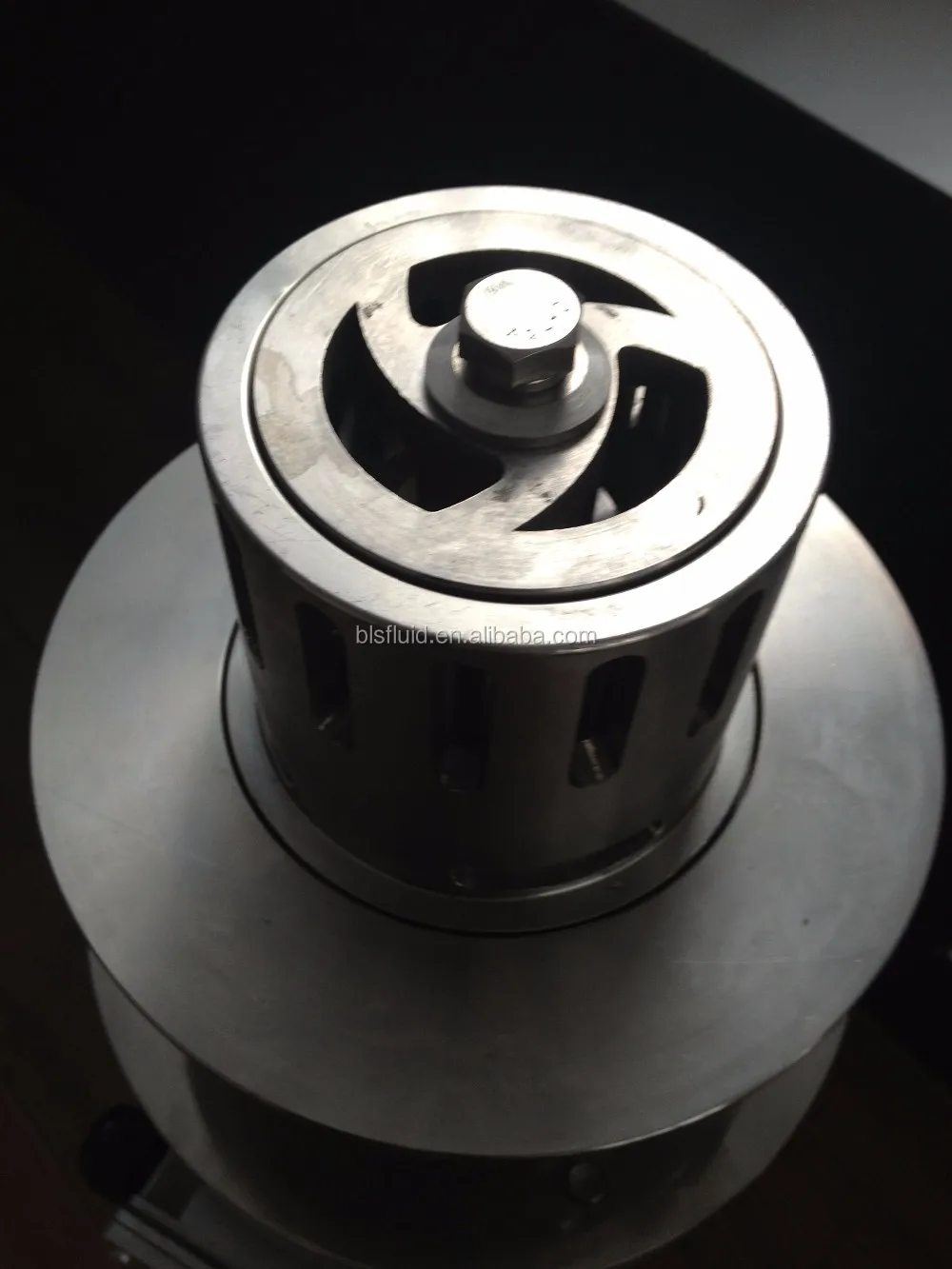

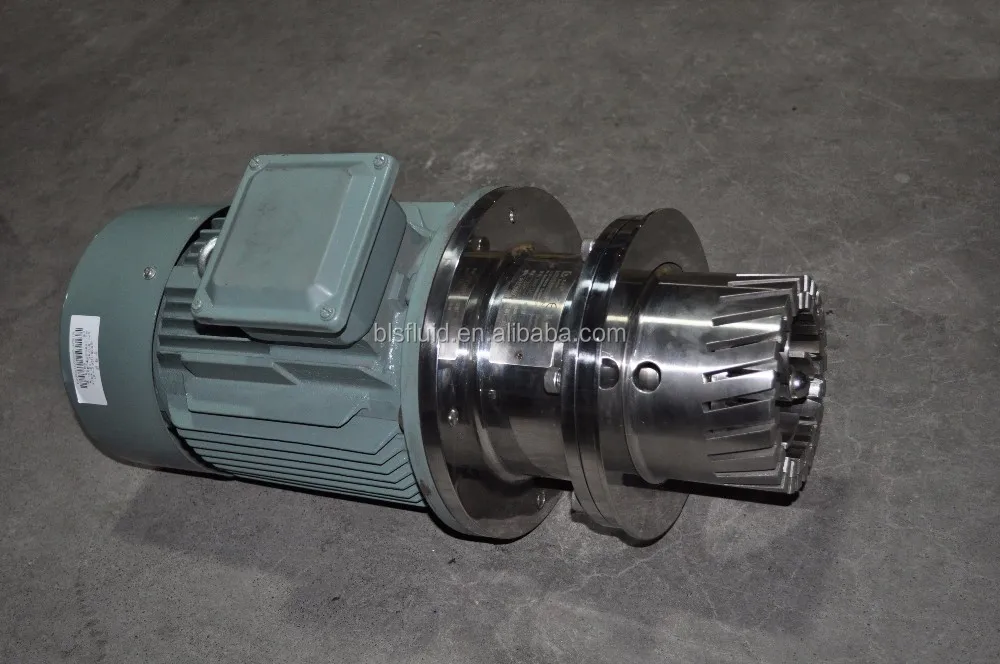

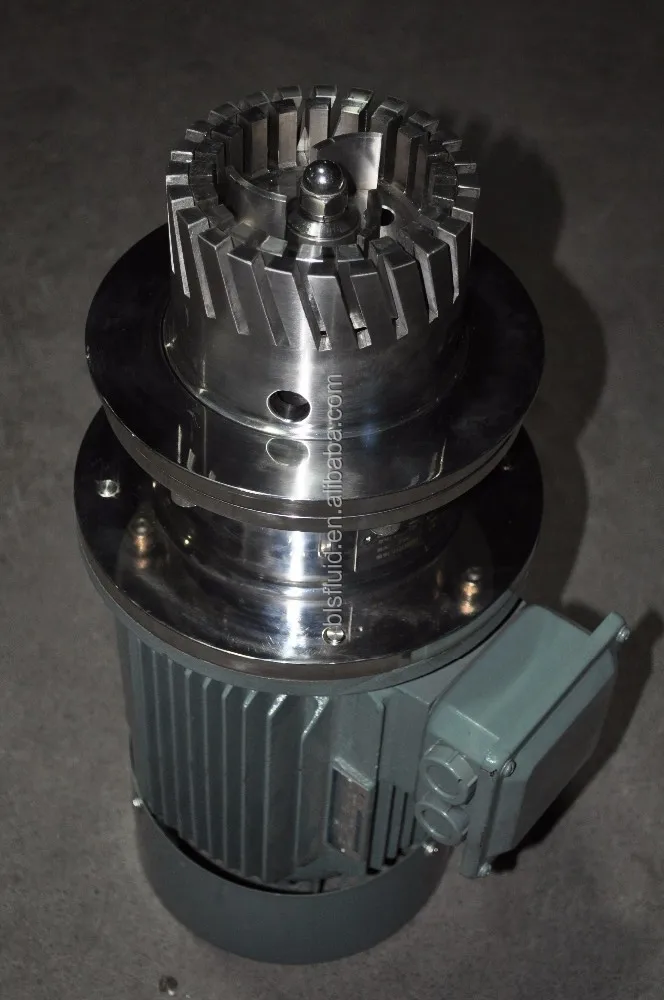

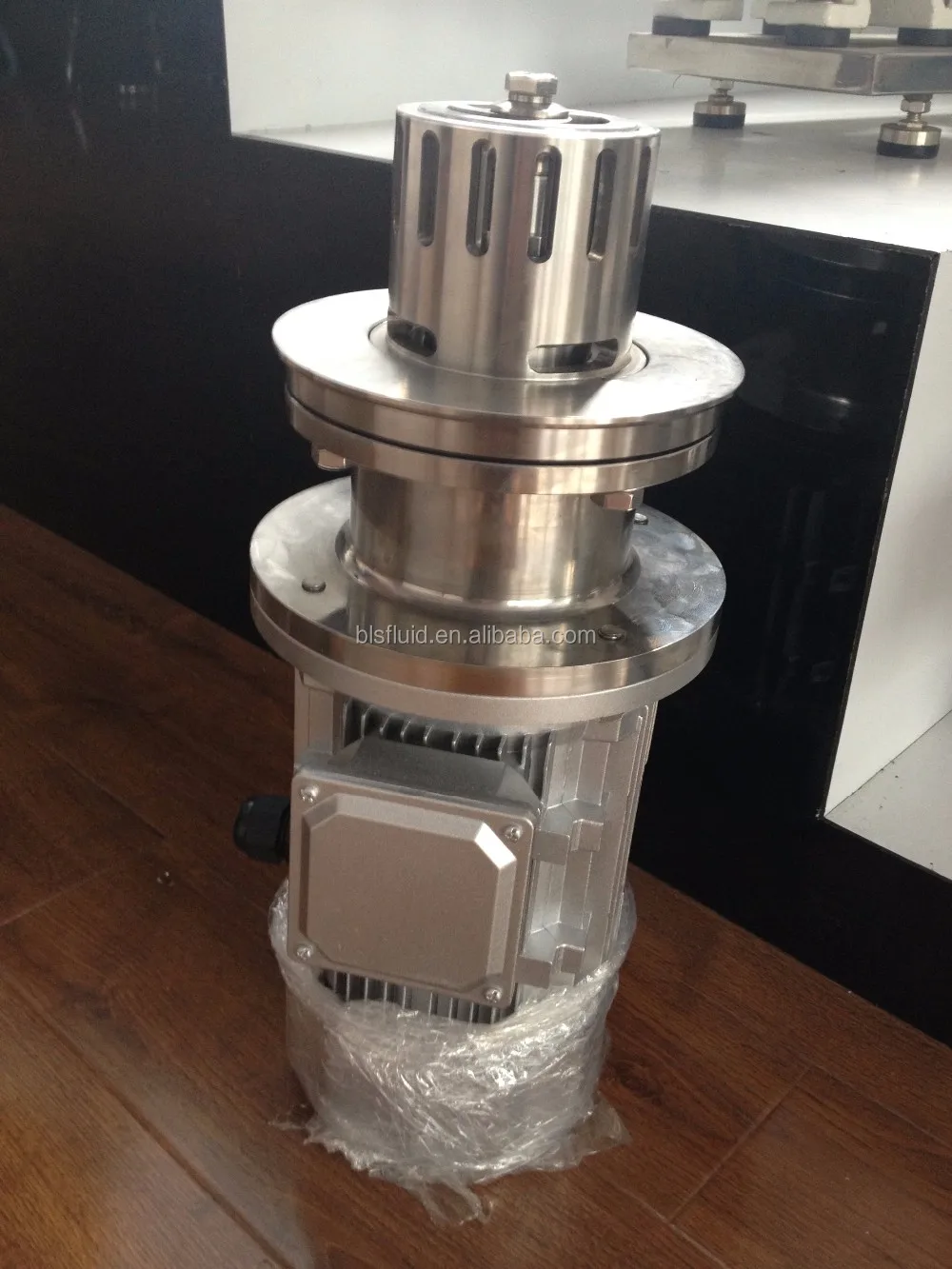

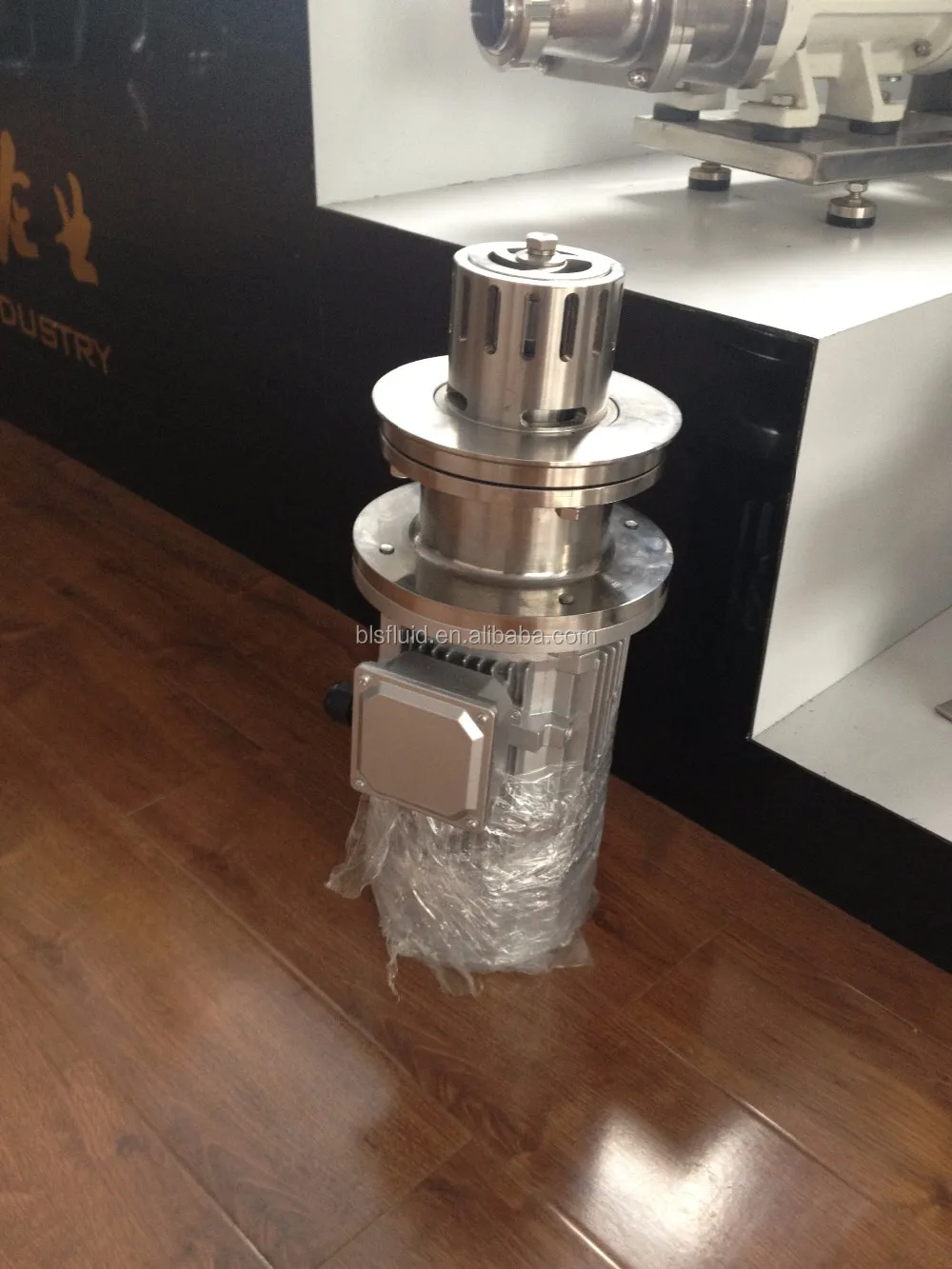

Detailed Image
Certifications
Packing & Delivery
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
