Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: L&B
  • Model Number: JML JMF JMW
  • Type: Cooking Equipment
  • After-sales Service Provided: Overseas service center available
  • Working: Shear Mixer
  • Mixer Type: Colloid Mill
  • Certification: CE, ISO, UL
  • Mixing Drum Shape: Conical hopper
  • Additional Capabilities: Milling
  • Operating Type: Continuous Operating
  • Material: SS304 or SS316L
  • Emulsified: 2-40um
  • Power: 1.5-45kw
  • Export Markets: Global

Packaging & Delivery

Packaging Details Plywood Case
peanut butter colloid mill
Delivery Time Within 7 days after payment
Product Description
Soybean Milk Colloid Mill Food Equipment



Colloid mill
molino coloidal

moulin colloïdal

mulino colloidale
molam colloid
Kolloid-Mühle

Working Method:
Colloidal mill works with shearing, grinding, high-speed stirring. Grinding process occurs in relative movement between the two teeth with one revolving in high speed and another keep still. Which makes the material between the teeth receive strong shearing and abrasion in addition to high frequency vibration and high speed swirl. The material will be evenly smashed, dispersed and emulsified


Application of colloidal mill:
The products could be applied in food, beverage, Pharmacy, chemical industry etc.

Material Available:
SUS304 SUS316 SUS316L

Product-related

Technical Parameters
Model
JML-50

JML-80

JML-100

JMF-80

JMF-100

JMF-120

JMF-140

JMF-200

Emulsifiedgranularity (um)

Single cycle or multi-cycle

5~40

3~40

2~40

3~40

2~40

2~40

2~40

2~40

Adjusting range (mm)

1-0.01

1-0.01

1-0.01

1-0.01

1-0.01

1-0.01

1-0.01

1-0.01

Output (t/h)

Variable according to natures of materials

0.01-0.2

0.3-1

0.5-2

0.3-1

0.5-2

0.7-3

1-4

2-7

Motor

Power (Kw)

1.1

3

5.5

4

5.5

7.5

11

15

Power supply

3Ph, 380V, 50Hz

Rotation speed (r/min)

2900

2900

2900

2900

2900

2900

2900

2900

Milling slice diameter (mm)

50

80

100

80

100

120

140

200

Diameter of outlet (mm)

15

25

32

25

32

40

40

65

Diameter of inlet (mm)

32

50

50

50

50

65

80

120

Cooling water pipe diameter (mm)

8

Contact material

Stainless steel 304 (316 is optional)

Dimension

L (mm)

420

520

560

640

750

750

820

980

W (mm)

280

400

420

550

620

620

700

800

H (mm)

760

900

950

1030

1080

1080

1250

1550

Net Weight (Kg)

42

84

129

210

275

295

325

450



Custom-made is avaiable

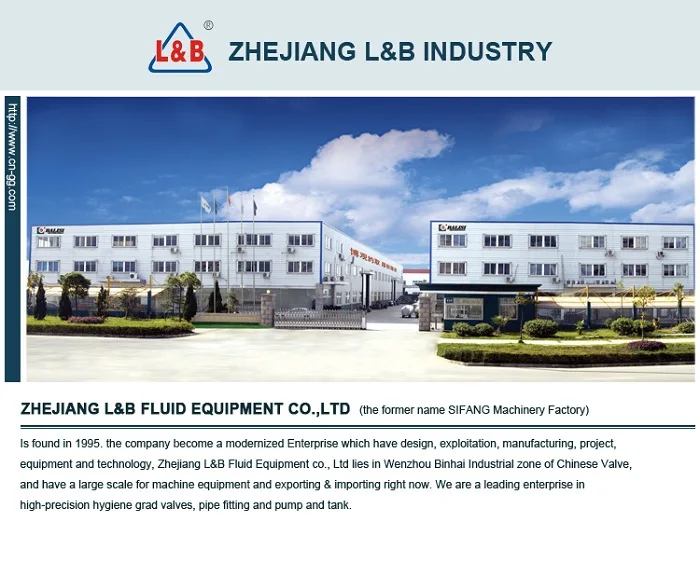

Company Information

Supply Mixing tank,Reactor tank,fermentation tank,Inline homogenizer,High shear emulsifier mixer,Colloid mill,Jacket cooking kettle,Rotor pump,screw pump,emulsion pump,transfer pump etc.



Wenzhou L&B Fluid Equipment co., Ltd have special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields. We have advanced CNC lathes imported from Japan. We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard). Our products can get to the international standard and meet the requiement of GMP, so they are widely used in many fields, such as dairy, beer, food, pharmacy, beverage, cosmetic etc.,exported to America, Europe, the Middle East.
