Steel Industrial Rotary Lobe Jelly Jam Pump

FOB Reference Price:Get Latest Price
US $1,200-4,800 / Sets | 1 Set/Sets Steel Industrial Rotary Lobe Jelly Jam Pump (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
BLS
Theory:
Rotary Pump
Structure:
Gear Pump
Usage:
Steel Industrial Rotary Lobe Jelly Jam Pump
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
electricity
Pressure:
Low Pressure
Application:
Steel Industrial Rotary Lobe Jelly Jam Pump
Product name:
Steel Industrial Rotary Lobe Jelly Jam Pump
Material:
Stainless Steel 304/316
Type:
Lobe pump
Keywords:
Steel Industrial Rotary Lobe Jelly Jam Pump
Function:
Steel Industrial Rotary Lobe Jelly Jam Pump
Impeller:
butterfly,three impellers
Voltage:
110-480V, 50/60Hz
Connection:
threaded, clamped, flanged
Maximum rotational speed:
600r/min
Flow:
5600-11000 L/H
SupplyAbility
SupplyAbility:
1000 Set/Sets per Quarter Steel Industrial Rotary Lobe Jelly Jam Pump
Packaging & Delivery
Packaging Details
plywood case
Steel Industrial Rotary Lobe Jelly Jam Pump
Port
Shanghai or Ningbo
Lead Time :
Shipped in 25 days after payment
Product Description

Steel Industrial Rotary Lobe Jelly Jam Pump

    Steel Industrial Rotary Lobe Jelly Jam Pump are widely used on beer, food, dairy, beverage, chemical and medical industry and so on. For the special shape of the rotor and the high precision, we make rotor curve program composition by C Language and then input in machining centre to process, which confirms the high precision of the key parts and the strict requirement.

Characteristic

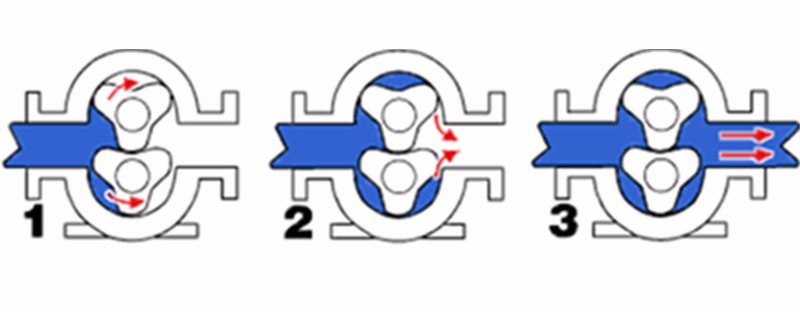

    Lobe pump belongs to positive displacement pump, flow can be controlled accurately and can change to variable pump conveniently.
    The rotation speed of lobe pump is very low, normally between 100rpm and 500rpm, the material is sent out smoothly and the component is not changed.
    Lobe pump can transfer high viscosity material, so it also called colloid pump. Lobe pump can be made as rather high output pressure conveniently, suitable to long distance or high resistance dosing transfer.

Application

1). Food and beverage: dairy, chocolate, syrup, cream, cereal mash, beer and latex.
2). Fruit concentration: tomato paste, pudding, juice, jam and jelly.
3). Paste products: fats, grease and etc..
4). Cosmetic: face cosmetic, abluent, fixature, spice and so on.
5). Medicine: extract, emulsion and pill plasm.
6). Chemical industry: dyes, grease, dissolvant, resin and polymer.

Model
L/100R
Speed range
Flow rate
Power
(L)
(rpm)
(L/H)
(kw)
BLS-3
3L
200-500
300-800
0.55
BLS-6
6L
200-500
650-1600
0.75
BLS-8
8L
200-500
850-2160
1.5
BLS-12
12L
200-500
1300-3200
2.2
BLS-20
20L
200-500
2100-5400
3
BLS-30
30L
200-400
3200-6400
4
BLS-36
36L
200-400
3800-7600
4
BLS-52
52L
200-400
5400-11000
5.5
BLS-66
66L
200-400
7100-14000
7.5
BLS-78
78L
200-400
9000-18000
7.5
BLS-100
100L
200-400
11000-22000
11
BLS-135
125L
200-400
15000-30000
15
BLS-160
160L
200-400
17000-34000
18.45
BLS-200
200L
200-400
21600-43000
22

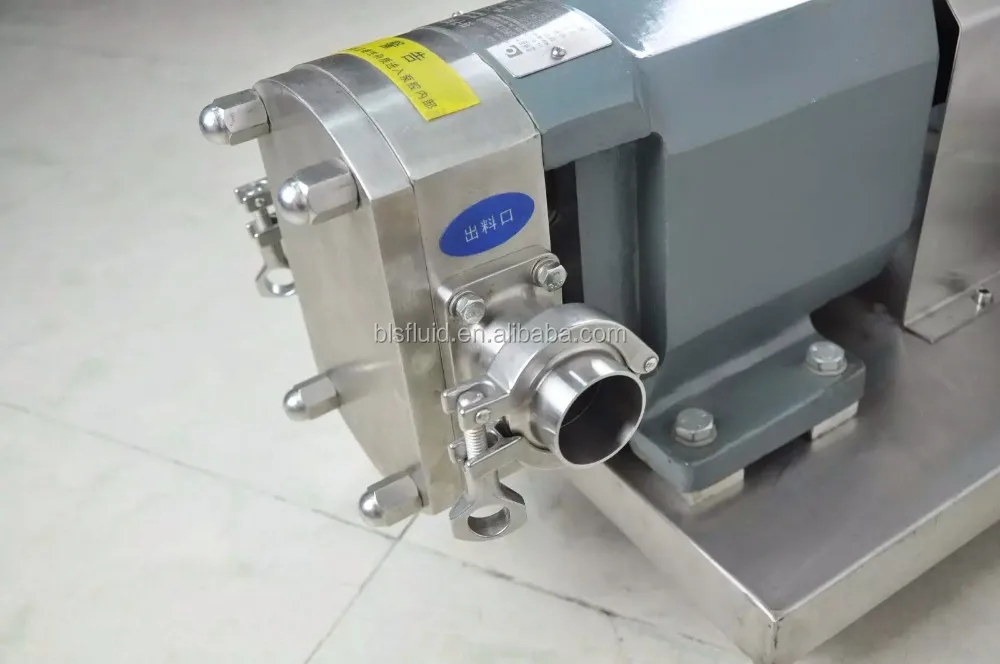

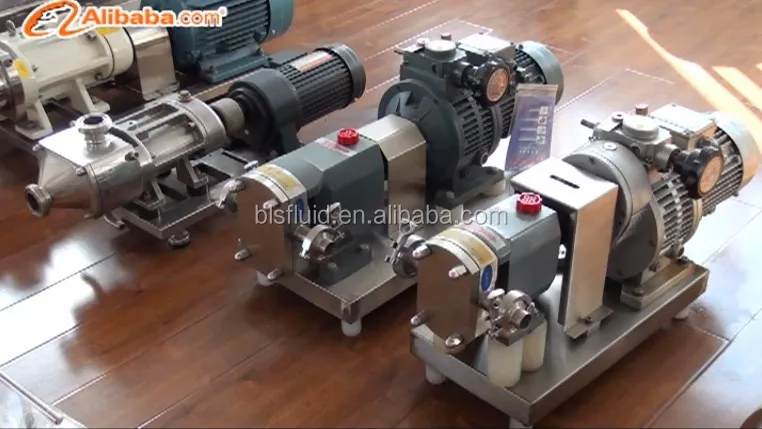

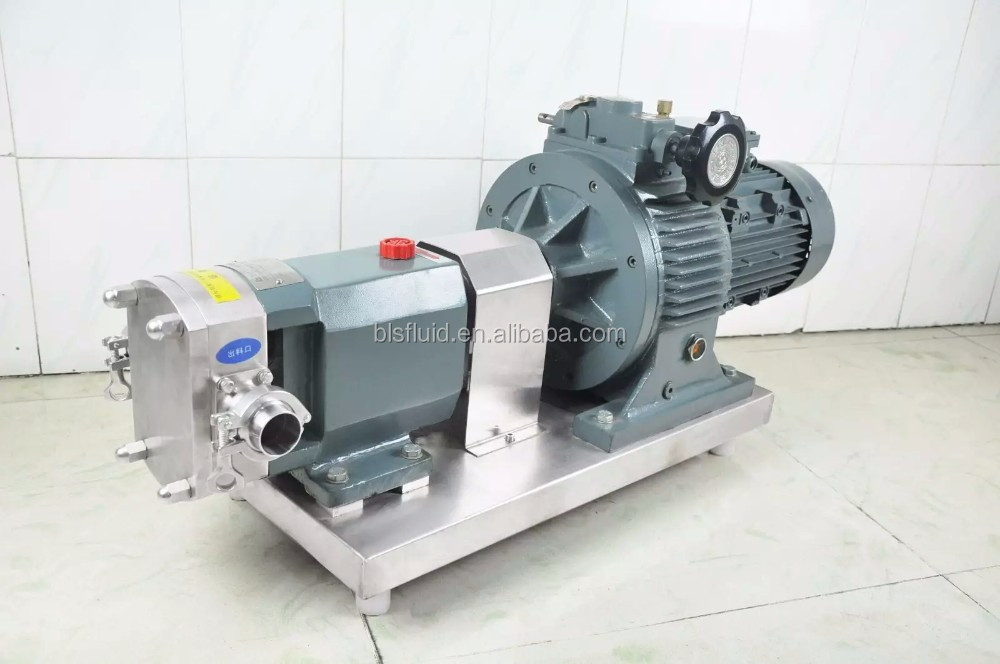

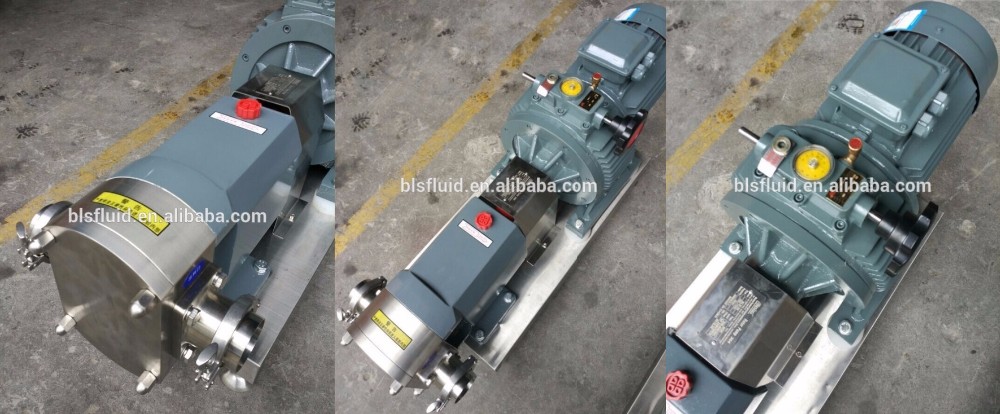

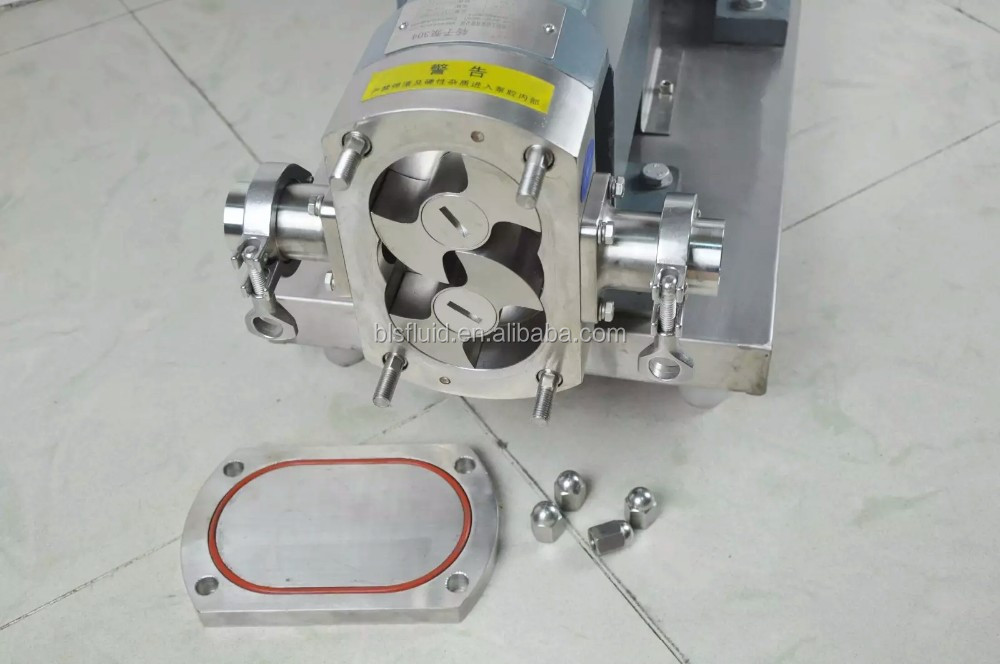

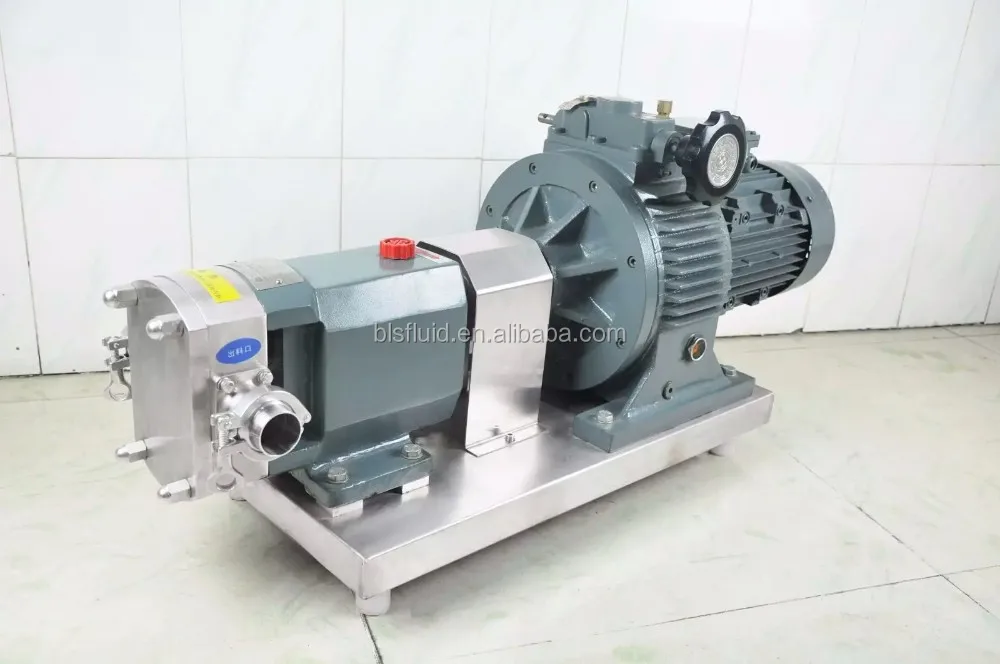

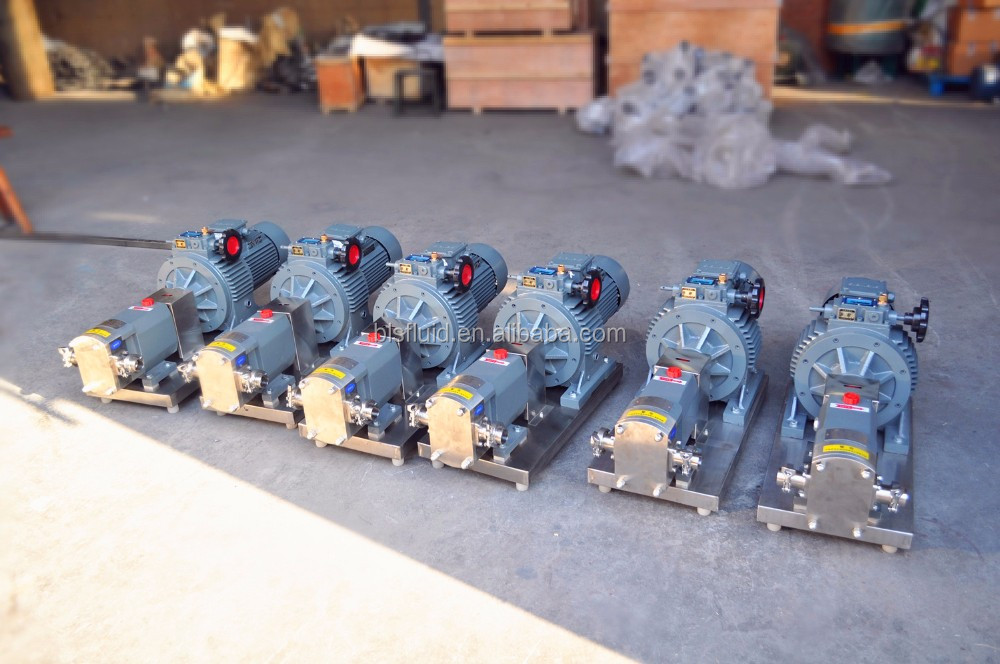

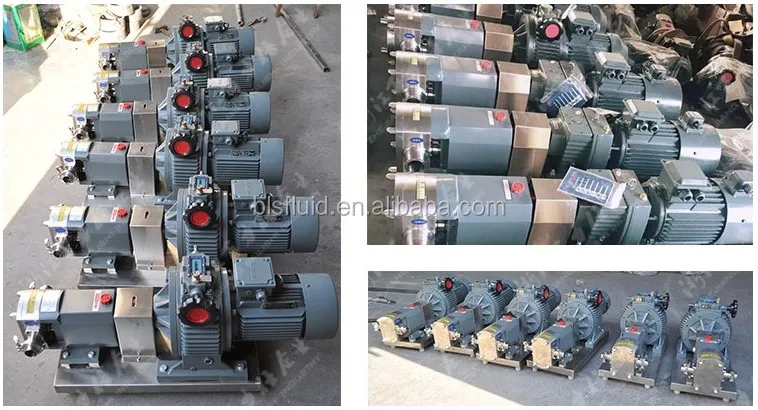

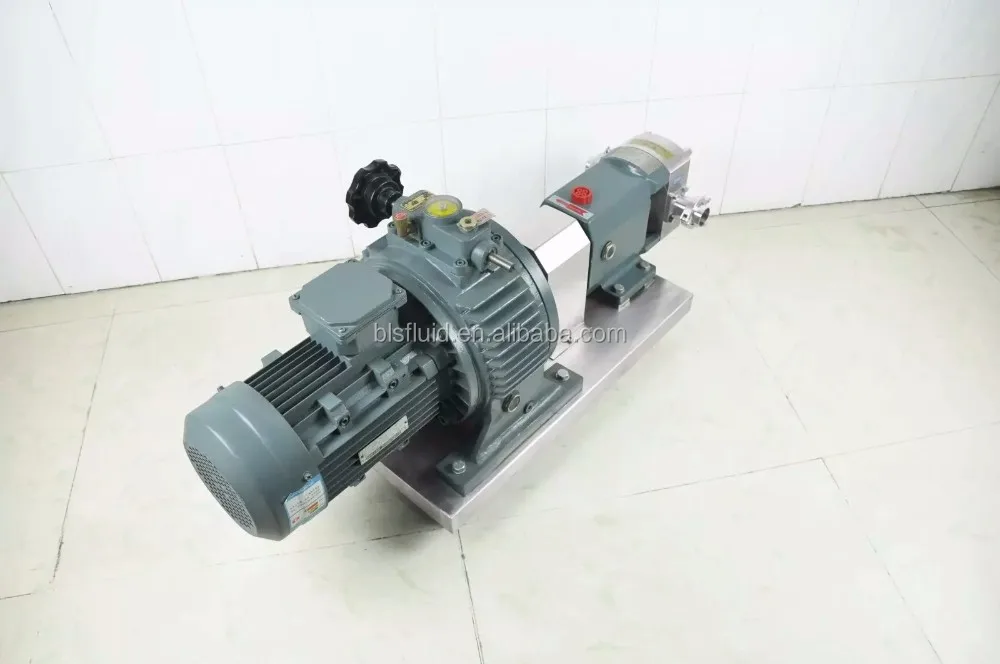

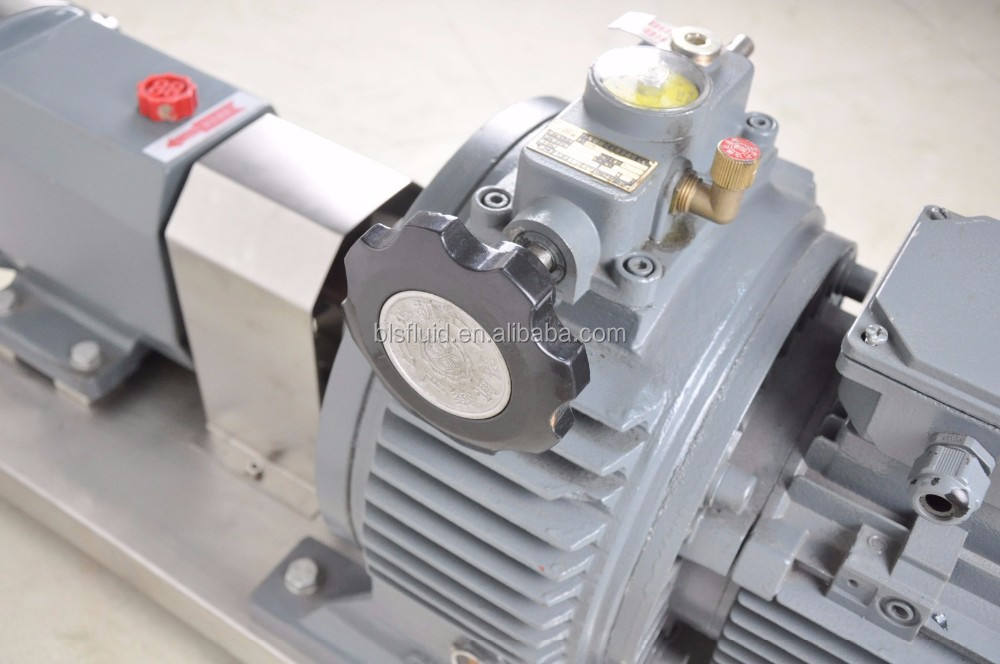

Detailed Images

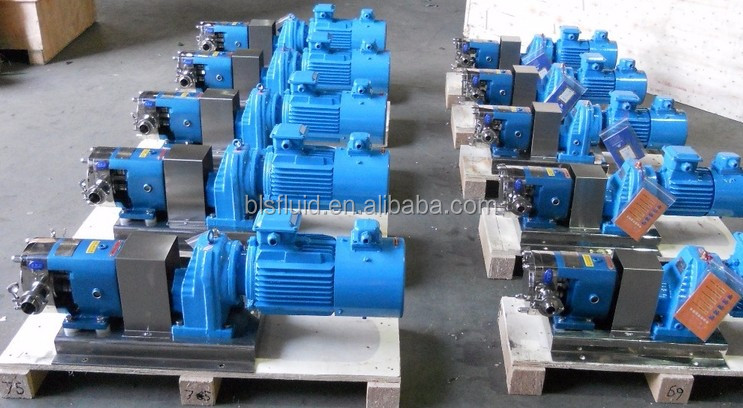

Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
