ABB motor Steel Inline Industrial Juice Mixer Machine

FOB Reference Price:Get Latest Price
US $1,850-12,800 / Sets | 1 Set/Sets ABB motor Steel Inline Industrial Juice Mixer Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Homogenizer
Product Type:
ABB motor Steel Inline Industrial Juice Mixer Machine
Application:
Liquid
Additional Capabilities:
inline emulsifier
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
BRL3
Max. Loading Capacity:
140m3/h
Voltage:
110V~480V, 110-480V
Power(W):
4-185kw
Dimension(L*W*H):
Referring
Certification:
CE ISO
Warranty:
12 Months
After-sales Service Provided:
Overseas service center available
material:
stainless steel 304, 316
Flow quantity:
Q=4-140T/h
Viscosity range:
0.2cp-3000cp
Max pressure at outlet:
0.05-0.2Mpa
Product temperature range:
-30℃-150℃
Function:
ABB motor Steel Inline Industrial Juice Mixer Machine
Power supply:
4-185kw
Rotation Speed:
2800rpm/1480rpm
Product name:
ABB motor Steel Inline Industrial Juice Mixer Machine
SupplyAbility
SupplyAbility:
200 Set/Sets per Month ABB motor Steel Inline Industrial Juice Mixer Machine
Packaging & Delivery
Packaging Details
plywood case package
ABB motor Steel Inline Industrial Juice Mixer Machine
Port
shanghai/ningbo
Lead Time :
Shipped in 15 days after payment
Product Description

ABB motor Steel Inline Industrial Juice Mixer Machine

    ABB motor Steel Inline Industrial Juice Mixer Machine is used for the mixing, homogenizing between liquid and liquid, or powder and liquid, Belongs to the L&B High shear mixer series.

    BRL-3 High shear mixer is used for the continuous dispersing and emulsifying of material with different phase. Meanwhile the mixer could also delivery low viscosity liquid.

    The mixer could mixing the powder and liquid in certain rate, and have been used in cosmetic, food, pharmaceutical, chemical, petroleum, coatings, nano-materials industry

    All the sanitary, reliability and rigidity meets the requirements of these industries.

ABB motor Steel Inline Industrial Juice Mixer Machine


OPERATION THEORY

    The mixer is composed of a few standard spare parts, which makes assembly, disassembly and maintenance easy, meanwhile avoid returning factory to repair.

    Specially designed mixing head is composed of rotor and stator.The rotor works in high speed and high-frequency mechanical effects from the motor.

    The material is under the shear, centrifugal squeeze, deep friction, impact and tearing turbulence combined effects, thus achieve the effect of dispersion, emulsification, grinding.

    High shear emulsifier combined of two layers or six layers of rotor and stator.The materials go through the layers after shear dispersion and emulsifying.

ABB motor Steel Inline Industrial Juice Mixer Machine


APPLICATION

    L & B Inline high shear mixer is usually installed in the bottom of the reactor or pipeline, the material go through form inlet to outlet , after high-speed shear. This process could be done continuously or in circulation.

Model type
Power(kw)
Speed(r/min)
Flow(T/h)
In/Outlet(Inch)
Outlet pressur(Mpa)
BRL3-60
4
2800
0-4
1.5/1.25
≤ 0.2
BRL3-100
7.5
0-8
2/1.5
BRL3-120
11
0-12
2.5/2
BRL3-140
15
0-18
2.5/2
BRL3-165
22
0-22
3/2.5
BRL3-200
37
0-30
3.5/3
BRL3-220
55
0-40
4/3.5
BRL3-240
75
0-55
4/3.5
BRL3-260
90
1480
0-65
5/4
BRL3-300
110
0-80
5/4

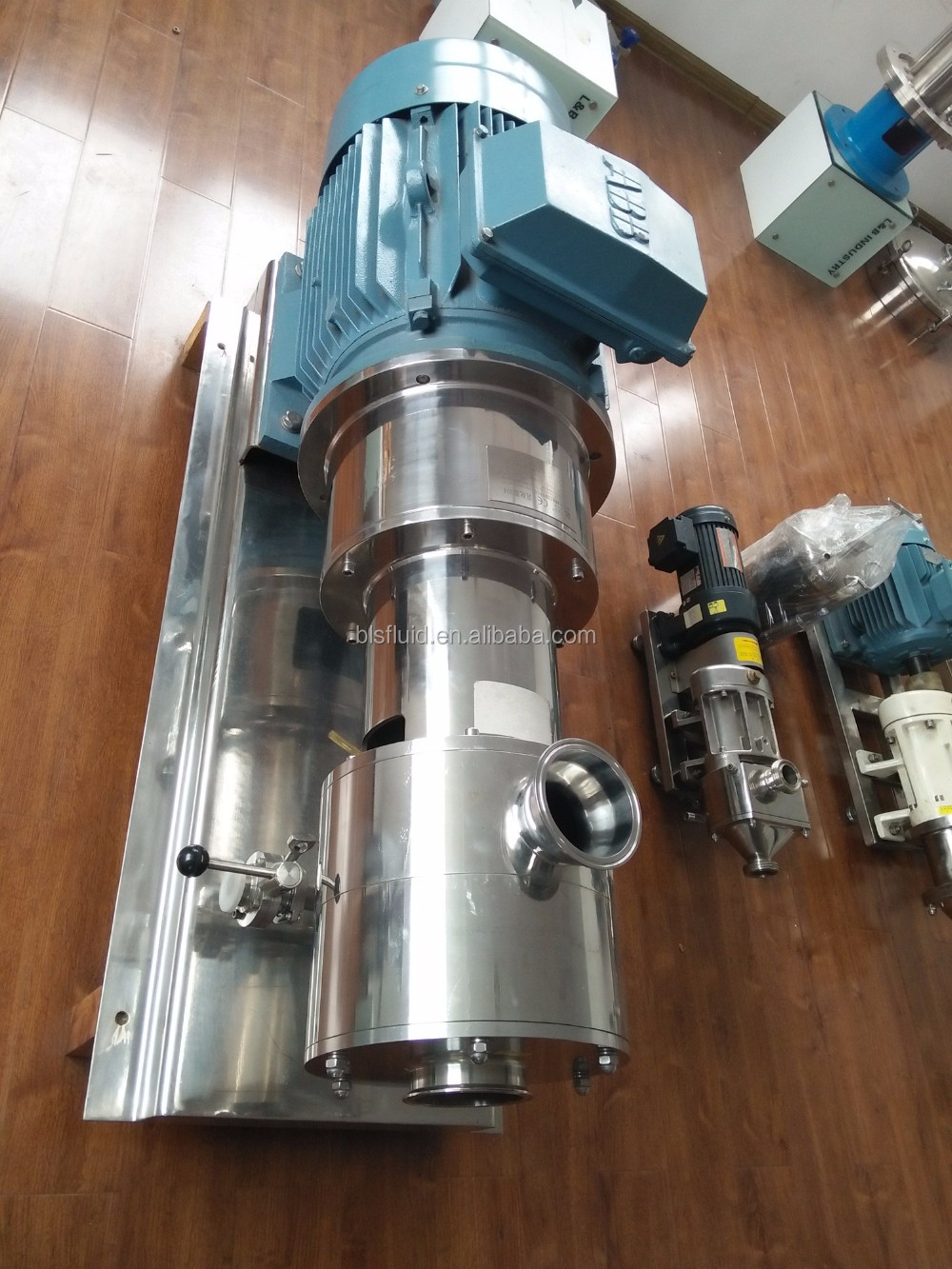

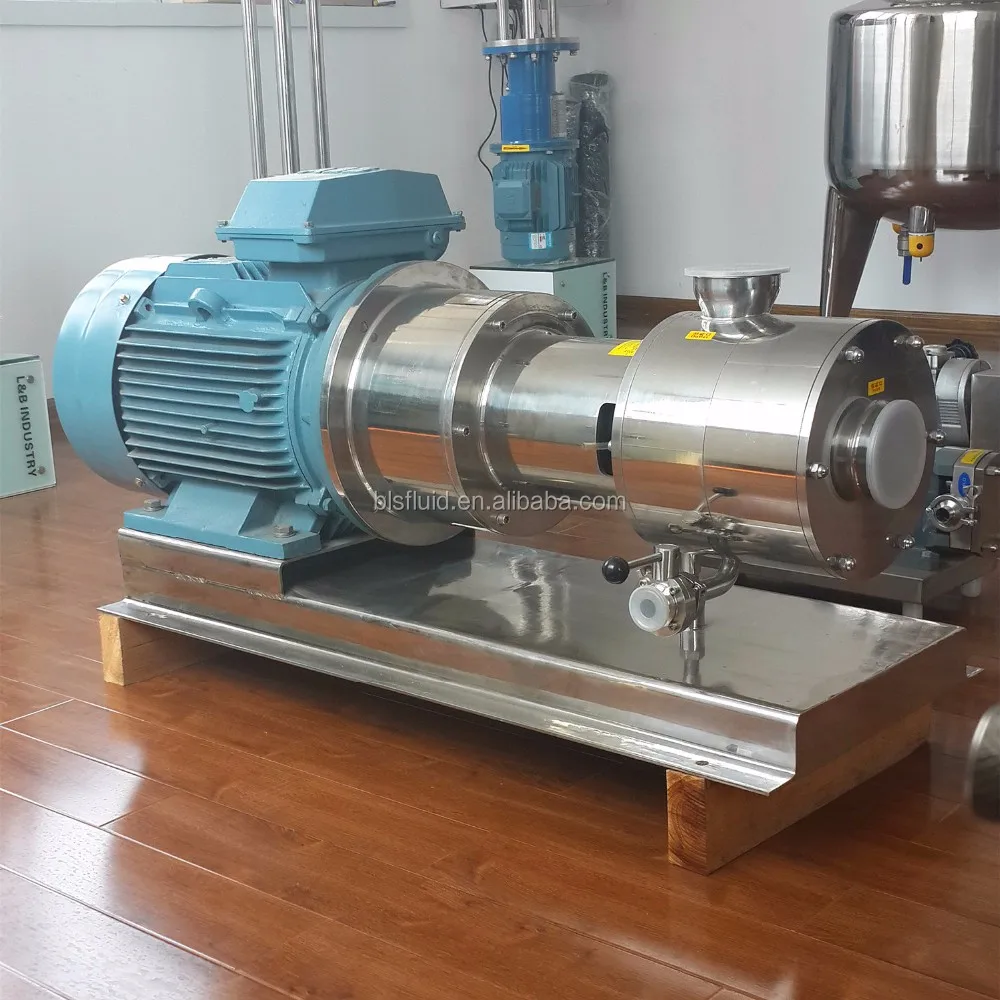

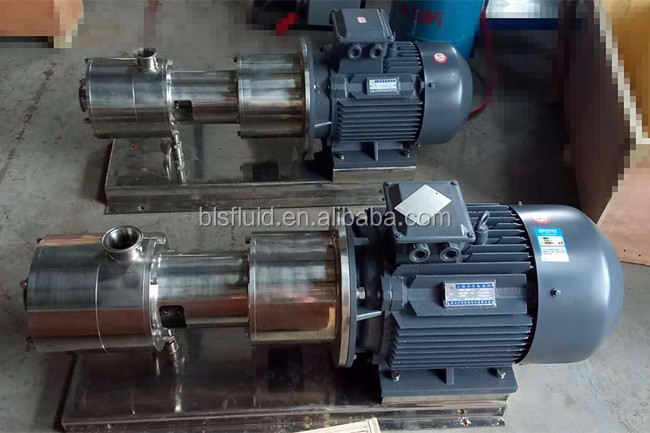

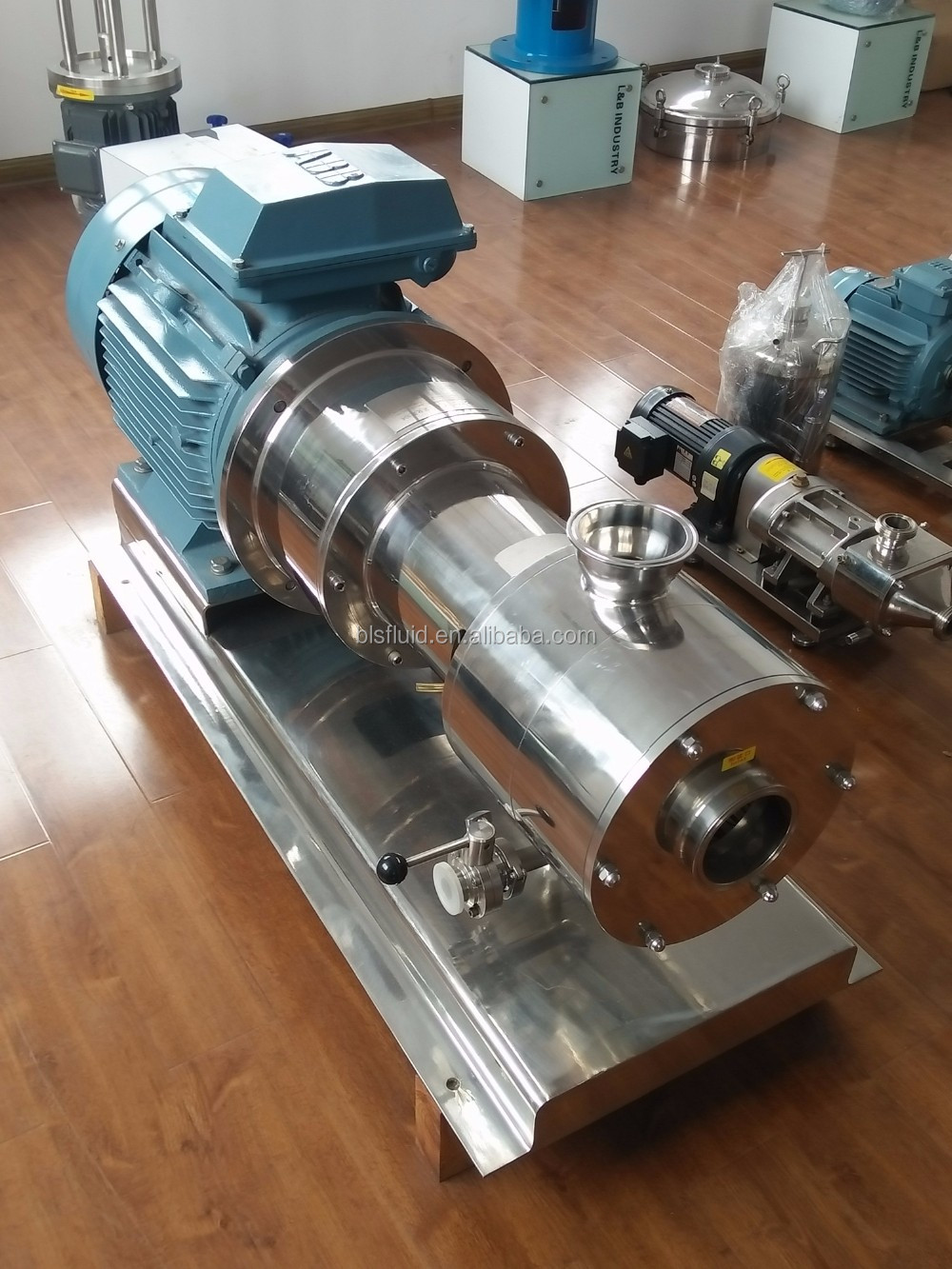

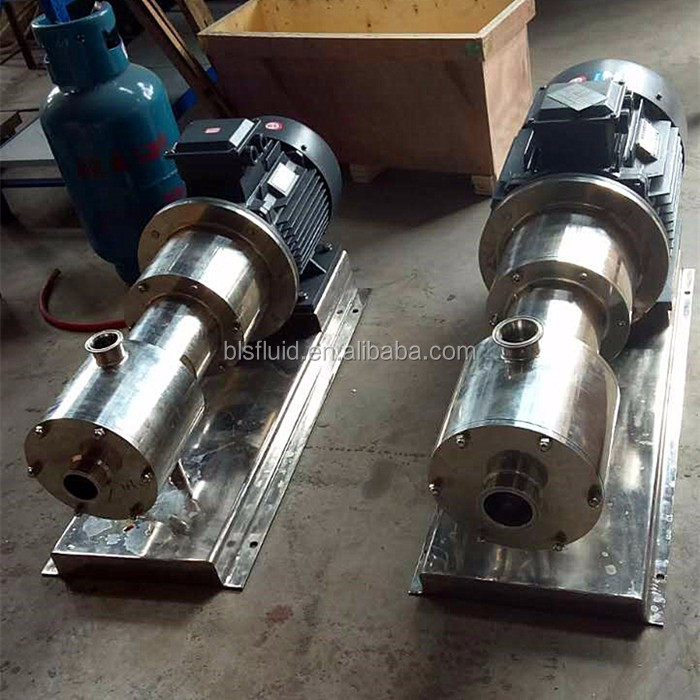

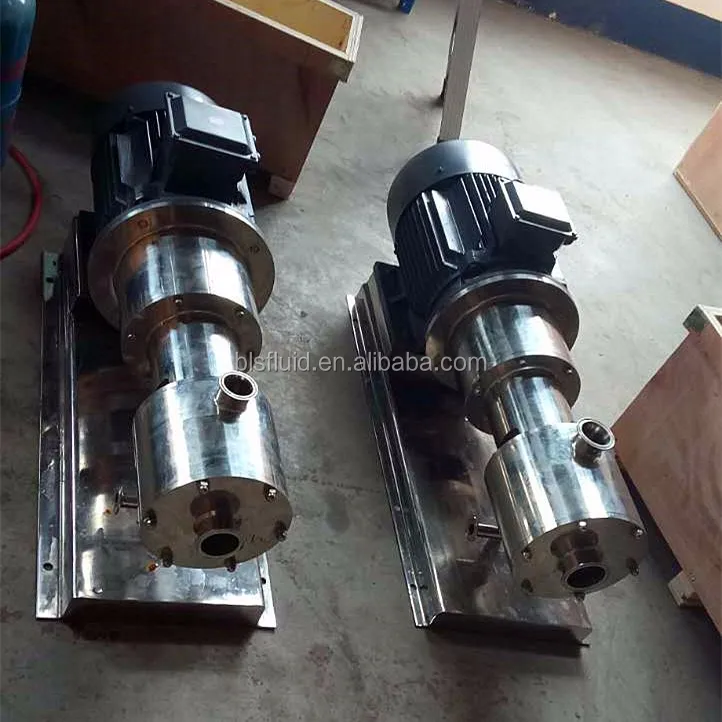

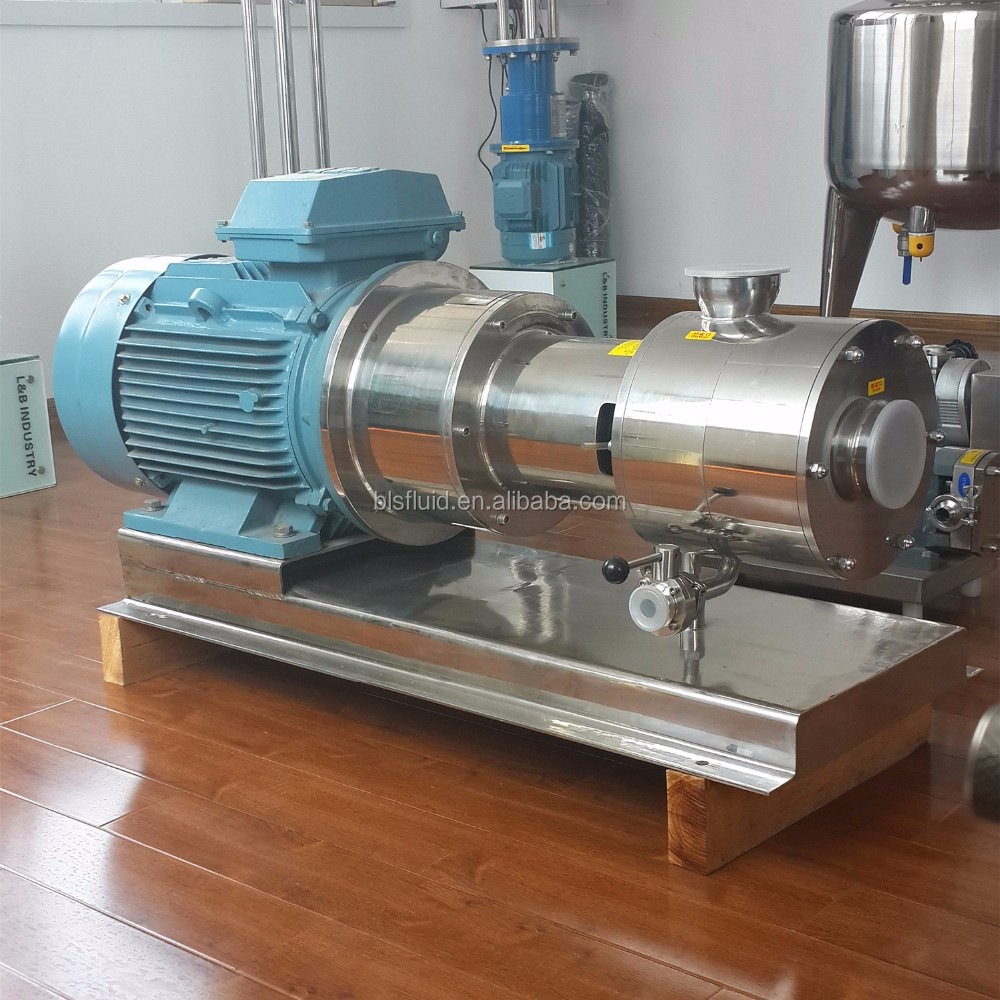

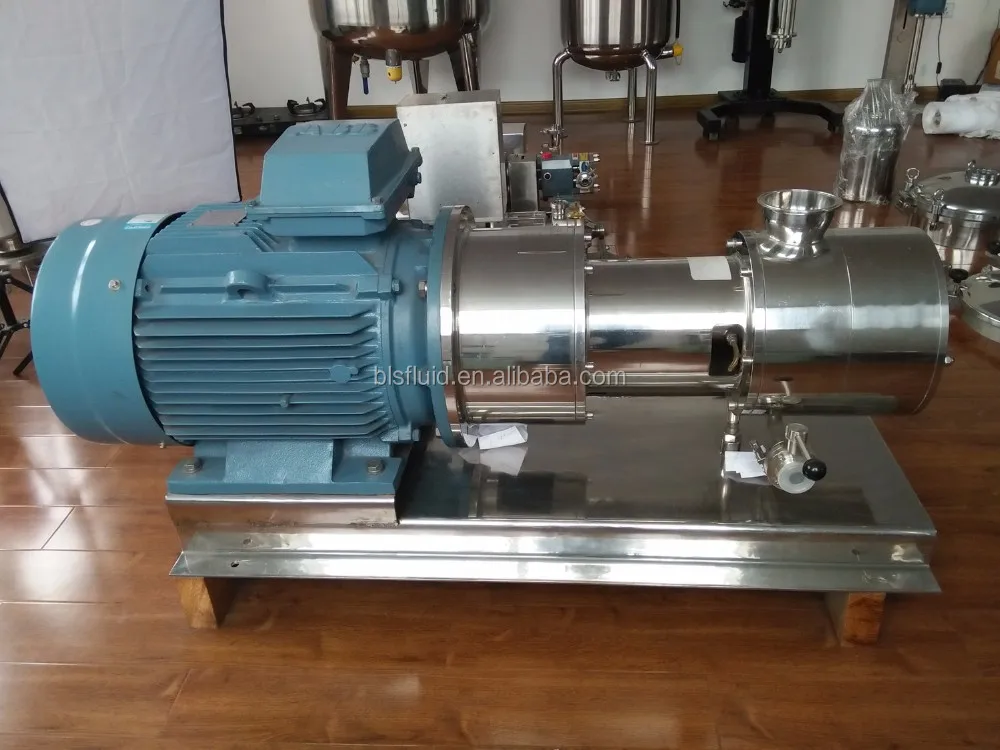

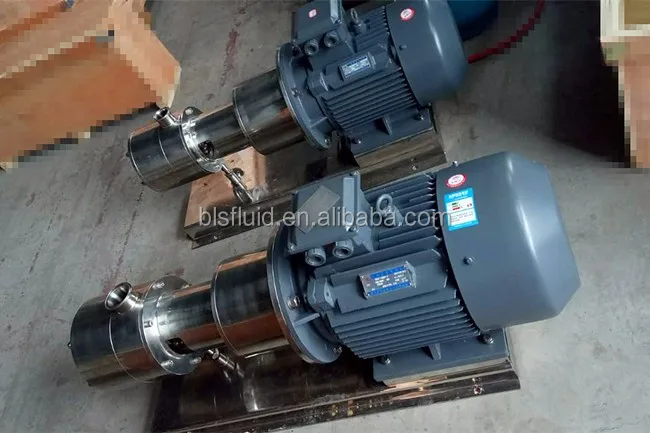

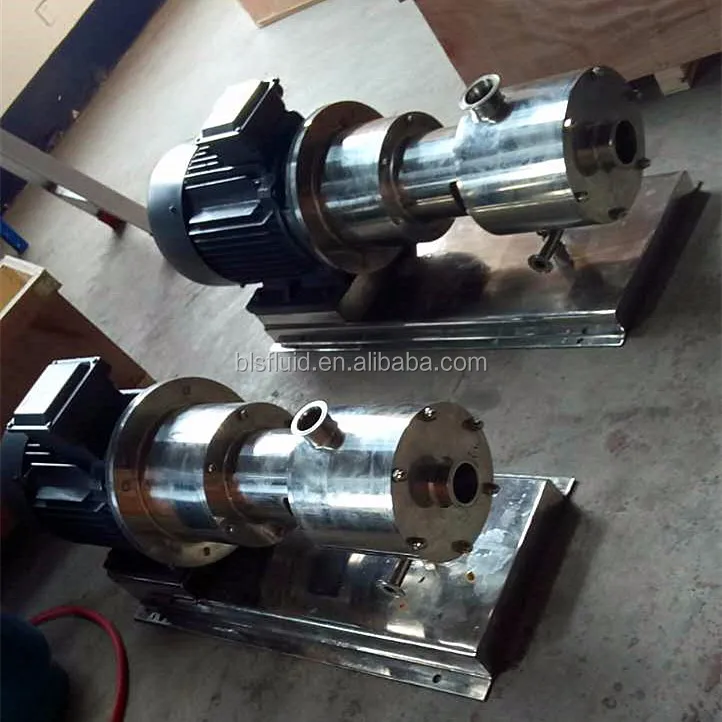

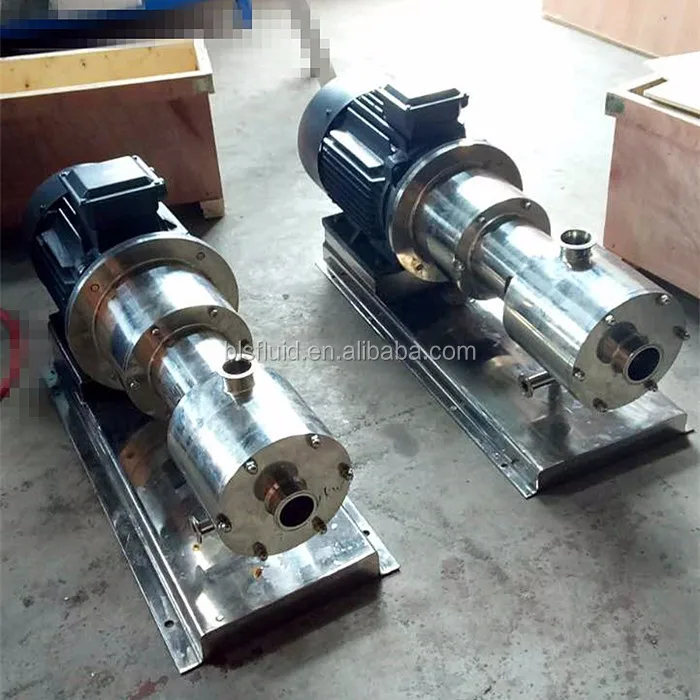

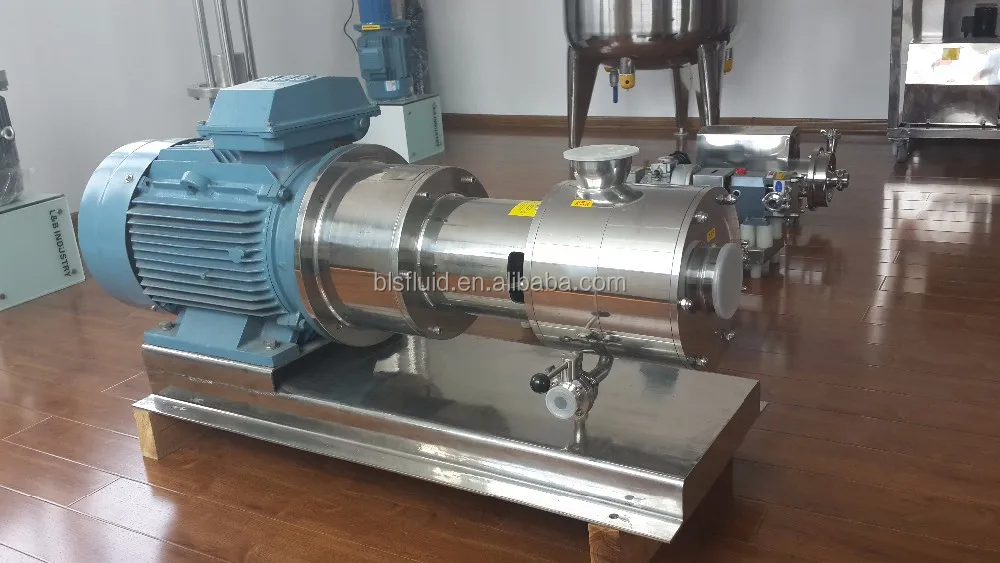

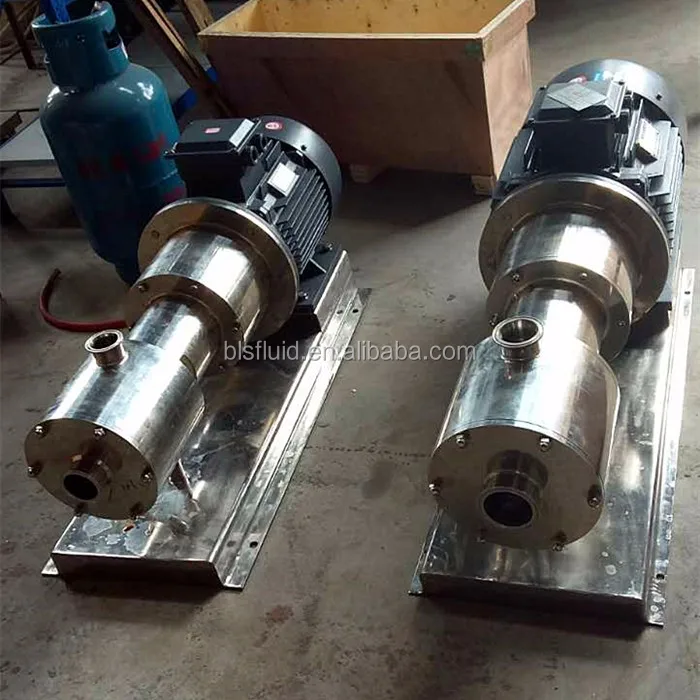

Detailed Images
Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
