Quick Details

  • Condition: New
  • Mixer Type: Homogenizer
  • Product Type: Bitumen emulsion plant
  • Application: Liquid
  • Additional Capabilities: bitumen emulsion pump
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: BLS
  • Model Number: BRL3
  • Max. Loading Capacity: 0-140M3/H
  • Voltage: 110V~480V
  • Power(W): 4-185KW
  • Dimension(L*W*H): Referring
  • Certification: CE ISO
  • Warranty: 12 Months
  • After-sales Service Provided: Overseas service center available
  • material: stainless steel 304,316
  • Flow quantity: Q=4-140T/h
  • Product temperature range: -30℃-150℃
  • Max pressure at outlet: 0.05-0.2Mpa
  • type: Inline emulsion pump
  • Viscosity range of delivering material: 0.2cp-3000cp
  • Type: bitumen emulsion plant
  • Function: steel bitumen emulsion price
  • Usage: acrylic emulsion paint price
  • Name: Zhejiang Indistrial Stainless Steel 2800RPM Bitumen Emulsion Mill

Packaging & Delivery

Packaging Details plywood case package
Zhejiang Indistrial Stainless Steel 2800RPM Bitumen Emulsion Mill
Delivery Time steel emulsion pump is shipped with 15 days
Product Description

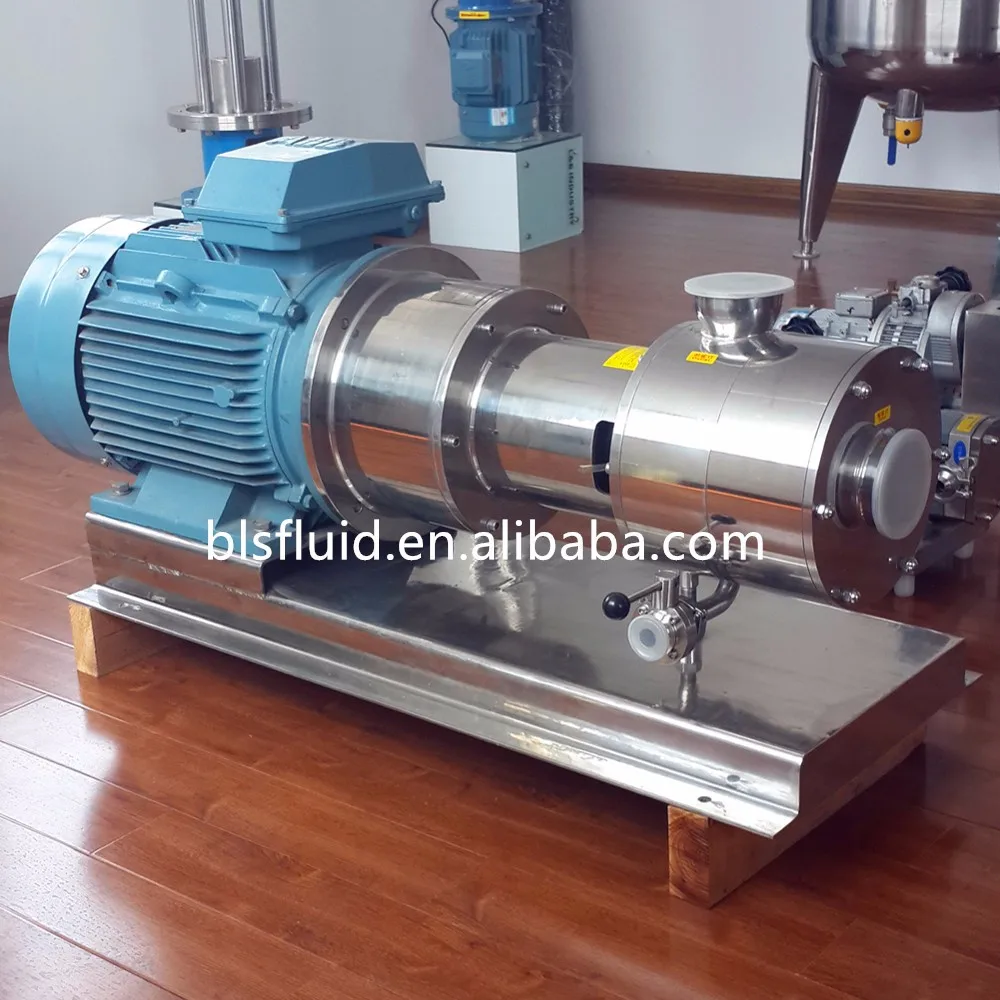

Zhejiang Indistrial Stainless Steel 2800RPM Bitumen Emulsion Mill


GENERAL CONSIDERATIONS.

    L&B BRL-3 High shear mixer is used for the mixing, homogenizing between liquid and liquid, or powder and liquid, Belongs to the L&B High shear mixer series.

    BRL-3 High shear mixer is used for the continuous dispersing and emulsifying of material with different phase. Meanwhile the mixer could also delivery low viscosity liquid.

    The mixer could mixing the powder and liquid in certain rate, and have been used in cosmetic, food, pharmaceutical, chemical, petroleum, coatings, nano-materials industry

    All the sanitary, reliability and rigidity meets the requirements of these industries.

OPERATION THEORY.

    The mixer is composed of a few standard spare parts, which makes assembly, disassembly and maintenance easy, meanwhile avoid returning factory to repair. Specially designed mixing head is composed of rotor and stator. The rotor works in high speed and high-frequency mechanical effects from the motor.

    The material is under the shear, centrifugal squeeze, deep friction, impact and tearing turbulence combined effects, thus achieve the effect of dispersion, emulsification, grinding.  High shear emulsifier combined of two layers or six layers of rotor and stator. The materials go through the layers after shear dispersion and emulsifying.

APPLICATION:

    L & B Inline high shear mixer is usually installed in the bottom of the reactor or pipeline, the material go through form inlet to outlet , after high-speed shear. This process could be done continuously or in circulation.

Water test reference technical parameters:
Model
Power (kw)
Speed (rpm)
Flow (m³/h)
BRL3-60
4
2800
0-4
BRL3-100
7.5
2800
0-8
BRL3-120
11
2800
0-12
BRL3-140
15
2800
0-18
BRL3-165
22
2800
0-22
BRL3-200
37
2800
0-30
BRL3-220
55
2800
0-40
BRL3-240
75
2800
0-55
BRL3-260
90
1480
0-65
BRL3-300
110
1480
0-80
BRL3-360
132
1480
0-100
BRL3-380
160
1480
0-120
BRL3-400
185
1480
0-140
Detailed Images



Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.




Motor device

Pure copper motor: low noise, stable dynamic, sustainable work.

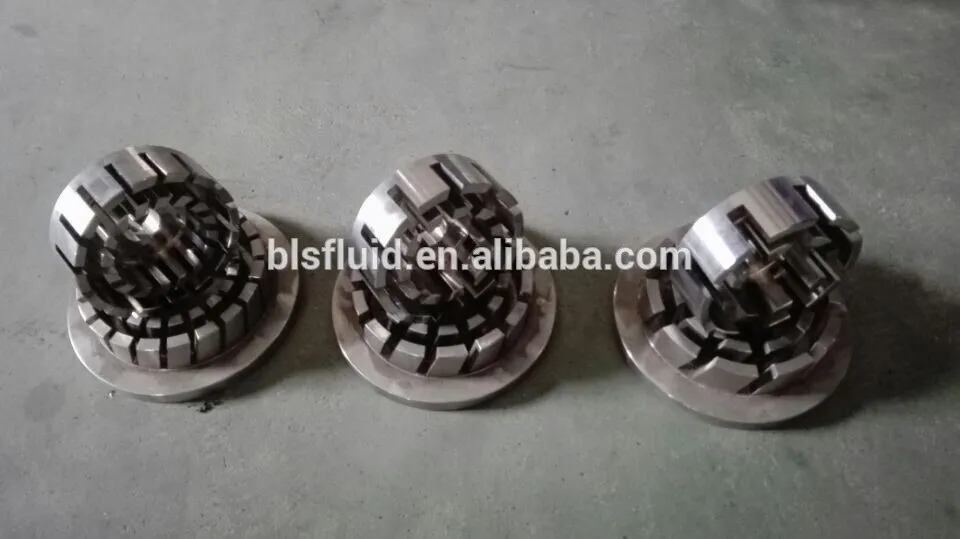

Three stages Rotor and Stator series(CNC treatment)


1. Thick teeth: striking, breaking, cutting, dissolving, rough separating

2. Middle teeth: separating, thinning, accelerated dissolving, emulsifying

3. Thin teeth: micro separating, enhanced emulsifying, homogenizing, starching



Sealing option


    Sanitary single mechanical seal/Dual End Mechanical Seal


Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
