Factory Outlet G Series Stainless Steel Mono/Single Pump

FOB Reference Price:Get Latest Price
US $300-4,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
L&B
Model Number:
G series
Theory:
Rotary Pump
Structure:
Screw Pump
Usage:
Water
Power:
Electric, 0.37-15KW
Standard or Nonstandard:
Standard
Fuel:
Electricity
Pressure:
Low Pressure
Application:
screw pump
Material:
SS304, SS316L
Temperature:
20-+180 degree
Max Pressure:
18bar
Flow:
0.5-60m3/h
Certification:
CE SGS
Name:
Factory Outlet G Series Stainless Steel Mono/Single Pump
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Carton/Wooden Cases
Port
Ningbo
Lead Time :
Shipped in 10 days after payment



Product Description

 Feeding Medium

This product is applicable for feeding medium which has following properties:

1. High solid content(diameter of the biggest particle is 50mm)or no solid content

2. Medium with all viscosities(1mPas~3,000,000mPas)

3. Medium that is easy to be generated and swelled

4. Shearing sensitive medium

5. Medium with/without self lubrication

6. Erosive medium(PH=0~14)

7. Adhesive medium8. Toxicity hazard medium

Technical Parameters



 screw pump(mm)(r/min)(m³/h)(kw)
ModelDiameterSpeedFlowPower
G10-12014000.50.37
G15-12596010.55
G20-1329601.50.75
G25-13296021.1
G30-14096031.5
G35-15096052.2
G40-15096073
507205.52.2
G45-15096094
5072073
G50-165960135.5
65720104
G55-165960187.5
65720135.5
G65-1807203011
G86-11007206015

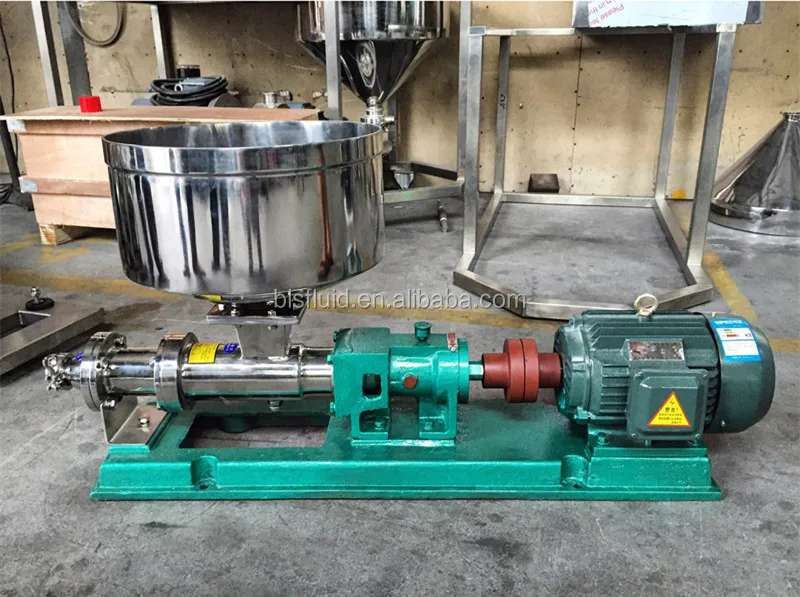

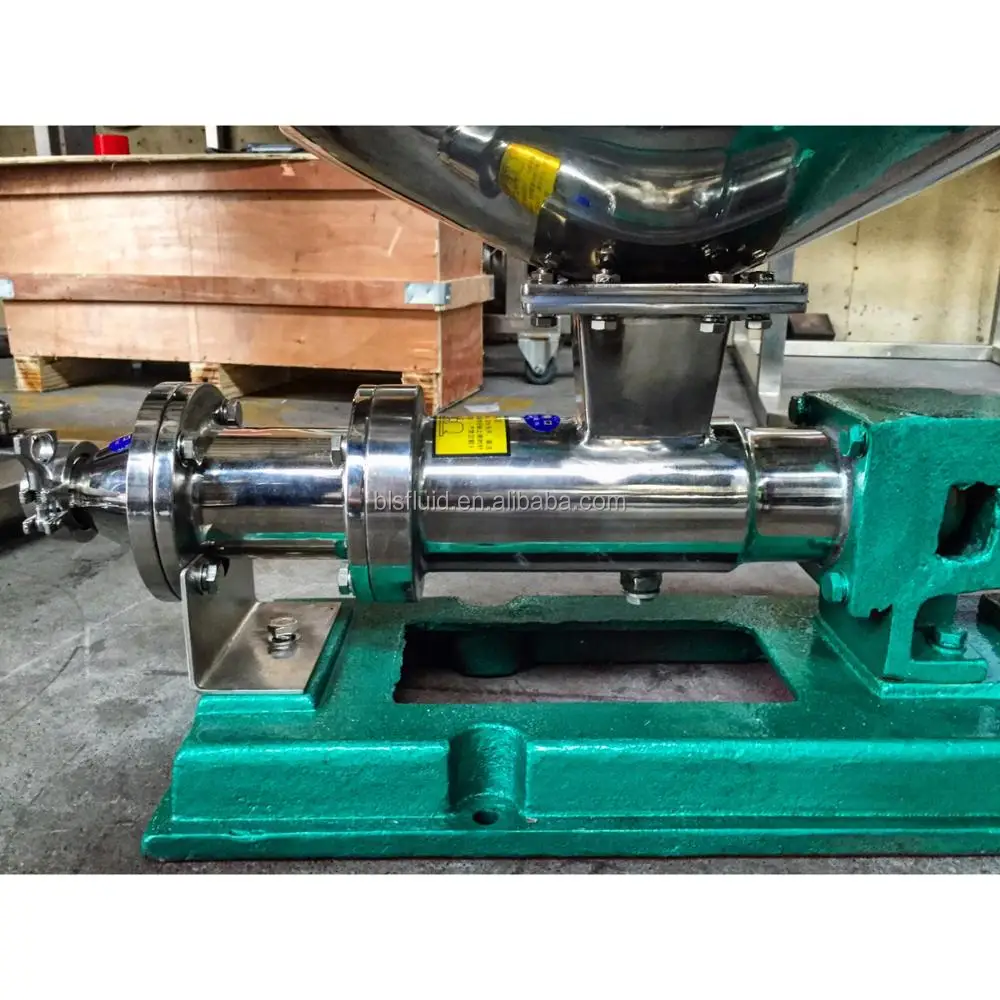

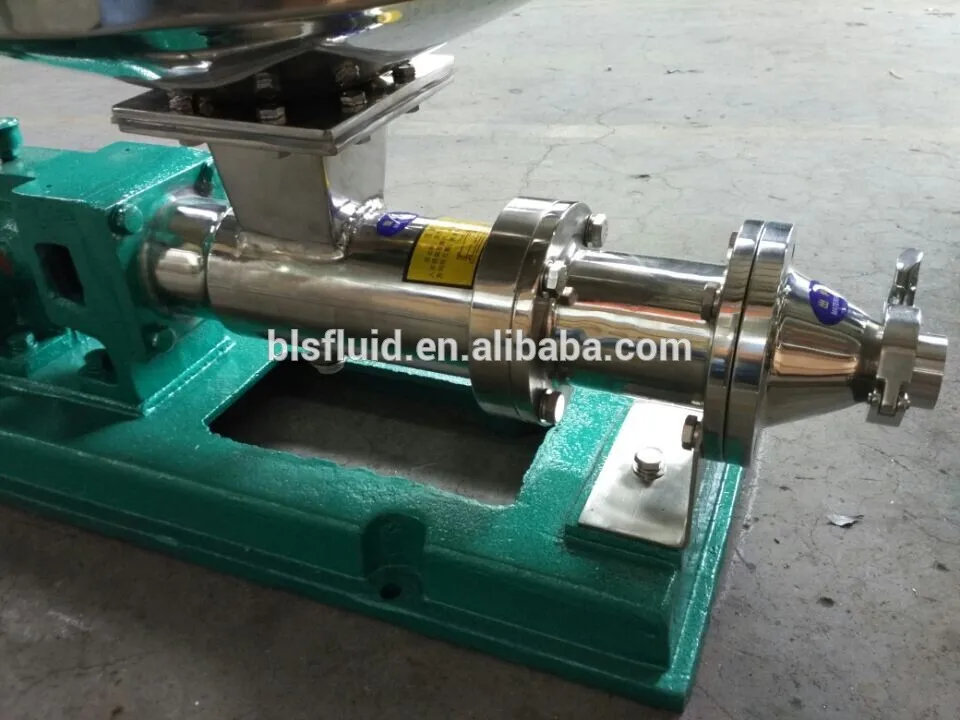

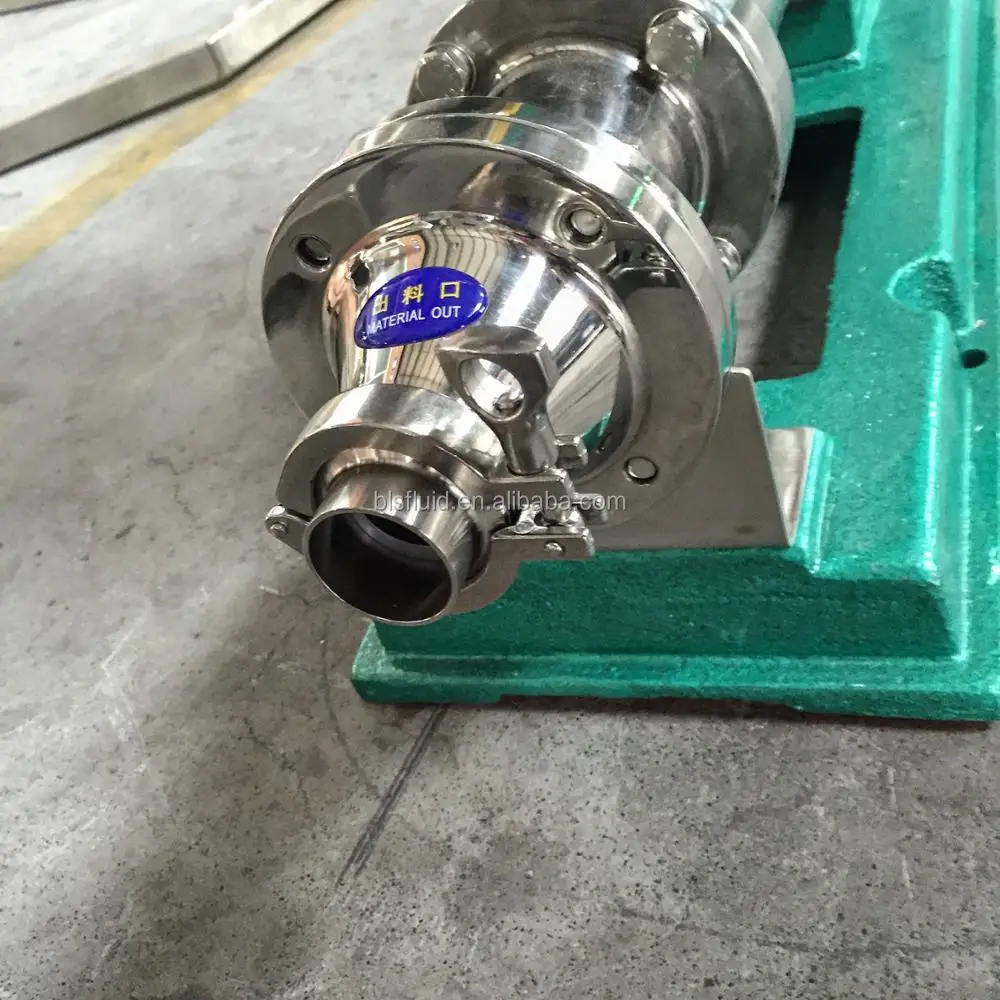

Product Picture






 stainless-steel-hopper-screw-pump (1).jpg



stainless-steel-hopper-screw-pump (2).jpg

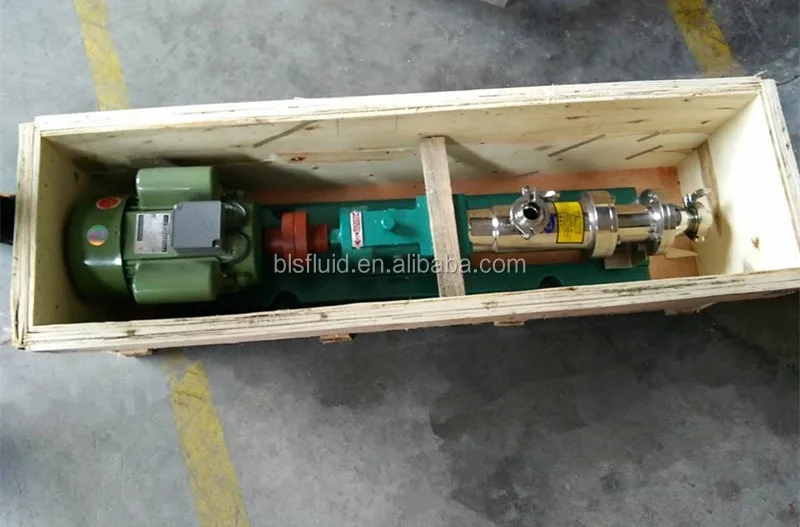

Packaging & Shipping
