Quick Details
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: BLS
- Model Number: BLS-LXB
- Theory: Centrifugal Pump
- Structure: Single-stage Pump
- Usage: Water
- Power: Electric
- Standard or Nonstandard: Standard
- Fuel: Electric
- Pressure: Low Pressure
- Application: water pump
- name: food grade centrifugal water pump
- material: stainless steel 304,316L
- flow: 1-80m3/h
- voltage: 110-600V
Packaging & Delivery
| Packaging Details | Standard export packing |
|---|---|
| Delivery Time | Shipped in 15 days after payment |

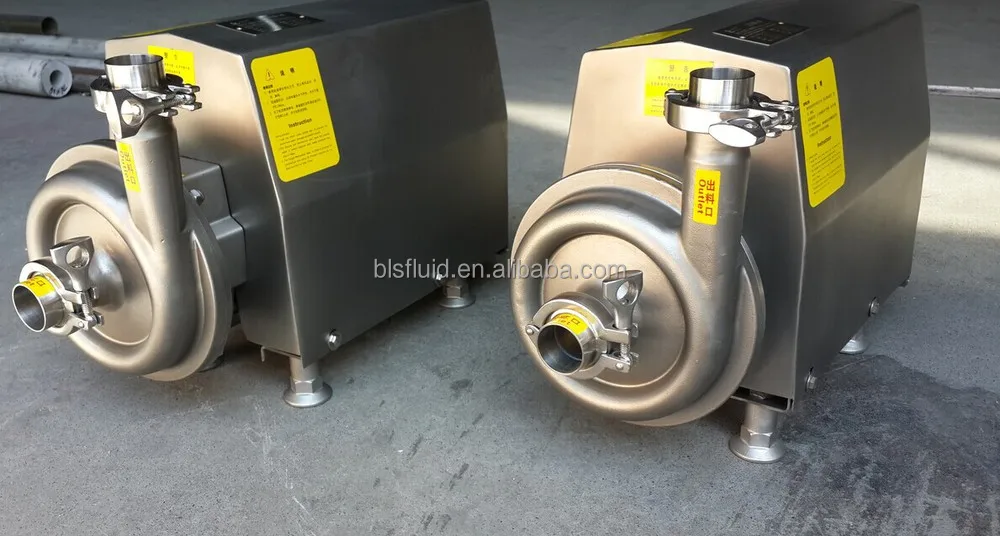

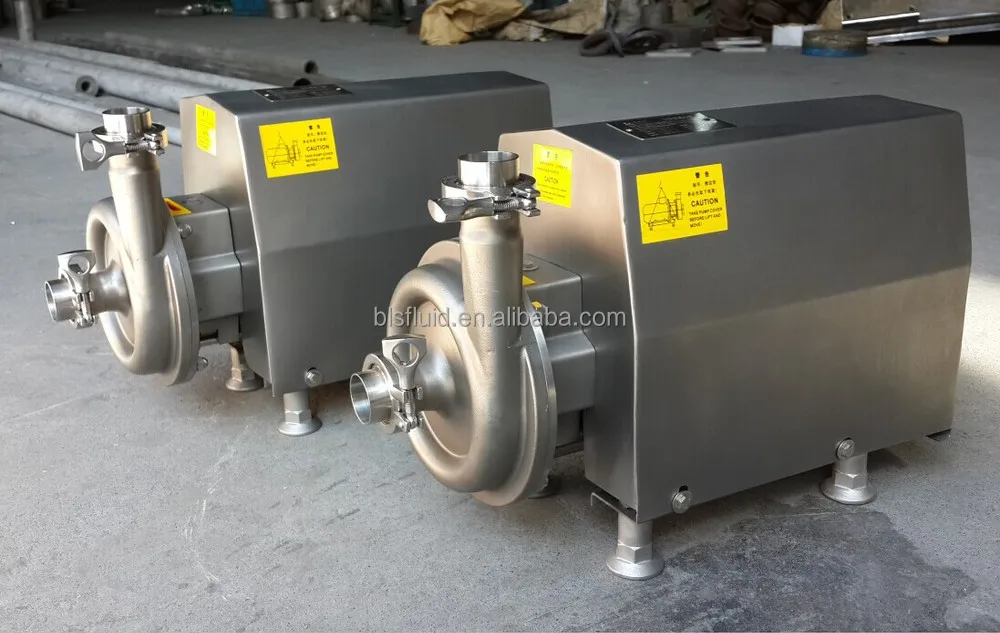

food grade centrifugal water pump
Material:SS304,SS316L
ISO9001:2008
Reliable quality,beatiful surface
BLS Centrifugal pump is a sanitary centrifugal pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical,dairy,milk,bear industries.
Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options it can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
Design and features
Different Connection type: Welding; Thread; Clamp
Different connections standard:DIN,SMS,JIS, ISO.
Open impeller manufactured with stainless steel investment casting technology.
Sanitary mechanical seal.
Parts in contact with pumped media AISI 316L or 304
Pump support from AISI 304
Inside surface finishing Ra < 0.8 um.
Outside surface finishing Mirror polished
| Model | (t/h) Flow | (M) Head | (KW) Power | (mm) Inlet/Outlet Diameter |
| BLS-3-15-0.75 | 3 | 15 | 0.75 | 38/32 |
| BLS-3-20-1.1 | 3 | 20 | 1.1 | 38/32 |
| BLS-5-24-1.5 | 5 | 24 | 1.5 | 51/38 |
| BLS-5-32-2.2 | 5 | 32 | 2.2 | 51/38 |
| BLS-10-24-2.2 | 10 | 24 | 2.2 | 51/38 |
| BLS-10-32-3 | 10 | 32 | 3 | 51/38 |
| BLS-15-24-3 | 15 | 24 | 3 | 51/51 |
| BLS-20-24-4 | 20 | 24 | 4 | 51/51 |
| BLS-20-35-5.5 | 20 | 35 | 5.5 | 63.5/51 |
| BLS-30-24-5.5 | 30 | 24 | 5.5 | 63.5/51 |
| BLS-30-35-7.5 | 30 | 35 | 7.5 | 63.5/51 |
| BLS-40-24-7.5 | 40 | 24 | 7.5 | 76/63.5 |
| BLS-50-24-7.5 | 50 | 24 | 7.5 | 76/63.5 |
| BLS-50-35-11 | 50 | 35 | 11 | 76/63.5 |
| BLS-80-30-15 | 80 | 30 | 15 | 89/76 |
| BLS-80-40-18.5 | 80 | 40 | 18.5 | 102/89 |
