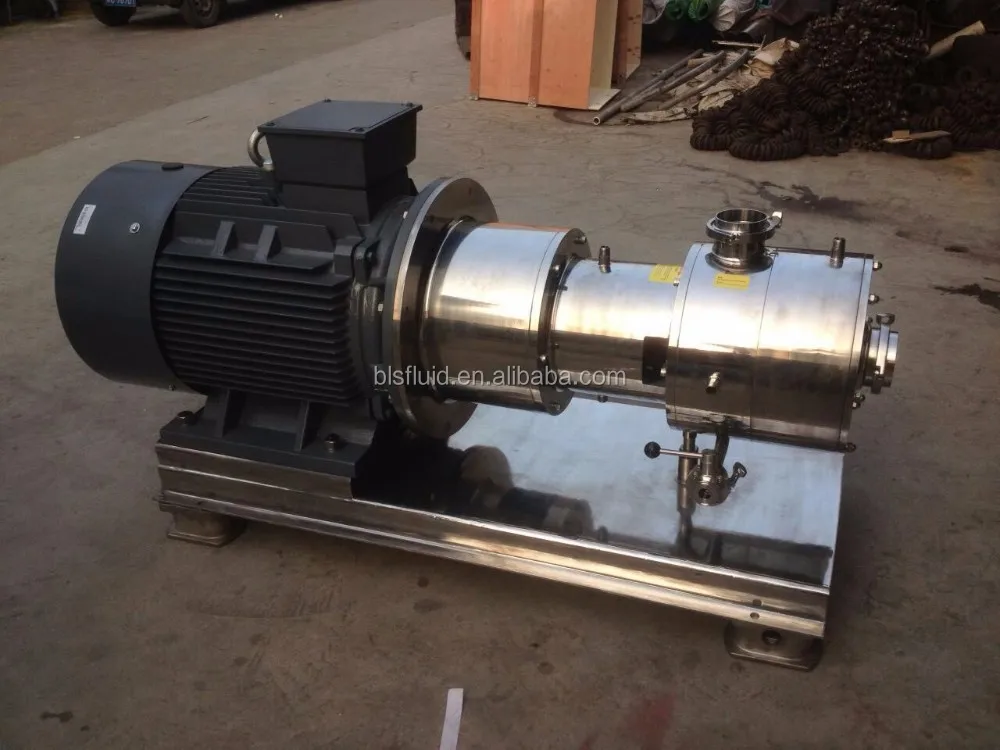

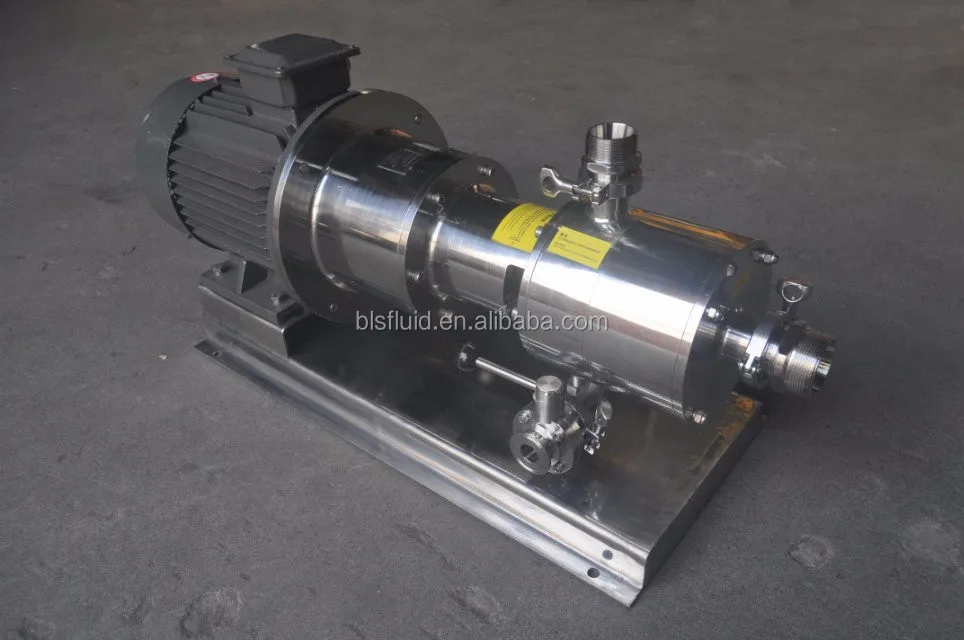

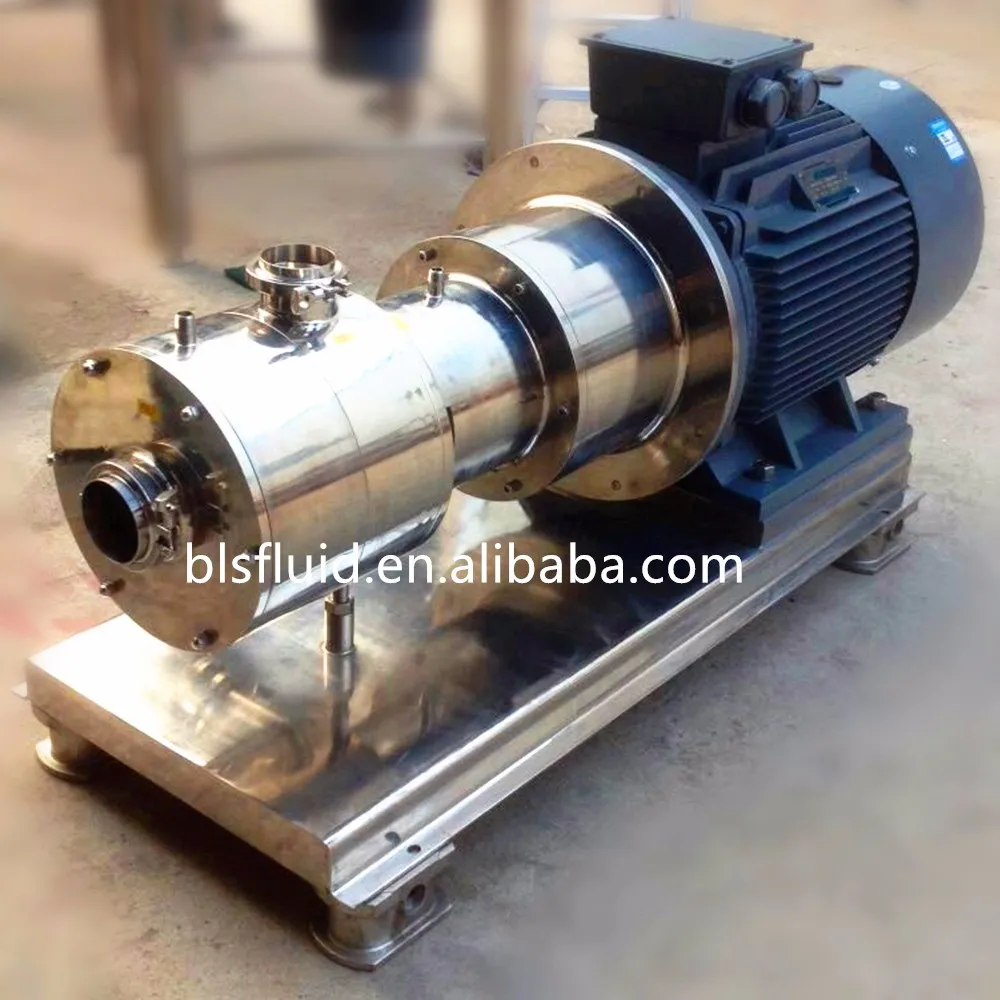

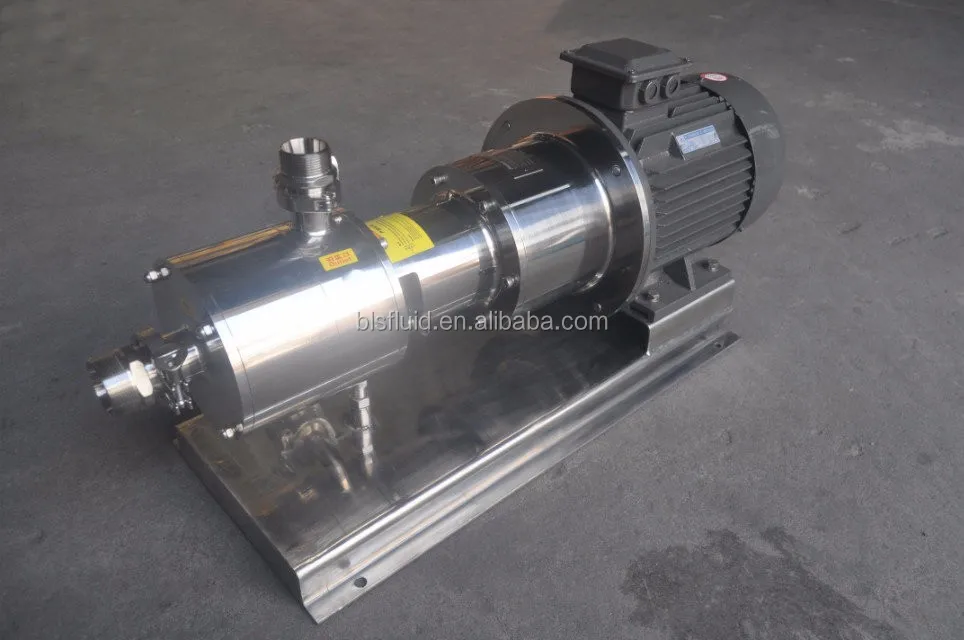

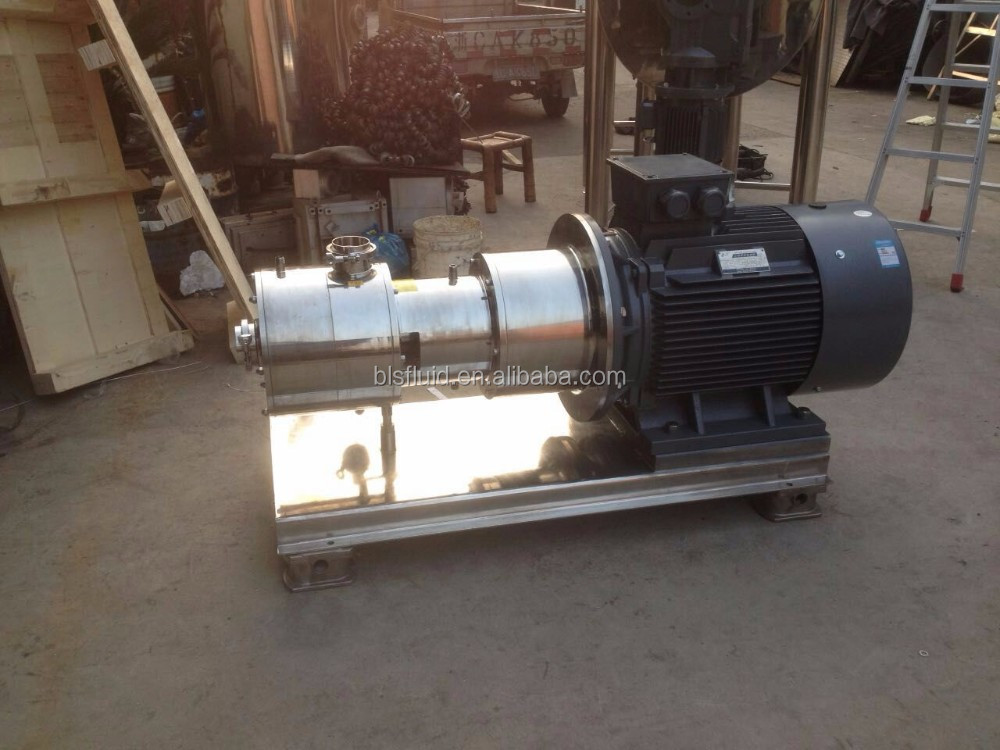

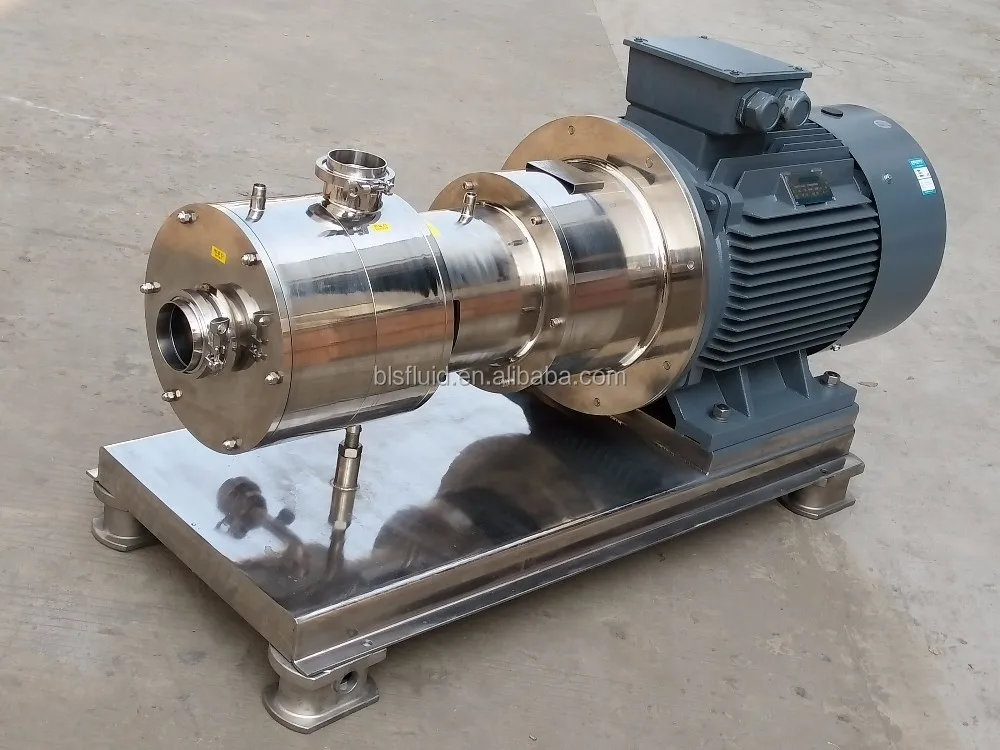

Inline 2800rpm Emulsification Equipment for Ointment Homogenizer

FOB Reference Price:Get Latest Price
US $2,200-15,800 / Sets | 1 Set/Sets Ointment Homogeneous Mixer (Min. Order)
Model Number:
BRL-3 inline mixer
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Homogenizer
Product Type:
Inline 2800rpm Emulsification Equipment for Ointment Homogenizer
Application:
Viscous Fluid
Additional Capabilities:
emulsifier pump
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Max. Loading Capacity:
140m3/h
Voltage:
110V~480V
Power(W):
4-185kw
Dimension(L*W*H):
Referring
Certification:
CE ISO
Warranty:
12 Months
After-sales Service Provided:
Overseas service center available
material:
stainless steel 304, 316
Flow quantity:
Q=4-140T/h
Viscosity range:
0.2cp-3000cp
Max pressure at outlet:
0.05-0.2Mpa
Product temperature range:
-30℃-150℃
Function:
Automatic Ointment homogenizer
Bearing:
NSK
Power supply:
4-185kw
Rotation Speed:
2800rpm/1480rpm
Product name:
Inline 2800rpm Emulsification Equipment for Ointment Homogenizer
Supply Ability
Supply Ability:
200 Set/Sets per Month Pharmaceutical ointment emulisifier
Packaging & Delivery
Packaging Details
plywood case package
Inline 2800rpm Emulsification Equipment for Ointment Homogenizer
Port
shanghai/ningbo
Lead Time :
Shipped in 15 days after payment
Product Description

Inline 2800rpm Emulsification Equipment for Ointment Homogenizer

    Inline 2800rpm Emulsification Equipment for Ointment Homogenizer is used for the mixing, homogenizing between liquid and liquid, or powder and liquid, Belongs to the L&B High shear mixer series.

    Inline 2800rpm Emulsification Equipment for Ointment Homogenizer is used for the continuous dispersing and emulsifying of material with different phase. Meanwhile the mixer could also delivery low viscosity liquid.

    The mixer could mixing the powder and liquid in certain rate, and have been used in cosmetic, food, pharmaceutical, chemical, petroleum, coatings, nano-materials industry

    All the sanitary, reliability and rigidity meets the requirements of these industries.

Construction:
Horizontal three stages Rotor and Stator series(CNC treatment)
Material:
SS304/SS316L
Flow range:
Q=4-140T/h
Outlet Pressure:
0.05-0.2Mpa
Speed:
2800/1480 rpm  (Frequency Converter Control can be choose)
Rotor Type:
teeth
Teeth space:
8/6/4mm
Rotor and stator space:
Standard 0.5mm(optional 0.25mm-0.5mm)
Motor power:
4kw, 7.5kw, 11kw, 15kw, 22kw,......160kw, 185kw
Sealing option:
Sanitary single mechanical seal/Dual End Mechanical Seal
Seal material:
FKM
Product temperature range
-30℃-150℃
Max feeding medium viscosity:
0.2cp-3000cp
Voltage:
110-480V, 50hz/ 60hz
Coupling:
serrated coupling / toothed coupling
Bearing:
Japanese NSK bearings
Motor:
Siemens, ABB etc motoravaible

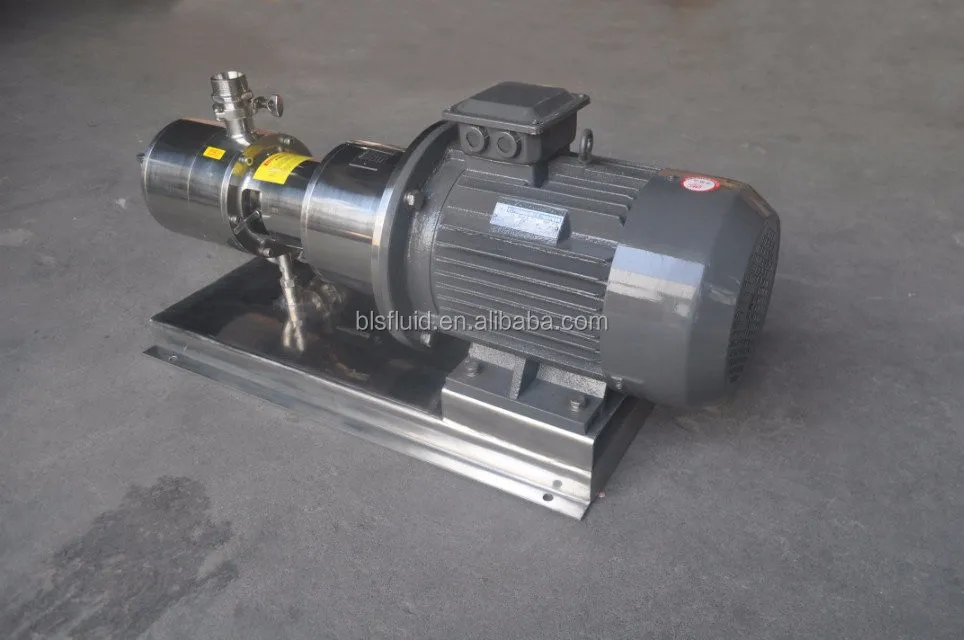

Inline 2800rpm Emulsification Equipment for Ointment Homogenizer


OPERATION THEORY

    The Inline 2800rpm Emulsification Equipment for Ointment Homogenizer is composed of a few standard spare parts, which makes assembly, disassembly and maintenance easy, meanwhile avoid returning factory to repair.

    Specially designed mixing head is composed of rotor and stator.The rotor works in high speed and high-frequency mechanical effects from the motor.

    The material is under the shear, centrifugal squeeze, deep friction, impact and tearing turbulence combined effects, thus achieve the effect of dispersion, emulsification, grinding.

    High shear emulsifier combined of two layers or six layers of rotor and stator.The materials go through the layers after shear dispersion and emulsifying.

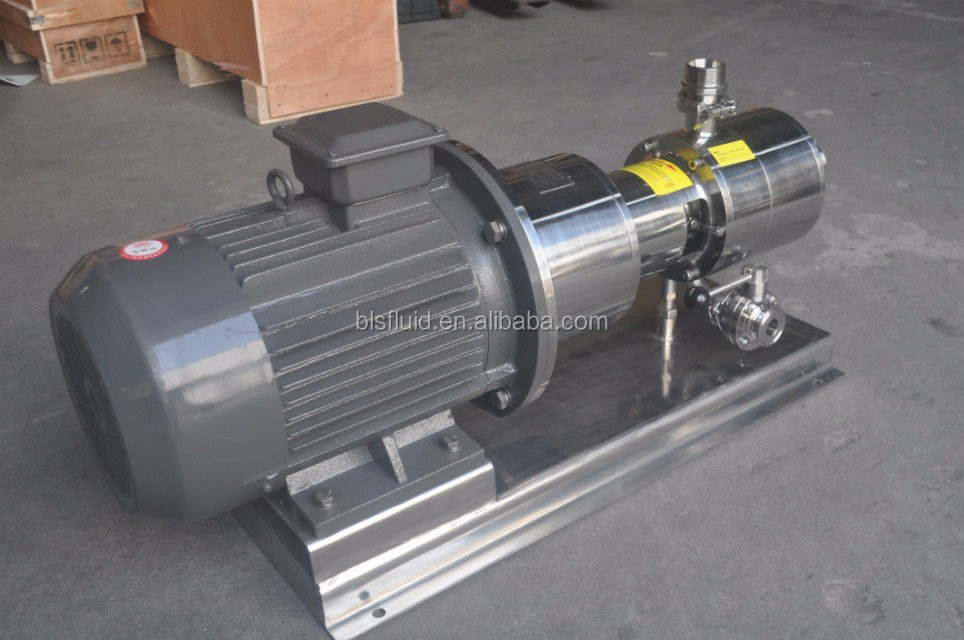

Inline 2800rpm Emulsification Equipment for Ointment Homogenizer


APPLICATION

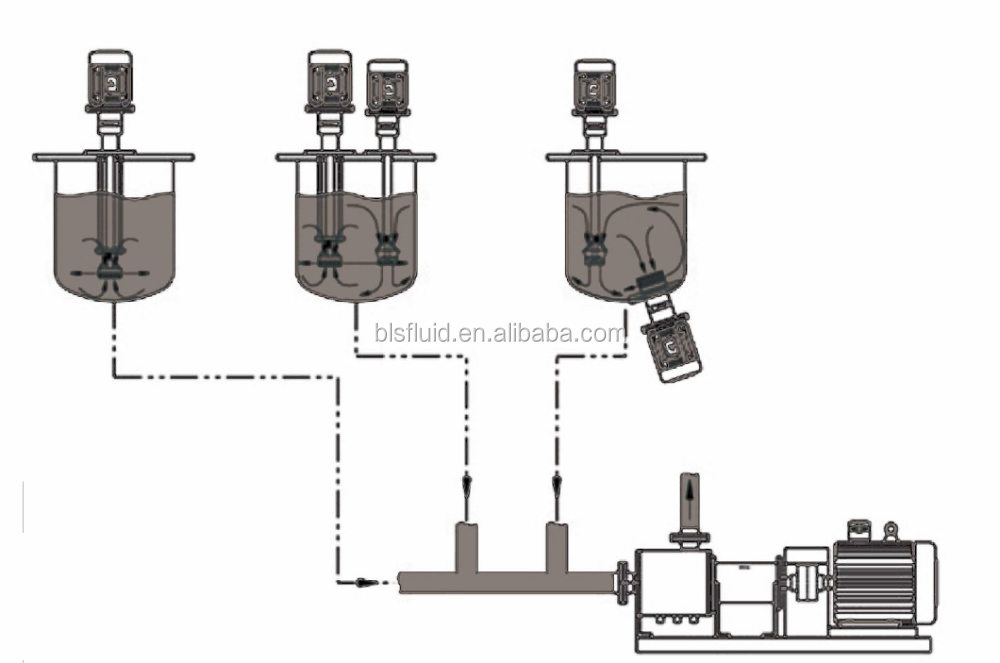

    L & B Inline high shear mixer is usually installed in the bottom of the reactor or pipeline, the material go through form inlet to outlet , after high-speed shear. This process could be done continuously or in circulation.

Model type
Power(kw)
Speed(r/min)
Flow(T/h)
In/Outlet(Inch)
Outlet pressur(Mpa)
BRL3-60
4
2800
0-4
1.5/1.25
≤ 0.2
BRL3-100
7.5
0-8
2/1.5
BRL3-120
11
0-12
2.5/2
BRL3-140
15
0-18
2.5/2
BRL3-165
22
0-22
3/2.5
BRL3-200
37
0-30
3.5/3
BRL3-220
55
0-40
4/3.5
BRL3-240
75
0-55
4/3.5
BRL3-260
90
1480
0-65
5/4
BRL3-300
110
0-80
5/4
Detailed Images



Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.

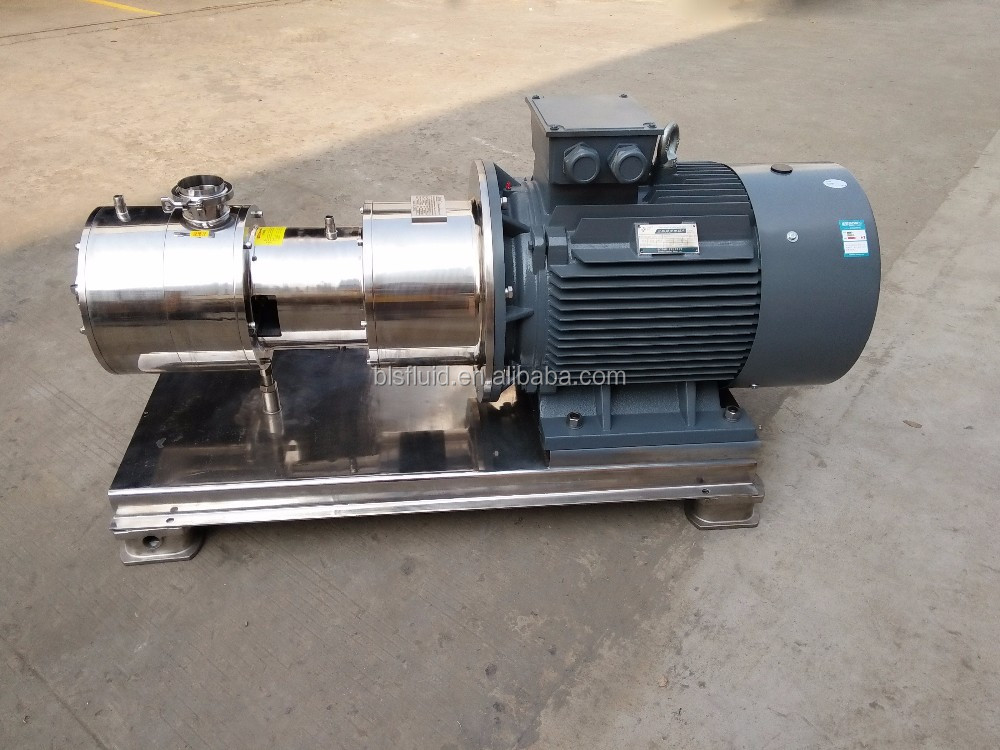

Motor device

    Pure copper motor: low noise, stable dynamic, sustainable work.

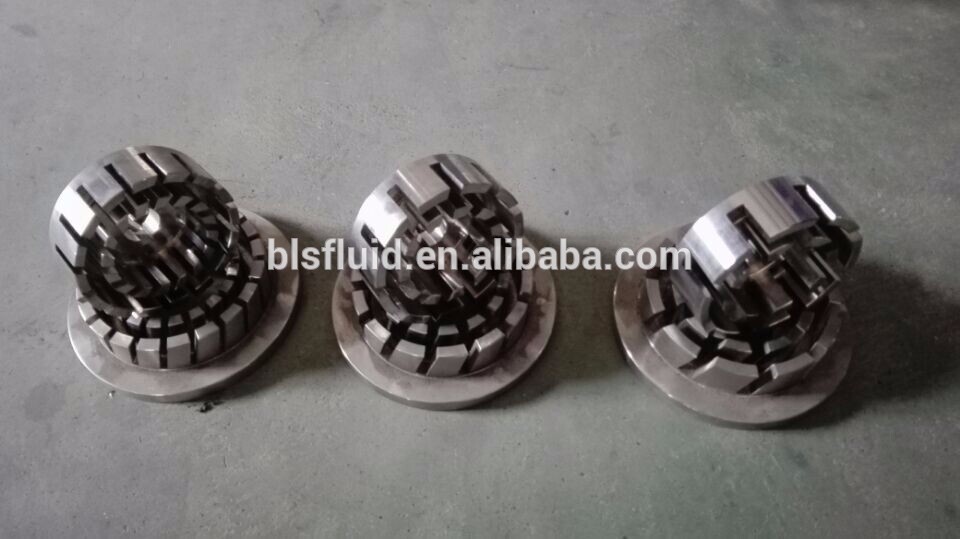

Thick teeth: striking, breaking, cutting, dissolving, rough separating


Middle teeth: separating, thinning, accelerated dissolving, emulsifying

Thin teeth: micro separating, enhanced emulsifying, homogenizing, starching

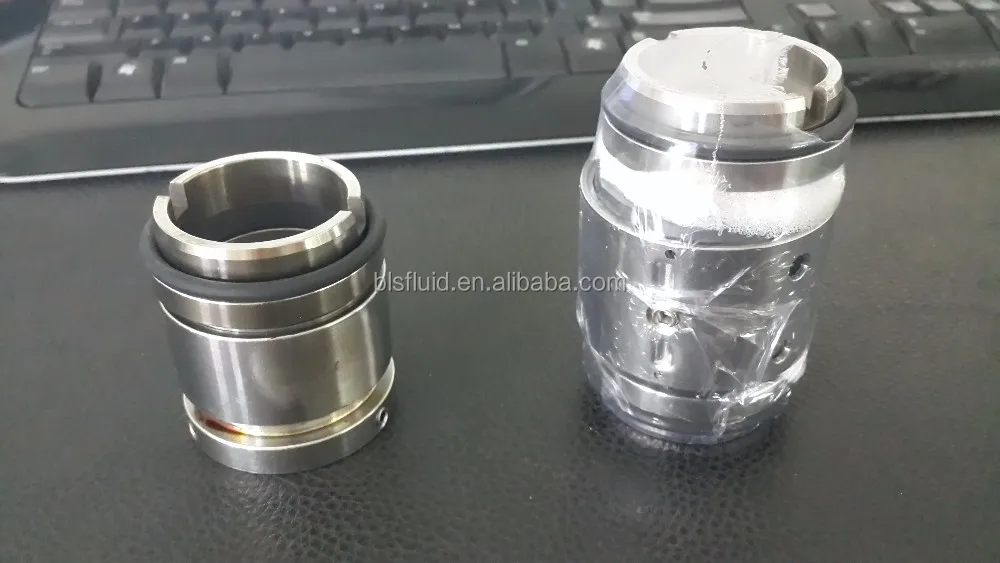

Sealing option:


    Sanitary single mechanical seal/Dual End Mechanical Seal

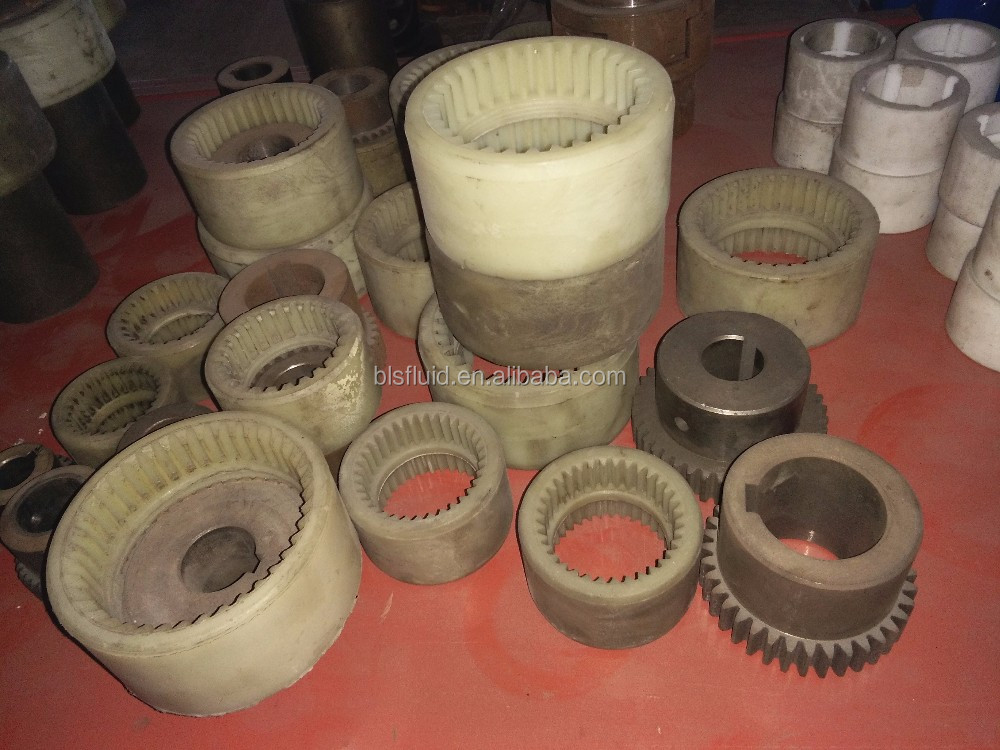

Coupling:


    serrated coupling / toothed coupling




Connection with tank

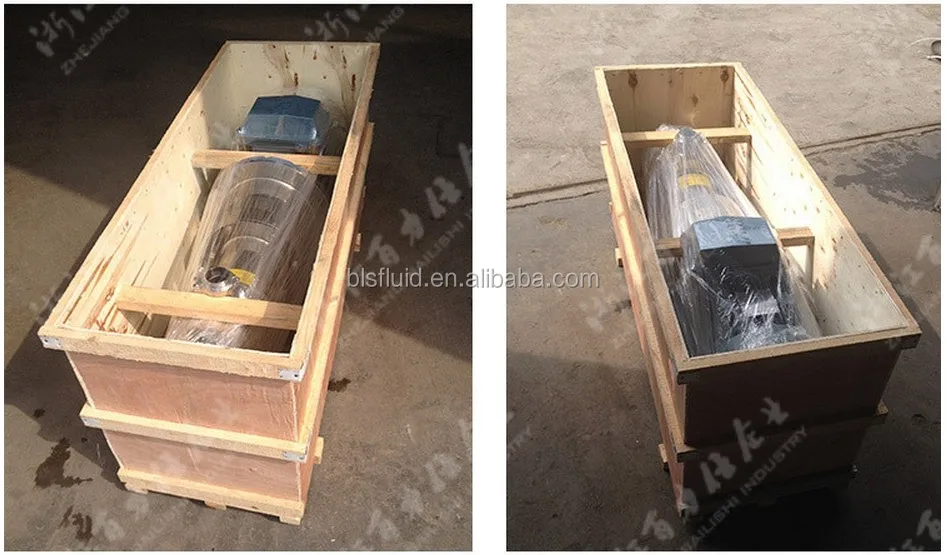

Packing & Delivery
