Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: BLS
  • Model Number: G
  • Theory: G screw pump
  • Structure: Screw Pump
  • Usage: bitumen screw pump, Stainless Steel Single Screw Bitumen Pump Price 2.2kw
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electricity
  • Pressure: Low Pressure
  • Application: bitumen screw pump, single bitumen screw pump
  • Name: Stainless Steel Single Screw Bitumen Pump Price 2.2kw
  • Material: Stainless steel 304/316
  • Voltage: 110-480V
  • Flow: 0.5-60m3/h
  • Stator: NBR ( nitrile rubber buna )
  • Function: bitumen screw pump price
  • Type: single screw pump
  • rotor: stainless steel 304/316

Packaging & Delivery

Packaging Details Standard Wooden Case
Stainless Steel Single Screw Bitumen Pump Price 2.2kw
Delivery Time 15 days
Product Description

Stainless Steel Single Screw Bitumen Pump Price 2.2kw

    Single screw pump is used in all fields widely to feed kind of medium, running at a constant pressure continuously, without pulse and damage when feeding medium and change the gauging aim through adjusting rotation speed.

Feeding Medium:

a.This product is applicable for feeding medium which has the following properties:
b.High solid content (diameter of the biggest particle is 0.1-18mm) or no solid content
c.Medium with all viscosities ( 1mPas-3000mPas)
d.Medium that is easy to be generated and swelled
e.Shearing sensitive medium
f.Medium with erosion
g.Medium with/without self ubrication
h.Erosive medium (PH=0-14)
i.Adhesive medium
j.Toxicity hazard medium

Model
Caliber
Speed (rpm)
Flow (m3/h)
Power (Kw)
G10-1
20
1400
0.5
0.37
G15-1
25
960
1
0.55
G20-1
32
960
1.5
0.75
G25-1
32
960
2
1.1
G30-1
40
960
3
1.5
G35-1
50
960
5
2.2
G40-1
50
960
7
3
G40-1
50
720
5.5
2.2
G45-1
50
960
9
4
50
720
7
3
G50-1
65
960
13
5.5
65
720
10
4
G55-1
65
960
18
7.5
65
720
13
5.5
G65-1
80
720
30
11
G86-1
100
720
60
15

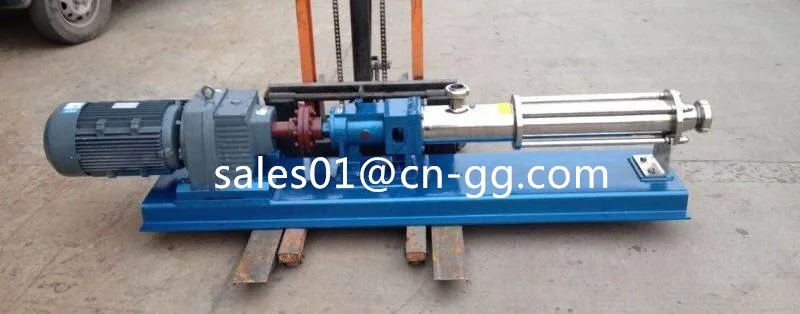

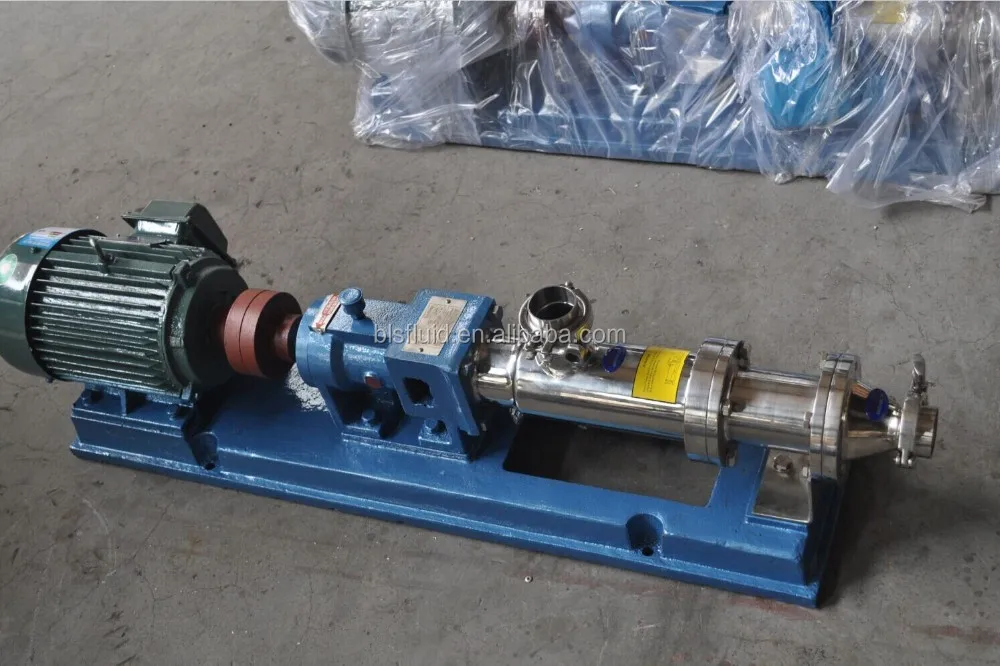

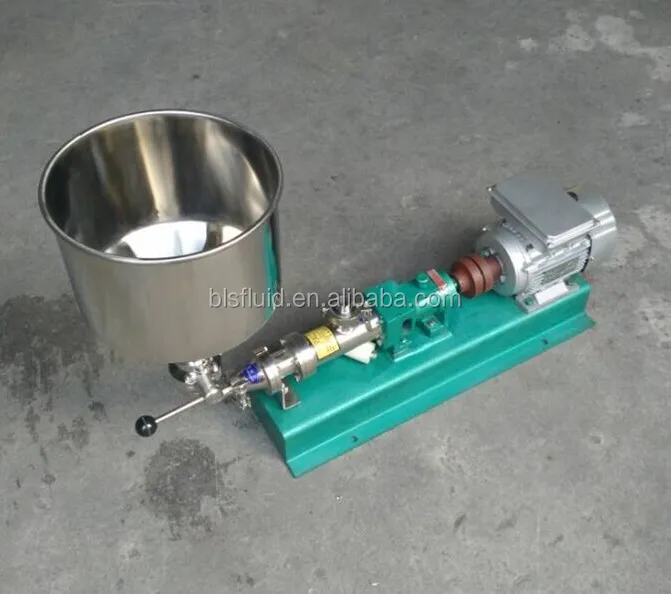

Detailed Images

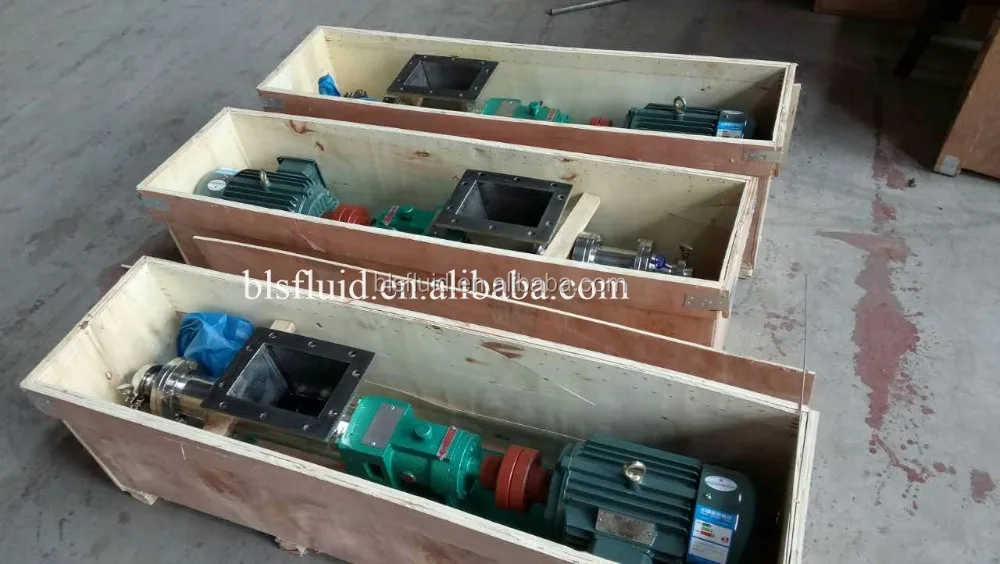

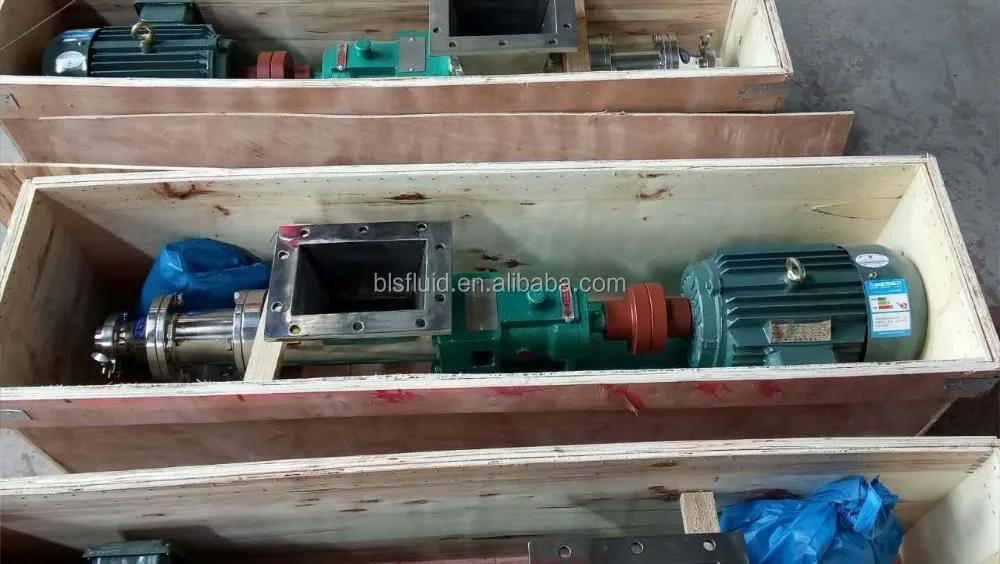

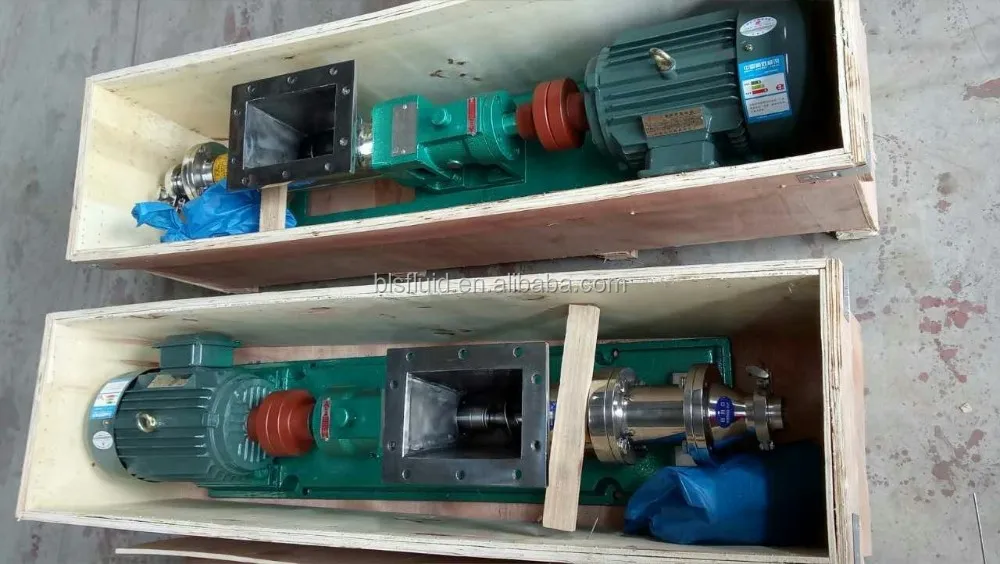

Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
