Quick Details

  • Condition: New
  • Mixer Type: magnetic stirrer
  • Product Type: medical equipment
  • Application: Liquid with Suspended Solids
  • Additional Capabilities: Industrial Electric Stirrer In Magnetic Stirrer Instrument
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: BLS
  • Model Number: CLB
  • Max. Loading Capacity: 100000L
  • Voltage: 110-480V
  • Power(W): 0.2-7.5KW
  • Dimension(L*W*H): 500*400*500
  • Certification: ISO9001:2008
  • Warranty: One Year
  • After-sales Service Provided: Overseas service center available
  • Name: Industrial Electric Stirrer In Magnetic Stirrer Instrument
  • Capacity: 50-10000L
  • Material: ss304,ss316,ss316L
  • Speed: 300rpm avaible
  • Function: Industrial Electric Stirrer In Magnetic Stirrer Instrument
  • Usage: Industrial Electric Stirrer In Magnetic Stirrer Instrument
  • Machine Type: magnetic stirrer
  • MOQ: 1 Set
  • Power: 0.2-7.5kw
  • volume: 50-100000L

Packaging & Delivery

Packaging Details Plywood case package
Industrial Electric Stirrer In Magnetic Stirrer Instrument
Delivery Time 15 days
Product Description

Industrial Electric Stirrer In Magnetic Stirrer Instrument

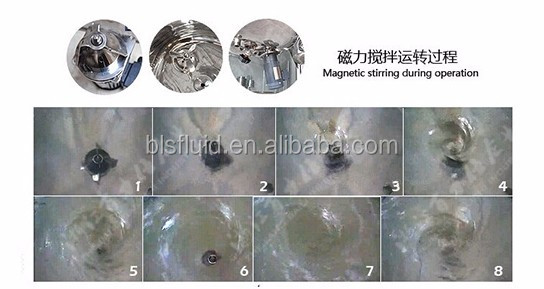

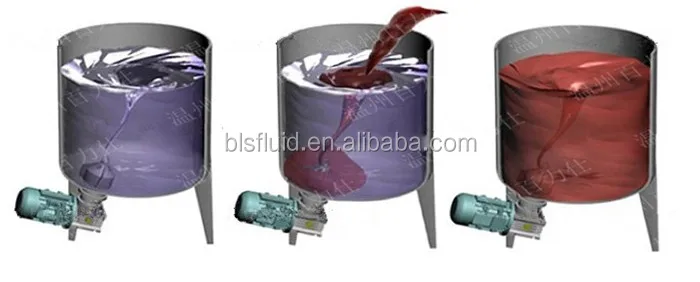

    The magnetic agitating is an application of a magnetic coupling, because the repulsion between the different poles of the magnetic material, we drive the magnetic agitator by continuous changing the polarity of the magnetic base.

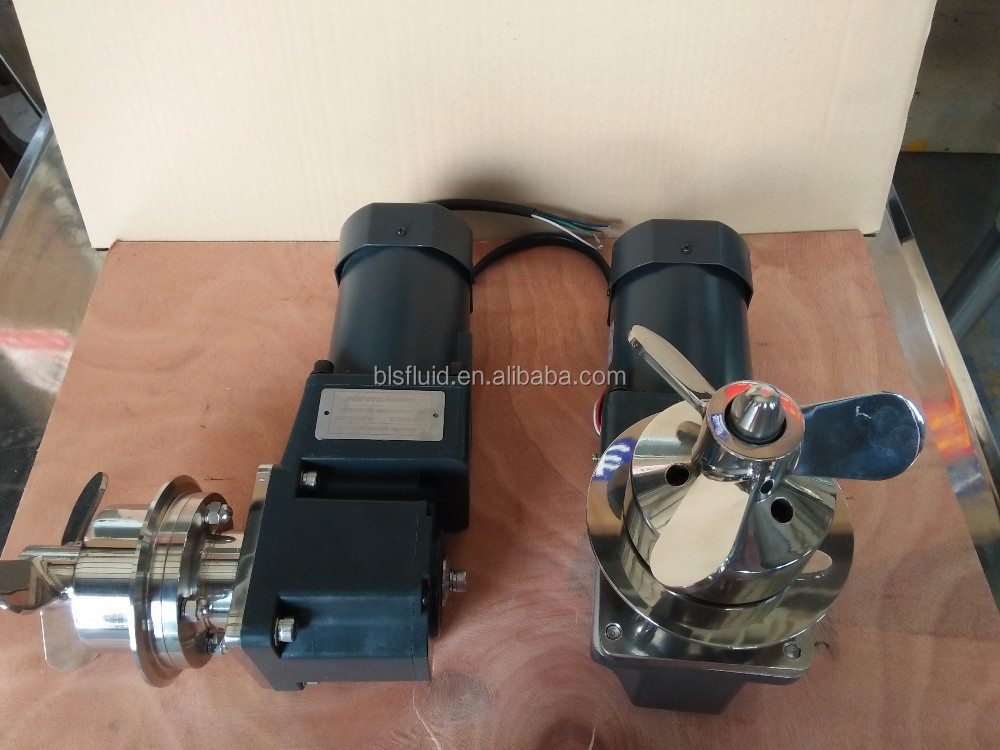

    The shaft of motor and reducer connect with the inner magnetic ring,; the agitation shaft connected with the out magnetic ring;the out magnetic ring rotates with the inner magnetic ring, and make the agitation shaft rotate according, the inner ring and outer ring are separated by a seal cover, so it is one of the most relabile no-leak design, and a necessities for no-leak reactors.

Model
Motor (kw)
Volume (L)
Speed (r/min)
CLB-20
0.2
50-200
120-1400
0.4
50-200
120-1400
CLB-40
0.55
200-500
120-1400
0.75
200-500
120-1400
CLB-60
1.1
500-1000
120-1400
1.5
500-1000
120-1400
CLB-80
1.5
800-2000
120-1400
2.2
800-2000
120-1400
CLB-100
3
1500-3000
120-1400
4
1500-3000
120-1400
CLB-120
4
2000-5000
120-1400
5.5
2000-5000
120-1400
CLB-140
7.5
3000-100000
120-1400
Detailed Images

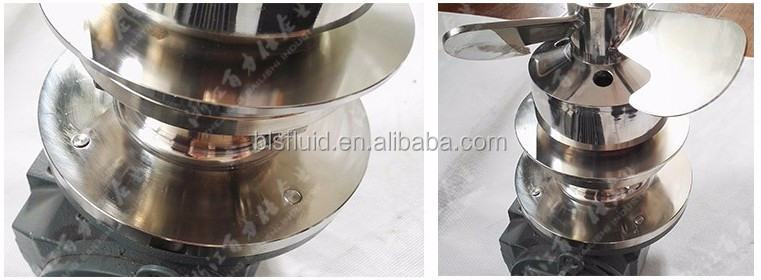

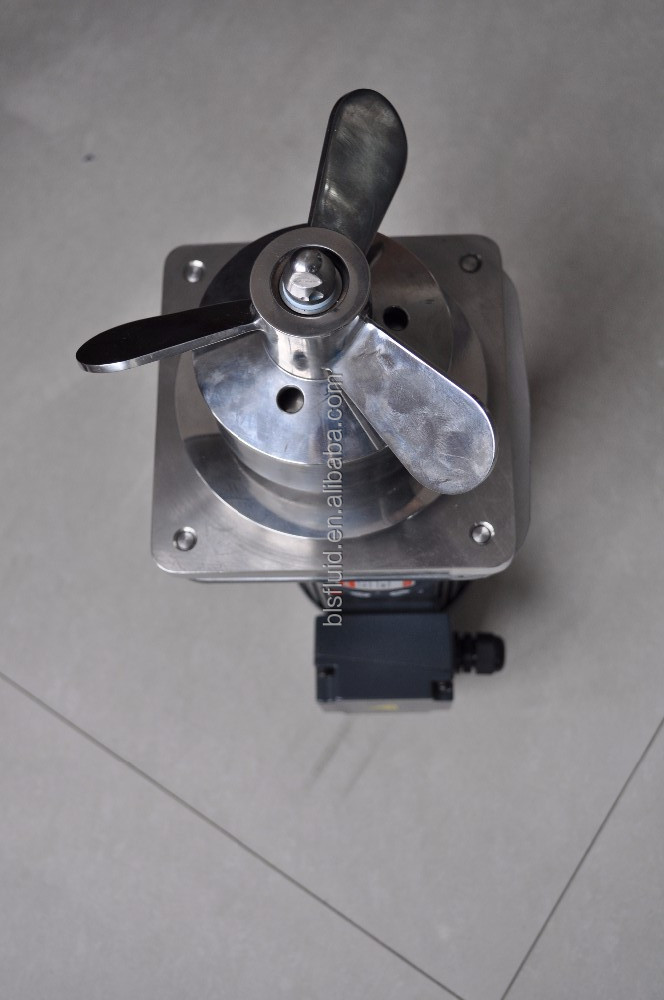

Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.

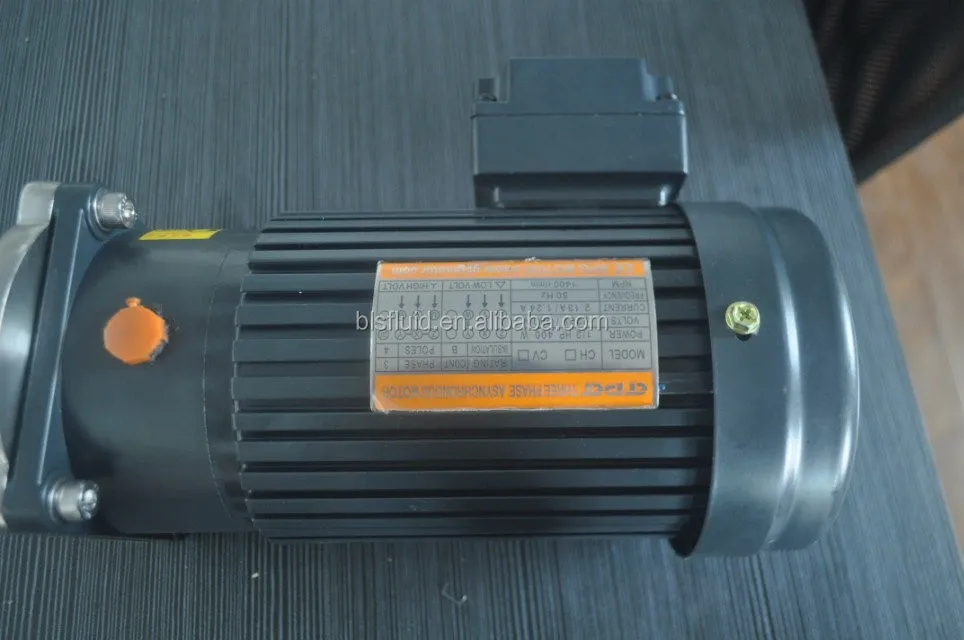

Pure copper motor:

    low noise, stable dynamic, sustainable work.

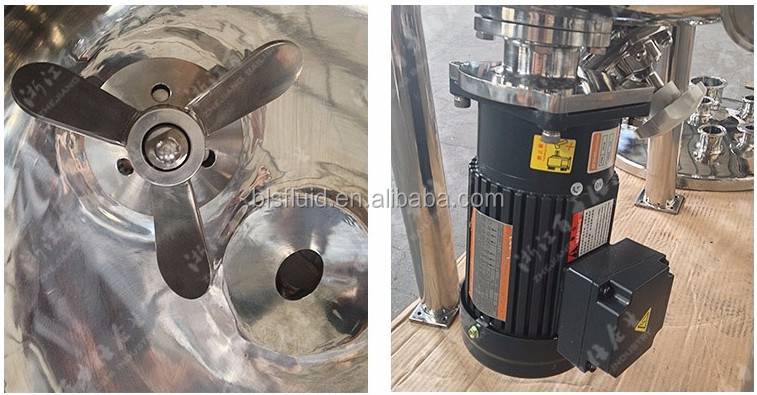

Good polished




Good connect


Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
