Single Power SS 304 316L Small Colloid Mill for lab

FOB Reference Price:Get Latest Price
US $1,500-6,500 / Sets | 1 Set/Sets industrial colloid mills (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
JML
Type:
Grain Processing Equipment
After-sales Service Provided:
Overseas service center available
Material:
Stainless Steel 304/316L
Voltage:
110-480V, 50/60Hz
Function:
small colloid mill
Application:
stainless steel lab colloid mill
Usage:
colloid mills
speed:
2800rpm
keywords:
colloidal mill price
output:
0.01-10T/H(water test)
motor power:
1.5-18.5kw
Name:
Single Power SS 304 316L Small Colloid Mill for lab
Supply Ability
Supply Ability:
500 Set/Sets per Month wenzhou colloid mill
Packaging & Delivery
Packaging Details
plywood case package
Single Power SS 304 316L Small Colloid Mill for lab
Port
shanghai/ningbo
Lead Time :
Shipped in 15 days after payment
Product Description

Single Power SS 304 316L Small Colloid Mill for lab

    JM series colloidal mill is a new-type equipment of wet type super micro grain processing, suitable for the homogenization, emulsification, separation, smash and milling of various emulsions. It widely used in foodstuff (fruit jam, juice, albumen milk, soy milk, milk tea, dairy, beverage,etc.), pharmacy, dairy chemical, chemical industry, emulsion asphalt, coal floating agent, ceramic glaze, emulsion detonator, nanometer material, etc.

Name:
Single Power SS 304 316L Small Colloid Mill for lab
Brand name:
L&B
MOQ:
one set
Material:
high-intensity stainless steel 304 and 316L
( ss304 suit acid or alkali weak; ss316 suit acid or alkali a bit strong)
Advantages:
anti-corrosion, anti-abrasion ability, without pollution
Main parts:
grinding head, pedestal driving part and special motor
Grinder types:
solid
Model:
JML
Inlet Dim:
30-66mm, can be in-line type
Outlet Dim:
20-32mm, can be customized as square outlet
Output:
0.01-4T/H
Motor power:
1.1-18.5kw
Speed:
2800rpm
Feed hopper:
4L, 7L, 10L etc
Switch:
≤ 7.5kw
Motor:
ABB is optional
Rotary vane:
V-type head or spiral head
Seal:
oil seal
Machine type:
Wet-type equipment of wet type super micro grain processing
Outlet connection:
union(tri-clamp is optional)
Outlet type:
pipe or square type
Patent:
national invention patent No. 200510123583.8,
international application patent PCT/CN2006/001481.

PRINCIPLE:

    The basic working principle of colloid mill is shearing, grinding as well as high-speed stirring applied force, grinding is finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix them under complex forces such as high-frequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro.

Model
Emulsified size (um)
Output T/h
Millstone Dim(mm)
Cooling water pipe(mm)
Outlet Dim(mm)
Inlet Dim
(mm)
Speed (rpm)
Power(kw)
JML-50
2-40
0.01-0.1
50
10
20
30
2800
1.5(220V)
JML-50
2-40
0.01-0.1
50
10
20
30
2800
1.1(380V)
JML-65
2-40
0.02-0.5
65
10
20
30
2800
1.5
JML-80
2-40
0.3-1
80
12
25
48
2800
3
JML-100
2-40
0.5-2
100
12
25
66
2800
5.5
JML-120
2-40
0.5-3
120
12
32
66
2800
7.5
JML-140
2-40
0.5-4
140
12
32
66
2800
7.5
Detailed Images



Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.




Pure copper motor:

1)low noise, stable dynamic, sustainable work.

2)with waterproof motor cover

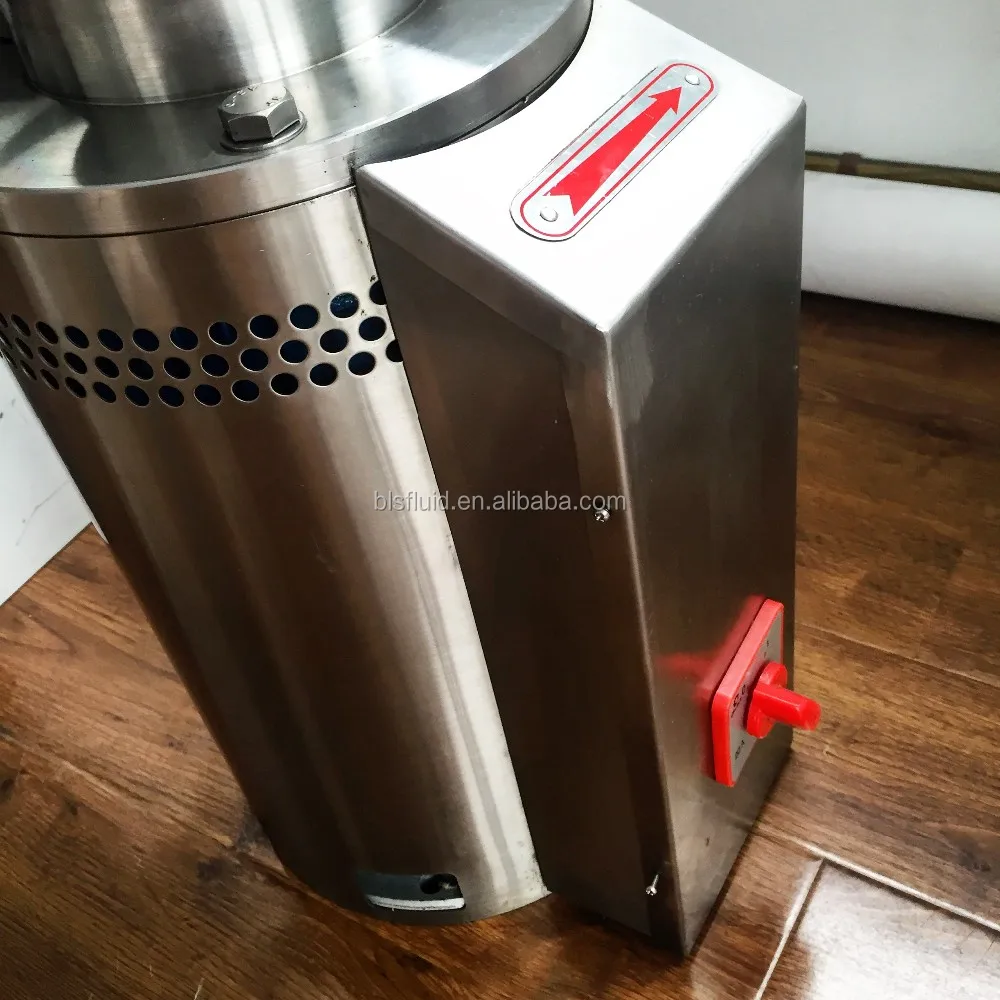

Switch

    ≤ 7.5kw colloidal mill machine, be provided with easy operate switch.

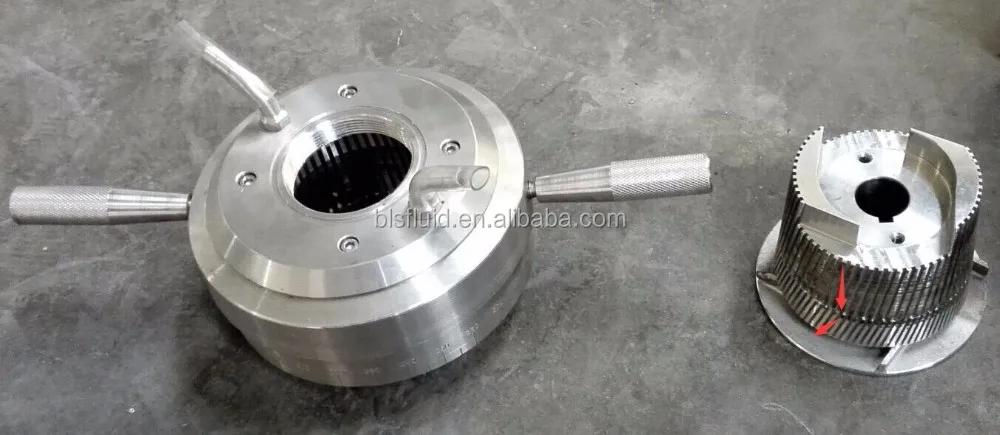

Fine grinding

    SS304 and SS316 sanitary stainless steel millstones/2Cr13 millstones, with high speed 2800rpm.

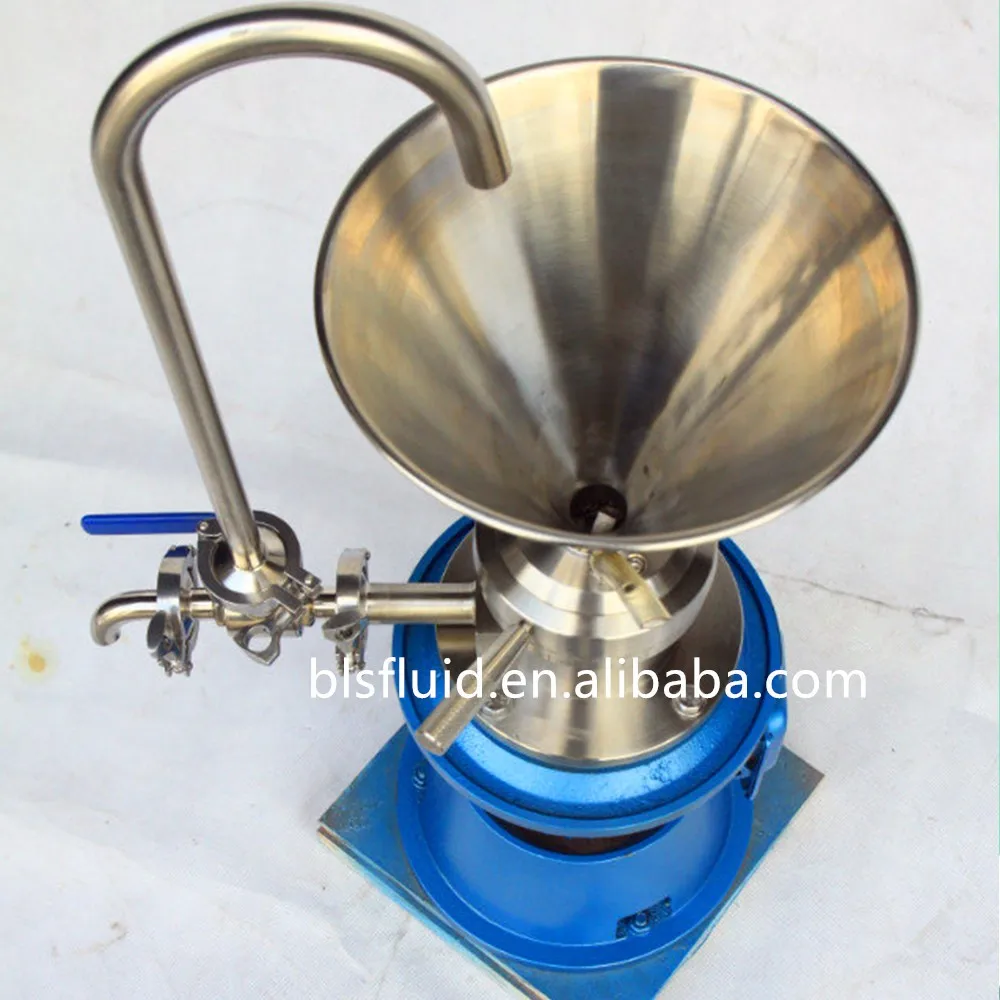

Feed hopper/funnel inlet

    V-type rotary vane/spiral head, slide grinding material directly, saving time feeding, grinding more smoothly.




Adjustment gear

    Depending on the desired fineness free adjustment gear, easy to operate.




Cooling water port(cooling system)

    Cooling the sealing, grinding head and material.

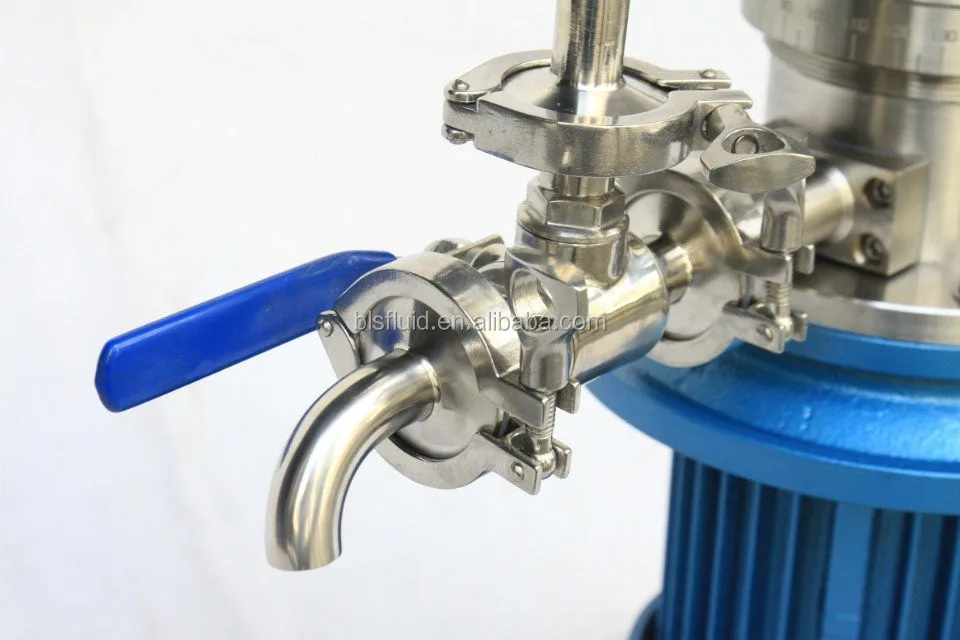

Outlet and automatic circulation system

    Recycle grinding material, make fine fineness.




Square bore outlet

    Big diameter, discharge the material more quickly.
