Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: BLS
  • Model Number: JMF
  • Type: Grain Processing Equipment
  • After-sales Service Provided: Overseas service center available
  • Application: jam grinder mixer
  • Material: 304 stainless steel/SUS316
  • item: wet type food grinder for sale
  • Function: colloid grinder
  • Usage: Hot Sale Steel Wet type Colloid Jam Manufacturing Grinder
  • application: industrial wet grinder machine
  • type: wet industrial jam grinder colloidal mill
  • Speed: 2800rpm
  • Connection: tri-clamp, union etc.
  • Name: Hot Sale Steel Wet type Colloid Jam Manufacturing Grinder

Packaging & Delivery

Packaging Details plywood case
Hot Sale Steel Wet type Colloid Jam Manufacturing Grinder
Delivery Time Shipped in 15 days after payment
Product Description

Hot Sale Steel Wet type Colloid Jam Manufacturing Grinder

Brand: L&B

Material :304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO9001:2008

Product Name:
Hot Sale Steel Wet type Colloid Jam Manufacturing Grinder
Type:
new-type equipment of wet type super micro grain processing
Description:
Designed according to ISO9001 standard, widely used for grinding media in the food-processing, cosmetics and pharmaceutical industries
Construction:
Solid JML, Horizontal JMW and Split JMF series
Material:
SS304/SS316L
Seal Material:
EPDM, Viton (Standard, FDA approval) , Packing Seal
Max. working temperature:
100 C
Max. rev:
2800 RPM
Rotor Type:
teeth
Motor power:
1.5kw, 2.2kw, 3kw, …22KW,30KW
Sealing option:
Sanitary single mechanical seal/Double mechanical seal with cooling system, Packing seal
Voltage:
110-480V
Motor:
Siemens, ABB, LOCAL,50hz/ 60hz
Surface treatment:
Inner polished and Sandblast outside
Available connection:
Clamp, Thread Butt weld, Flange
Available standard:
DIN, SMS, 3A, RJT, ISO/IDF
Operated:
Electric
Application scope:
Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:
Plywood case Or as per the request of customers
Delivery details:
Usually within 15 days after receiving T/T down payment

PRINCIPLE:

    The basic working principle of colloid mill is shearing, grinding as well as high-speed stirring applied force, grinding is finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix them under complex forces such as high-frequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro.

Application:

    JM series colloidal mill is a new-type equipment of wet type super micro grain processing, suitable for the homogenization, emulsification, separation, smash and milling of various emulsions.


    It widely used in foodstuff (fruit jam, juice, albumen milk, soy milk, milk tea, dairy, beverage,etc.), pharmacy, dairy chemical, chemical industry, emulsion asphalt, coal floating agent, ceramic glaze, emulsion detonator, nanometer material, etc.

Patent:

    The colloid mill in Our factory has been applied all new technology, which has won national invention patent No. 200510123583.8, the international application patent PCT/CN2006/001481, greatly extend the service life of the colloid mill, and improve the quality of the colloid mill products.

Warranty:

1. Since the acquisition date, the mechanical seal within three-months warranty, and other parts with 12-month warranty under normal circumstances.

2. Beyond the time limit, a paid maintenance service is provided for life. Normal wear is not included.

3.Under warranty,no free repair in any circumstances below:
a. No purchase vouchers(Invoice or Receipt)
b. Damage caused by disassembling or modification
c. Due to the careless error use or improper use man-made damage
d. Under the condition of not usually use(e.g, long time used in harsh place) caused by the fault or damage

e. Product packaging is not complete, the exterior pollution for use

Reference technical parameters of Wet type Colloid Grinding mill:
Model
Emulsified size
(um)
Output
T/h
Millstone Dim
(mm)
Cooling water pipe
(mm)
Outlet Dim
(mm)
Inlet Dim
(mm)
Speed (rpm)
Power
(kw)
JMF-65
2-40
0.02-0.5
65
10
20
30
2800
2.2
JMF-80
2-40
0.3-1
80
12
25
48
2800
4
JMF-100
2-40
0.5-2
100
12
25
66
2800
5.5/7.5
JMF-120
2-40
0.5-3
120
12
32
66
2800
7.5
JMF-140
2-40
0.5-4
140
12
32
66
2800
7.5/11
JMF-200
2-40
1.0-10
200
12
38
100
2800
15/18.5

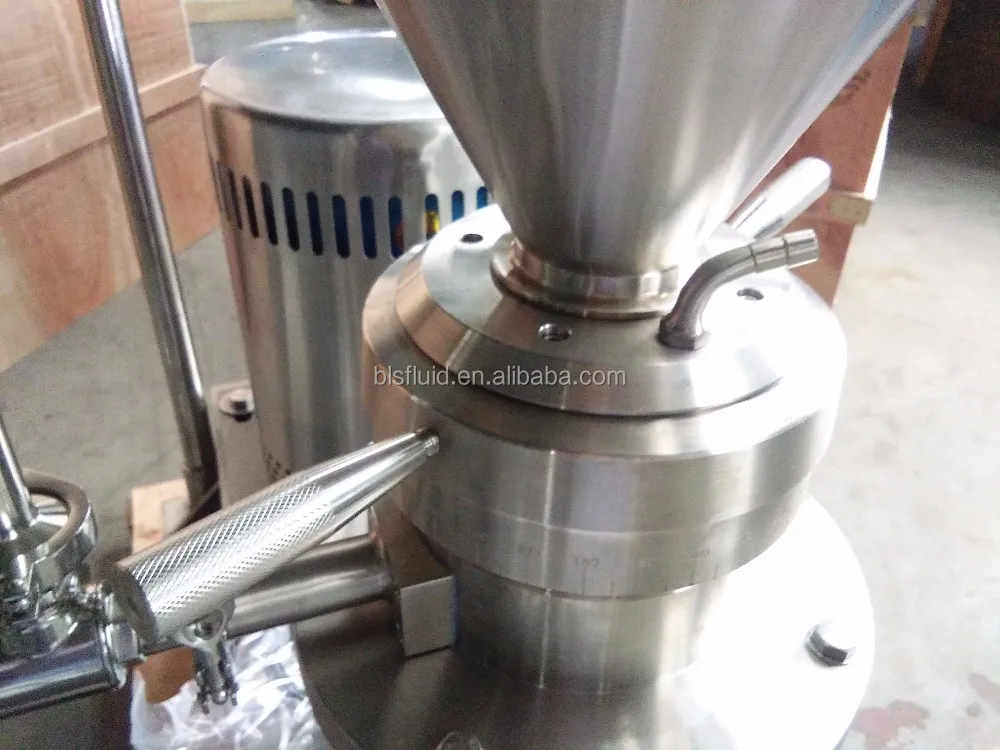

Detailed Images



Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.




Pure copper motor:

1)low noise, stable dynamic, sustainable work.

2)with waterproof motor cover




Fine grinding

    SS304 and SS316 sanitary stainless steel millstones/2Cr13 millstones, with high speed 2800rpm.




Feed hopper/funnel inlet

    V-type rotary vane/spiral head, slide grinding material directly, saving time feeding, grinding more smoothly.




Adjustment gear

    Depending on the desired fineness free adjustment gear, easy to operate.




Outlet and automatic circulation system

    Recycle grinding material, make fine fineness.


Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
