stainless steel 304/316 heat exchanger for liquid

FOB Reference Price:Get Latest Price
US $400-2,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
RO
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
L&B
Structure:
Plate Heat Exchanger
Liquid Flow Rate:
20m3/h-2300m3/h
Maximum Working Pressure:
10 bar
Voltage:
220V or 380V
Weight:
200kg
Dimension(L*W*H):
600*700*800
Power(W):
20-45kw
Certification:
CE, UL
Warranty:
1 year
After-sales Service Provided:
No overseas service provided
material:
SS304,SS316L
Type:
plate heat exchanger
Standards:
DIN,3A,SMS
Certificate:
ISO, CE, SGS
Application:
Dairy,Beverage,Food,Pharmacy,Biotechnology,Cosmetic etc.
SupplyAbility
SupplyAbility:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case
Port
Ningbo /Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 7 To be negotiated



Product Description



1.Material: stainless steel 304 or 316L
2. Application: use in food,beverage, juice, milk etc
3.Capacity: 20-2300 m3/h

4.Working principle:



 Each plate is provided with a gasket, which seals the flow gaps to atmosphere and the media from one another. The plate package is mounted in a rack consisting of a fixed number of plates. Two pressure plates clamp this package together with tie rods. Single pass and multi-pass arrangements are standard with a surface area of up 1500m2 in one unit. Pure counter flow is employed to achieve maximum possible heat transfer.



Technical Parameters





panel heat exchanger1.jpg

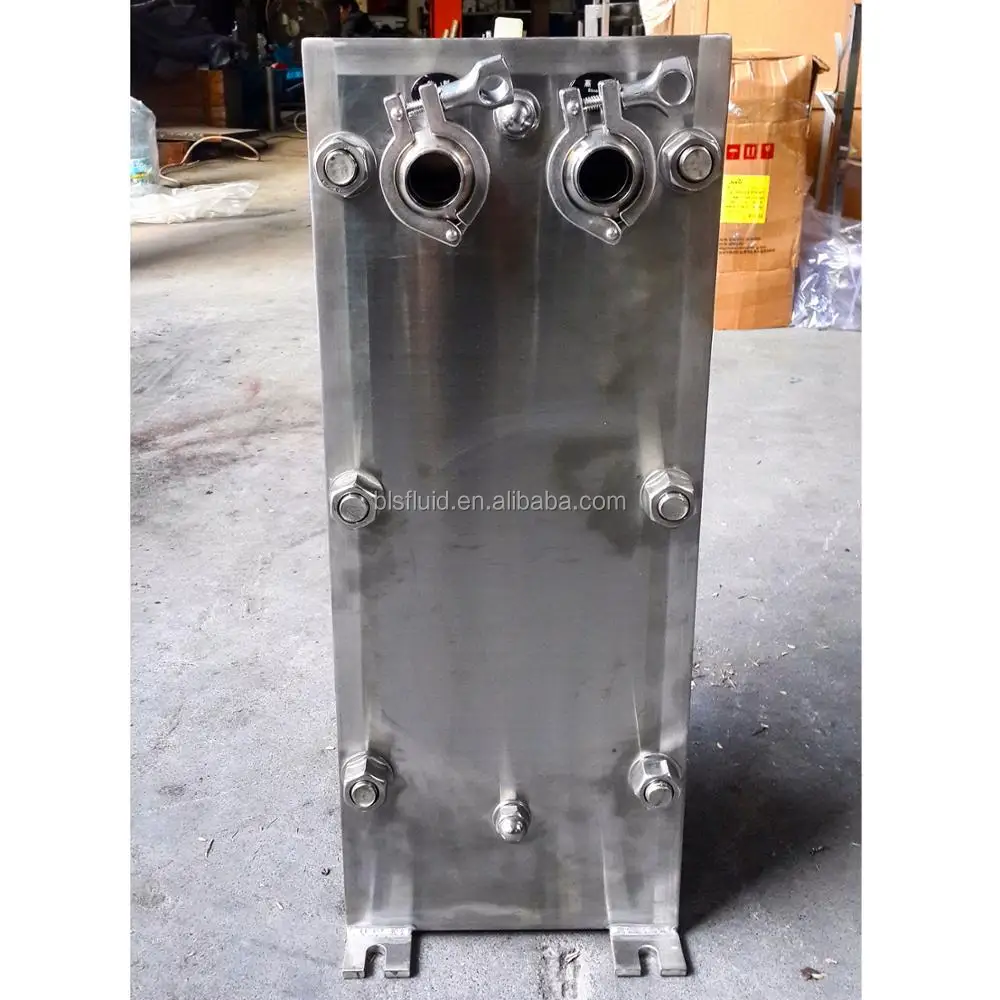

Product Picture

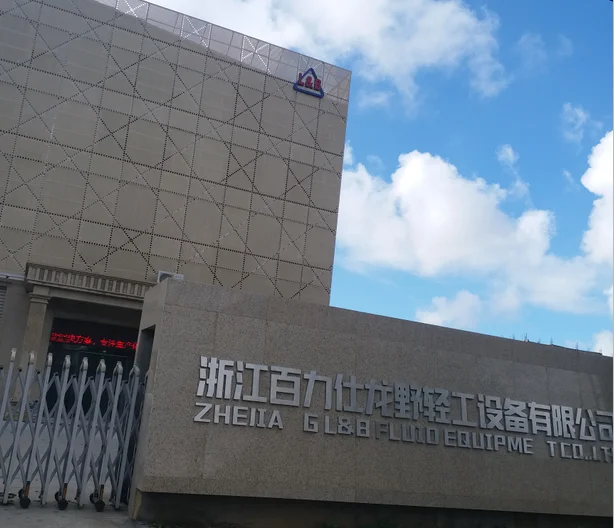

Company Information
