High Quality Industrial Grinder Mango Pulp Gill Machine

FOB Reference Price:Get Latest Price
US $600-5,000 / Sets | 1 Set/Sets industrial grinder fruit pulp (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
JMF
Type:
Grain Processing Equipment, wet colloid banana fruit grinder
After-sales Service Provided:
Overseas service center available
Application:
fruit pulp colloid mill
Usage:
fruit grinder machine
Material:
Stainless Steel 304/316L
Function:
fruit grinder
Voltage:
110-480V, 50/60Hz
Output:
0.01-10T/H(water test)
Speed:
2800rpm
hopper imlet:
7L, 10L, 10L, 15L, etc.
Name:
High Quality Industrial Grinder Mango Pulp Gill Machine
SupplyAbility
SupplyAbility:
200 Set/Sets per Month steel industrial grinding machine
Packaging & Delivery
Packaging Details

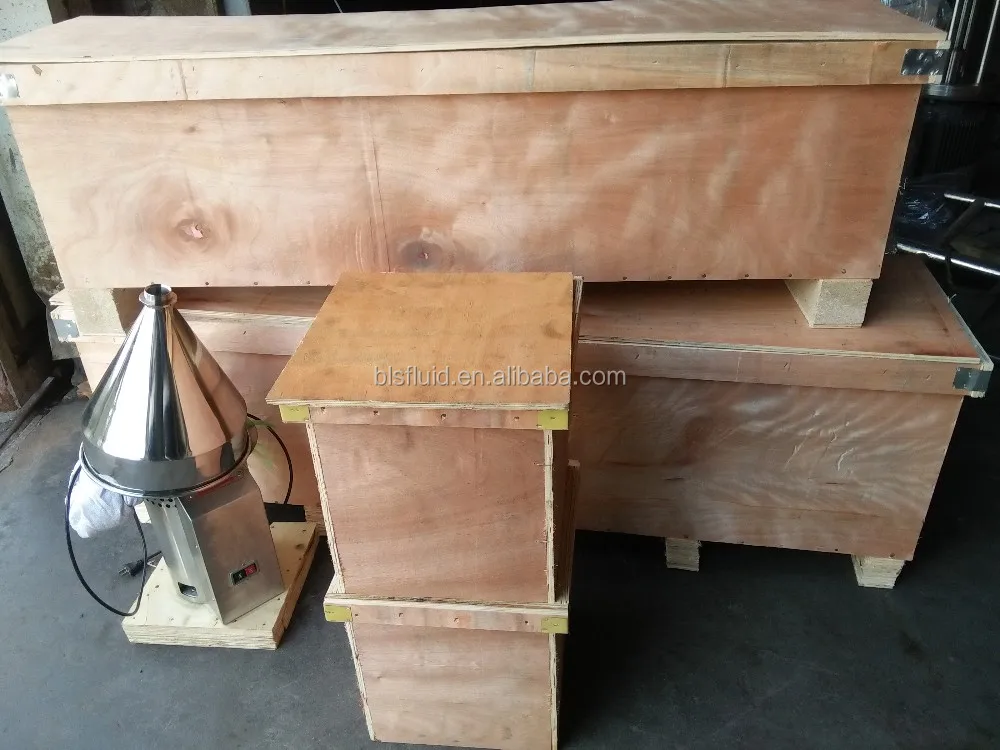

plywood case package
High Quality Industrial Grinder Mango Pulp Gill Machine
Port
shanghai/ningbo
Lead Time :
Shipped in 15 days after payment
Product Description

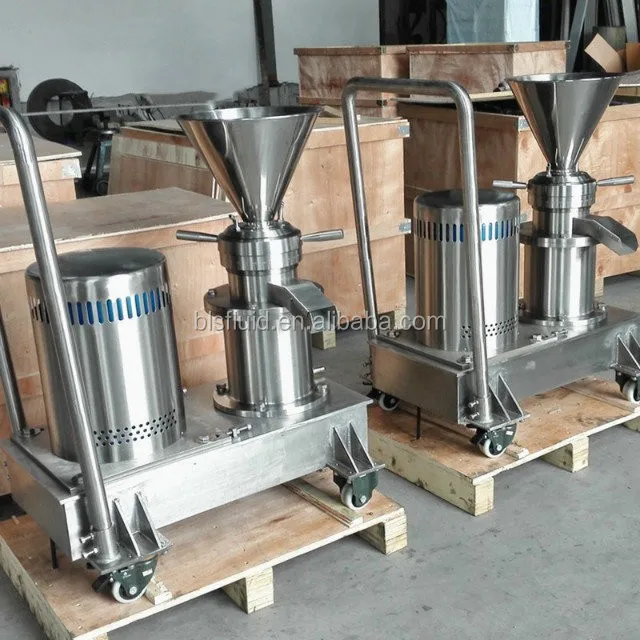

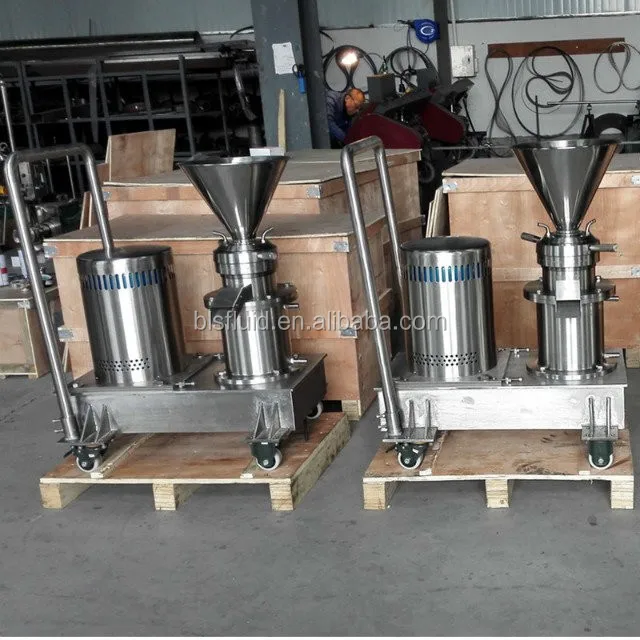

High Quality Industrial Grinder Mango Pulp Gill Machine


* Brand name:  L&B

* MOQ:  one set

* Material:  high-intensity stainless steel 304 and 316L( ss304 suit acid or alkali weak; ss316 suit acid or alkali a bit strong)

* Advantages: anti-corrosion, anti-abrasion ability, without pollution

* Main parts:  grinding head, pedestal driving part and special motor

* Grinder types: Split-case wet colloidal mills

* Model: JMF

* Inlet Dim: 30-100mm, can be in-line type

* Outlet Dim: 20-38mm, can be customized as square outlet

* Output: 0.02-10T/H

* Motor power:  2.2-22kw

* Speed: 2800rpm

* Feed hopper: 4L, 7L, 10L, 15L etc

* Motor:  ABB is optional

* Rotary vane:  V-type head or spiral head

* Seal:  oil seal

* Machine type: Wet-type equipment of wet type super micro grain processing

* Outlet connection:  union(tri-clamp is optional)

* Outlet type: circulation pipe or square type

* Patent:  national invention patent No. 200510123583.8, international application patent PCT/CN2006/001481.

PRINCIPLE:

    The basic working principle of Stainless steel colloid mill with trolley is shearing, grinding as well as high-speed stirring applied force, grinding is finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix them under complex forces such as high-frequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro.

Patent:

    The colloid mill in Our factory has been applied all new technology, which has won national invention patent No. 200510123583.8, the international application patent PCT/CN2006/001481, greatly extend the service life of the colloid mill, and improve the quality of the colloid mill products.

Model
OutputT/h
Outlet Dim(mm)
Inlet Dim(mm)
Speed (rpm)
Power(kw)
Millstone Dim(mm)
JMF-65
0.02-0.5
20
30
2800
2.2
65
JMF-80
0.3-1
25
48
2800
4
80
JMF-100
0.5-2
25
66
2800
5.5/7.5
100
JMF-120
0.5-3
32
66
2800
7.5
120
JMF-140
0.5-4
32
66
2800
7.5/11
140
JMF-200
1.0-10
38
100
2800
15/18.5
200
Detailed Images

Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.




Pure copper motor:

1)low noise, stable dynamic, sustainable work.

2)with waterproof motor cover

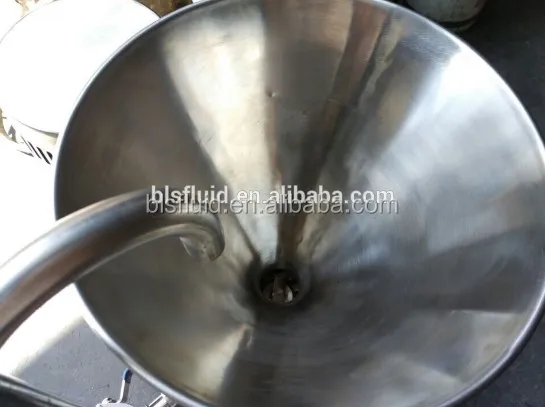

Feed hopper/funnel inlet

    V-type rotary vane/spiral head, slide grinding material directly, saving time feeding, grinding more smoothly.

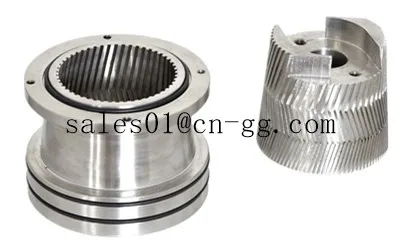

Fine grinding

    SS304 and SS316 sanitary stainless steel millstones/2Cr13 millstones, with high speed 2800rpm.

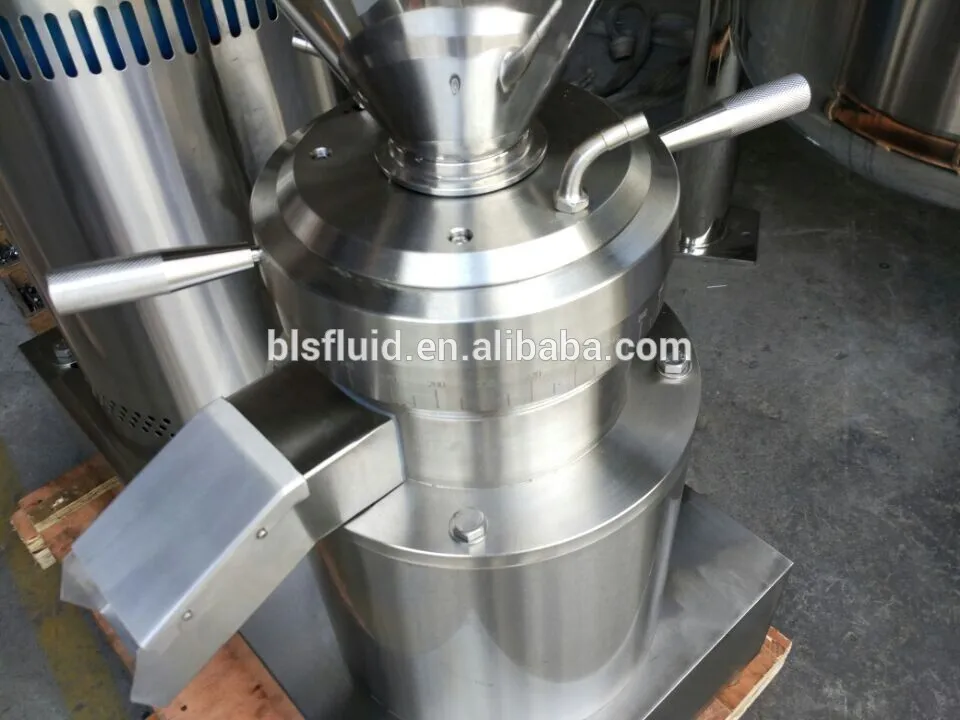

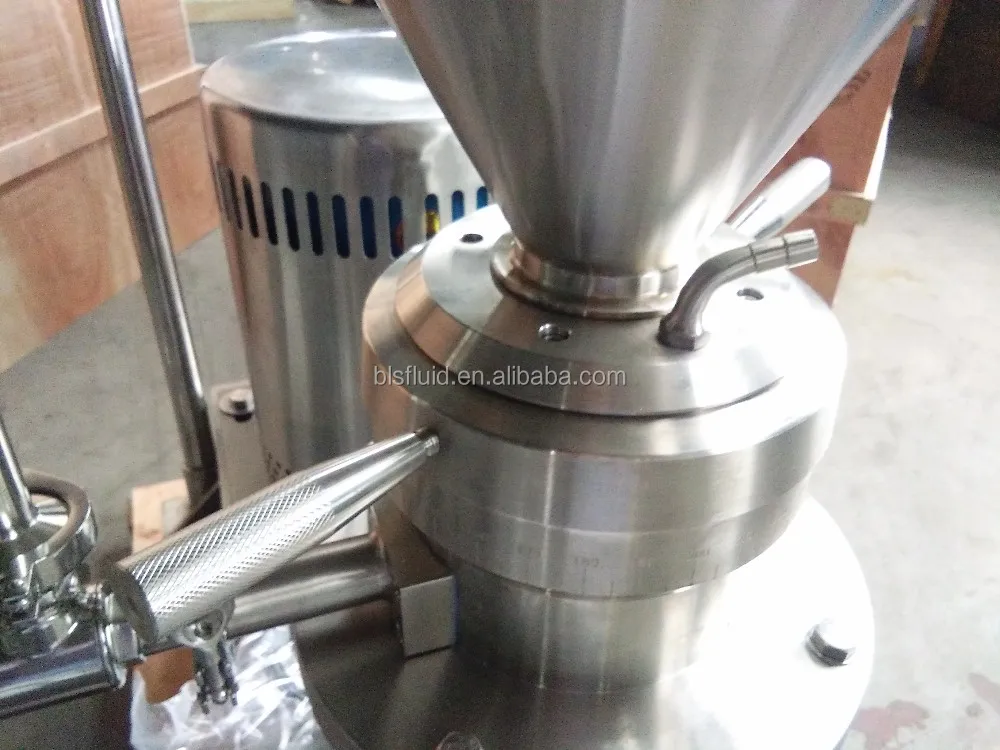

Adjustment gear

    Depending on the desired fineness free adjustment gear, easy to operate.




Cooling water port(cooling system)

    Cooling the sealing, grinding head and material.




Outlet and automatic circulation system

    Recycle grinding material, make fine fineness.




Square bore outlet

    Big diameter, discharge the material more quickly.

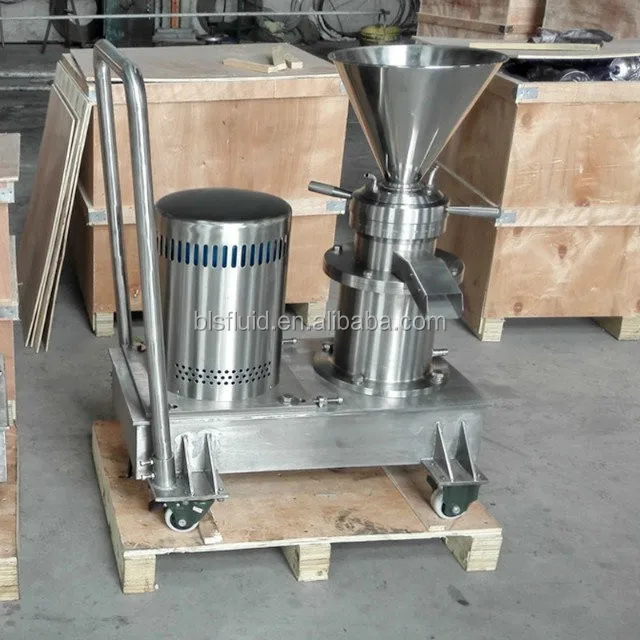

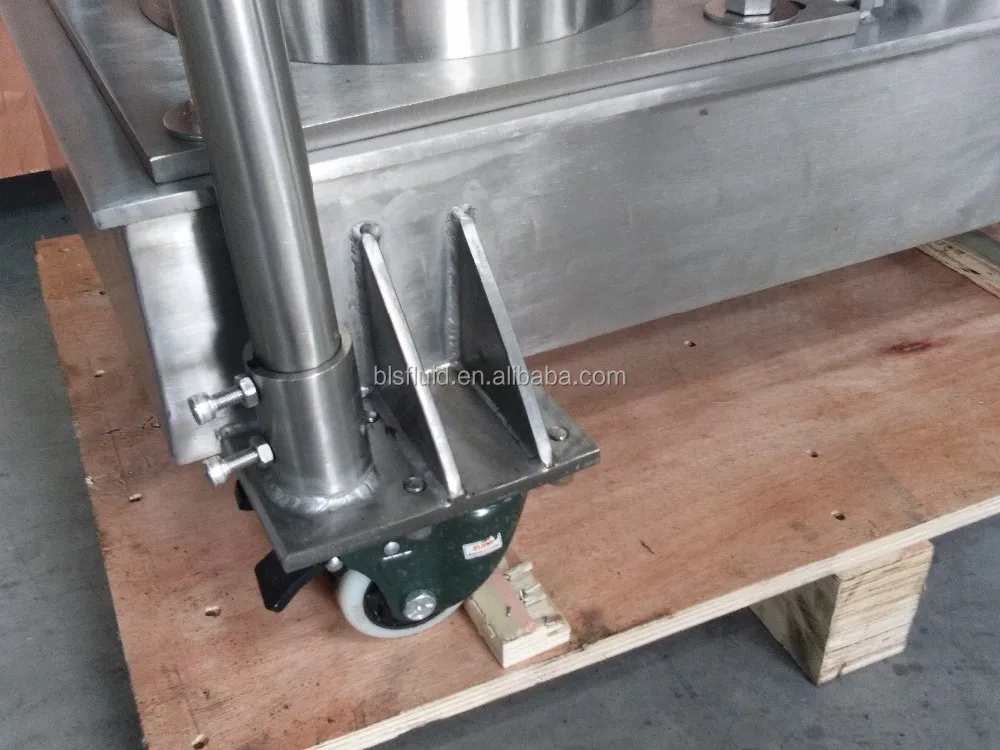

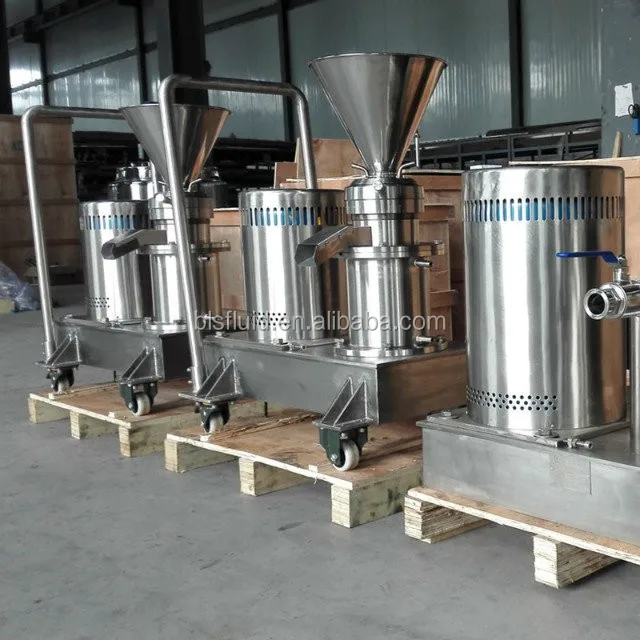

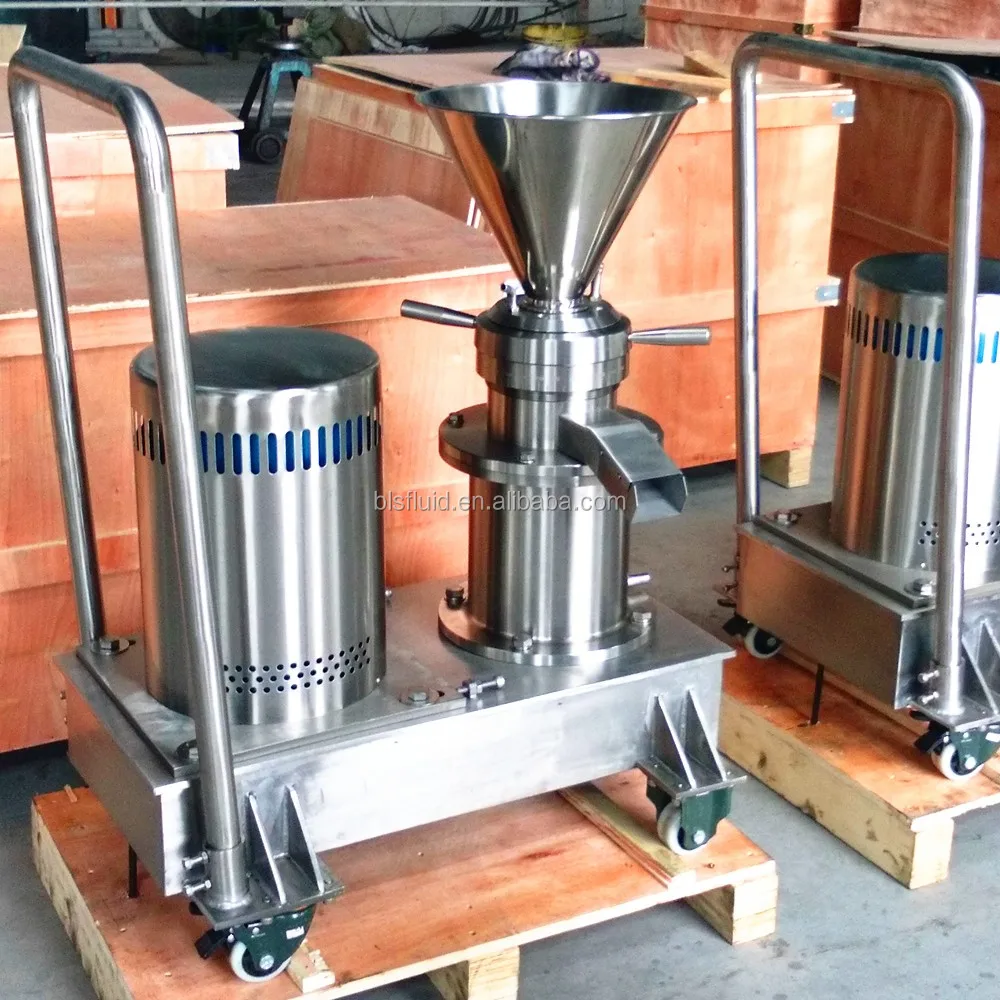

Movable trolley with Wheels


    easy for moving, stable stand.


Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
