Colloidal Mill Machine Price for Raw Carrots into Baby Food

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    US $5500.00
  • 5 - 9 Sets
    US $4500.00
  • >=10 Sets
    US $3500.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
JMF
Type:
Grain Processing Equipment
After-sales Service Provided:
Overseas service center available
Application:
Raw Carrots colloid grinder
Voltage:
110-480V, 50/60Hz
Power:
2.2-18.5kw
Speed:
2800rpm
Output:
0.02-10T/H water test
Outlet type:
circulation pipe, square type etc.
Material:
Stainless Steel 304/316L
Function:
food grinding machine
Usage:
Raw Carrots colloid mill
Name:
Colloidal Mill Machine Price for Raw Carrots into Baby Food
SupplyAbility
SupplyAbility:
500 Set/Sets per Month colloidal mill for sale
Packaging & Delivery
Packaging Details
plywood case packing
Colloidal Mill Machine Price for Raw Carrots into Baby Food
Port
shanghai/ningbo
Lead Time :
Shipped in 15 days after payment
Product Description

Colloidal Mill Machine Price for Raw Carrots into Baby Food

    JM series colloidal mill is a new-type equipment of wet type super micro grain processing, suitable for the homogenization, emulsification, separation, smash and milling of various emulsions.

    It widely used in foodstuff (fruit jam, juice, albumen milk, soy milk, milk tea, dairy, beverage,etc.), pharmacy, dairy chemical, chemical industry, emulsion asphalt, coal floating agent, ceramic glaze, emulsion detonator, nanometer material, etc.

Name:
Colloidal Mill Machine Price for Raw Carrots into Baby Food
Brand name:
L&B
MOQ:
one set
Material:
high-intensity stainless steel 304 and 316L
( ss304 suit acid or alkali weak; ss316 suit acid or alkali a bit strong)
Advantages:
anti-corrosion, anti-abrasion ability, without pollution
Main parts:
grinding head, pedestal driving part and special motor
Grinder types:
Split-case
Model:
JMF
Inlet Dim:
30-100mm, can be in-line type
Outlet Dim:
20-38mm, can be customized as square outlet
Output:
0.02-10T/H
Motor power:
2.2-18.5kw
Speed:
2800rpm
Feed hopper:
4L, 7L, 10L etc
Motor:
ABB is optional
Rotary vane:
V-type head or spiral head
Seal:
oil seal
Machine type:
Wet-type equipment of wet type super micro grain processing
Outlet connection:
union(tri-clamp is optional)
Outlet type:
circulation pipe or square type
Factory:
ISO9001 certified factory
20-year production experience, 10-year exported experience.
Patent:
national invention patent No. 200510123583.8,
international application patent PCT/CN2006/001481.

PRINCIPLE:

    The basic working principle of colloid mill is shearing, grinding as well as high-speed stirring applied force, grinding is finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix them under complex forces such as high-frequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro.

Patent:

    The colloid mill in Our factory has been applied all new technology, which has won national invention patent No. 200510123583.8, the international application patent PCT/CN2006/001481, greatly extend the service life of the colloid mill, and improve the quality of the colloid mill products.

Model
Emulsified size (um)
OutputT/h
Millstone Dim(mm)
Cooling water pipe
(mm)
Outlet Dim
(mm)
Inlet Dim(mm)
Speed (rpm)
Power(kw)
JMF-65
2-40
0.02-0.5
65
10
20
30
2800
2.2
JMF-80
2-40
0.3-1
80
12
25
48
2800
4
JMF-100
2-40
0.5-2
100
12
25
66
2800
5.5/7.5
JMF-120
2-40
0.5-3
120
12
32
66
2800
7.5
JMF-140
2-40
0.5-4
140
12
32
66
2800
7.5/11
JMF-200
2-40
1.0-10
200
12
38
100
2800
15/18.5

Warranty:

1. Since the acquisition date, the mechanical seal within three-months warranty, and other parts with 12-month warranty under normal circumstances.

2. Beyond the time limit, a paid maintenance service is provided for life. Normal wear is not included.

3.Under warranty,no free repair in any circumstances below:

a. No purchase vouchers(Invoice or Receipt)

b. Damage caused by disassembling or modification

c. Due to the careless error use or improper use man-made damage

d. Under the condition of not usually use(e.g, long time used in harsh place) caused by the fault or damage


e. Product packaging is not complete, the exterior pollution for use

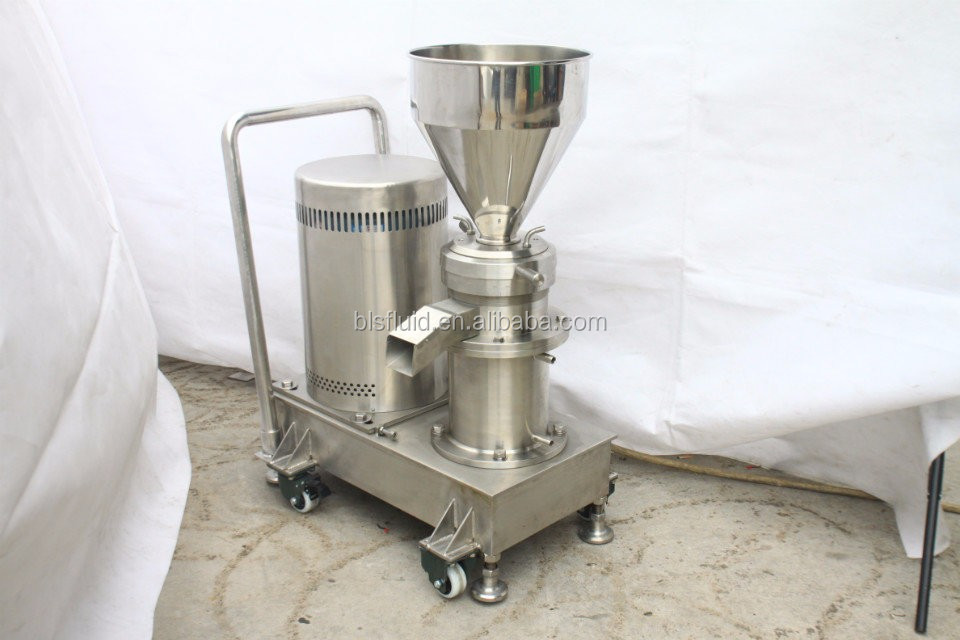

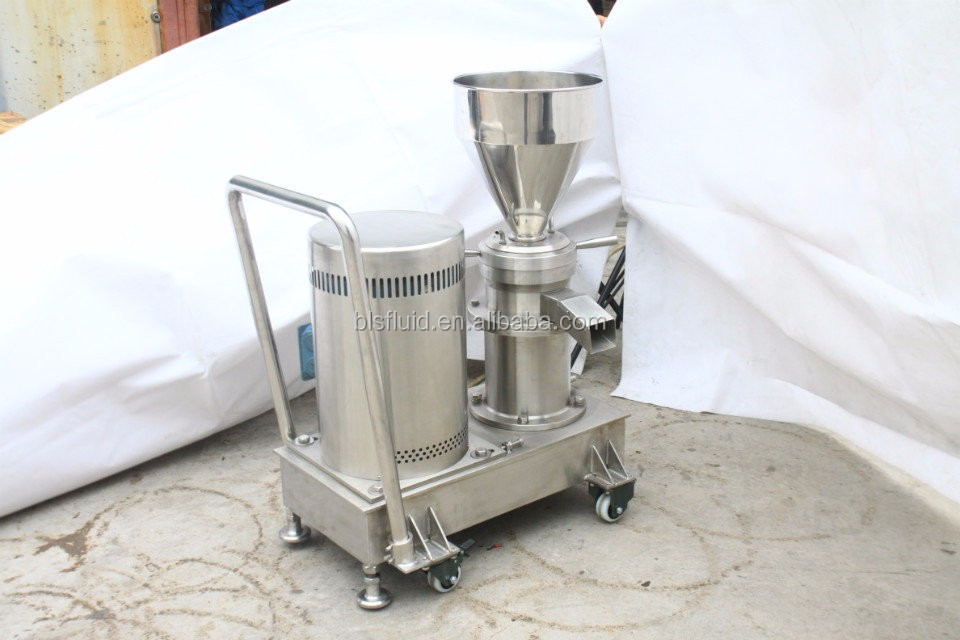

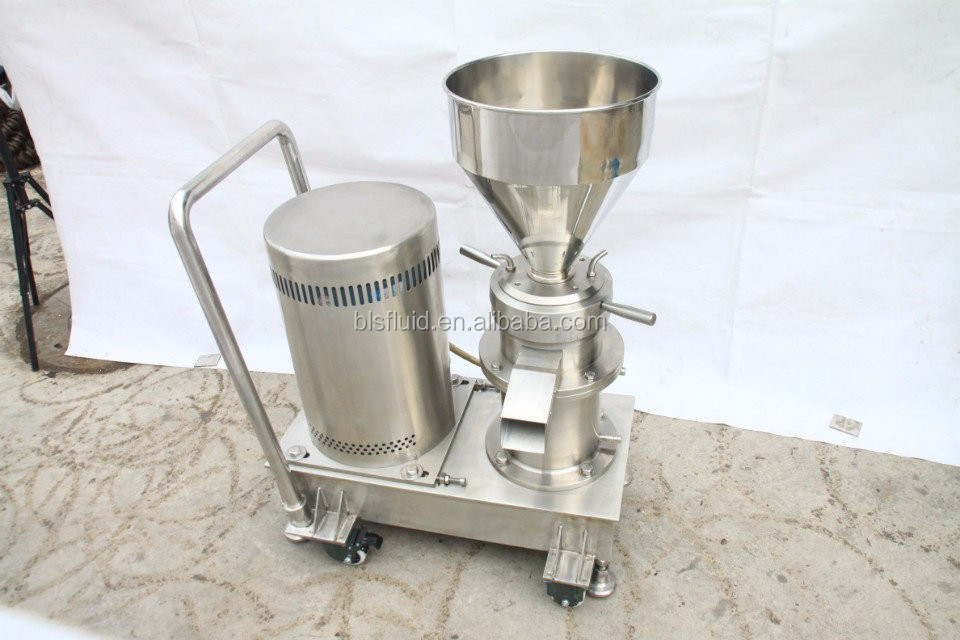

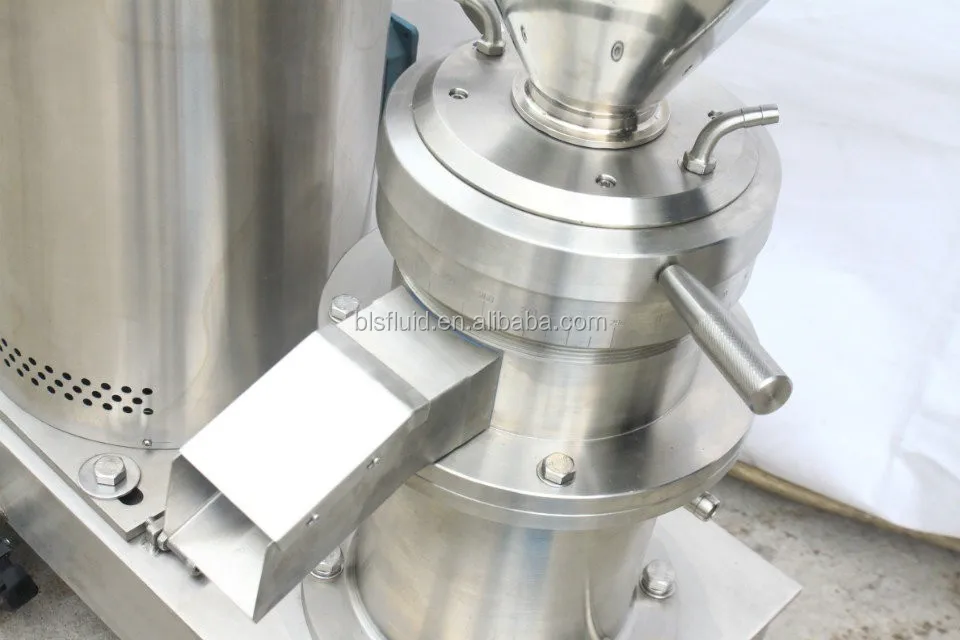

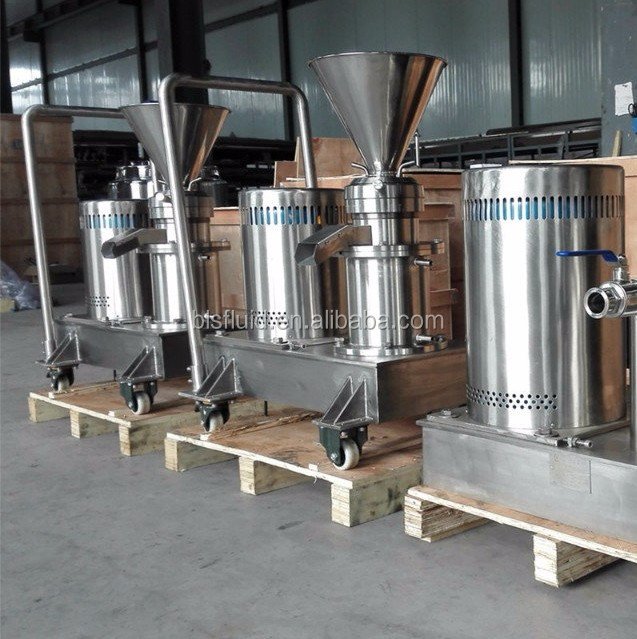

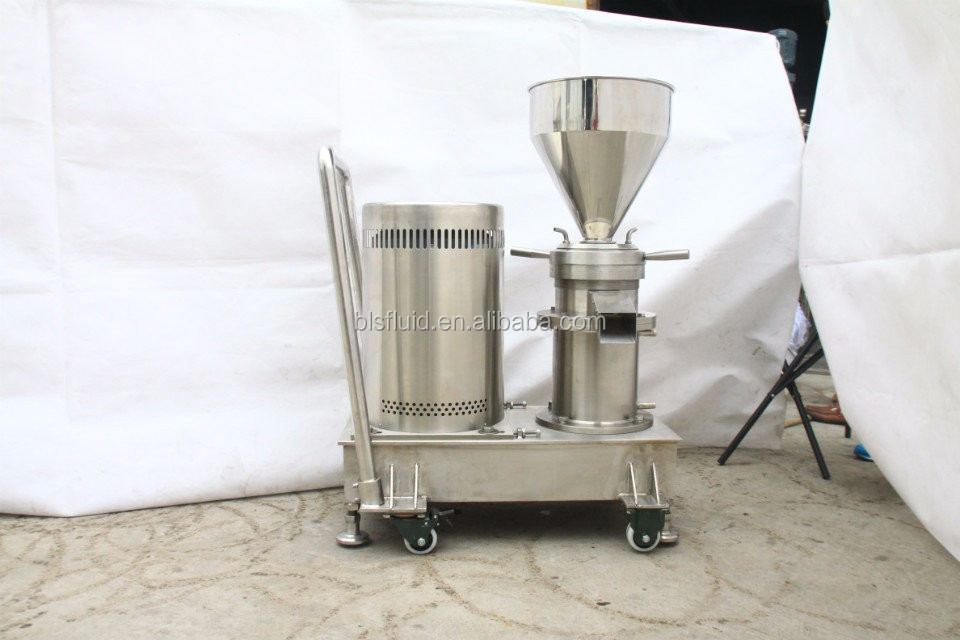

Detailed Images
Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
