Quick Details

  • Condition: New
  • Mixer Type: Agitator
  • Product Type: Fertilizer
  • Application: Liquid
  • Additional Capabilities: Milling
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: L&B
  • Model Number: FCJ series
  • Max. Loading Capacity: 5000L
  • Voltage: can be design
  • Power(W): 1.5-4KW
  • Dimension(L*W*H): Pending
  • Certification: ISO, CE
  • Warranty: 1 year
  • After-sales Service Provided: Overseas third-party support available
  • Volume: 100-5000L
  • Inlet & Outlet: Can be design
  • Speed: 120-1400rpm
  • Material: SS304 or SS316L
  • Name: food grade stainless steel magnetic stirring apparatus

Packaging & Delivery

Packaging Details Plywood case
Delivery Time 15-30days
Product Description



Working method and features:

CLB series sanitary magnetic mixer is a bottom entry type mixer through magnetic drive,a new mixing style of

full closed, no leaking, no pollution. Because of it's magnetic drive without driven shaft make non-contact torque transfer, silence seal (separation sleeve) instead of dynamic seal (driven shaft), which can completely solve the leaking problem of mechanical seal.




Application:
The mixer is mainly applicated for pharmaceutical ,food industry,for dissolving , stining,mixing ,feeding, etc. The mixer is composed of inside magnet (with impeller),separation sleeve, living bearing, out magnet .driving unit,the wetted parts are made of stainless steel 304 or stainless steel 316L(for selection)

Maindly be used in stainless steel reaction tanks, fermentation tank,feeding tank. storage tanks mixing for manufacturing following material: Infusion solutions, Small injections,,vaccines, blood products, insulin, oral liquid,etc.




Advantage:

1. Silence seal (separation sleeve) instead of dynamic seal (driven shaft),which can completely solve the leaking, problem of mechanical seal.

2. Simple structure,low maintenances cost, easy for disassemble ,easy for cleaning,no dead spot.

3. Bottom entry mixing, can work under little liquid material,the special impeller can be applicated for stirring and mixing for various materials.

4. Standard design makes it's quality spare parts am be interchanged on different mixers

Technical Parameters



ModelMotor Power(KW)Volume(L)Motor Speed(r/min)
CLB-200.2KW50-200l120-300
 0.4KW50-200l120-300
CLB-400.55KW200-500l120-300
 0.75KW200-500l120-300
CLB-601.1KW500-1000l120-300
 1.5KW500-1000l120-300
CLB-801.5KW800-2000l120-300
 2.2KW800-2000l120-300
CLB-1003KW1500-3000l120-300
 4KW1500-3000l120-300
CLB-1204KW2000-5000l120-300
 5.5KW2000-5000l120-300
CLB-1407.5KW3000-10000l120-300

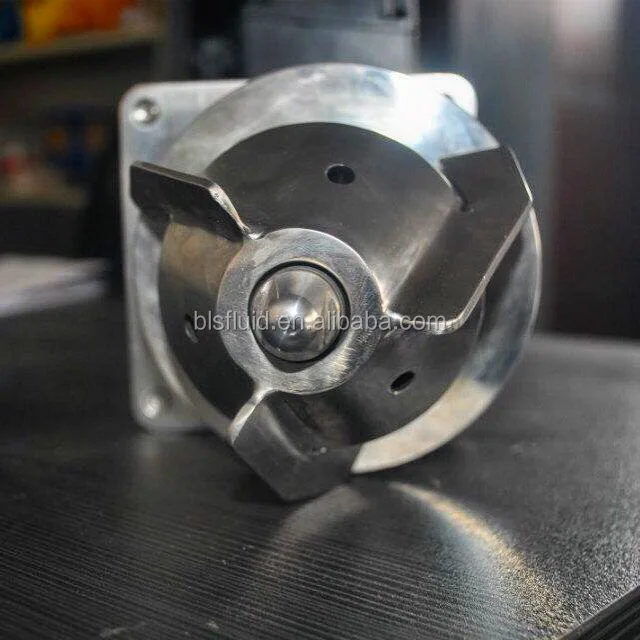

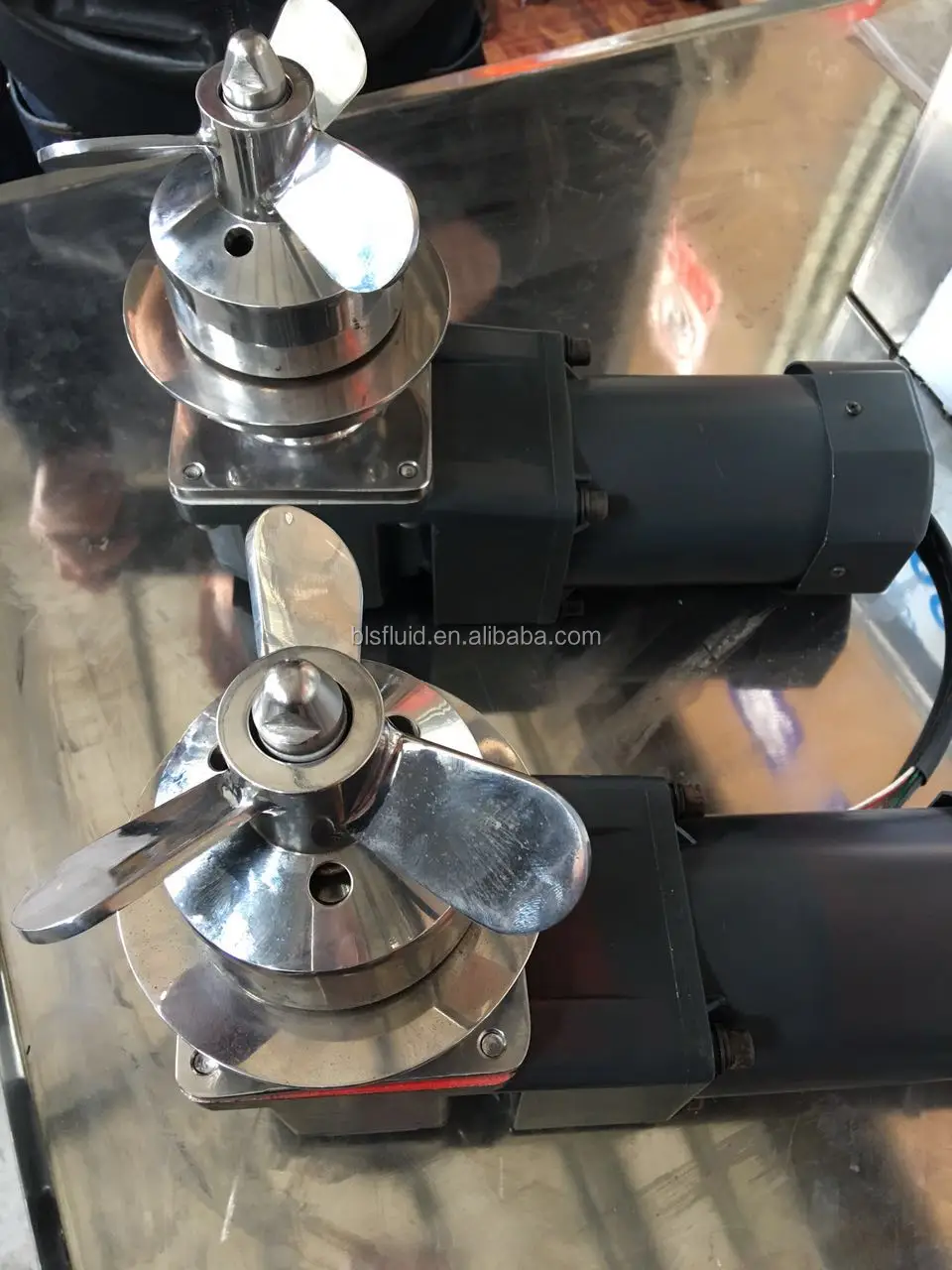

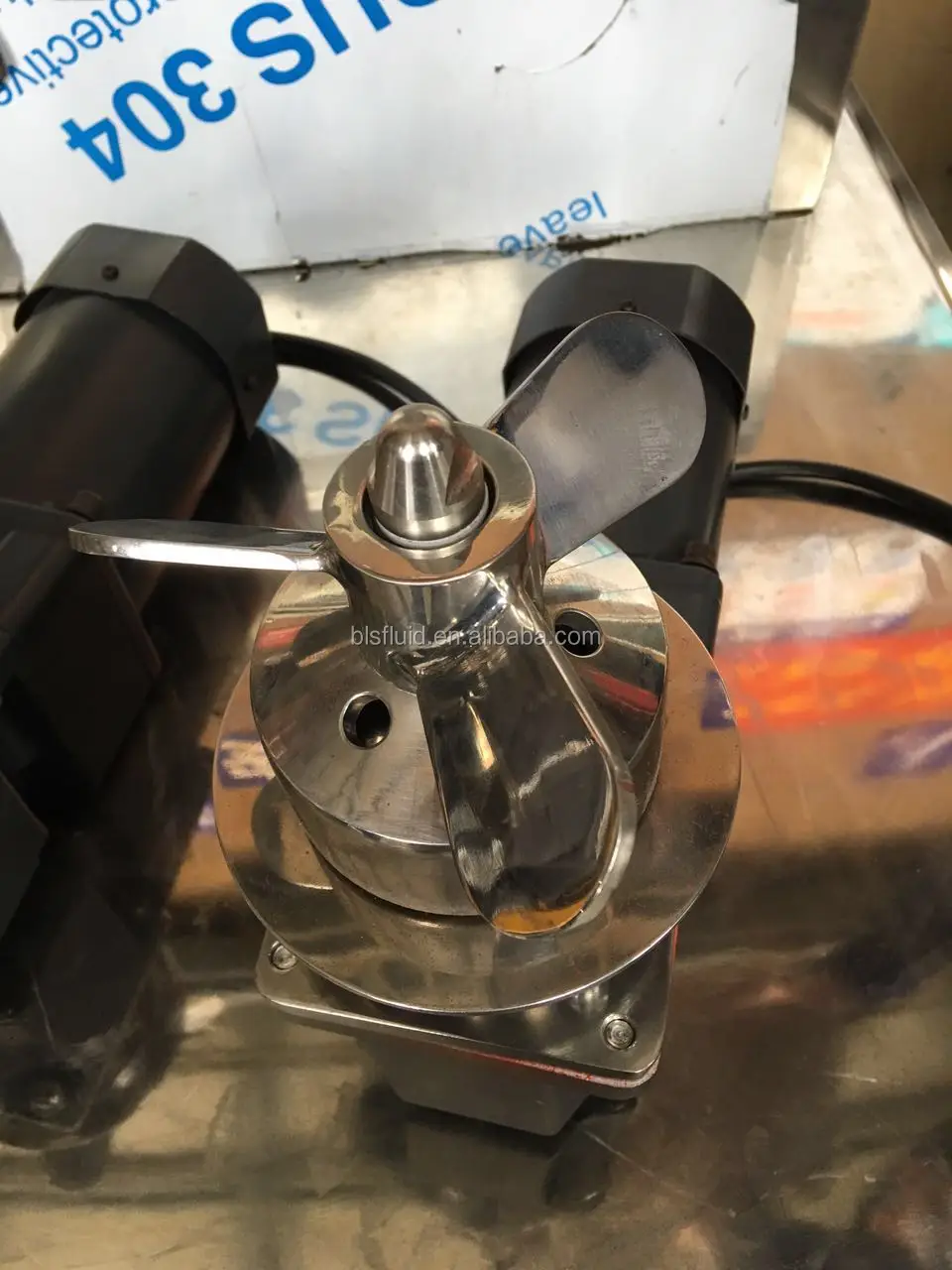

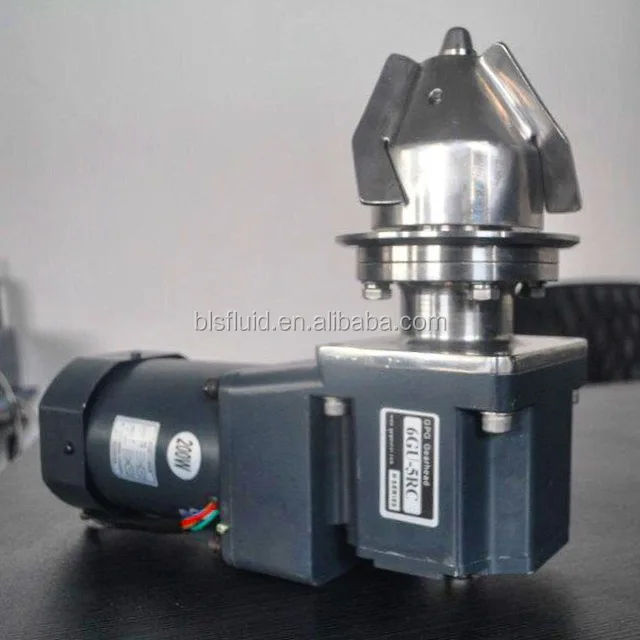

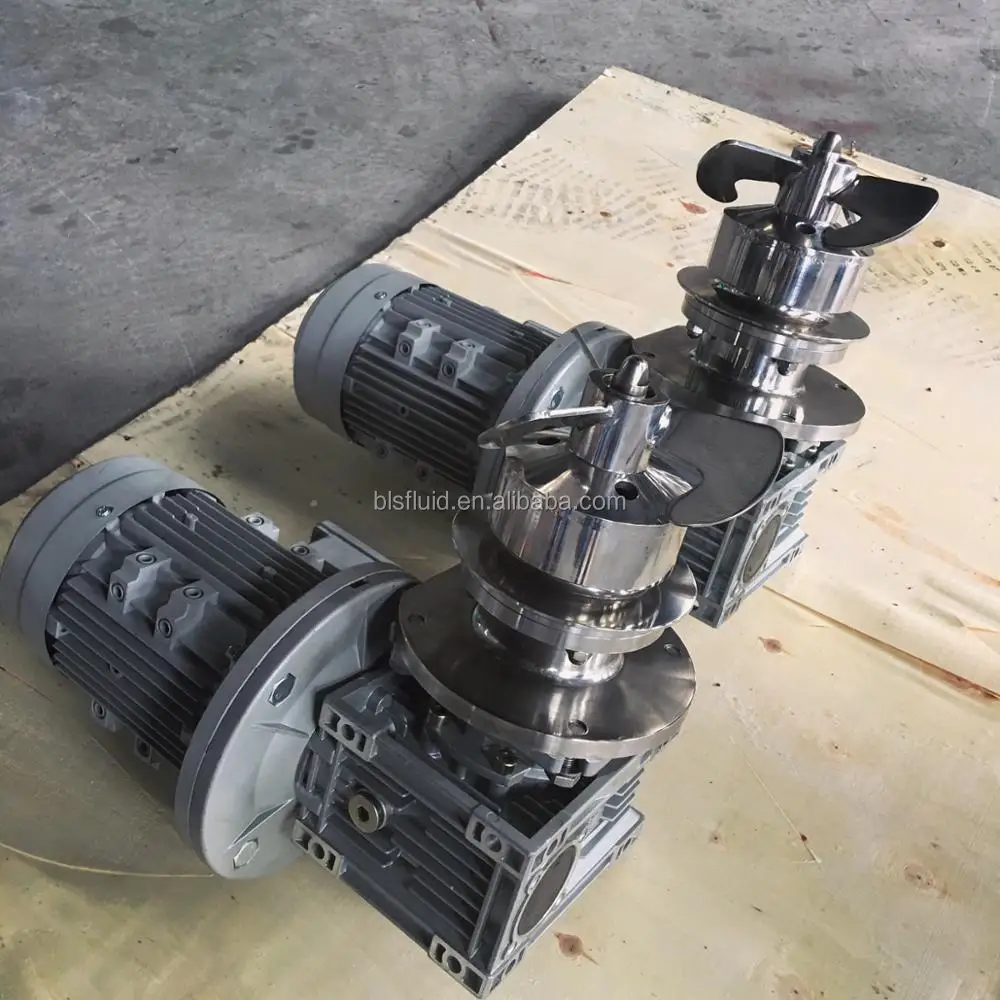

Product Picture
