stainless steel vertical type magnetic agitation(L&B)

FOB Reference Price:Get Latest Price
US $500-3,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Agitator
Product Type:
Other
Application:
Liquid
Additional Capabilities:
Coating
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
L&B
Model Number:
BLS series
Max. Loading Capacity:
10000L
Voltage:
380V which can be design
Power(W):
1.1-4KW
Dimension(L*W*H):
Pending
Certification:
ISO
Warranty:
2 years
After-sales Service Provided:
Overseas third-party support available
Material:
SS316L
Type:
can be design
Capacity:
can be design
Speed:
200-500rpm
Name:
stainless steel vertical type magnetic agitation(L&B)
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood case
Port
ningbo or shanghai
Lead Time :
30days



Product Description



Working method and features:

CLB series sanitary magnetic mixer is a bottom entry type mixer through magnetic drive,a new mixing style of

full closed, no leaking, no pollution. Because of it's magnetic drive without driven shaft make non-contact torque transfer, silence seal (separation sleeve) instead of dynamic seal (driven shaft), which can completely solve the leaking problem of mechanical seal.




Application:
The mixer is mainly applicated for pharmaceutical ,food industry,for dissolving , stining,mixing ,feeding, etc. The mixer is composed of inside magnet (with impeller),separation sleeve, living bearing, out magnet .driving unit,the wetted parts are made of stainless steel 304 or stainless steel 316L(for selection)

Maindly be used in stainless steel reaction tanks, fermentation tank,feeding tank. storage tanks mixing for manufacturing following material: Infusion solutions, Small injections,,vaccines, blood products, insulin, oral liquid,etc.




Advantage:

1. Silence seal (separation sleeve) instead of dynamic seal (driven shaft),which can completely solve the leaking, problem of mechanical seal.

2. Simple structure,low maintenances cost, easy for disassemble ,easy for cleaning,no dead spot.

3. Bottom entry mixing, can work under little liquid material,the special impeller can be applicated for stirring and mixing for various materials.

4. Standard design makes it's quality spare parts am be interchanged on different mixers

Technical Parameters



ModelMotor Power(KW)Volume(L)Motor Speed(r/min)
CLB-200.2KW50-200l120-300
 0.4KW50-200l120-300
CLB-400.55KW200-500l120-300
 0.75KW200-500l120-300
CLB-601.1KW500-1000l120-300
 1.5KW500-1000l120-300
CLB-801.5KW800-2000l120-300
 2.2KW800-2000l120-300
CLB-1003KW1500-3000l120-300
 4KW1500-3000l120-300
CLB-1204KW2000-5000l120-300
 5.5KW2000-5000l120-300
CLB-1407.5KW3000-10000l120-300

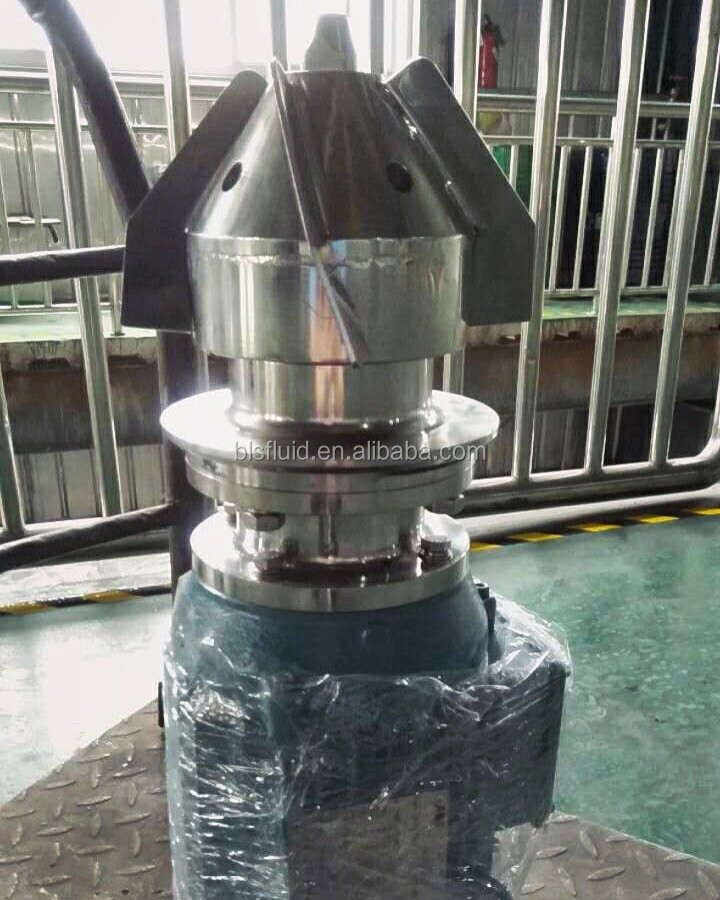

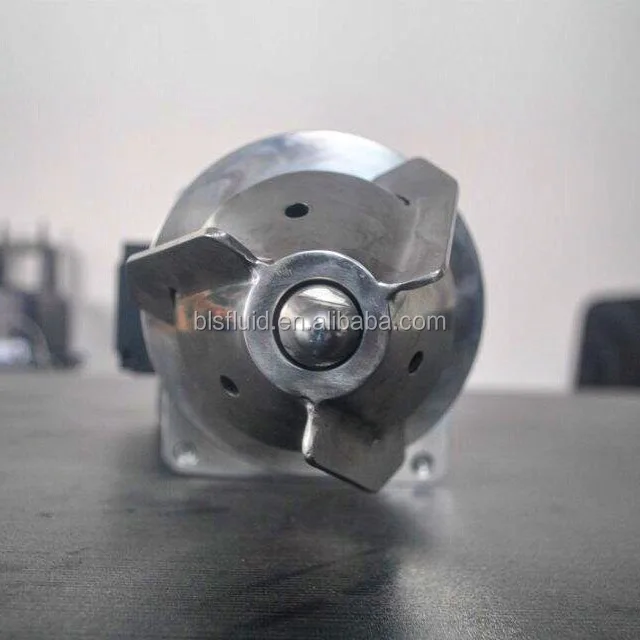

Product Picture
