Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: BLS
  • Model Number: JMF
  • Type: Grain Processing Equipment, grinder machine prices
  • After-sales Service Provided: Overseas service center available
  • Application: vegetable sauce grinder machine
  • Usage: food grinder
  • Material: Stainless Steel 304/316L
  • Function: vegetable sauce making machine
  • Voltage: 110-480V, 50/60Hz
  • Output: 0.01-10T/H(water test)
  • outlet: 20-38mm
  • hopper imlet: 7L, 10L, 10L, 15L, etc.
  • Name: JMF series Colloid Grinding Machine Food Mill Tomato Processing

Packaging & Delivery

Packaging Details plywood case package
JMF series Colloid Grinding Machine Food Mill Tomato Processing
Delivery Time Shipped in 15 days after payment
Product Description

JMF series Colloid Grinding Machine Food Mill Tomato Processing


Brand name:  L&B

MOQ:  one set

Material:  high-intensity stainless steel 304 and 316L( ss304 suit acid or alkali weak; ss316 suit acid or alkali a bit strong)

Advantages: anti-corrosion, anti-abrasion ability, without pollution

Main parts:  grinding head, pedestal driving part and special motor

Grinder types: Split-case

Model: JMF

Inlet Dim: 30-100mm, can be in-line type

Outlet Dim: 20-38mm, can be customized as square outlet

Output: 0.02-10T/H

Motor power:  2.2-18.5kw

Speed: 2800rpm

Feed hopper: 4L, 7L, 10L etc

Motor:  ABB is optional

Rotary vane:  V-type head or spiral head

Seal:  oil seal

Machine type: Wet-type equipment of wet type super micro grain processing

Outlet connection:  union(tri-clamp is optional)

Outlet type: circulation pipe or square type

Patent:  national invention patent No. 200510123583.8, international application patent PCT/CN2006/001481.

PRINCIPLE:

    The basic working principle of Stainless steel JMF-120 mobile Bitumen colloid mill with trolley is shearing, grinding as well as high-speed stirring applied force, grinding is finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix them under complex forces such as high-frequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro.

Patent:

    The colloid mill in Our factory has been applied all new technology, which has won national invention patent No. 200510123583.8, the international application patent PCT/CN2006/001481, greatly extend the service life of the colloid mill, and improve the quality of the colloid mill products.

Model
OutputT/h
Outlet Dim(mm)
Inlet Dim(mm)
Speed (rpm)
Power(kw)
Millstone Dim(mm)
JMF-65
0.02-0.5
20
30
2800
2.2
65
JMF-80
0.3-1
25
48
2800
4
80
JMF-100
0.5-2
25
66
2800
5.5/7.5
100
JMF-120
0.5-3
32
66
2800
7.5
120
JMF-140
0.5-4
32
66
2800
7.5/11
140
JMF-200
1.0-10
38
100
2800
15/18.5
200
Detailed Images

Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.




Pure copper motor:

1)low noise, stable dynamic, sustainable work.

2)with waterproof motor cover

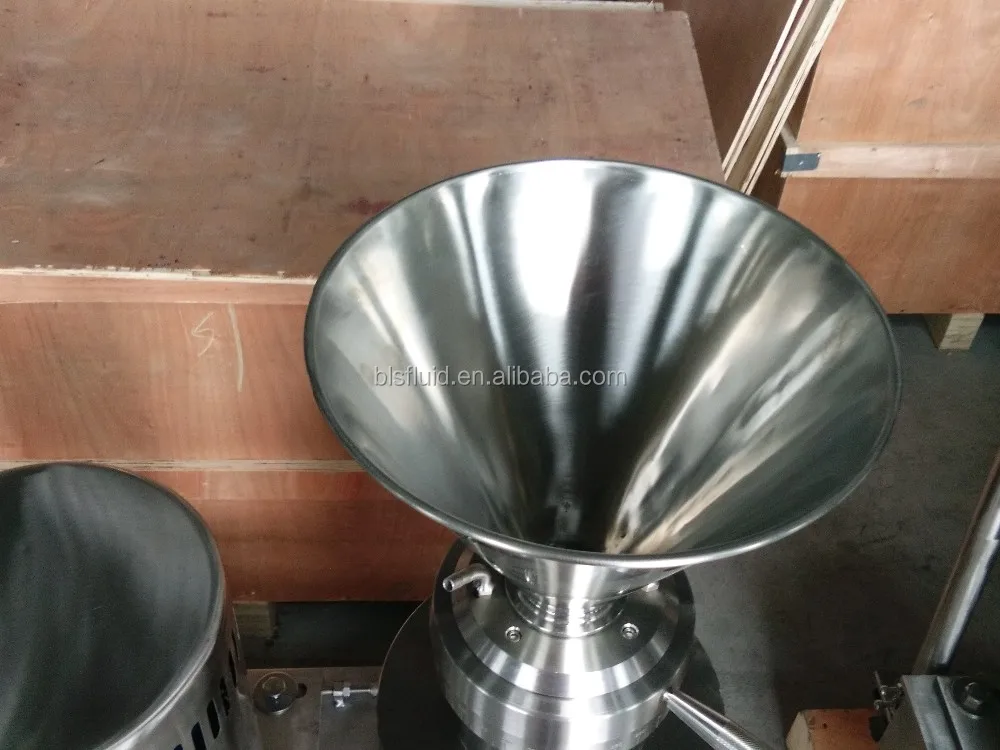

Feed hopper/funnel inlet

    V-type rotary vane/spiral head, slide grinding material directly, saving time feeding, grinding more smoothly.




Fine grinding

    SS304 and SS316 sanitary stainless steel millstones/2Cr13 millstones, with high speed 2800rpm.




Adjustment gear

    Depending on the desired fineness free adjustment gear, easy to operate.




Cooling water port(cooling system)

    Cooling the sealing, grinding head and material.




Outlet and automatic circulation system

    Recycle grinding material, make fine fineness.




Square bore outlet

    Big diameter, discharge the material more quickly.




Movable trolley with Wheels


    easy for moving, stable stand.


Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
