SUS High speed cosmetic cream vacuum emulsion mixer

FOB Reference Price:Get Latest Price
US $1,800-6,000 / Sets | 1 Set/Sets emulsifying mixer (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Homogenizer
Product Type:
Cosmetic
Application:
Liquid
Additional Capabilities:
homogenizer
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
BRH3
Max. Loading Capacity:
20000L
Voltage:
110-480V
Power(W):
0.75-75KW
Dimension(L*W*H):
Referring
Certification:
ISO
Type:
Homogenizing Emusifying Machine
Material:
Stainless Steel 304 / SUS316L
Function:
homogenizer, emulsifier
Capacity:
50-10000L
Usage:
SUS High speed cosmetic cream vacuum emulsion mixer
Speed:
2800/1400rpm
Pressure:
under pressure or vacuum
Tooth:
straight tooth and oblique tooth are optional
Proof pressure:
positive pressure≤3 Bar, negative pressure≤1Bar, high pressure≤8Bar
Name:
SUS High speed cosmetic cream vacuum emulsion mixer
After-sales Service Provided:
Overseas service center available
Warranty:
One Year
Supply Ability
Supply Ability:
800 Set/Sets per Quarter emulsion mixer
Packaging & Delivery
Packaging Details
standard packaging for vacuum emulsion mixer
Port
Ningbo
Lead Time :
Shipped in 15 days after payment
Product Description

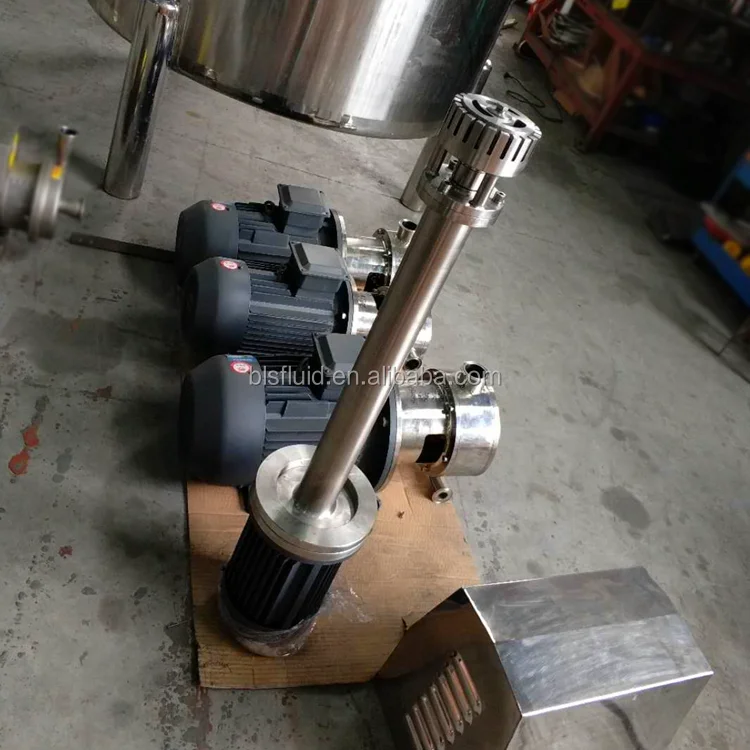

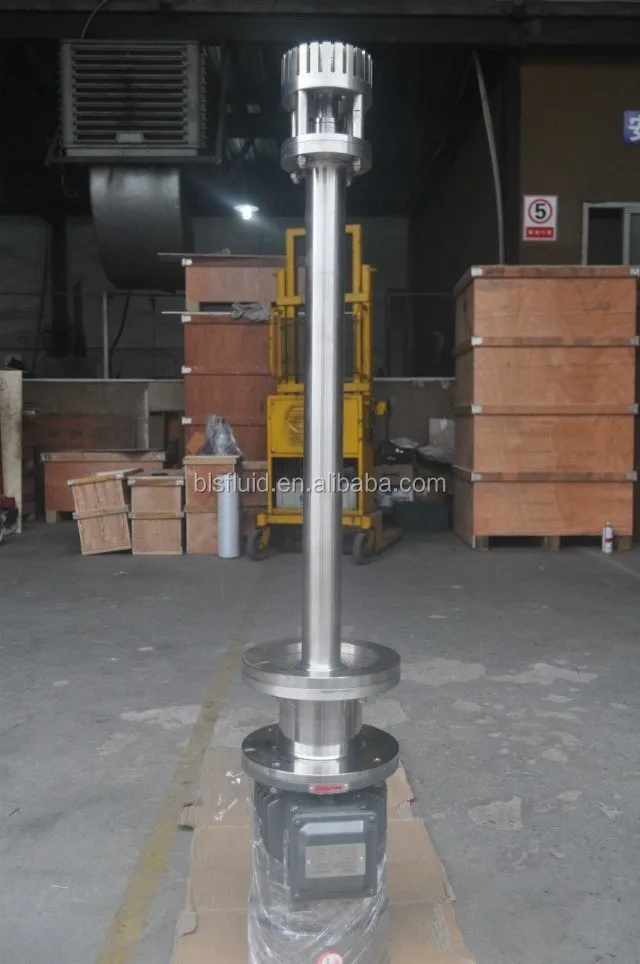

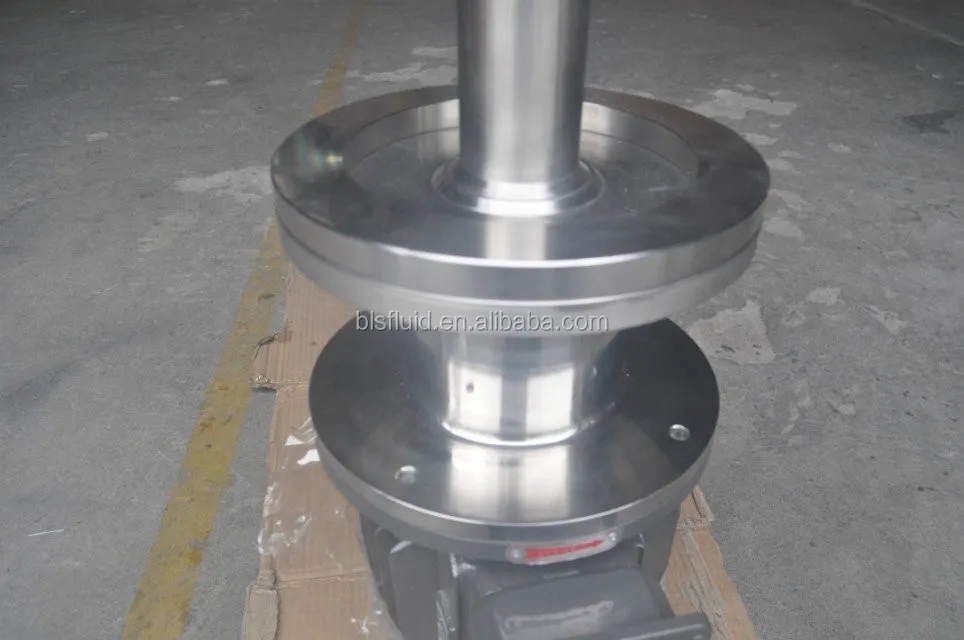

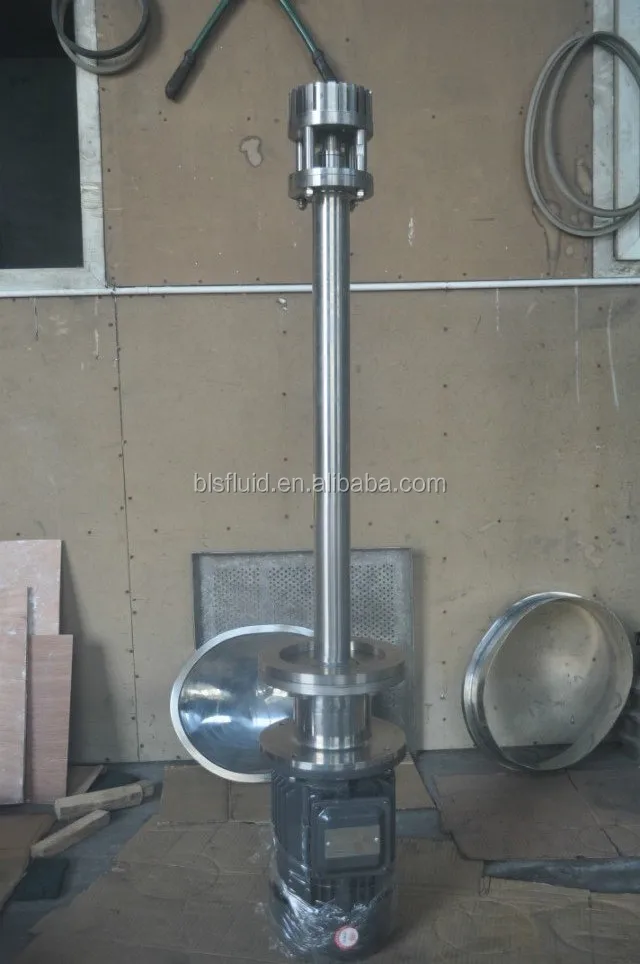

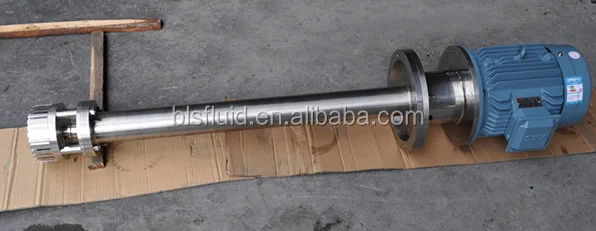

SUS High speed cosmetic cream vacuum emulsion mixer

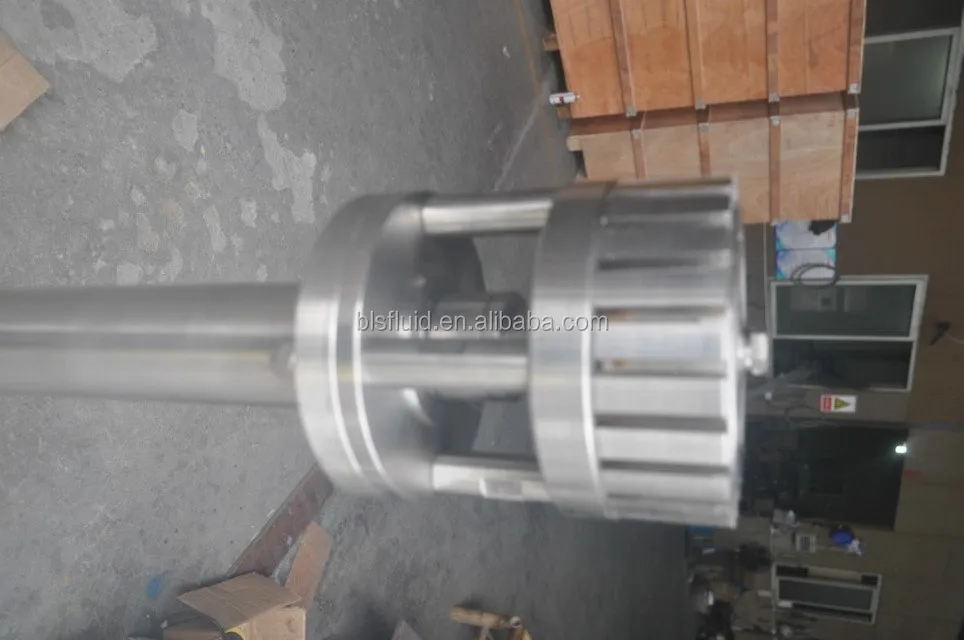

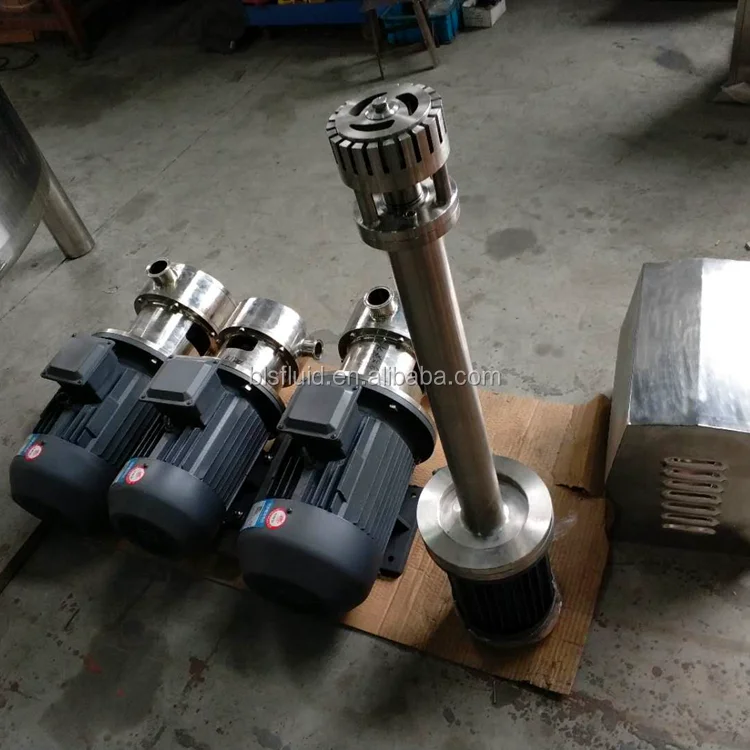

    It is a kind of vertical installation of emulsification equipment. Stator design for claw type coupling structure, material from the host upper and lower suction at the same time, and around the centrifugal throw, Shear homogeneous efficiency multiplied, to avoid the problem of kettle inside the upper material is easy to produce blind Angle.

Reference parameters of high shear homogenizer:
Name
SUS High speed cosmetic cream vacuum emulsion mixer
Brand name
L&B
Material
ss304 and ss316(ss304 suit acid or alkali weak; ss316 suit acid or alkali a bit strong.)
Warranty
mechanical seal warranty period is 6 months, sleeve is 1 month, and other parts within 12 months
Wearing parts
sleeve, mechanical seal
Sleeve material
graphite bushing, PTFE etc.
Motor power
1.1-75kw
Speed
2800rpm/1400rpm
Capacity
5-10000L/H

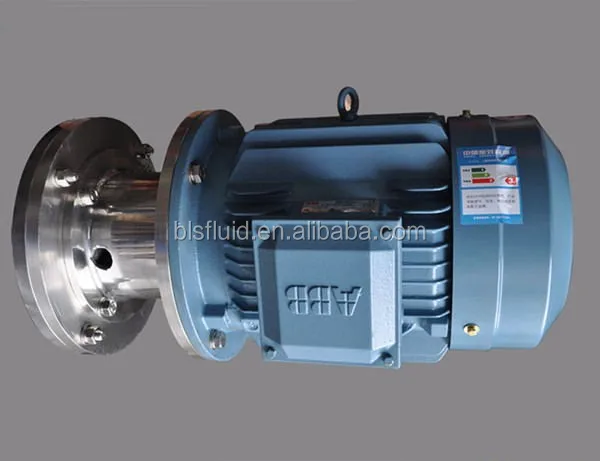

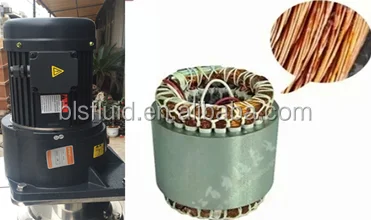

Motor
Siemens is optional
Hot sale

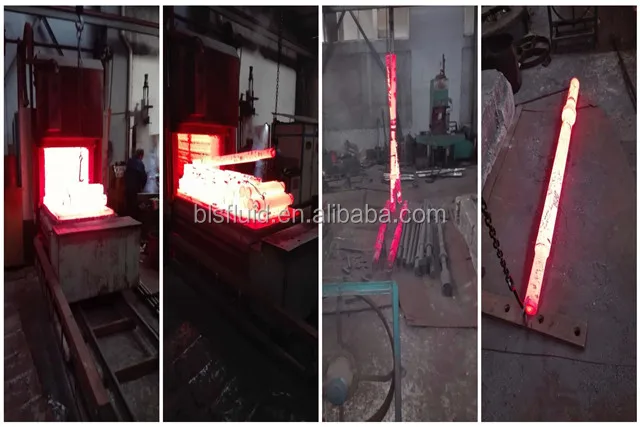

high temperature heat treatment, difficult deformation
Features
straight tooth and oblique tooth are optional, small capacity, proof pressure(positive pressure≤3 Bar, negative pressure≤1Bar, high pressure≤8Bar).

Applicable range

1. Suitable for all kinds of large and small reaction kettle, uniform, fine on the common container, emulsification.

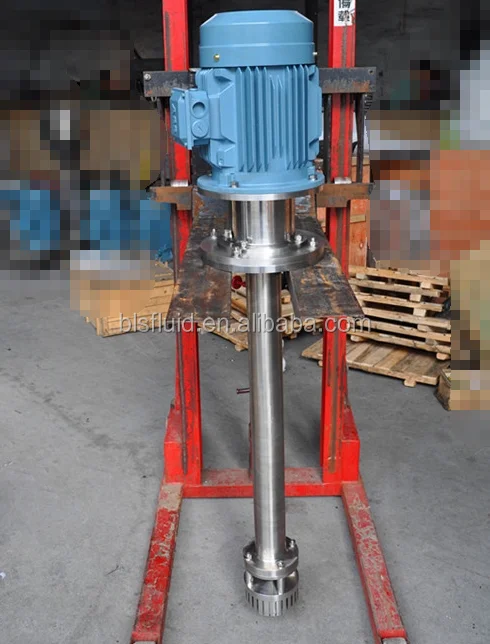

2. Small capacity of emulsion can be used for mobile lifting.
3. Widely applied in food, beverage, chemical, biochemical, petrochemical, pigments, dyes, paints, pharmaceuticals and other industries.

model
capacity(L/H)
power(kw)
speed(rpm)
BRH80
5-40
1.1
2800
BRH90
5-50
1.5
2800
BRH100
50-100
2.2
2800
BRH120
100-300
4
2800
BRH140
200-800
7.5
2800
BRH160
300-1000
11
2800
BRH180
500-1500
18.5
2800
BRH200
800-2000
22
1400
BRH220
1000-3000
30
1400
BRH240
1500-5000
37
1400
BRH270
2000-8000
55
1400
BRH290
3000-10000
75
1400
Certifications
Packing & Delivery
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
