Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: BLS
  • Model Number: BRL3
  • Theory: emulsifier pump
  • Structure: inline emulsifier mixer
  • Usage: Stainless Steel 3000RPM Emulsifying Salad Dressing Mixer Pump
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: electric
  • Pressure: High Pressure
  • Application: Stainless Steel 3000RPM Emulsifying Salad Dressing Mixer Pump
  • power: 4-185 kw
  • rotation speed: 1480/2800 rpm
  • flow: 0-140 m3/h
  • material: SUS 304,316
  • Name: Stainless Steel 3000RPM Emulsifying Salad Dressing Mixer Pump
  • Flow quantity: Q=4-140T/h
  • Max pressure at outlet: 0.05-0.2Mpa
  • Type: Stainless Steel 3000RPM Emulsifying Salad Dressing Mixer Pump
  • Stator rotor space: 0.5mm
  • Stator rotor: 1-3sets

Packaging & Delivery

Packaging Details plywood case
Stainless Steel 3000RPM Emulsifying Salad Dressing Mixer Pump
Delivery Time stainless steel emulsion pump is shipped with 25 days
Product Description

Stainless Steel 3000RPM Emulsifying Salad Dressing Mixer Pump

Flow quantity: Q=4-140T/h

Viscosity range of delivering material: 0.2cp-3000cp
Max pressure at outlet: 0.05-0.2Mpa
Product temperature range: -30℃-150℃

GENERAL CONSIDERATIONS.

    Stainless Steel 3000RPM Emulsifying Salad Dressing Mixer Pump is used for the mixing, homogenizing between liquid and liquid, or powder and liquid, Belongs to the L&B High shear mixer series.

    BRL-3 2800RPM inline high shear mixer(NSK Bearing) is used for the continuous dispersing and emulsifying of material with different phase. Meanwhile the mixer could also delivery low viscosity liquid.

    The inline mixer could mixing the powder and liquid in certain rate, and have been used in cosmetic, food, pharmaceutical, chemical, petroleum, coatings, nano-materials industry. All the sanitary, reliability and rigidity meets the requirements of these industries.

OPERATION THEORY.

    The Stainless Steel 3000RPM Emulsifying Salad Dressing Mixer Pump is composed of a few standard spare parts, which makes assembly, disassembly and maintenance easy, meanwhile avoid returning factory to repair. Specially designed mixing head is composed of rotor and stator. The rotor works in high speed and high-frequency mechanical effects from the motor.

    The material is under the shear, centrifugal squeeze, deep friction, impact and tearing turbulence combined effects, thus achieve the effect of dispersion, emulsification, grinding. High shear emulsifier combined of two layers or six layers of rotor and stator. The materials go through the layers after shear dispersion and emulsifying.

APPLICATION:

    L & B Inline high shear mixer is usually installed in the bottom of the reactor or pipeline, the material go through form inlet to outlet , after high-speed shear. This process could be done continuously or in circulation.

Model type
Power
(kw)
Speed
(r/min)
Flow
(T/h)
In/Outlet
(Inch)
Outlet pressure
(Mpa)
Weight
(kg)
Material
BRL3-60
4
2800
0-4
1.5/1.25
≤ 0.2
83
304/316
BRL3-100
7.5
0-8
2/1.5
121
BRL3-120
11
0-12
2.5/2
260
BRL3-140
15
0-18
2.5/2
270
BRL3-165
22
0-22
3/2.5
350
BRL3-200
37
0-30
3.5/3
450
BRL3-220
55
0-40
4/3.5
640
BRL3-240
75
0-55
4/3.5
800
BRL3-260
90
1480
0-65
5/4
830
BRL3-300
110
0-80
5/4
1300
Detailed Images


Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.


Pure copper motor:

1)low noise, stable dynamic, sustainable work.
2)with waterproof motor cover


Construction:


    Horizontal three stages Rotor and Stator series(CNC treatment)


Sealing option:


    Sanitary single mechanical seal/Dual End Mechanical Seal

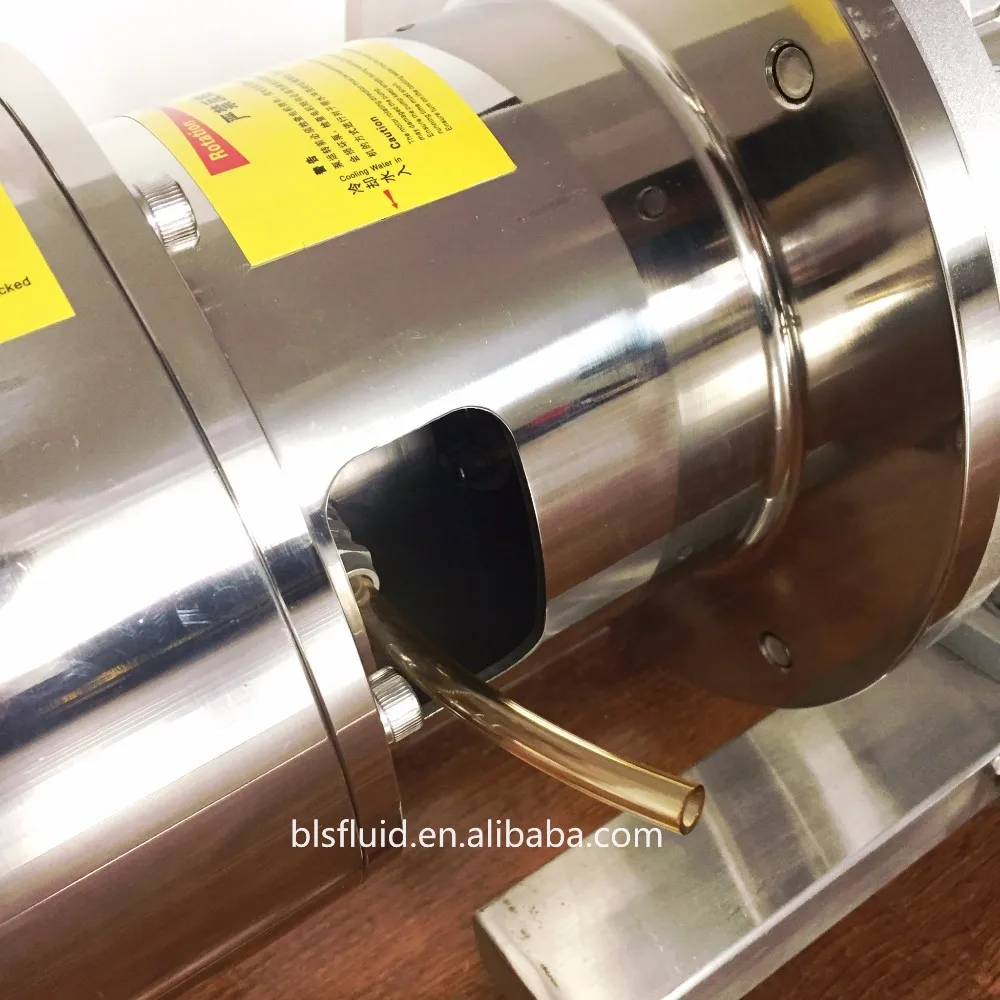

Cooling water connect port for Dual End Mechanical Seal


Available inlet and outlet pump connection:


    Clamp, Union, Flange etc.

Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
