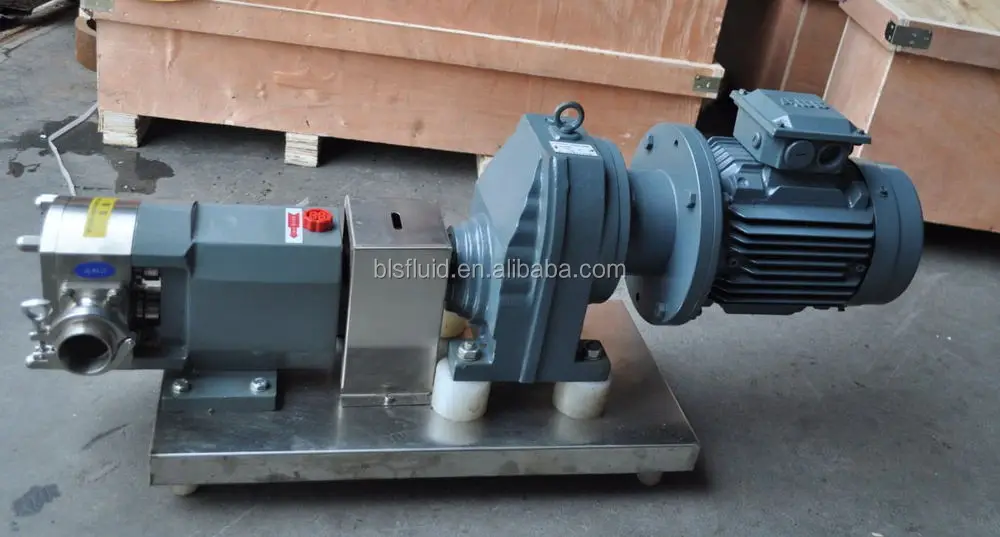

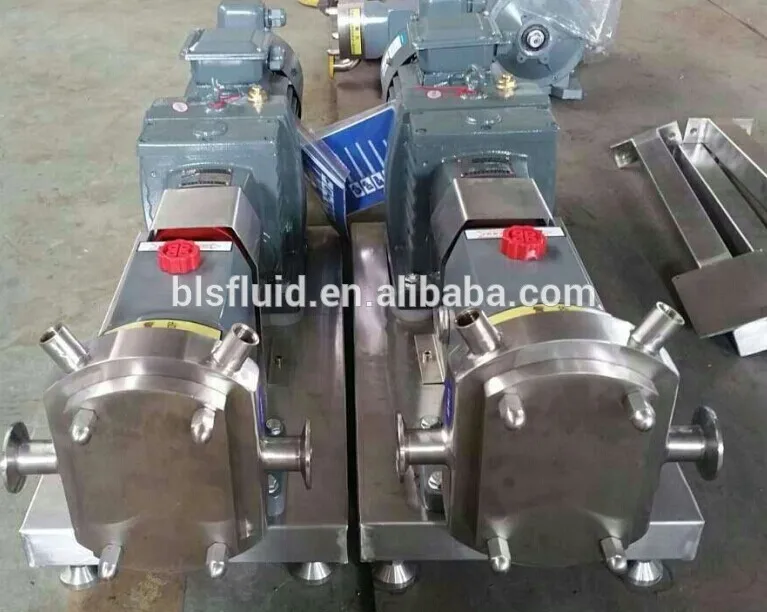

High quality stainless steel rotor lobe pump for sauce,mayonnaise,salad dressing

FOB Reference Price:Get Latest Price
US $800-8,000 / Pieces | 1 Piece/Pieces lobe pump (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
BLS-ZZB
Theory:
Rotary Pump
Structure:
Gear Pump
Usage:
lobe pump
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
High Pressure
Application:
lobe pump
name:
lobe pump
material:
ss304,ss316
flow:
0-43000L/H
speed:
0-500rpm
Supply Ability
Supply Ability:
8 Set/Sets per Day lobe pump
Packaging & Delivery
Packaging Details
standard packaging
Port
Shanghai port/Ningbo port
Lead Time :
15 days

lobe pump
Brand: BLS
Material :304(L) 316(L)
Finish: Mirror or Matt Polish; Ra<0.4um
Connect:Tri Clamped,Flange

A-P1

Rotary lobe pump is widely used to transfer various special material, stiff material, mixture with different specific gravity, corrosive material and material with large particle, such as yogurt, cheese, fruit jam, shampoo, cosmetics, syrup, paint etc.



1. Driving System

Stepless Speed Regulation Lobe Pump. The speed regulator changes the speed by manual adjustment, which is safe, reliable and infinitive flow adjustment. But the non-automatic adjustment is also troublesome. Speed regulating should be done in operation not in shut-off state.



 Fix Speed Output Reducer Lobe Pump: The driving is easy with constant rotary speed of the rotor,which also leads to non-adjustablity of flow.



 Variable Frequency Motor + Frequency Converter Lobe Pump: It realizes both automatic adjusting and infinitive adjustment of flow. It is highly automatic and has large torque in low speed.



2. Connection type: clamp, flange, thread.

3. Contact material: SS304, SS316, 316L.



4. Seal: silicon rubber, fluorine rubber, EPDM, PTFE rubber, nitrile rubber etc.



5. Mechanical seal: single face with silicon carbide/ hard alloy faces standard.

 A-P2

ModelLiter Per 100RoundSuggest Speed(rpm)Flow(L/H)Power(KW)
BLS-33L200-500300-8000.55
BLS-66L200-500650-16000.75
BLS-88L200-500850-21601.5
BLS-1212L200-5001300-32002.2
BLS-2020L200-5002100-54003
BLS-3030L200-4003200-64004
BLS-3636L200-4003800-76004
BLS-5252L200-4005600-110005.5
BLS-6666L200-4007100-140007.5
BLS-7878L200-4009000-180007.5
BLS-100100L200-40011000-2200011
BLS-135135L200-40015000-3000015
BLS-160160L200-40017000-3400018.5
BLS-200200L200-40021600-4300022
