stainless steel jam and marmalade making machine price

FOB Reference Price:Get Latest Price
$1,800.00 - $9,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
mixing machine
Report Suspicious Activity
Overview
Quick Details
Brand Name:
bls
Place of Origin:
Zhejiang, China
Warranty:
1 Year
After-sales Service Provided:
Online support
Application fields:
Vegetable processing plant, Cannery, Meat processing plants, Commercial catering, Snack food factory, Dairy products factory, Beverage Factory, Seasoning plant, Fruit processing plant, Cooking oil factory, steel jam and marmalade making machine price
Machinery Capacity:
steel jam and marmalade making machine price
Machinery Function:
steel jam and marmalade making machine
material:
stainless steel 304, 316
volume:
500-20000 L
Heat preservation layer:
60 mm
inlet and outlet diameter:
38-51 mm
Type:
stainless steel electric heating tanks, Cooking Equipment
Function:
stainless steel jam and marmalade making machine price
Usage:
price jam and marmalade making machine
Heating method:
electric, gas, steam heating
Name:
stainless steel jam and marmalade making machine price
Supply Ability
Supply Ability:
200 Set/Sets per Month stainless steel jam and marmalade making machine price
Packaging & Delivery
Packaging Details
plywood case package
stainless steel jam and marmalade making machine price
Port
ningbo
Picture Example:
package-img
Video Description
Product Description

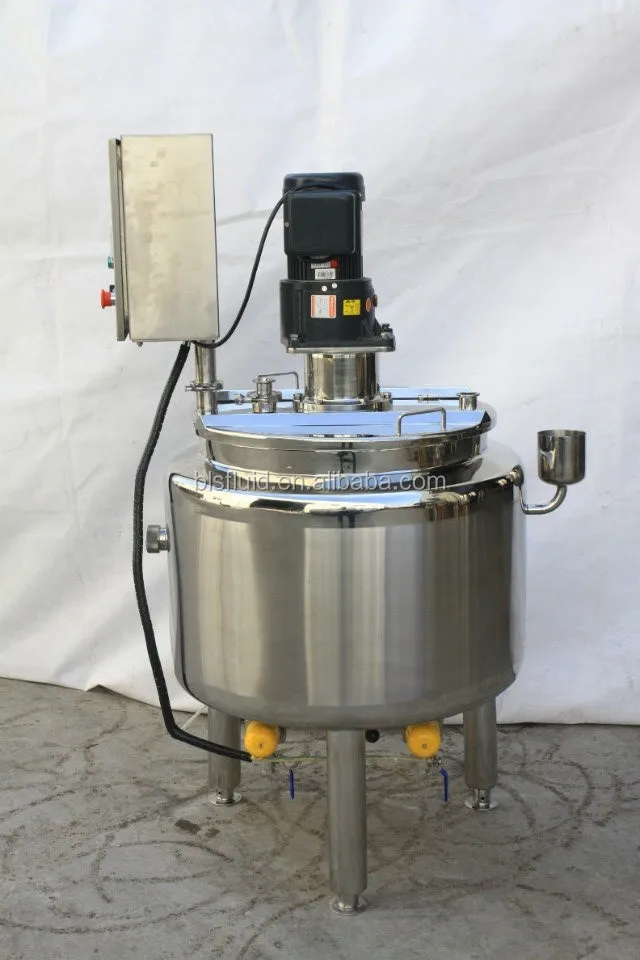

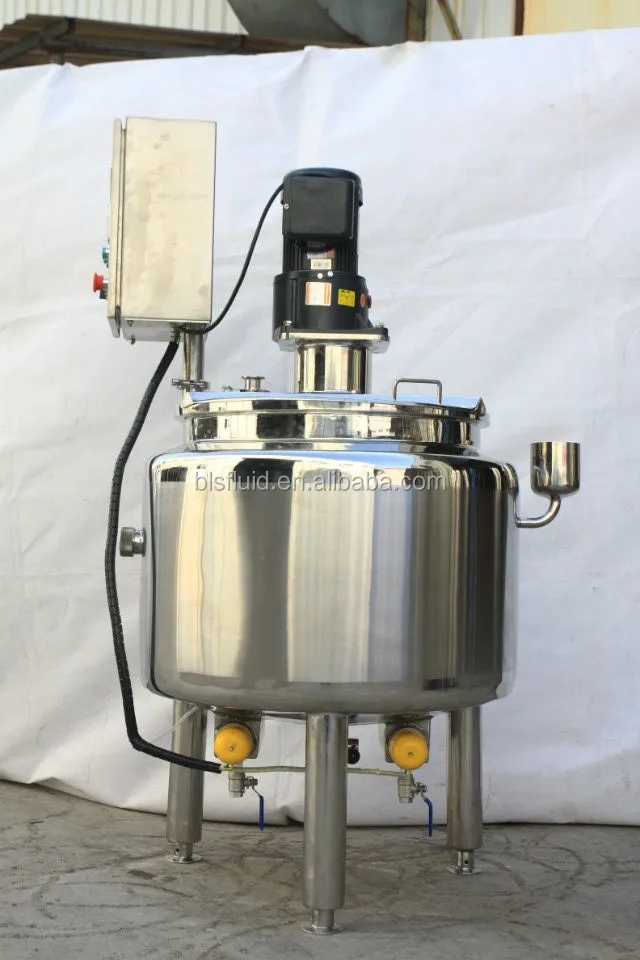

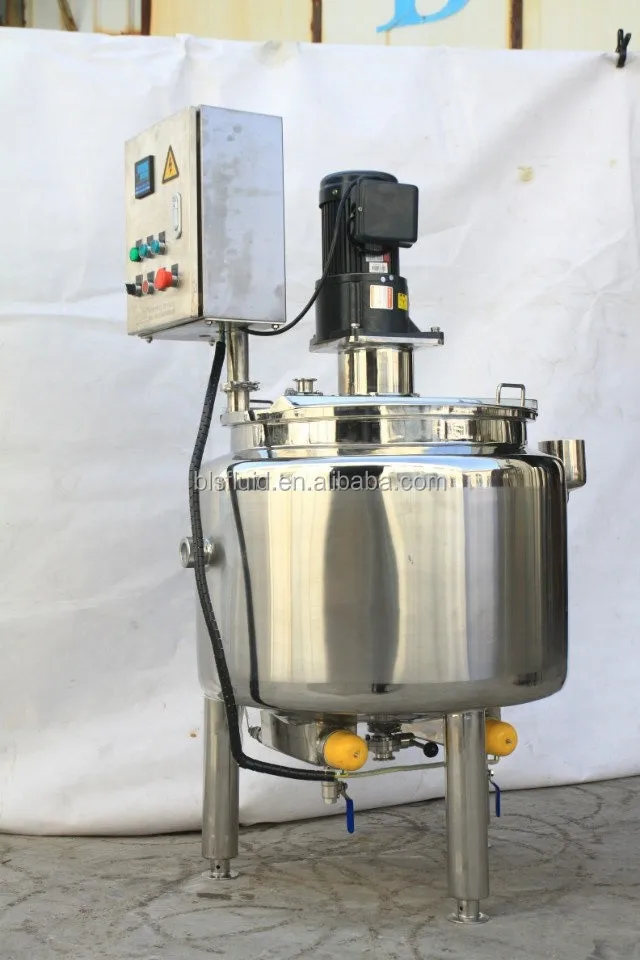

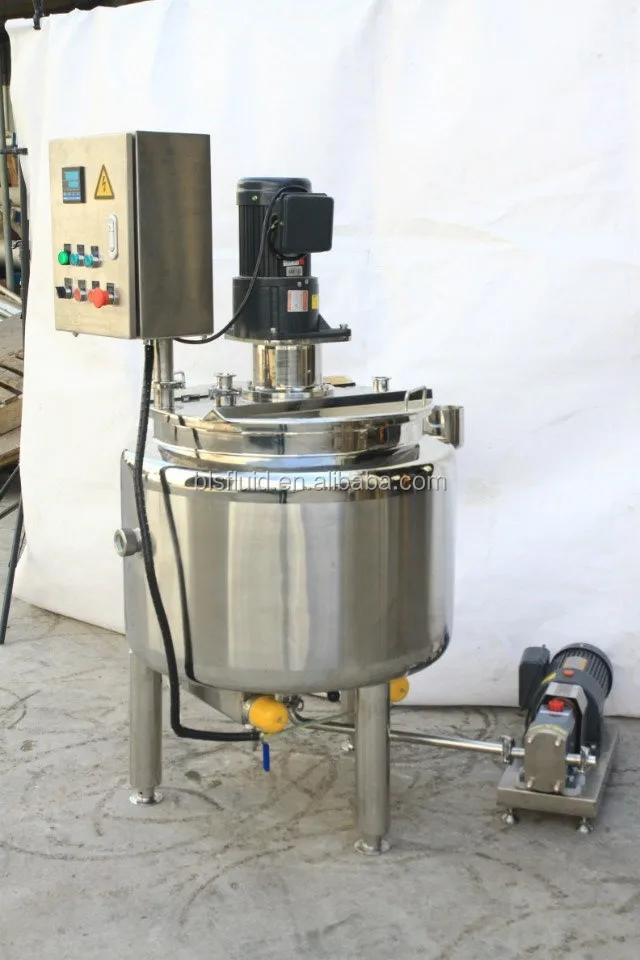

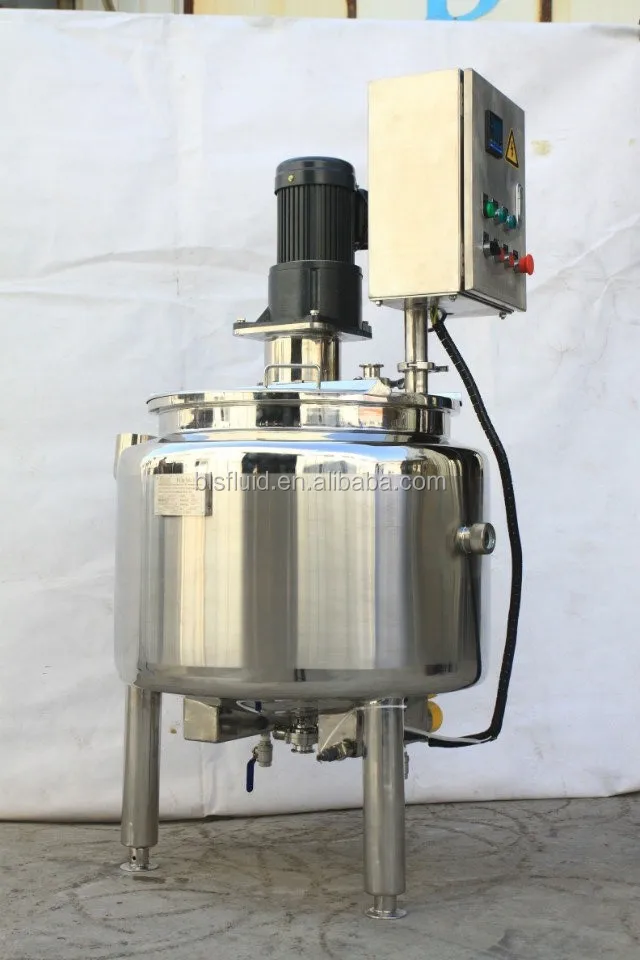

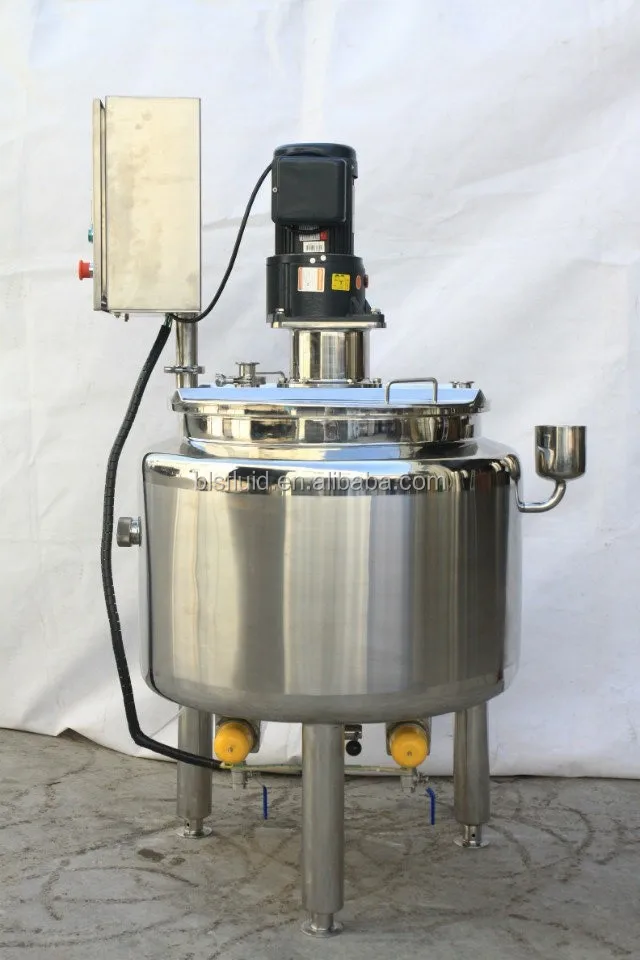

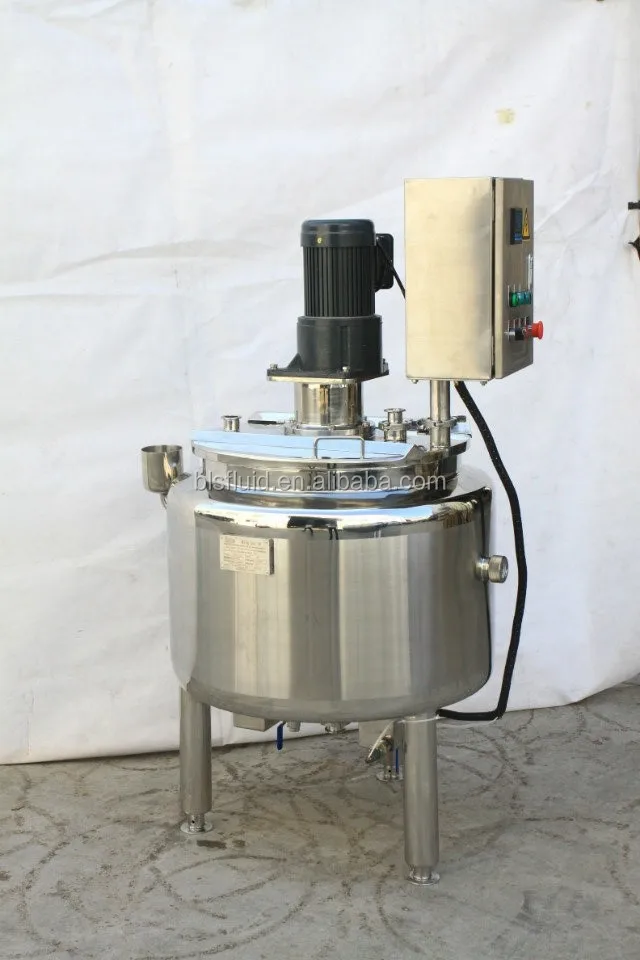

stainless steel jam and marmalade making machine price

Brand: L&B

Material : stainless steel 304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.8um
Certification: CE  ISO9001:2008

Product Name:
stainless steel jam and marmalade making machine price
Description:
Designed according to ISO9001/GMP standard, widely used for mixing liquid medium in the food-processing, cosmetics and pharmaceutical industries
Heating method
By electricity (oils or water), by steam, by gas
Material:
SS304/SS316L
jacket: dimple jacket/ miller board, hollow jacket or coil pipe jacket etc.
insulation layer: PU Foam
as to the thickness, we can make it according to your requirement.
Optional Configuration
1.manhole
2.CIP spraying ball
3.adjusting feet
4.sample valve
5.temperature gauge
6.pressure gauge
7.level gauge
Capacity:
50L-10000L
Agitator:
With agitator or not
Agitator type
Frame, paddle, scraper, homogenizer, turbo type etc.
Agitator Speed
20-36rpm, 50-300rpm, 760-1450rpm, 2800-3000rpm
Mechanical seal:
SIC/SiC/EPDM(Standard)
Agitator power:
0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, ...7.5KW
Sealing option:
Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:
110-480V, 50/60Hz
Motor:
ABB, LOCAL,50hz/ 60hz
Surface treatment:
Inner polished and outside polished
Available connection:
Clamp, Thread Butt weld, Flange
Available standard:
DIN, SMS, 3A, RJT, ISO/IDF
Operated:
Electric
Application scope:
Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:
Plywood case Or as per the request of customers
Delivery details:
Usually within 35 days after receiving T/T down payment

Applicable range:

Used as blending tank, mixing tank, preparation tank, fermentation tank, disinfection tank and ageing tank etc.
Ideal in fields such as food, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Structure characteristics:

Adopt structure of internal tank and external package, with heat preservation materials inside.
Materials are all sanitary stainless steel.
Humanized structure design and easy to operate.
Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.

Configuration of tank:

Quick open manhole.
Various types of CIF cleaners.
Fly and insect resistant sanitary breathing cover.
Adjustable triangular bracket.
Dismountable materials input pipe assembly.
Thermometer (according to customer requirements).
Ladder (according to customer requirements).
Vertical blender (paddle type or fame type are available if customer require).
Jacket (miller board, hollow jacket or coil pipe jacket are available according to customer requirements).
Liquid level meter and level controller (according to customer requirements).
Eddy-proof board.

Reference technical parameters of stainless steel jam and marmalade making machine price
Effective volume
Dimension of tank
Total height
Diameter of inlet&outlet
Heat preservation layer
(L)
(mm)
(mm)
(mm)
(mm)
500
840*1000
2250
38
60
600
920*1000
2300
38
60
700
990*1000
2300
38
60
800
950*1220
2500
38
60
900
1010*1220
2500
38
60
1000
1060*1500
2850
51
60
1500
1160*1500
2850
51
60
2000
1340*1500
2900
51
60
3000
1410*2000
3400
51
60
4000
1620*2000
3450
51
60
5000
1810*2000
3500
51
60
6000
1980*2000
3550
51
60
15000
2530*3000
4700
51
60
More Samilar Tanks



Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.

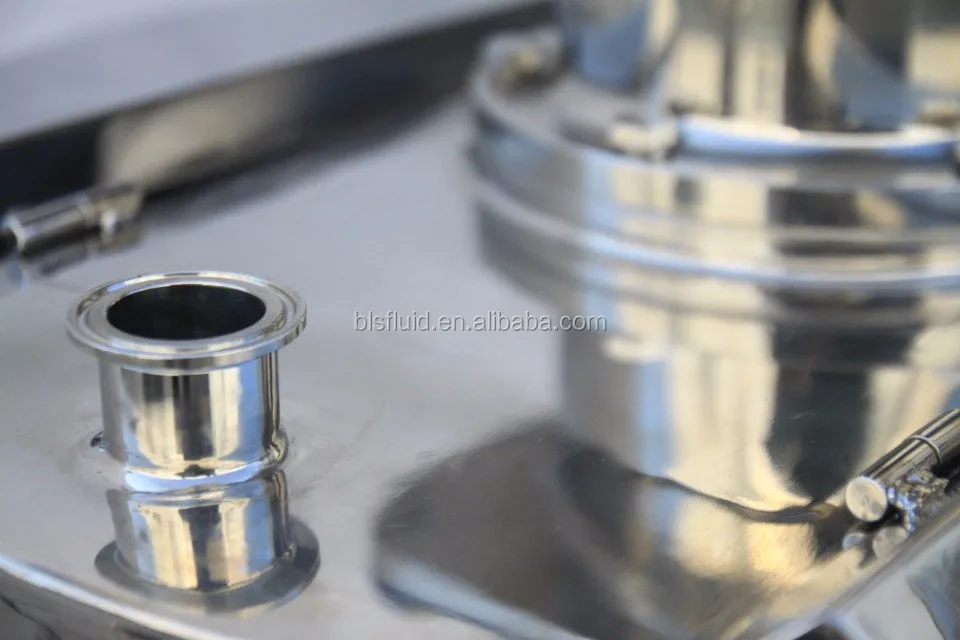

Flat cover and tri clamp inlet port


    Creative handle, quick to open, convenient for production




Motor device

1. Pure copper motor: low noise, stable dynamic, sustainable work.

2. Dust proof engine base: inside stainless steel bearing, with dust cover to avoid dust and grease dirt into tank.

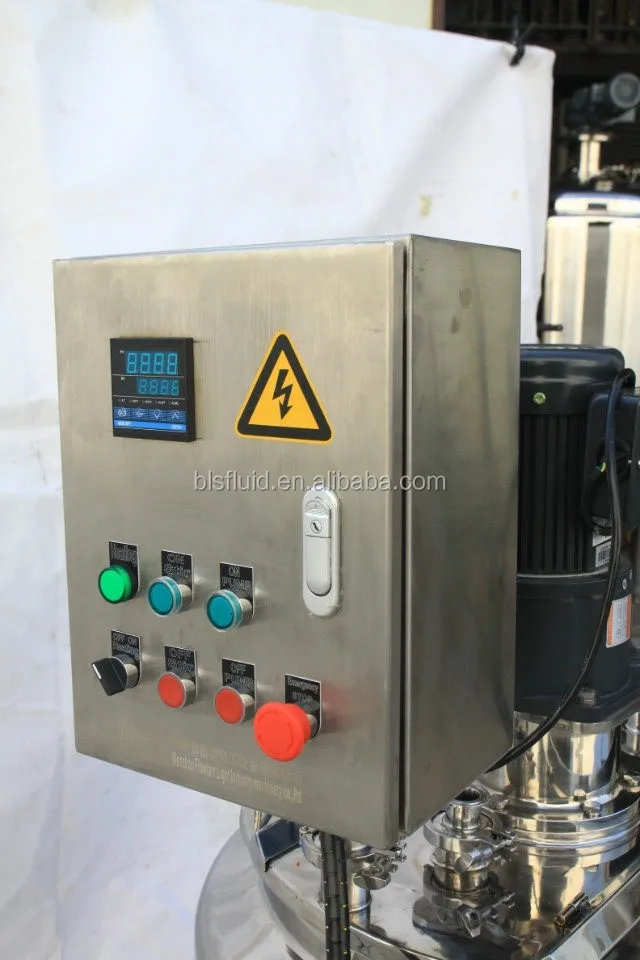

Electric control box:

1. intelligent temperature controller, SS304 box

2. PT100 thermal resistance

3. Germany Schneider Electric Components

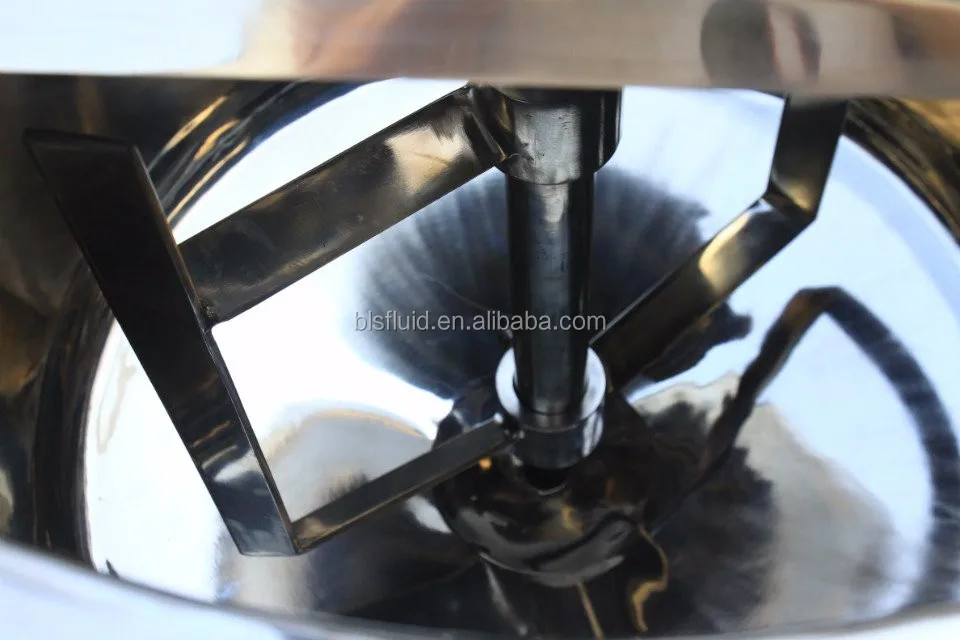

SS agitator:

1. Rotation speed can be constant speed, also can be equipped with VFD according to real work condition.

2. Agitator can be frame mixer, paddle, scattered disk, scraper, ribbon etc.



Electrical heated tube(electric heating rods):

1. adopt threaded connection form, convenient assembly.

2. pad adopt Import Teflon material, Resistant to 300 degrees temperature, difficult to leak.


Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.


Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
