Double Agitators Jacket Heating fruit jam making machine

FOB Reference Price:Get Latest Price
US $2,000-8,000 / Sets | 1 Set/Sets Double Agitators Jacket Heating fruit jam making machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
BLS
Type:
Cooking Equipment
Material:
Stainless Steel 304/316L
Voltage:
110-480V, 50/60Hz
Application:
fruit jam making machine
Usage:
fruit jam making tank machine
Capacity:
50-1000L
agitator:
paddle scraper mixer
Motor:
two sets horizontal motors
Jacket:
cooling and heating jacket avaible
Function:
Double Agitators Jacket Heating fruit jam making machine
Name:
Double Agitators Jacket Heating fruit jam making machine
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
200 Set/Sets per Month jam cooking kettle
Packaging & Delivery
Packaging Details
plywood case package
Double Agitators Jacket Heating fruit jam making machine
Port
shanghai/ningbo
Lead Time :
with 35 days
Product Description

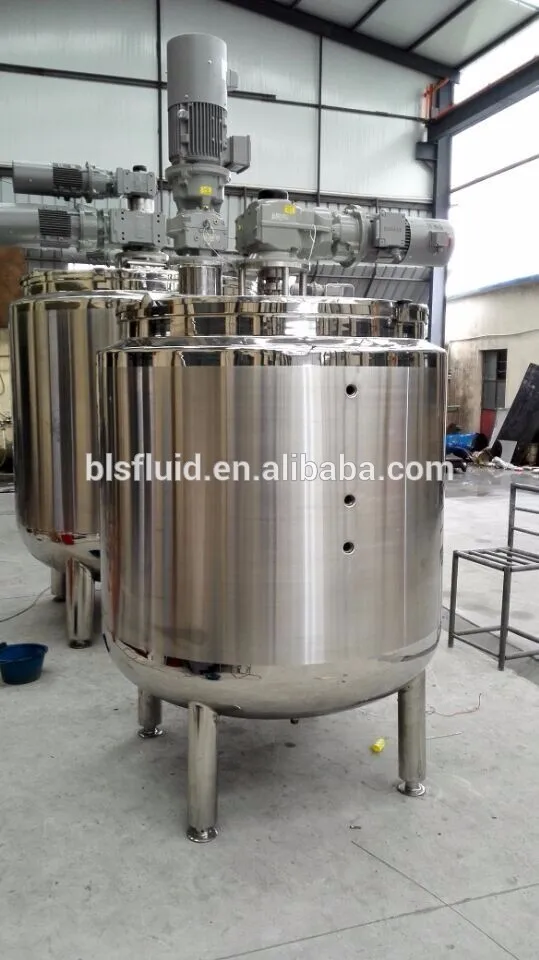

Double Agitators Jacket Heating fruit jam making machine

* Description:

    Designed according to ISO9001/GMP standard, widely used for mixing liquid medium in the food-processing, cosmetics and pharmaceutical industries

* Heating method: By electricity (oils or water), by steam, by gas

* Material: SS304/SS316L
1. jacket: dimple jacket/ miller board, hollow jacket or coil pipe jacket etc.
2. insulation layer: PU Foam
3. as to the thickness, we can make it according to your requirement.

* Optional Configuration :

 1.manhole
2.CIP spraying ball
3.adjusting feet
4.sample valve
5.temperature gauge
6.pressure gauge
7.level gauge


* Capacity: 50L-10000L

* Agitator: With agitator or not
1. Agitator type: Frame, paddle, scraper, homogenizer, turbo type etc.
2. Agitator Speed: 20-36rpm, 50-300rpm, 760-1450rpm, 2800-3000rpm
3. Agitator power: 0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW


* Mechanical seal: SIC/SiC/EPDM(Standard)

* Sealing option: Sanitary single mechanical seal/Double mechanical seal with cooling system

* Voltage: 110-480V, 50/60Hz

* Surface treatment: Inner polished and outside polished (Inside Ra<0.6 micron,surface mirror polish Ra<0.9 micron)

Volume (L)
Dimension D*h (mm*mm)
Height (mm)
In/Outlet diameter (mm)
Heat preservation layer
1000
1060*1220
2550
51
60
1500
1160*1500
2850
51
60
2000
1340*1500
2900
51
60
3000
1410*2000
3400
51
60
4000
1620*2000
3450
51
60
5000
1810*2000
3500
51
60
6000
1930*2000
3550
51
60
7000
1930*2440
4000
51
60
8000
2060*2440
4000
51
60
9000
2180*2440
4050
51
60
10000
2300*2440
4050
51
60
12000
2270*3000
4600
51
60
15000
2530*3000
4700
51
60
Detailed Images



Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.

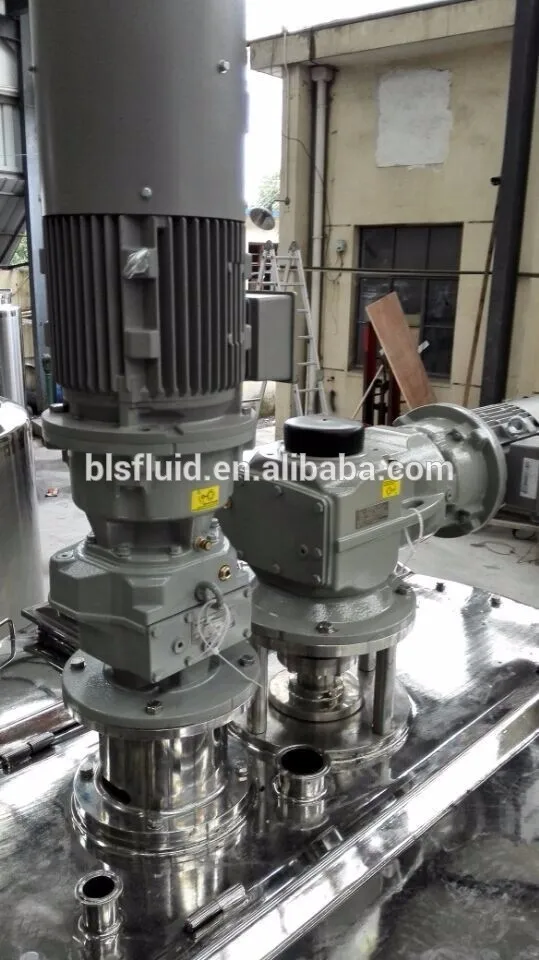

Motor device


1. Pure copper motor: low noise, stable dynamic, sustainable work.

2. Dust proof engine base: inside stainless steel bearing, with dust cover to avoid dust and grease dirt into tank.




Handle

    Creative handle, quick to open, convenient for production

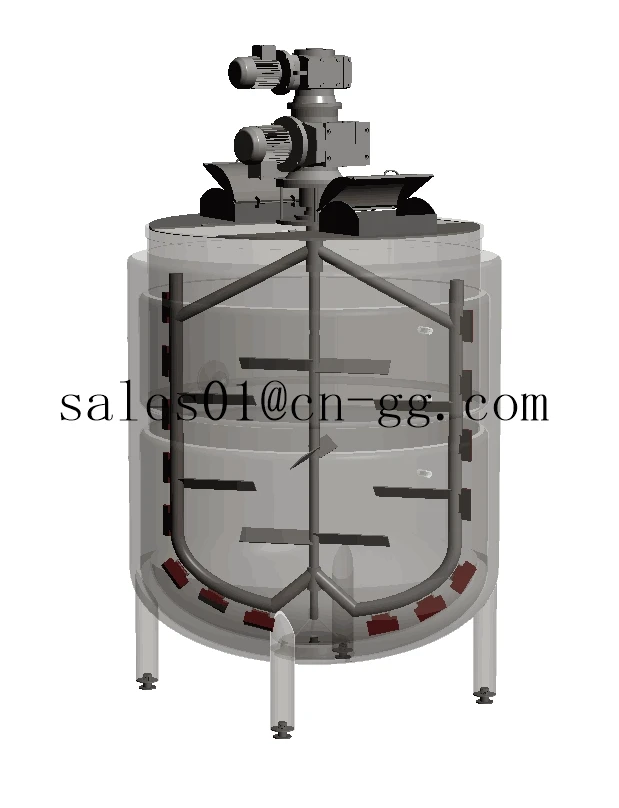

Stirring device

    adopt Import Teflon material scraper blade, easy to clean and disassemble, few dead angle, prevent viscous material from adhering on the wall.


Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
