Agitator Steel storage tank with a holding capacity of 600 kg

FOB Reference Price:Get Latest Price
$2,000.00 - $8,000.00 / Sets | 1 Set/Sets Agitator Steel storage tank with a holding capacity of 600 kg (Min. Order)
Model Number:
bls
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity:
100-20000L
Place of Origin:
Zhejiang, China
Brand Name:
bls
Dimension(L*W*H):
Variety
Weight:
Specification
Certification:
ISO9001
Warranty:
12 Months
Function:
Agitator Steel storage tank with a holding capacity of 600 kg
Material:
Stainless Steel 304/316
Pressure:
normal pressure
Cover:
shell cover or flat cover
Jacket:
miller board, hollow jacket or coil pipe jacket
Agitator:
paddle, frame, scraper,homogenizer etc
Name:
Agitator Steel storage tank with a holding capacity of 600 kg
Type:
stainless steel mixing storage tanks
Heating method:
no heating or electric or steam heating
Usage:
Agitator Steel storage tank
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
200 Set/Sets per Month Agitator Steel storage tank with a holding capacity of 600 kg
Packaging & Delivery
Packaging Details
plywood case
Agitator Steel storage tank with a holding capacity of 600 kg
Port
shanghai/ningbo
Lead Time :
Shipped in 25 days after payment
Product Description

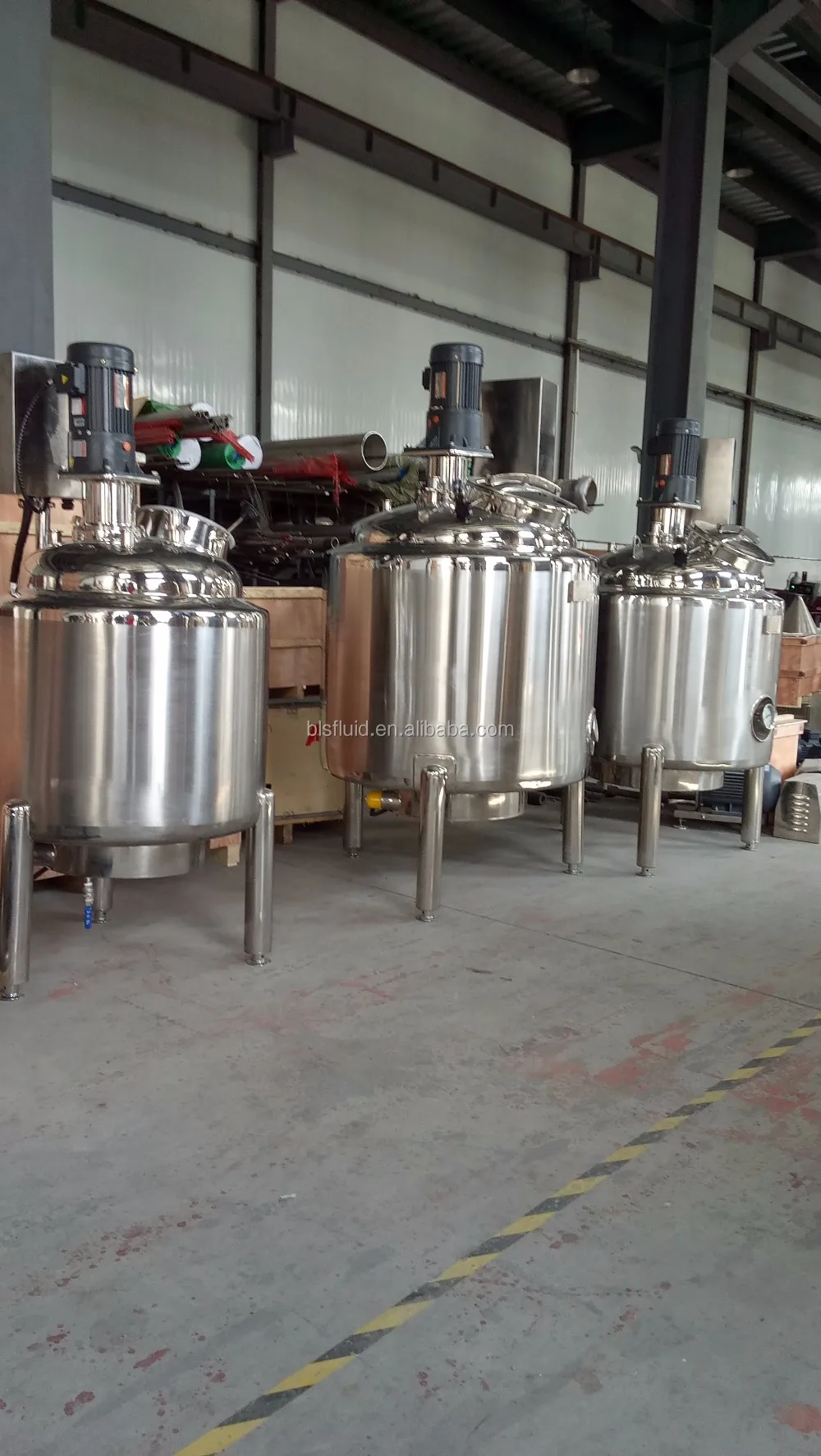

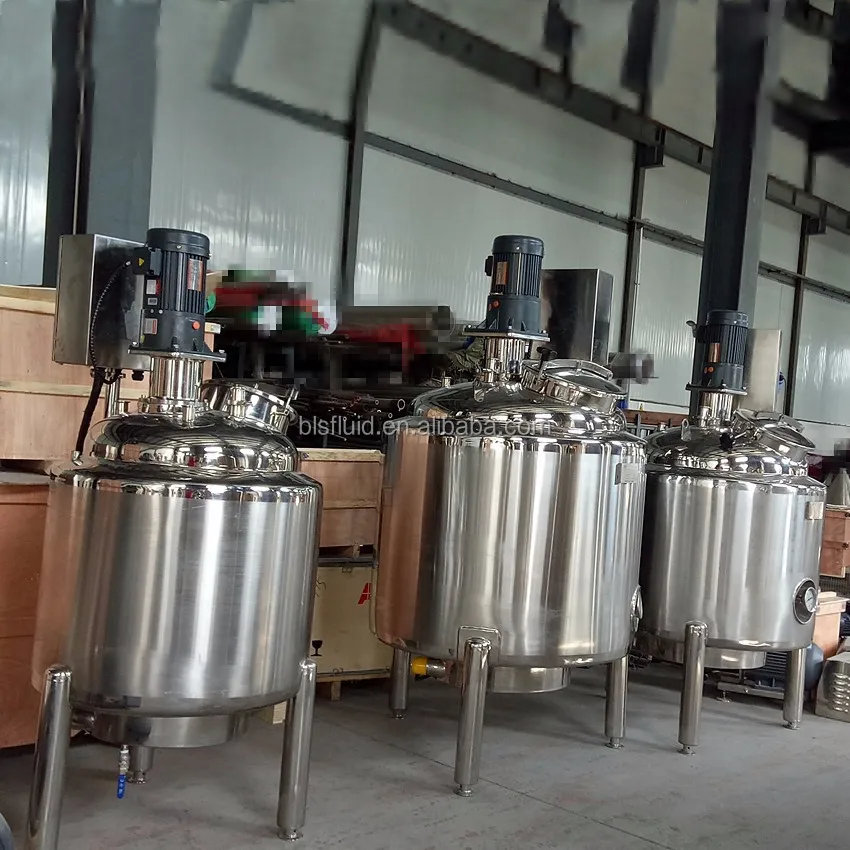

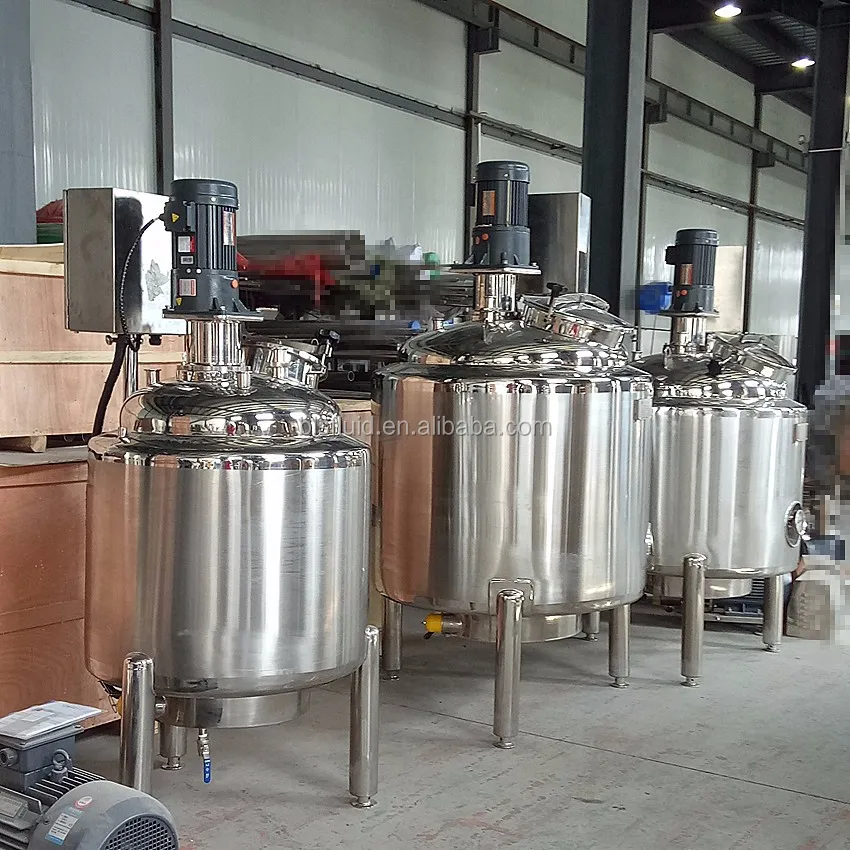

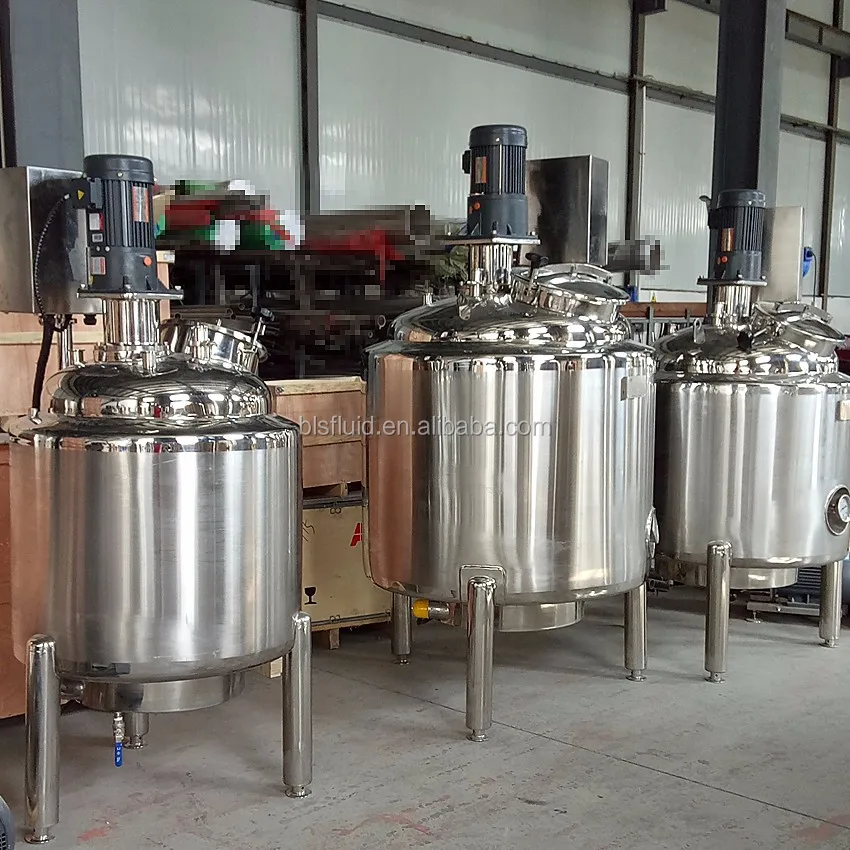

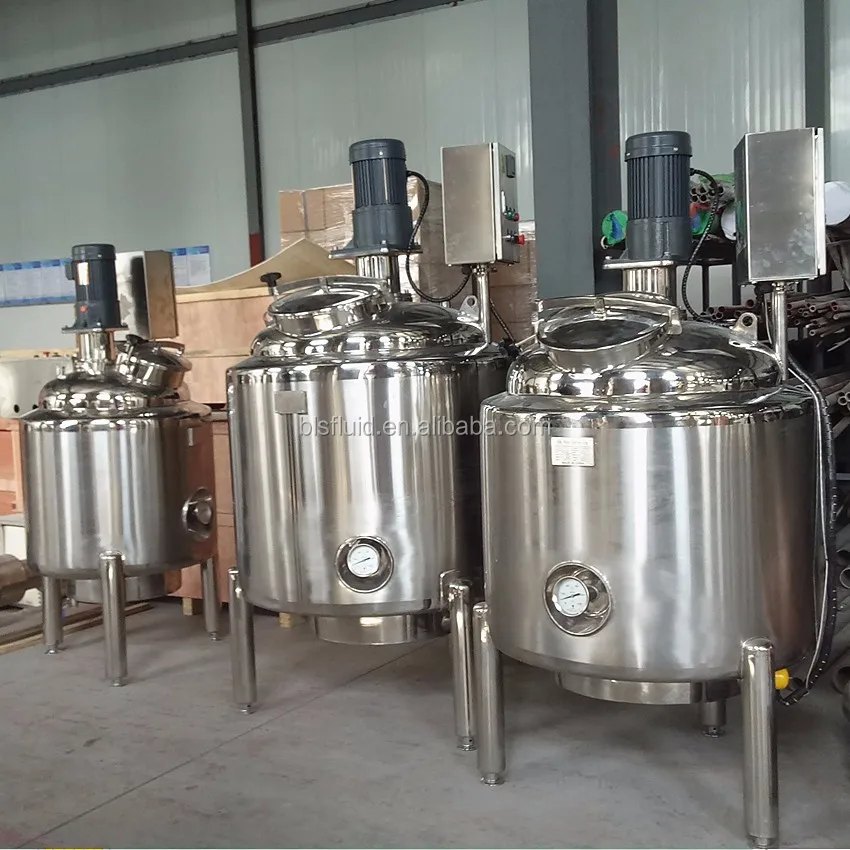

Agitator Steel storage tank with a holding capacity of 600 kg


Brand: L&B

Material : stainless steel 304(L) 316(L)

Finish:Mirror or Matt Polish; Ra<0.8um

Certification: CE  ISO9001:2008
Product Name:
Agitator Steel storage tank with a holding capacity of 600 kg
Description:
Designed according to ISO9001/GMP standard, widely used for mixing liquid medium in the food-processing, cosmetics and pharmaceutical industries
Heating method
By electricity (oils or water), by steam, by gas
Material:
SS304/SS316L
jacket: dimple jacket/ miller board, hollow jacket or coil pipe jacket etc.
insulation layer: PU Foam
as to the thickness, we can make it according to your requirement.
Optional Configuration
1.manhole
2.CIP spraying ball
3.adjusting feet
4.sample valve
5.temperature gauge
6.pressure gauge
7.level gauge
Capacity:
50L-10000L
Agitator:
With agitator or not
Agitator type
Frame, paddle, scraper, homogenizer, turbo type etc.
Agitator Speed
20-36rpm, 50-300rpm, 760-1450rpm, 2800-3000rpm
Mechanical seal:
SIC/SiC/EPDM(Standard)
Agitator power:
0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW
Sealing option:
Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:
110-480V, 50/60Hz
Motor:
ABB, LOCAL,50hz/ 60hz
Surface treatment:
Inner polished and outside polished
Available connection:
Clamp, Thread Butt weld, Flange
Available standard:
DIN, SMS, 3A, RJT, ISO/IDF
Effective volume
Dimension of tank
Total height
Diameter of inlet&outlet
Heat preservation layer
(L)
(mm)
(mm)
(mm)
(mm)
500
840*1000
2250
38
60
600
920*1000
2300
38
60
700
990*1000
2300
38
60
800
950*1220
2500
38
60
900
1010*1220
2500
38
60
1000
1060*1500
2850
51
60
1500
1160*1500
2850
51
60
2000
1340*1500
2900
51
60
3000
1410*2000
3400
51
60
4000
1620*2000
3450
51
60
5000
1810*2000
3500
51
60
6000
1980*2000
3550
51
60
7000
1930*2440
4000
51
60
8000
2060*2440
4000
51
60
9000
2180*2440
4050
51
60
10000
2300*2440
4050
51
60
12000
2270*3000
4600
51
60
15000
2530*3000
4700
51
60
20000
2640*3660
5400
51
60
Packing & Delivery
Certifications
Our Company

Zhejiang L＆B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

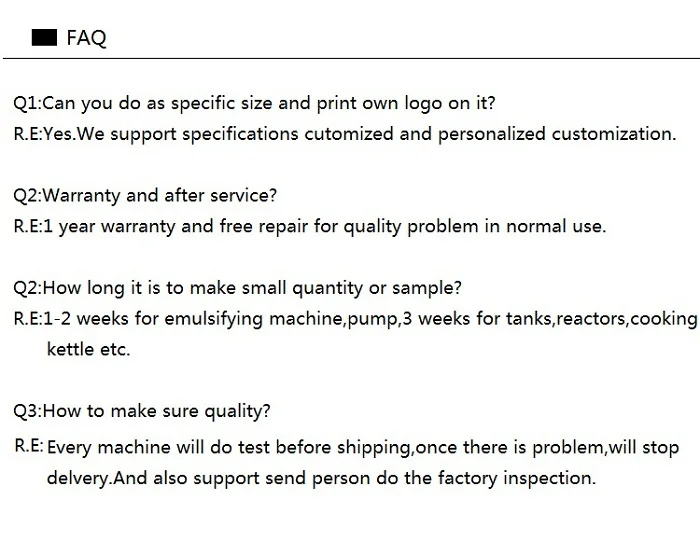

FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
