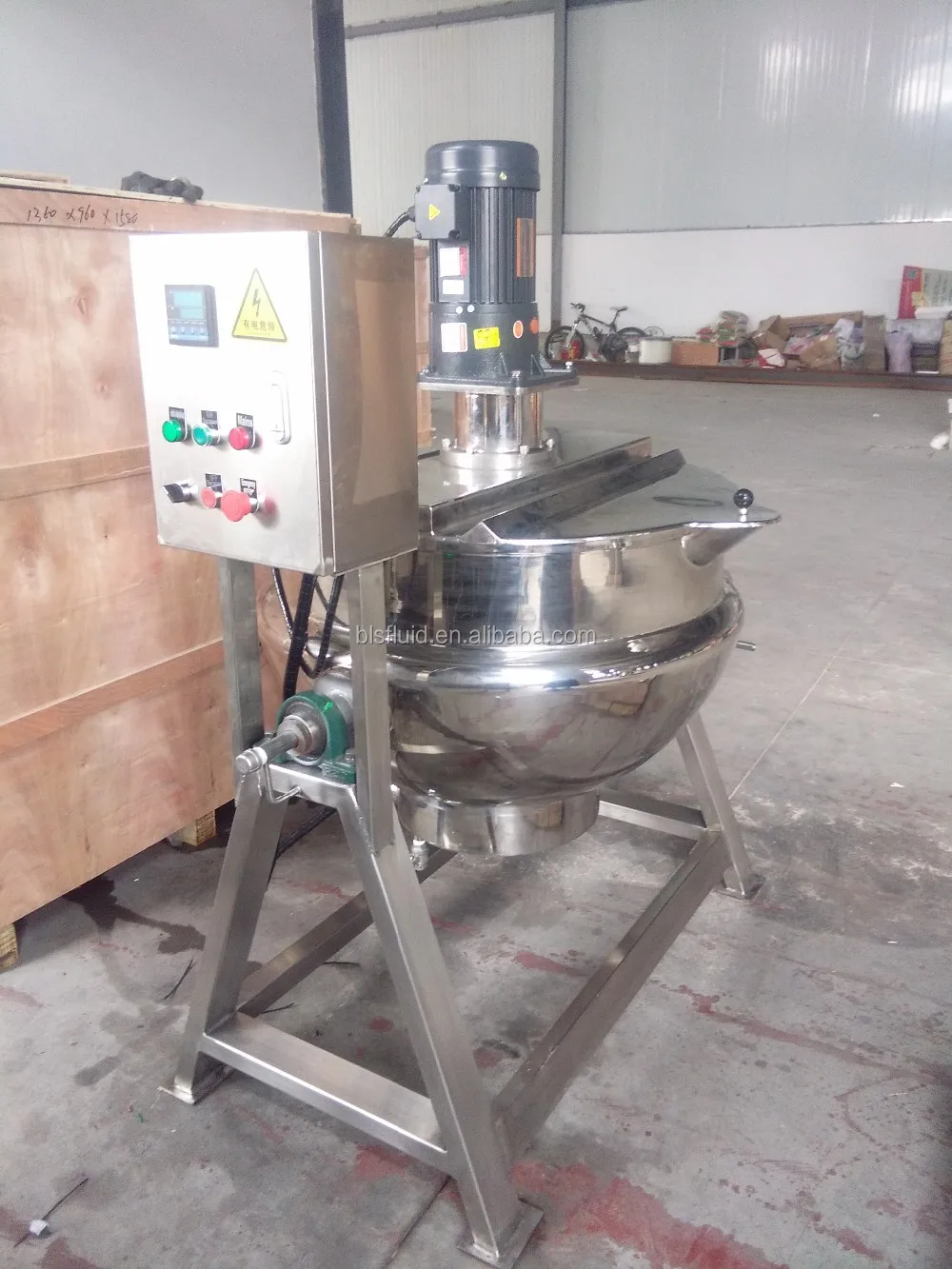

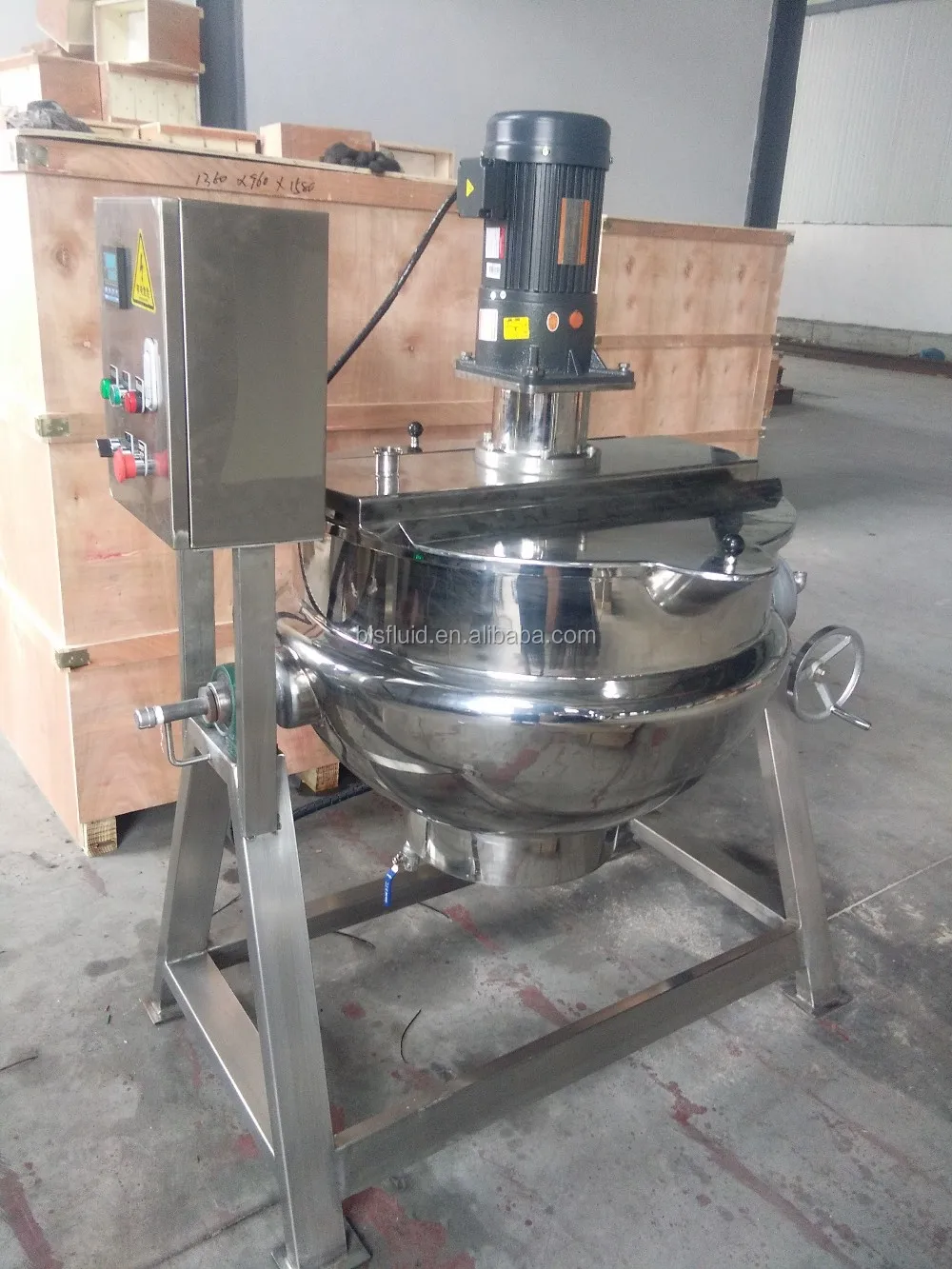

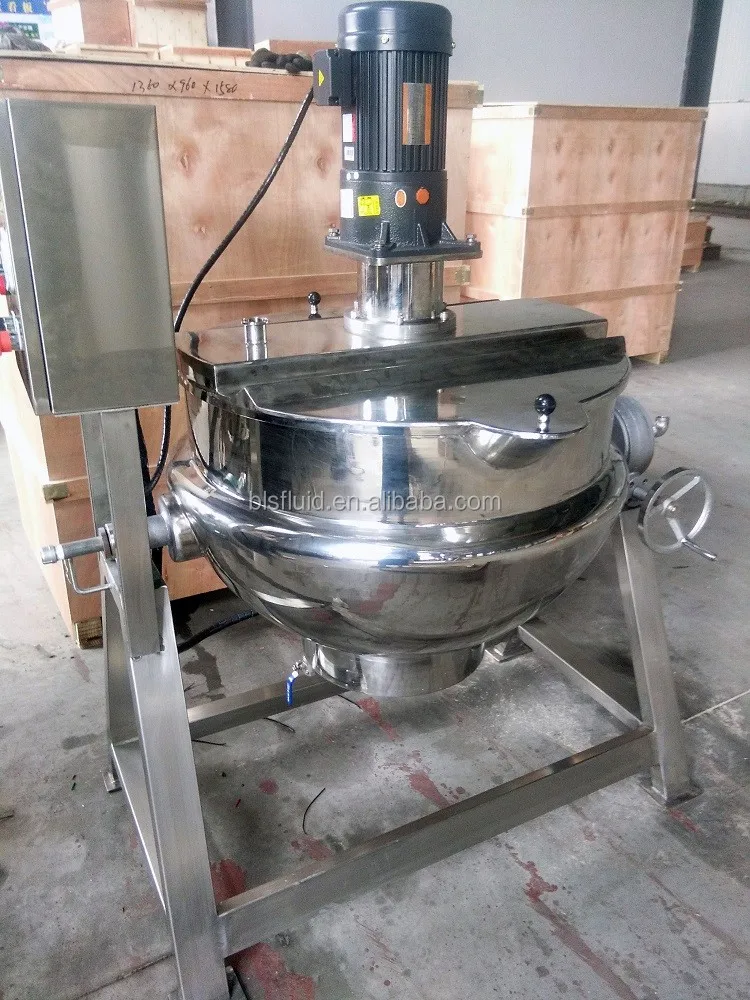

Tilting electric boiling pan for hard sweet melting

FOB Reference Price:Get Latest Price
US $2,200-4,600 / Sets | 1 Set/Sets Tilting electric boiling pan for hard sweet melting (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
JCG
Type:
Cooking Equipment
After-sales Service Provided:
Overseas service center available
Name:
Tilting electric boiling pan for hard sweet melting
Capacity:
50L-1000L
Material:
Stainless steel 304/316
Agitator:
scraper mixer
Speed:
25rpm
Usage:
Tilting hard sweet melting pot
Voltage:
110-480V
Function:
Tilting electric hard sweet melting boiler
Heating method:
electric, steam, gas heater avaible
Application:
Tilting electric boiling pan for hard sweet melting
SupplyAbility
SupplyAbility:
1000 Set/Sets per Quarter Tilting electric boiling pan for hard sweet melting
Packaging & Delivery
Packaging Details
plywood case
Tilting electric boiling pan for hard sweet melting
Port
Ningpo Port/Shanghai Port
Lead Time :
25 days for cooking kettle
Product Description
Product Name:
Tilting electric boiling pan for hard sweet melting
Description:
Designed according to GMP standard, widely used for cooking feeding material in the food-processing, cosmetics and pharmaceutical industries
Construction:
Kettle, bracket, worm wheel and worm etc.
Heating method
By electricity (oils or water), by steam, by gas
Material:
SS304/SS316L
Capacity:
50L-1000L
Agitator Type:
With PTFE scraper
Mechanical seal:
SIC/SiC/EPDM(Standard)
Motor power:
0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW
Sealing option:
Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:
110-480V
Motor:
Siemens, ABB, LOCAL, 50hz/ 60hz
Surface treatment:
Inner polished and outside polished
Available connection:
Clamp, Thread Butt weld, Flange
Available standard:
DIN, SMS, 3A, RJT, ISO/IDF
Operated:
Electric
Application scope:
Dairy, food, beverage, pharmacy, cosmetic, etc

Tilting electric boiling pan for hard sweet melting

Main Parts:

    SUS304 electric controller, Taiwan GPG motor and Schneider component,full stainless steel bracket

Model
Volume Diameter×Height
Form
Pressure(mpa)
Agitator Speed
(rpm)
slope angel
Inlet&Outlet
Motor Power/
Heating Power
JCG-50
50

60×45
Tilting

Stirring
0.3
36
90°
1/2”
0.75kw/8kw
JCG-100
100

70×50
Tilting Stirring Fixed
0.3
36
90°
90°
1.5kw/15kw
JCG-200
200

80×55
Tilting Stirring Fixed
0.3
36
90°
3/4”
1.5kw/15kw
JCG-300
300

90×65
Tilting Stirring Fixed
0.3
36
90°
3/4”
1.5kw/15kw
JCG-400
400

100×75
Tilting Stirring Fixed
0.3
36
90°
3/4”
1.5kw/18kw
JCG-500
500

110×85
Tilting Stirring Fixed
0.3
23
90°
1”
2.2kw/18kw
JCG-600
600

120×95
Tilting Stirring Fixed
0.3
23
90°
1”
2.2kw/24kw
JCG-1000
1000

1400×115
Tilting Stirring Fixed
0.3
23
90°
1”
3.7kw/30kw
Detailed Images

Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.

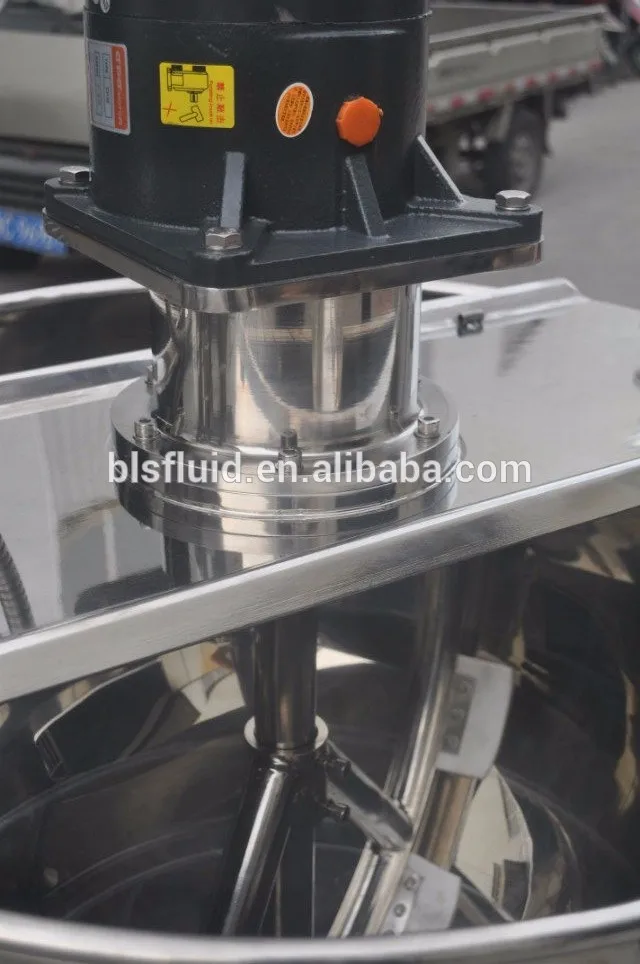

Motor device

1. Pure copper motor: low noise, stable dynamic, sustainable work.

2. Taiwan GPG motor and reducer

3. Dismountable engine base

4. Stainless steel bearing

5. Heat resisting seal ring(To prevent the steam into the bearing and speed reducer)

6. No positioning at the bottom of the shaft (Reduce the residual)

Tilting type Discharge hole

    adopt Half round design, easy to discharging and no dead angle.

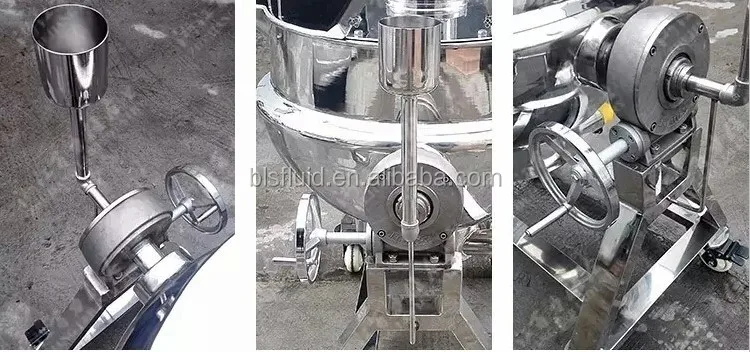

Swiveling mechanism

    standard configuration, worm wheel and worm are cast iron; SS304 can be Optional. Bracket adopt stainless steel.

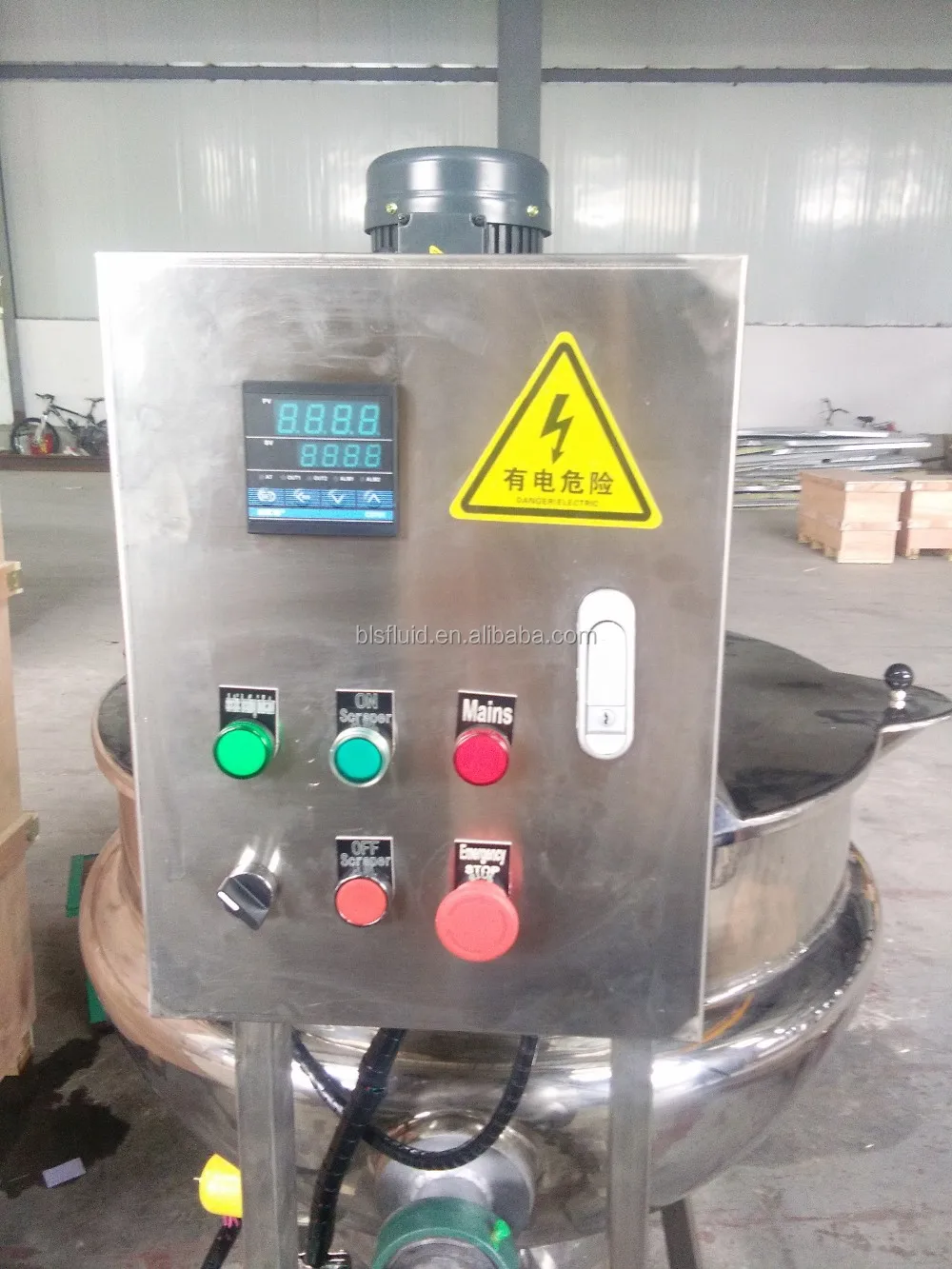

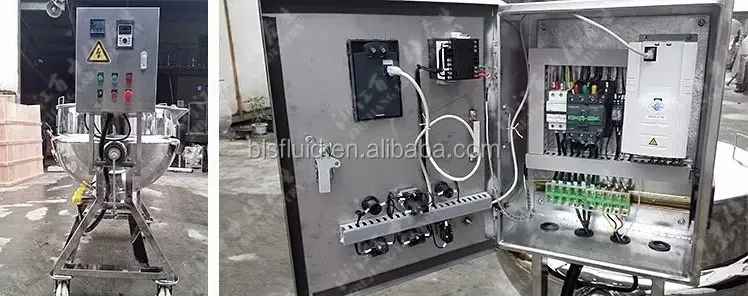

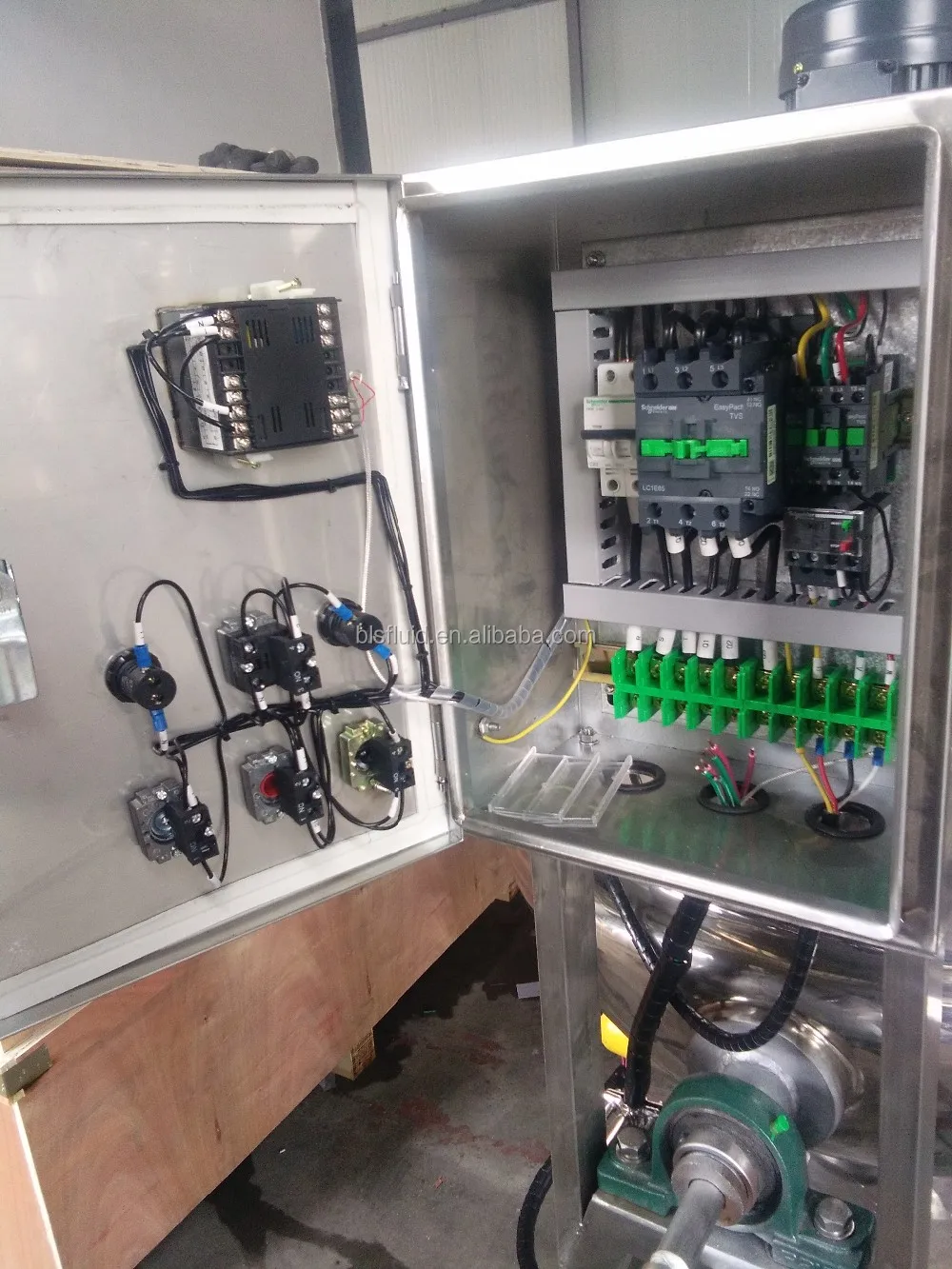

SUS electric control box

1. intelligent temperature controller, SUS304 box

2. split type PT100 thermal resistance

3. Germany Schneider Electric Components

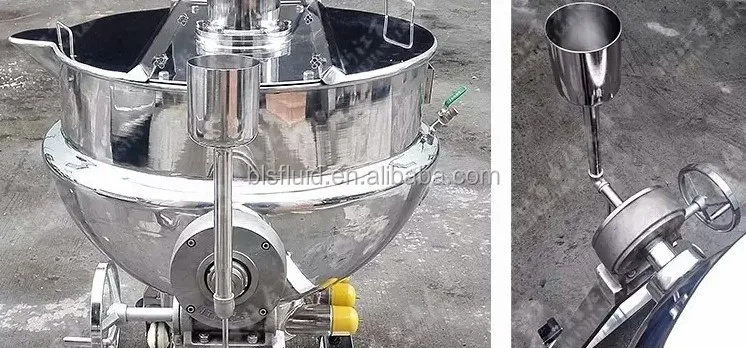

Full Stainless steel small oil cup

    be provided for filling Conduction oil, tilting with kettle body; adopt 102 pipe diameter, easy use and difficult outflow.

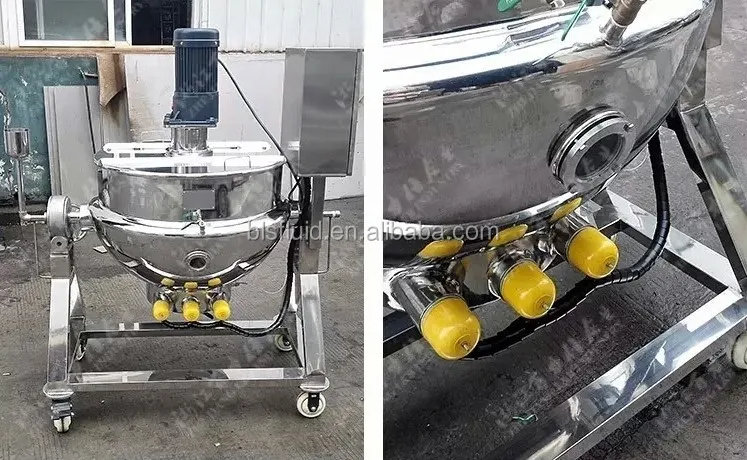

Electrical heated tube(electric heating rods):

1. adopt threaded connection form, convenient assembly.

2. pad adopt Import Teflon material, Resistant to 300 degrees temperature, difficult to leak.
