Quick Details

  • Condition: New
  • Mixer Type: Homogenizer
  • Product Type: High Speed Emulsifier Table Blender for baby food blender
  • Application: Liquid
  • Additional Capabilities: emulsifier blender
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: BLS
  • Model Number: BRL1
  • Max. Loading Capacity: 140m3/h
  • Voltage: 110-480V, 50/60Hz
  • Power(W): 4-185kw
  • Dimension(L*W*H): Custom Made
  • Certification: ISO9001
  • Warranty: 12 Months
  • After-sales Service Provided: Overseas service center available
  • Material: Stainless Steel 304 / SUS316L
  • MOQ: one set
  • Function: High Speed Emulsifier Table Blender for baby food blender
  • Usage: High Speed Emulsifier Table Blender for baby food blender
  • Machine Type: High Speed Emulsifier Table Blender
  • flow: 0-140m3/h
  • speed: 2800rpm
  • Type: High Speed Emulsifier Table Blender for baby food
  • Name: High Speed Emulsifier Table Blender for baby food blender with tank
  • Teeth space: 2.2kw 4mm; > 2.2kw 6mm

Packaging & Delivery

Packaging Details plywood case package
High Speed Emulsifier Table Blender for baby food blender with storage tank
Delivery Time Shipped in 15 days after payment
Product Description

High Speed Emulsifier Table Blender for baby food blender with storage tank

Brand: L&B
Material :304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO9001:2008
Product Name:
High Speed Emulsifier Table Blender for baby food blender with storage tank
Description:
Designed according to GMP standard, widely used for transfer viscous media in the food-processing, cosmetics and pharmaceutical industries
Construction:
Horizontal Single stage rotor and Stator series(CNC treatment)
Material:
SS304/SS316L
Flow range:
0-130T/H
Outlet Pressure:
≤0.2 MPa.
Speed:
2800-2900 rpm  (Frequency Converter Control can be choose)
Rotor Type:
teeth
Teeth space:
2.2kw 4mm; > 2.2kw 6mm
Rotor and stator space:
Standard 0.5mm(optional 0.25mm-0.5mm)
Motor power:
1.5kw, 2.2kw, 4kw, …75KW
Sealing option:
Sanitary single mechanical seal/Dual End Mechanical Seal
Seal material:
FKM
Max feeding medium viscosity:
< 3000CPs
Voltage:
110-480V, 50hz/ 60hz
Bearing:
Japanese NSK
Motor:
Siemens, ABB, LOCAL etc.
Surface treatment:
Inner polished and Sandblast outside
Available connection:
Clamp, Union, Flange etc.
Available standard:
DIN, SMS, 3A, RJT, ISO/IDF
Operated:
Electric
Application scope:
Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:
Plywood case Or as per the request of customers

Product Introduction

    Bailishi High-Speed Shearing emulsification pump is a new product researched and developed by our company after assimilating foreign advanced techniques and processes.

    Its various indicators can reach the domestic advanced level and quality can meet GMP technical requirements for IS09001 certified products.

    It is especially suitable to emulsification homogeneous machine of essential mixed liquor for re-provision, drinking, chemical engineering, biochemistry, pigment, dye, coating and pharmacy, etc.

Advantages

overall simple structure, little volume, light weight, easy operation, low noise and stable operation, etc.

    The biggest characteristic is omni-bearing function of high-speed shearing, dispersion, homogenized milk, homogeneity, mixing, crushing and conveying without adopting grinding media in the production process.


1.Large volume treatment, suitable for industrialized online continuous production;
2.The distribution range is narrow with high homogenization;
3.Energy saving, time saving, high efficiency;
4.Low noise, steady operation;
5.Eliminates the difference between different lots;
6.No blind angle, the material will be separated and cut 100;
7.With shod distance, low ift transmission function;
8.Easy to operate and maintain;
9.Automatic control can be realized.

Model
Power kw
Speed rpm
Flow m3/h
BRL1-60
1.5
2800
0-0.15
BRL1-100
2.2
2800
0-3
BRL1-130
4
2800
0-4
BRL1-140
5.5
2800
0-5
BRL1-165
7.5
2800
0-8
BRL1-180
11
2800
0-12
BRL1-185
15
2800
0-18
BRL1-200
22
2800
0-25
BRL1-210
30
2800
0-35
BRL1-230
45
2800
0-50
BRL1-245
55
2800
0-75
BRL1-260
75
2800
0-90
BRL1-275
90
2800
0-110
BRL1-280
132
2800
0-130

Application

1. Food industry:

Chilli sauce, sesame, fruit tea, ice cream, cream, jam, fruit juice, soybean, soybean paste, sweetened bean paste, peanut milk, SoyaMax, soymilk, dairy product, malted milk, essence, condiment and various eatables, etc;

2. Chemical industry:

Paint, pigment, dye, coating, lubrication oil, Octyldodecyl Neopentanoate, lubrication grease, diesel oil, petrochemical catalyst, emulsified asphalt, modified asphalt, paraffin, cementing agent, detergent, plastics, dynamite, glass fiber reinforced plastics, synthetic leather, resin, plastics, leather and emulsion explosive, etc;

3. Commodity chemicals:

Toothpaste, detergent, cream, lipstick, mildy wash, shampoo, shoe polish, senior cosmetics, shower gel, soap, coagulant, spice and balsam, etc;

4. Pharmaceutics: Various syrups, nutrient solutions, Chinese patent drugs, poultices, biological agents, cod-liver oil, pollens, royal jelly, vaccines, ointments, oral liquids, bactericides, injection, antibiotics,microcapsules and dropping liquid infusion, etc;

5. Building industry:

Various coatings including inner and outer wall coating, anti-corrosive and waterproof coating, ceramic coating, multicolor finish, ceramic glaze, nano-coating and spraying, etc;

6. Paper manufacturing industry:

Paper pulp, cementing agent, rosin emulsifying agent, paper making additive and resin emulsion product, etc;

7. Pesticide industry:

Bactericide, seed coating formulations, herbicide, emulsifiable concentrates of pesticides, chemical fertilizer, biochemistry pesticide and biopesticide, etc;

8. Other industries:

Textile industry, null coal floating agent, rare earth, dispersion and depolymerization of nano materials, abstraction reaction and water industry, etc;

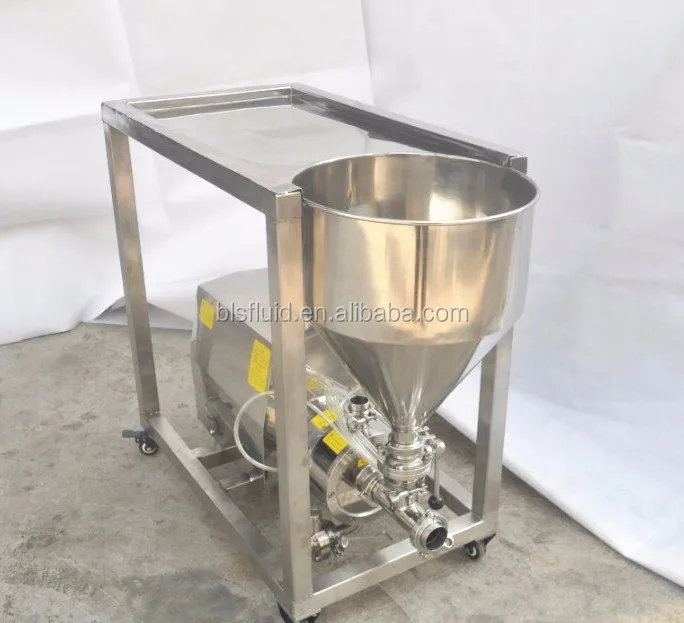

Detailed Images


Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.

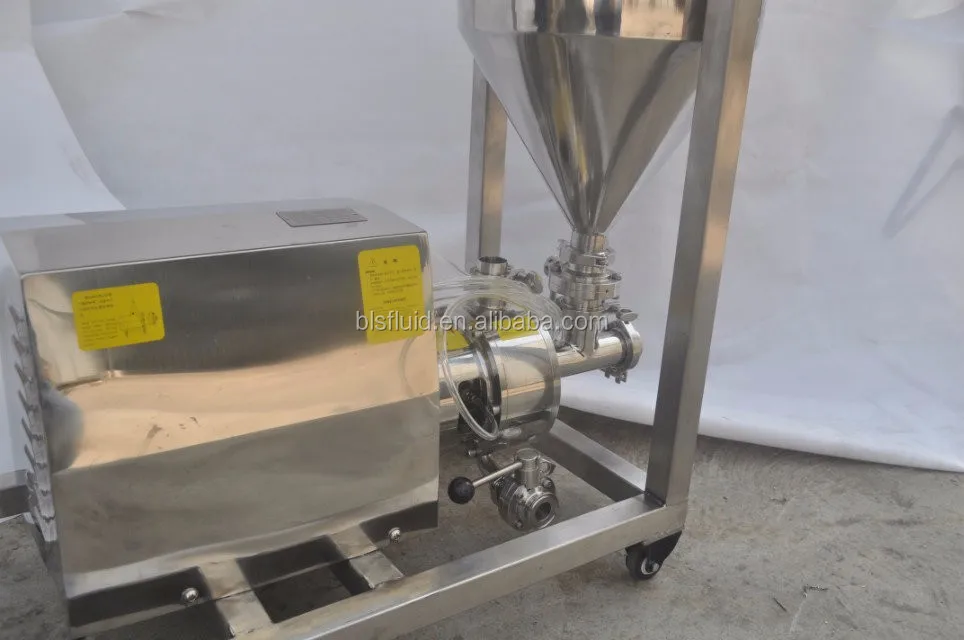

Pure copper motor:

1)low noise, stable dynamic, sustainable work.
2)with waterproof motor cover

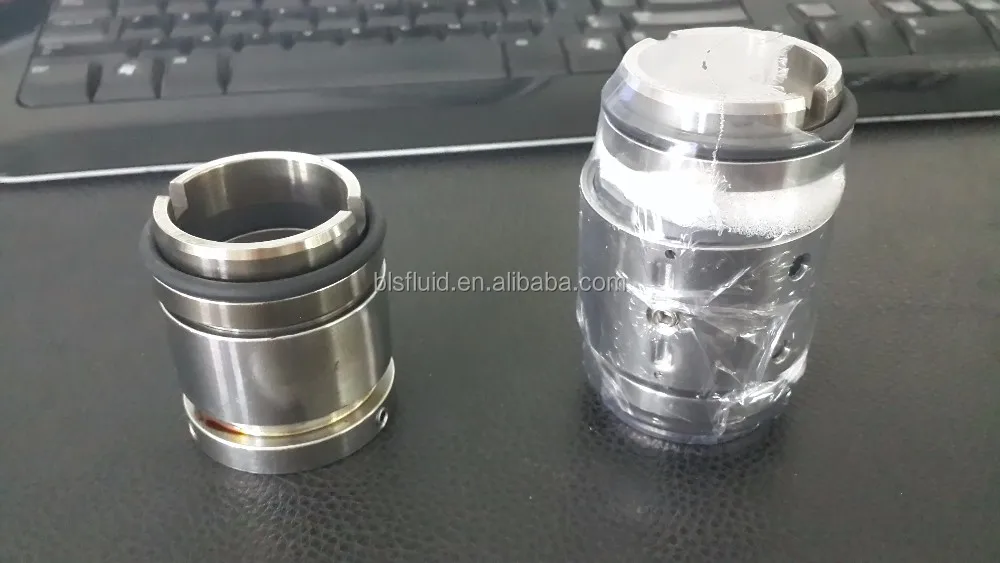

Sealing option:


Sanitary single mechanical seal/Dual End Mechanical Seal

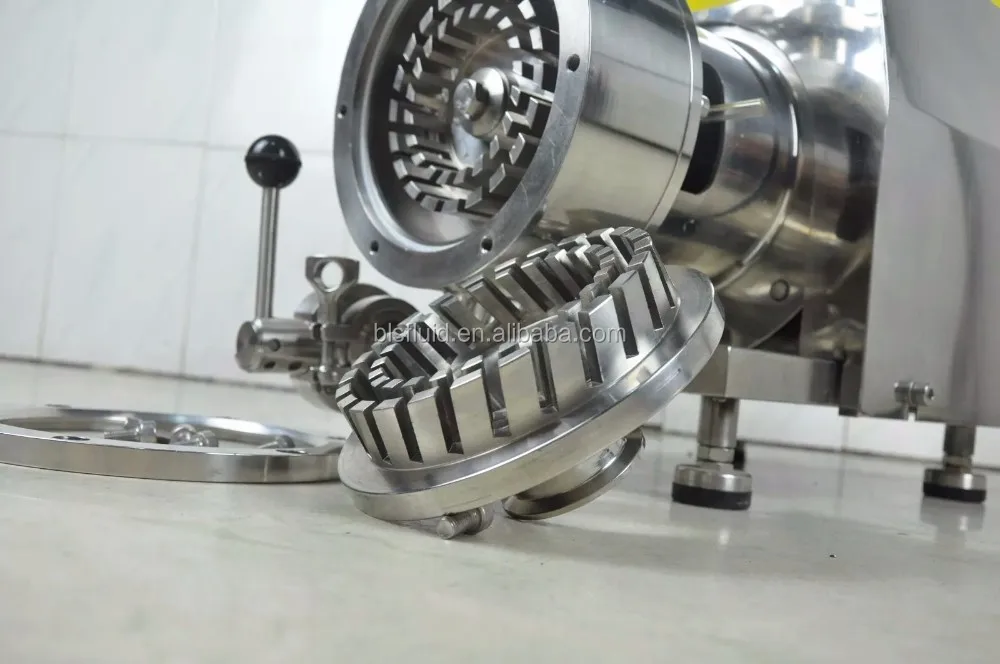

Rotor and stator space: Standard 0.5mm(optional 0.25mm-0.5mm)

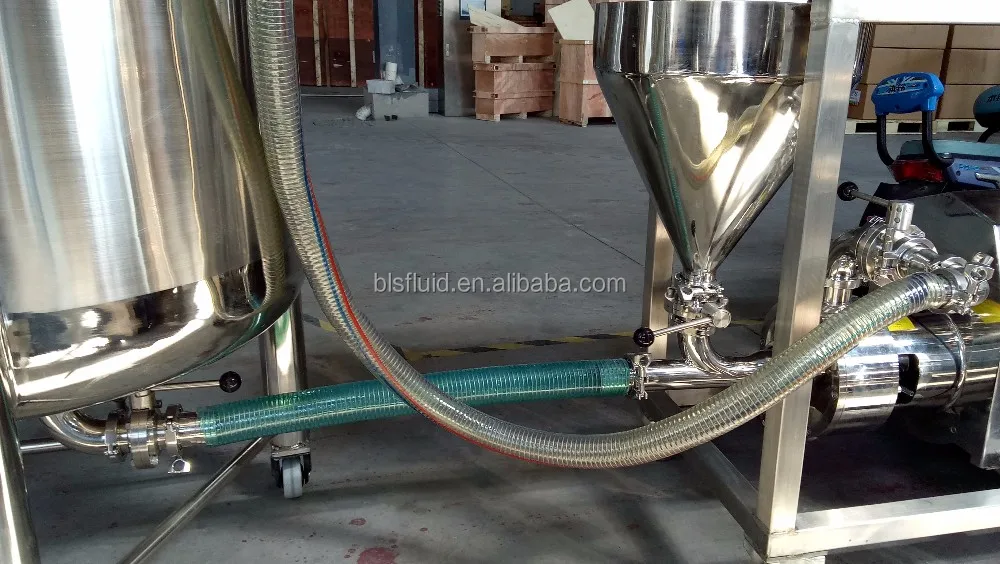

Available inlet and outlet port connection: Clamp, Union, Flange etc.

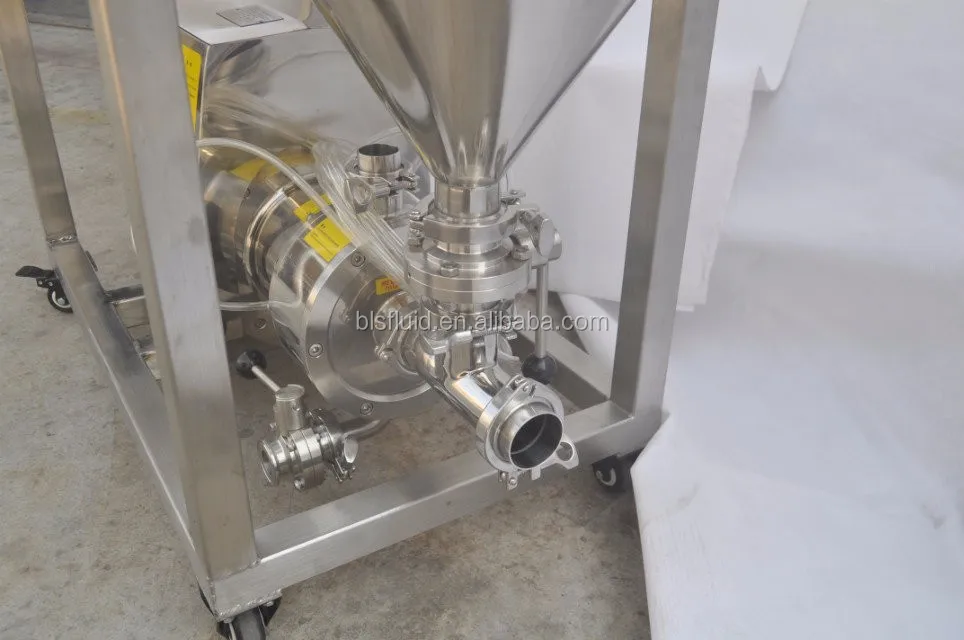

Tri clamp drain outlet with butterfly valve

Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
