Quick Details

  • Condition: New
  • Mixer Type: Homogenizer
  • Product Type: Cosmetic
  • Application: Liquid, Steel Inline Homogenizer type Industrial Cream Mixer
  • Additional Capabilities: inline mixer homogenizer
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: BLS
  • Model Number: BRL1
  • Max. Loading Capacity: 130m3/h
  • Voltage: 110V~480V, 110-480V
  • Power(W): 1.5KW~45KW
  • Dimension(L*W*H): Referring
  • Certification: ISO9001
  • Warranty: 12 Months
  • After-sales Service Provided: Overseas service center available
  • Motor: 1.5-132kw
  • Machine Type: inline homogenizer
  • Material: 304/316 Stainless Steel
  • Speed: 2800rpm
  • Type: Steel Inline Homogenizer type Industrial Cream Mixer
  • Usage: Steel Inline Homogenizer type Industrial Cream Mixer
  • Function: Steel Inline Homogenizer type Industrial Cream Mixer
  • Product name: Steel Inline Homogenizer type Industrial Cream Mixer

Packaging & Delivery

Packaging Details plywood case
Steel Inline Homogenizer type Industrial Cream Mixer
Delivery Time 15 DAYS
Product Description

Steel Inline Homogenizer type Industrial Cream Mixer

Brand: L&B
Material :304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO9001:2008

Product Name:
Steel Inline Homogenizer type Industrial Cream Mixer
Description:
Designed according to GMP standard, widely used for transfer viscous media in the food-processing, cosmetics and pharmaceutical industries
Construction:
Horizontal Single stage rotor and Stator series(CNC treatment)
Material:
SS304/SS316L
Flow range:
0-130T/H
Outlet Pressure:
≤0.2 MPa.
Speed:
2800-2900 rpm  (Frequency Converter Control can be choose)
Rotor Type:
teeth
Teeth space:
2.2kw 4mm; > 2.2kw 6mm
Rotor and stator space:
Standard 0.5mm(optional 0.25mm-0.5mm)
Motor power:
1.5kw, 2.2kw, 4kw, …75KW
Sealing option:
Sanitary single mechanical seal/Dual End Mechanical Seal
Seal material:
FKM
Max feeding medium viscosity:
< 3000CPs
Voltage:
110-480V, 50hz/ 60hz
Bearing:
Japanese NSK
Motor:
Siemens, ABB, LOCAL etc.
Surface treatment:
Inner polished and Sandblast outside
Available connection:
Clamp, Union, Flange etc.
Available standard:
DIN, SMS, 3A, RJT, ISO/IDF
Operated:
Electric
Application scope:
Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:
Plywood case Or as per the request of customers
Delivery details:
Usually within 25 days after receiving T/T down payment

Product Introduction

    Inline Emulsification Machinery Pump for Cosmetic production is a new product researched and developed by our company after assimilating foreign advanced techniques and processes.

    Its various indicators can reach the domestic advanced level and quality can meet GMP technical requirements for IS09001 certified products.

    It is especially suitable to emulsification homogeneous machine of essential mixed liquor for re-provision, drinking, chemical engineering, biochemistry, pigment, dye, coating and pharmacy, etc.

Advantages:

1.Large volume treatment, suitable for industrialized online continuous production;
2.The distribution range is narrow with high homogenization;
3.Energy saving, time saving, high efficiency;
4.Low noise, steady operation;
5.Eliminates the difference between different lots;
6.No blind angle, the material will be separated and cut 100;
7.With shod distance, low ift transmission function;
8.Easy to operate and maintain;
9.Automatic control can be realized.

Model
Power kw
Speed rpm
Flow m3/h
Outlet pressure Mpa
BRL1-60
1.5
2800-2900
0-0.15
≤0.2
BRL1-100
2.2
2800-2900
0-3
BRL1-130
4
2800-2900
0-4
BRL1-140
5.5
2800-2900
0-5
BRL1-165
7.5
2800-2900
0-8
BRL1-180
11
2800-2900
0-12
BRL1-185
15
2800-2900
0-18
BRL1-200
22
2800-2900
0-25
BRL1-210
30
2800-2900
0-35
BRL1-230
45
2800-2900
0-50
BRL1-245
55
2800-2900
0-75
BRL1-260
75
2800-2900
0-90
BRL1-275
90
2800-2900
0-110
BRL1-280
132
2800-2900
0-130
Detailed Images



Quality stainless steel

    Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.




Pure copper motor:

1)low noise, stable dynamic, sustainable work.

2)with waterproof motor cover

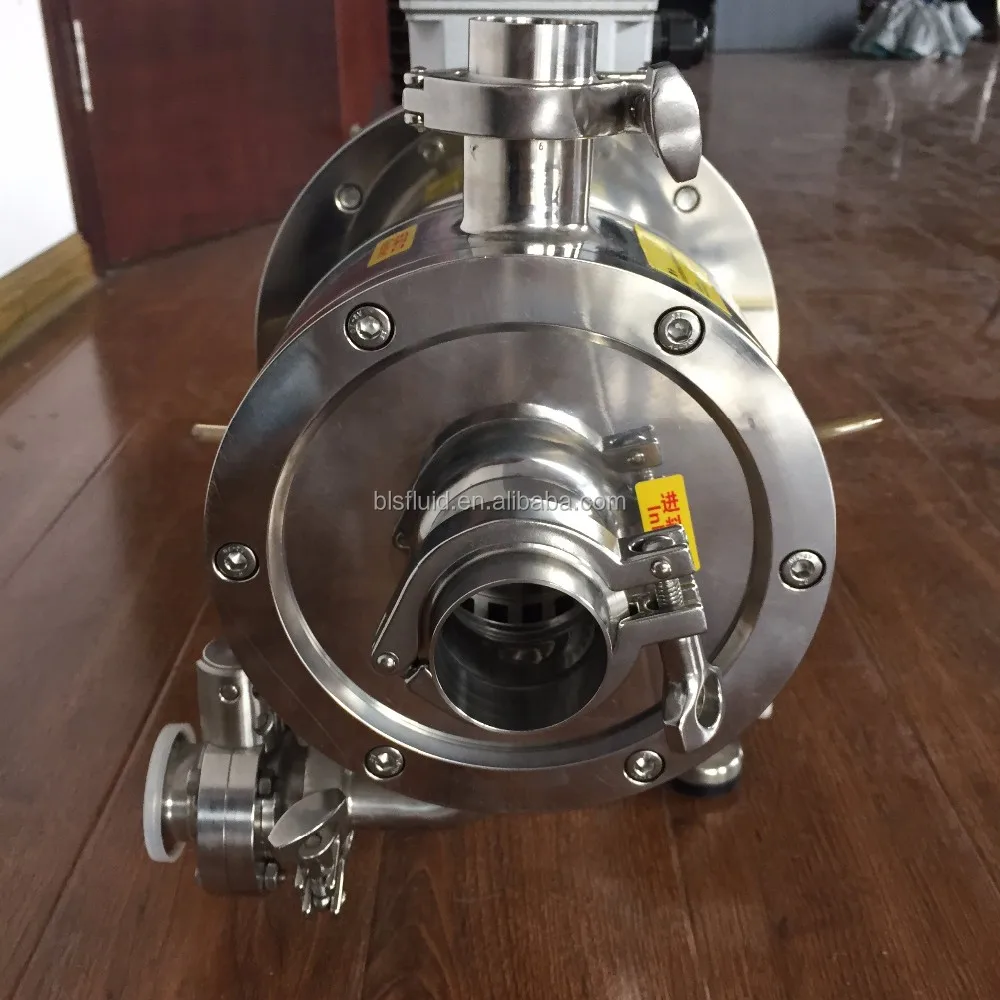

Tri clamp feeding material pump inlet port

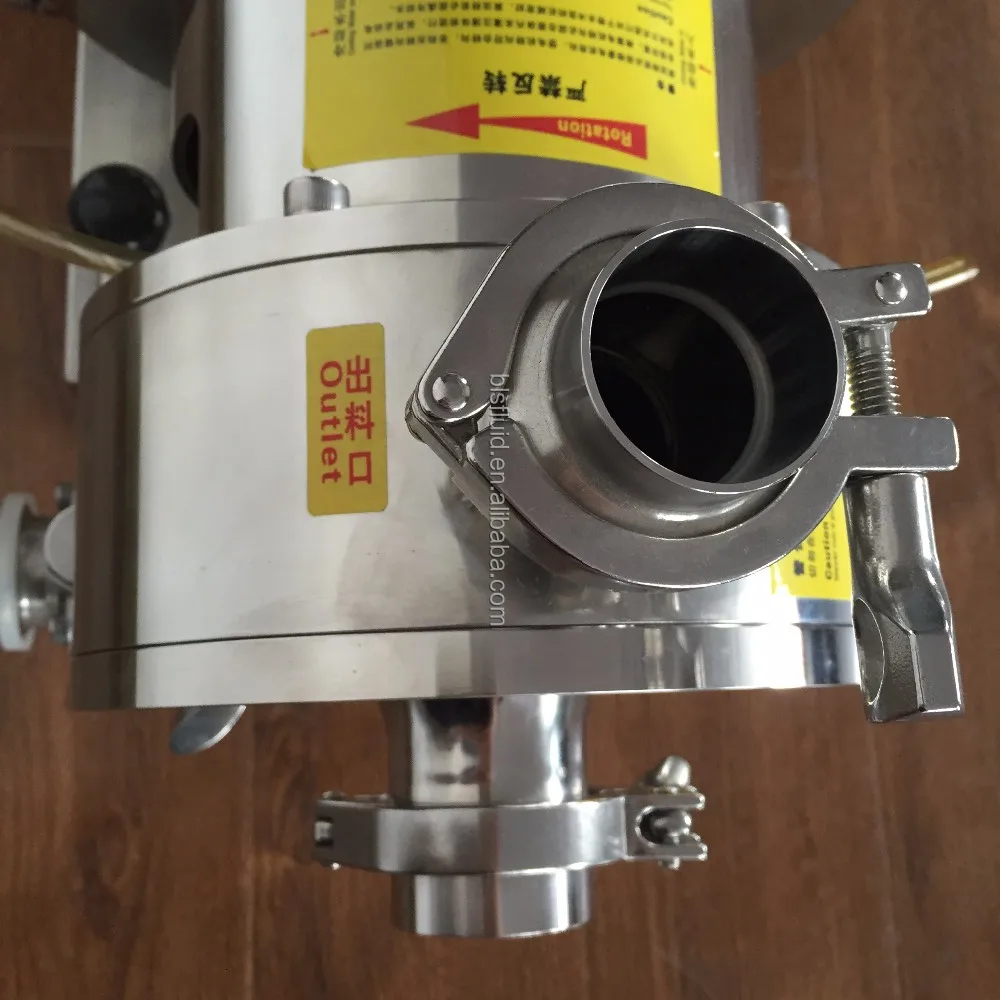

Tri clamp feeding material pump outlet port

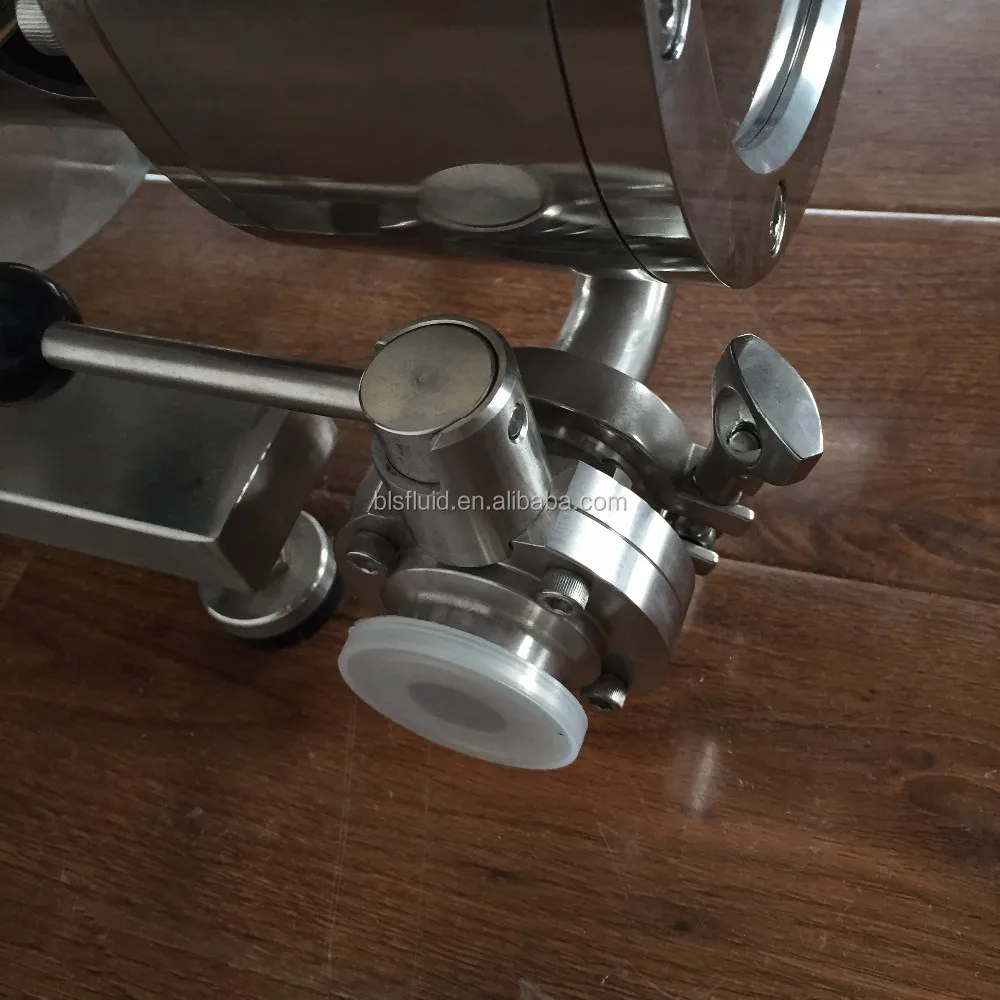

Discharge port with butterfly valve




Sealing option


1. Sanitary single mechanical sea optional

2. Dual End Mechanical Seal standard, with cooling water port


Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
