Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: BLS
  • Model Number: BLS
  • Theory: Stainless Steel Rotary Positive Displacement Pump
  • Structure: Gear Pump
  • Usage: Stainless Steel Rotary Positive Displacement Pump
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: electric
  • Pressure: High Pressure
  • Application: Stainless Steel Rotary Positive Displacement Pump, Stainless Steel Rotary Positive Displacement Pump
  • material: stainless steel 304, 316
  • Suitable temperature: -30℃ -180℃
  • Connection: threaded, clamped, flanged
  • Flow: 5600-11000 L/H
  • Type: Rotary Lobe Pumps
  • Pressure of lift: 7Bar
  • Maximum rotational speed: 600r/min
  • Suggested rotational speed: 200-500rmp
  • Name: Stainless Steel Rotary Positive Displacement Pump

Packaging & Delivery

Packaging Details plywood case
Stainless Steel Rotary Positive Displacement Pump
Delivery Time Shipped in 15 days after payment
Product Description

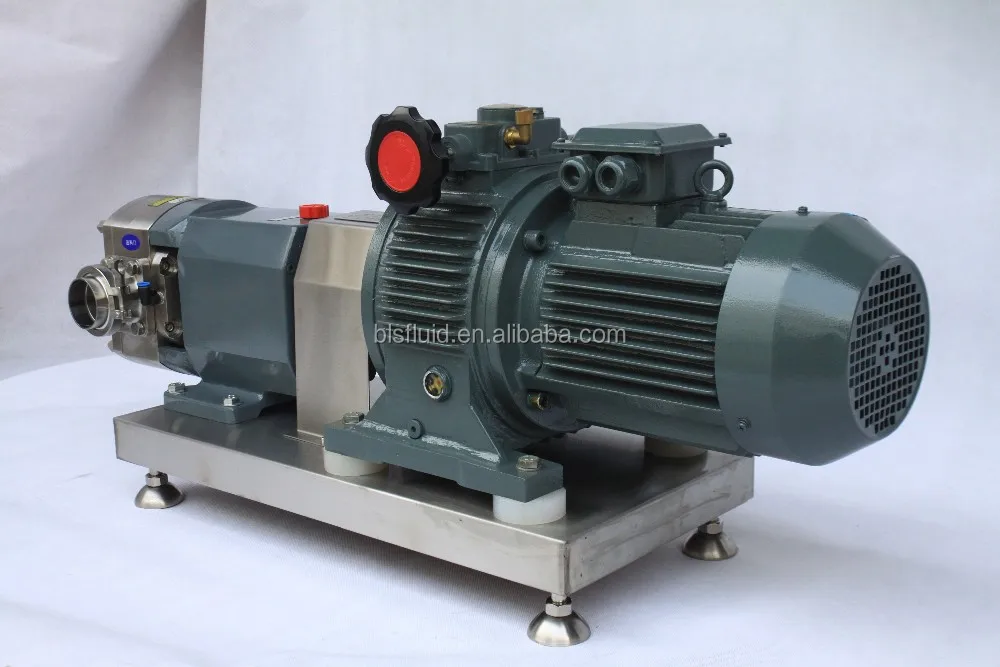

Stainless Steel Rotary Positive Displacement Pump

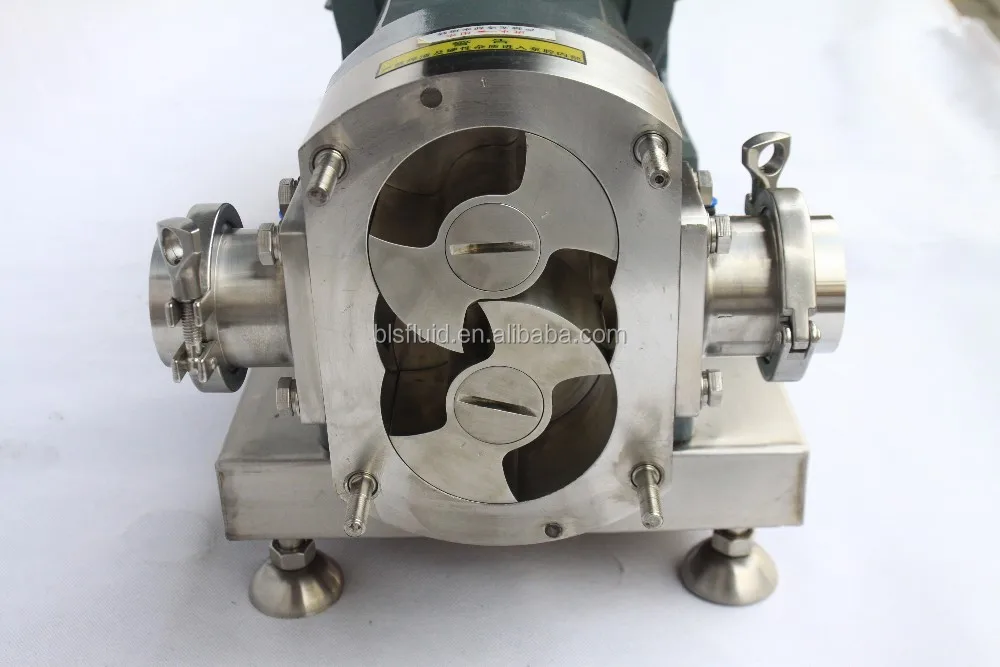

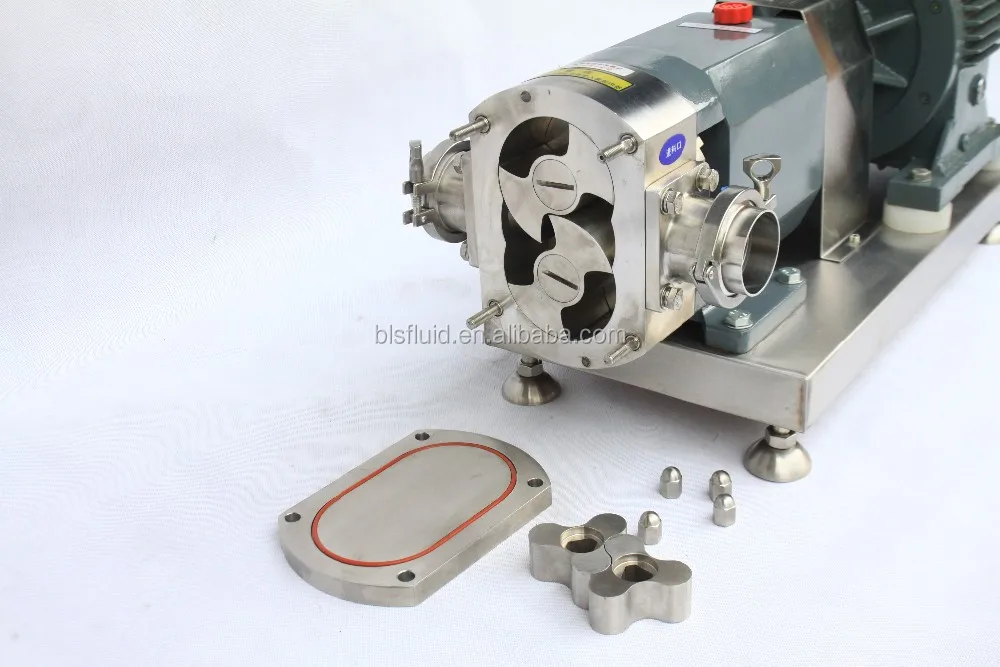

    Rotary Lobe Pump is also named colloid pump, three-lobe pump, sole pump, etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears) revolve, it produces suction force at the inlet (vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and revolve in the sequence of a-b-c-d. When it revolves to position a, only housing | is filled with medium, when it revolves to position b, housing B encloses medium, and finally it goes to position d, then housing A,B are interlinked and the  medium is transported to the outlet. As this process is repeated, medium (material) is transported continuously.

Special Structure:

1.Butterfly rotor pump: with butterfly rotor, it is superior to other rotor pump when transferring material with high viscosity and larger powder and effectively transports extremely stiff material.

2. Singe butterfly curved rotor pump (powder rotor pump): this pump series are specially design to transport material with larger powder. Its unique shape and curve makes it more outstanding compared to other pumps in delivering material with larger powders. It effectively prevents powders from clashing, which is the top choice of pumps transferring material with powders.

3. Widely used to deliver: various special material, stiff material, mixture with different specific gravity, corrosive material and material with larger power.

Capacity / per centum rotate, range speed, corresponding discharge

Application:

1). Food and beverage: dairy, chocolate, syrup, cream, cereal mash, beer and latex.
2). Fruit concentration: tomato paste, pudding, juice, jam and jelly.
3). Paste products: fats, grease and etc..
4). Cosmetic: face cosmetic, abluent, fixature, spice and so on.
5). Medicine: extract, emulsion and pill plasm.
6). Chemical industry: dyes, grease, dissolvant, resin and polymer.

Model
L/100R
Speed range
Flow rate
Power
(L)
(rpm)
(L/H)
(kw)
BLS-3
3L
200-500
300-800
0.55
BLS-6
6L
200-500
650-1600
0.75
BLS-8
8L
200-500
850-2160
1.5
BLS-12
12L
200-500
1300-3200
2.2
BLS-20
20L
200-500
2100-5400
3
BLS-30
30L
200-400
3200-6400
4
BLS-36
36L
200-400
3800-7600
4
BLS-52
52L
200-400
5400-11000
5.5
BLS-66
66L
200-400
7100-14000
7.5
BLS-78
78L
200-400
9000-18000
7.5
BLS-100
100L
200-400
11000-22000
11
BLS-135
125L
200-400
15000-30000
15
BLS-160
160L
200-400
17000-34000
18.45
BLS-200
200L
200-400
21600-43000
22

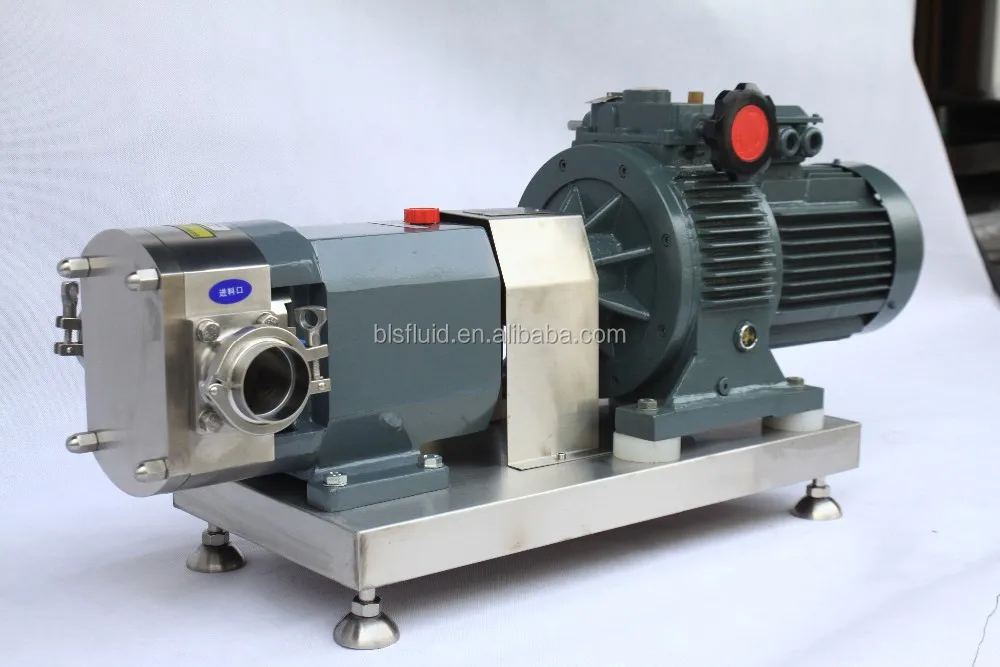

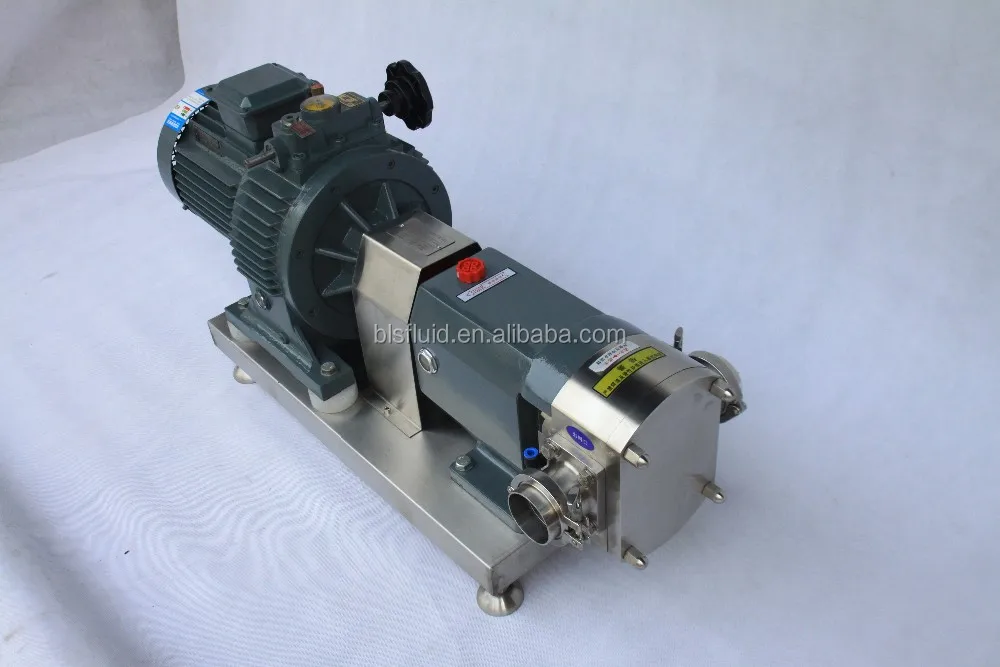

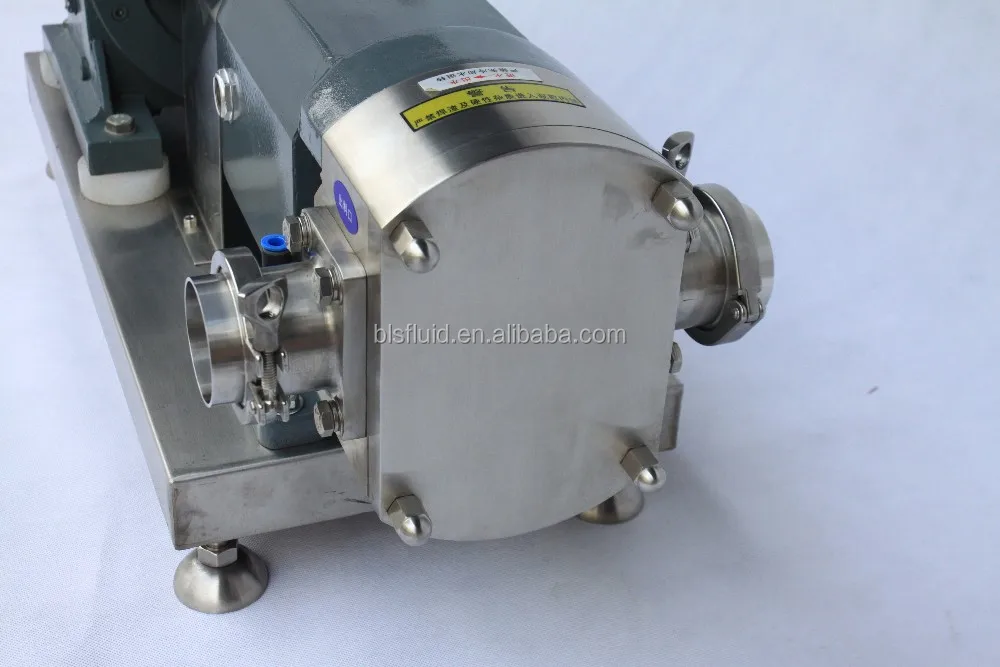

Detailed Images

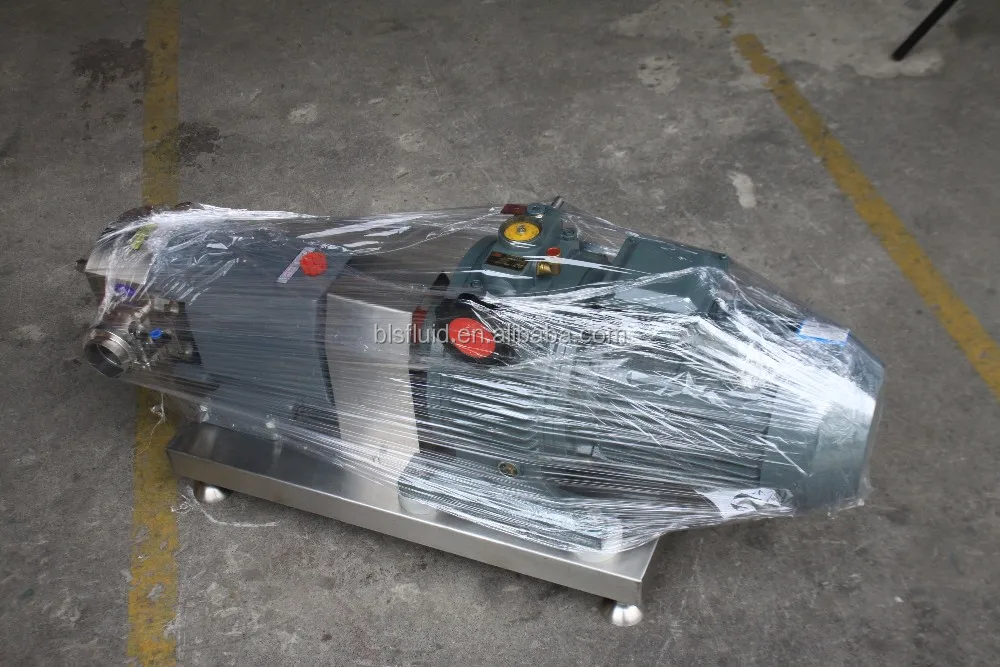

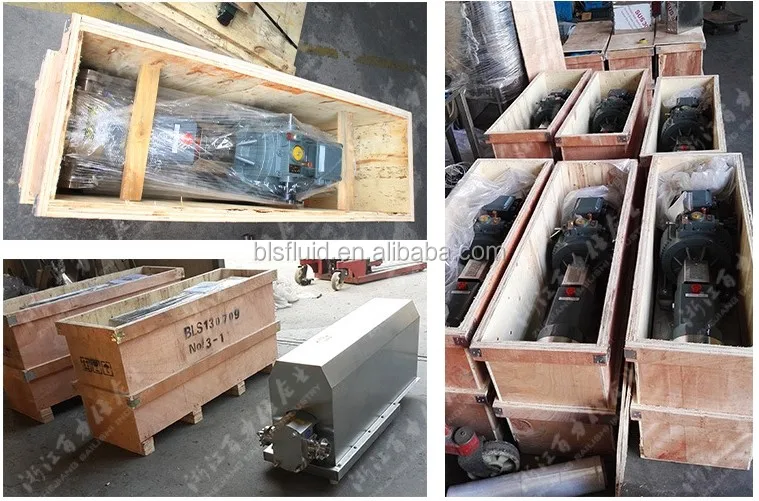

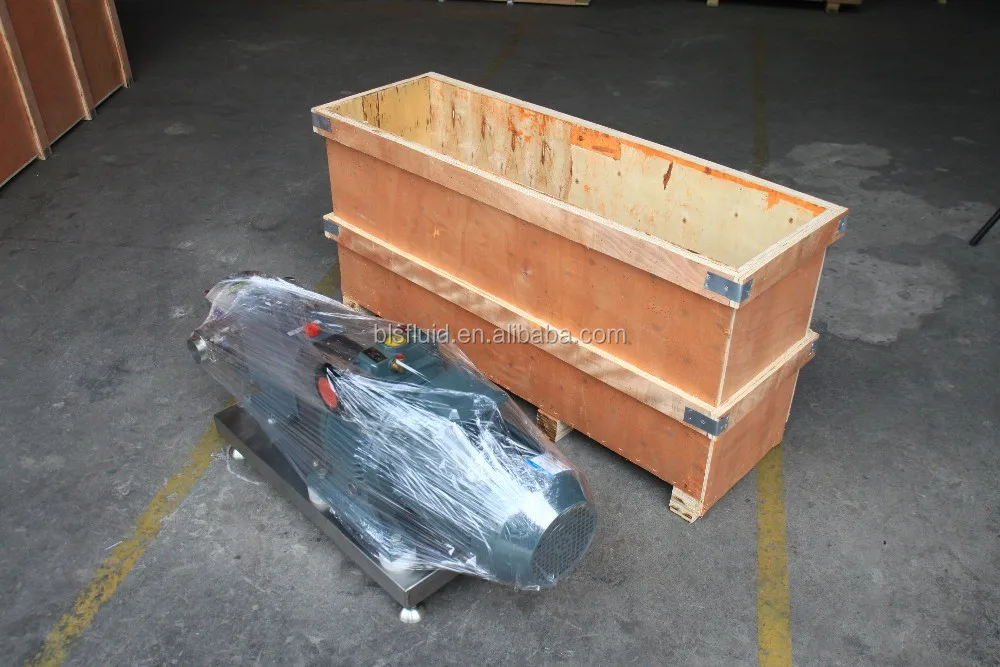

Packing & Delivery
Certifications
Our Company

Zhejiang L&B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

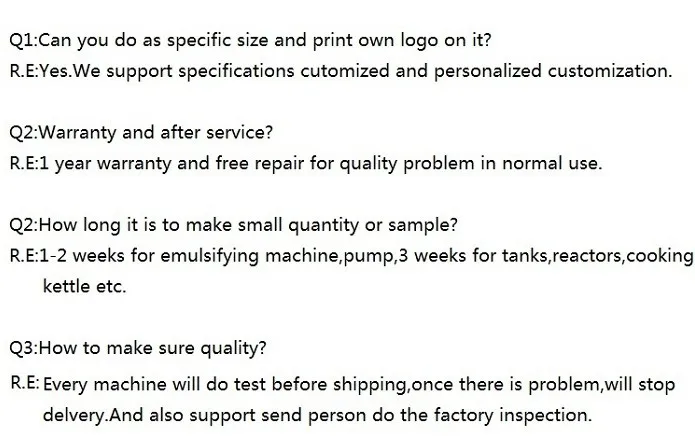

FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
