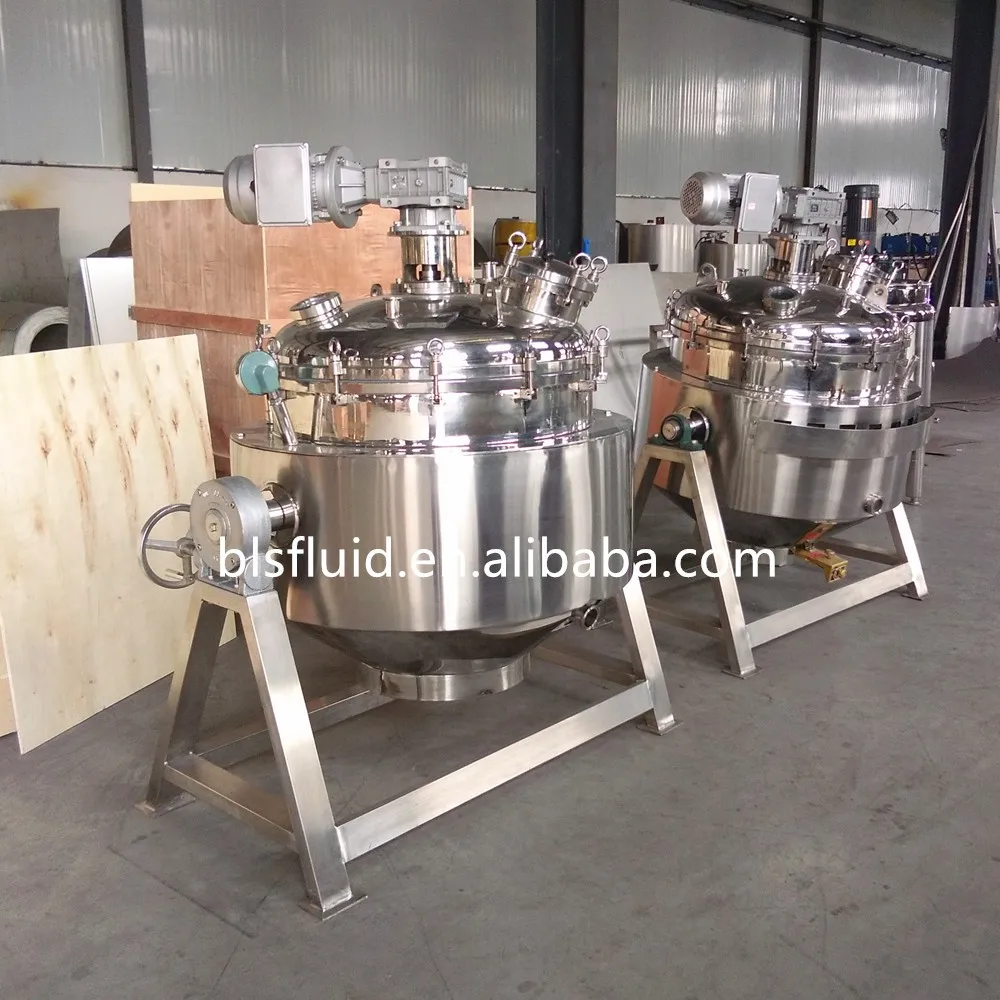

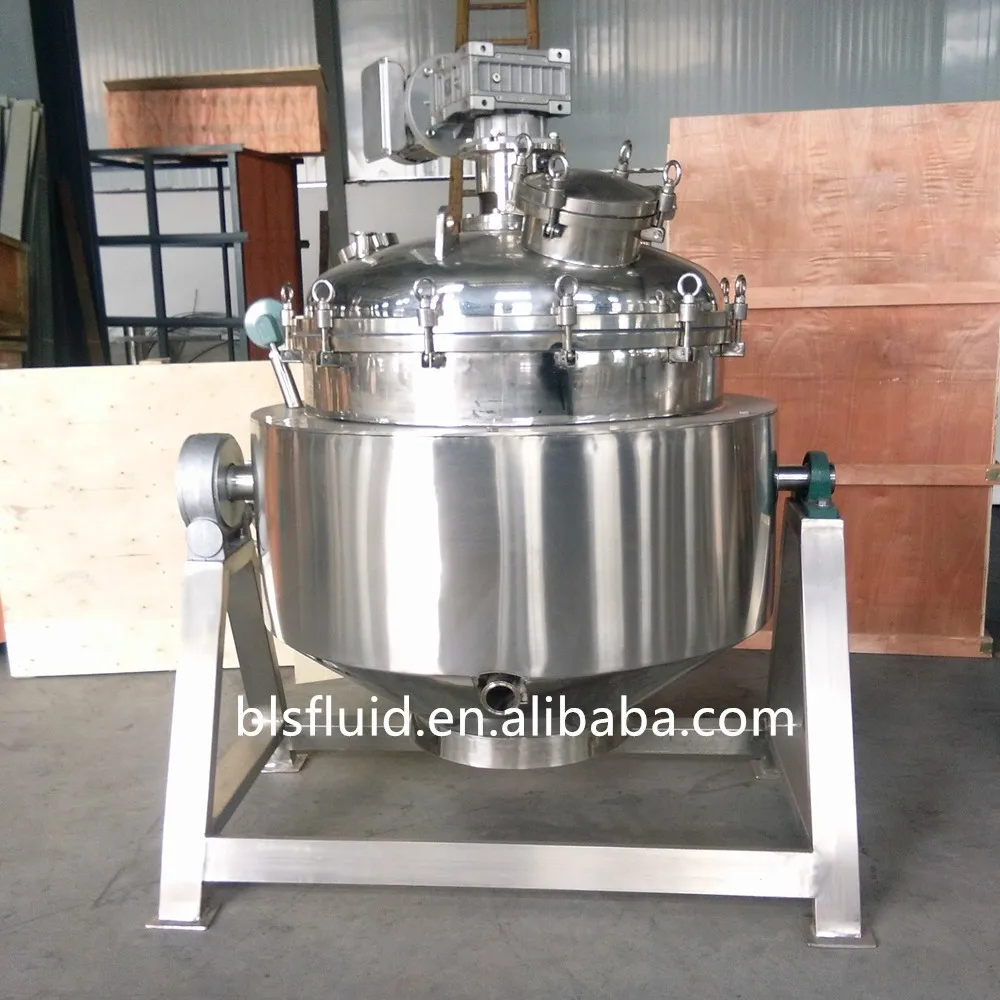

Small Tomato Paste Heating Making Processing Machine with blender

FOB Reference Price:Get Latest Price
US $1,500-7,000 / Sets | 1 Set/Sets tomato paste heating (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
bls
Model Number:
QJ
Type:
Cooking Equipment
After-sales Service Provided:
Overseas service center available
Name:
Cooking Mixer Gas Machine/Gas Kettle Mixer
volume:
50-500L
heating way:
gas heating
jacket working pressure:
< 0.2Mpa
blending:
frame mixer with scraper
Usage:
Steel Cooking Mixer Gas Machine/Gas Kettle Mixer
application:
Steel Cooking Mixer Gas Machine/Gas Kettle Mixer
Application:
sanitary food cooking pots
blending speed:
20-25rpm
Function:
Cooking Mixer Gas Machine/Gas Kettle Mixer
SupplyAbility
SupplyAbility:
200 Set/Sets per Month tomato paste blending machine
Packaging & Delivery
Packaging Details
plywood case package
Small Tomato Paste Heating Making Processing Machine with blender
Port
ningbo
Lead Time :
Shipped in 25 days after payment
Product Description

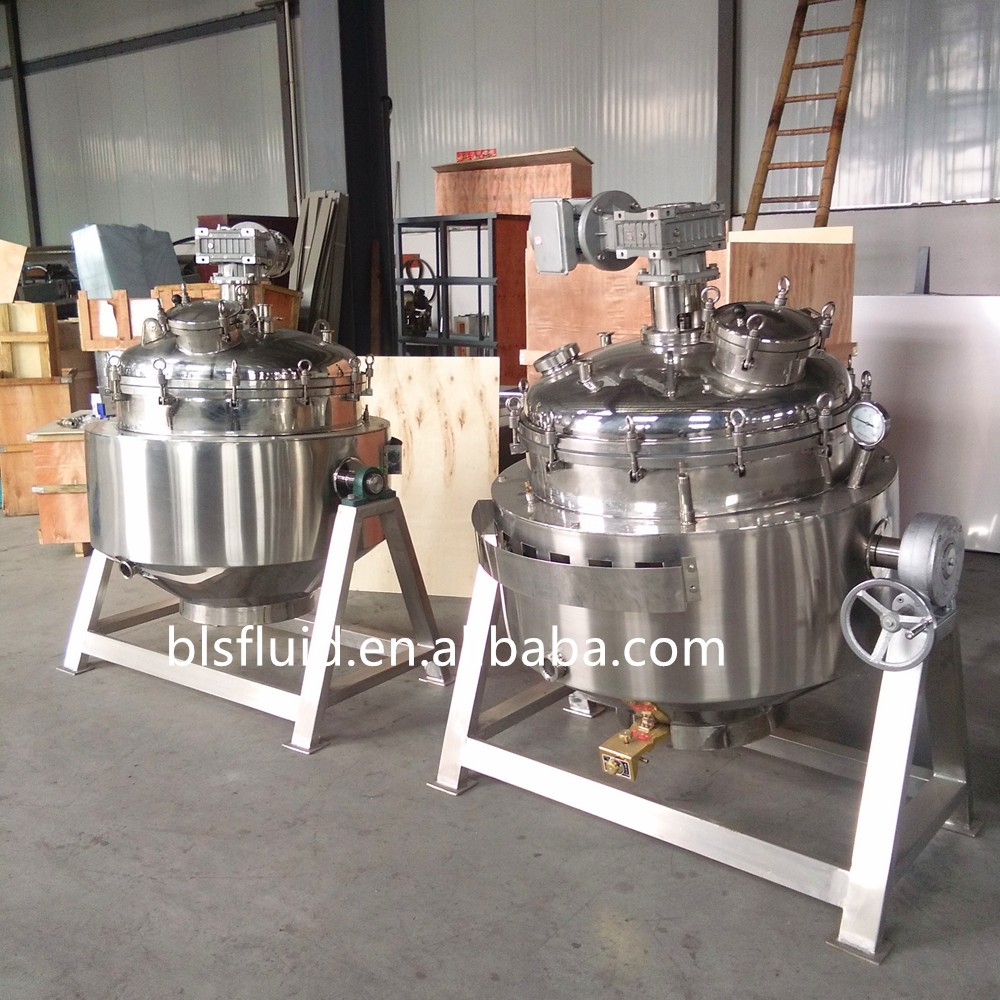

Small Tomato Paste Heating Making Processing Machine with blender


Description: Designed according to GMP standard, widely used for cooking feeding material in the food-processing, cosmetics and pharmaceutical industries

Construction:  Kettle, bracket, worm wheel and worm etc.

Heating method: By electricity (oils or water), by steam, by gas

Material: SS304/SS316L

Capacity: 50L-1000L

Agitator Type: With PTFE scraper

Mechanical seal: SIC/SiC/EPDM(Standard)

Motor power: 0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW

Sealing option: Sanitary single mechanical seal/Double mechanical seal with cooling system

Voltage: 110-480V

Motor: Siemens, ABB, LOCAL, 50hz/ 60hz

Surface treatment: Inner polished and outside polished

Available connection: Clamp, Thread Butt weld, Flange

Available standard: DIN, SMS, 3A, RJT, ISO/IDF

Operated: Electric

Application scope:  Dairy, food, beverage, pharmacy, cosmetic, etc

Packaging Details: Plywood case or as per the request of customers

Delivery details: Usually within 15 working days after receiving T/T down payment

Model
Volume Diameter×Height
Form
Pressure
(mpa)
Agitator Speed(r/min)
slope angel
Inlet&Outlet
Motor Power
JCG-50
50

60×45
Tilting

Stirring
0.3
36
90°
1/2”
0.75kw
JCG-100
100

70×50
Tilting Stirring
Fixed
0.3
36
90°
3/4”
0.75kw
JCG-200
200

80×55
Tilting Stirring
Fixed
0.3
36
90°
3/4”
1.5kw
JCG-300
300

90×65
Tilting Stirring
Fixed
0.3
36
90°
3/4”
1.5kw
JCG-400
400

100×75
Tilting Stirring
Fixed
0.3
36
90°
3/4”
1.5kw
JCG-500
500

110×85
Tilting Stirring
Fixed
0.3
23
90°
1”
2.2kw
JCG-600
600

120×95
Tilting Stirring
Fixed
0.3
23
90°
1”
2.2kw
JCG-1000
1000

1400×115
Tilting Stirring Fixed
0.3
23
90°
1”
3.7kw
Detailed Images



Quality stainless steel

Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.

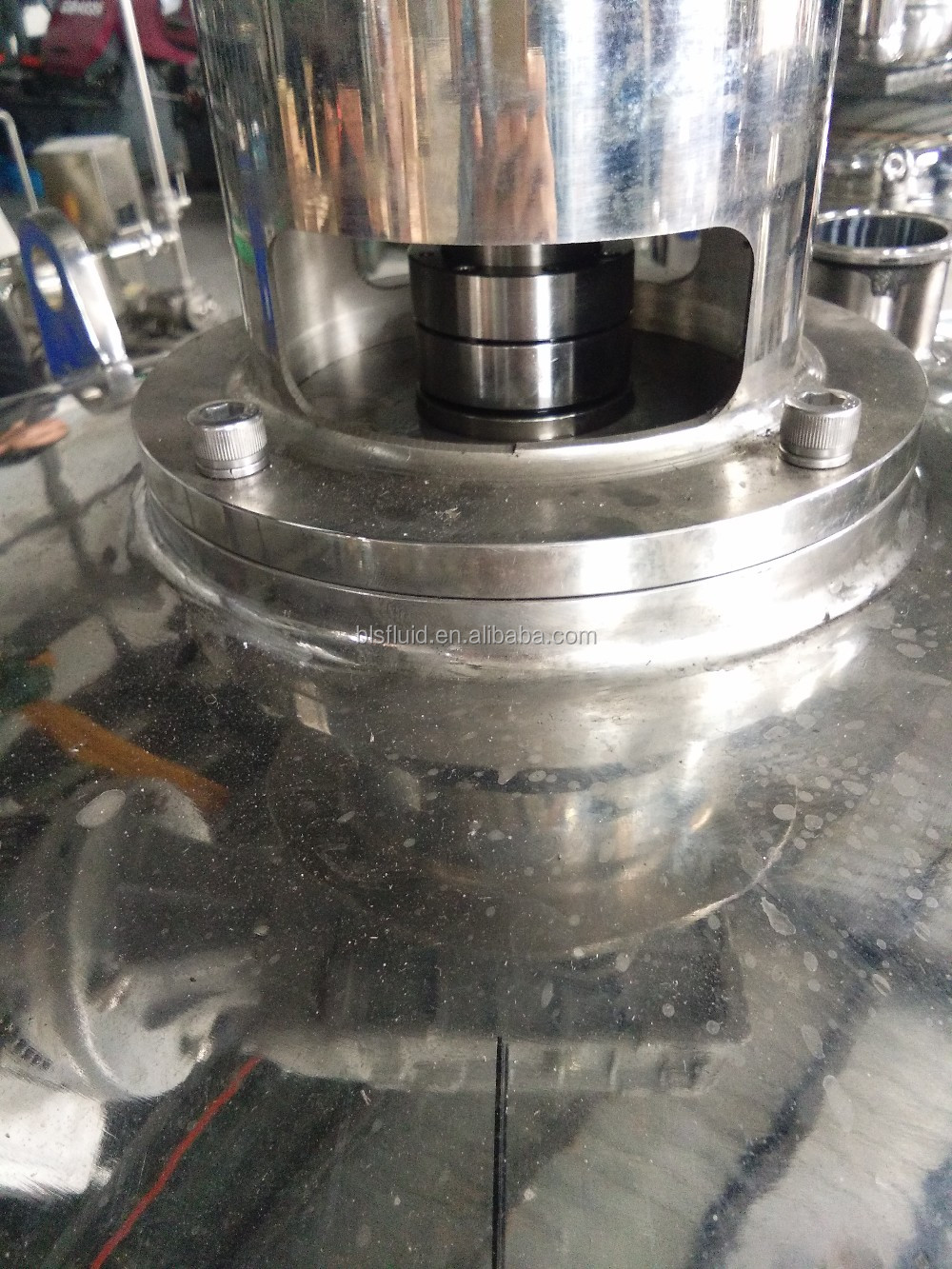

Mechanical seal

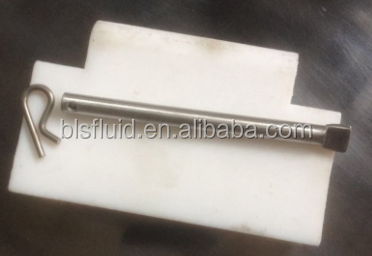

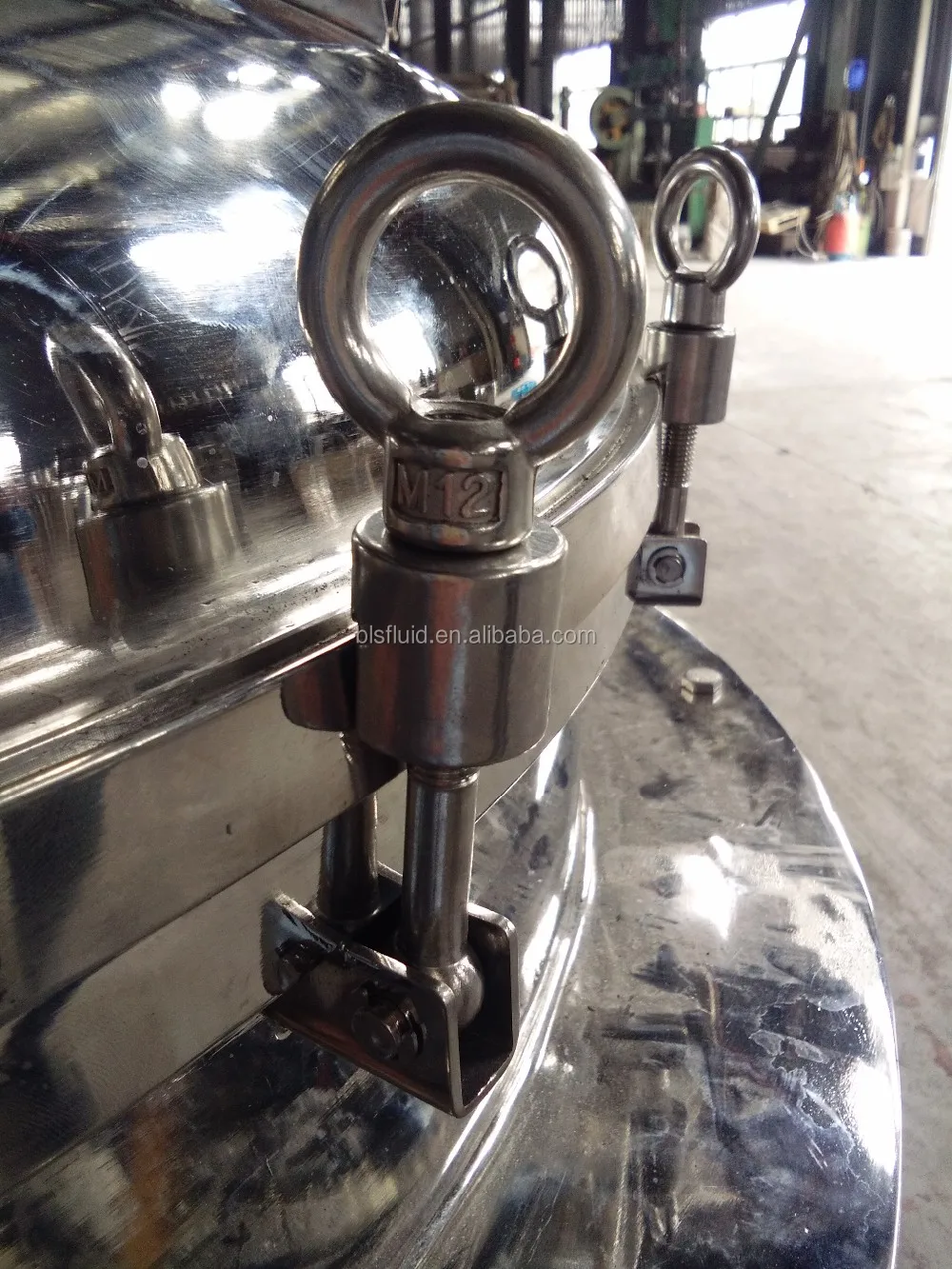

Stainless steel bolt

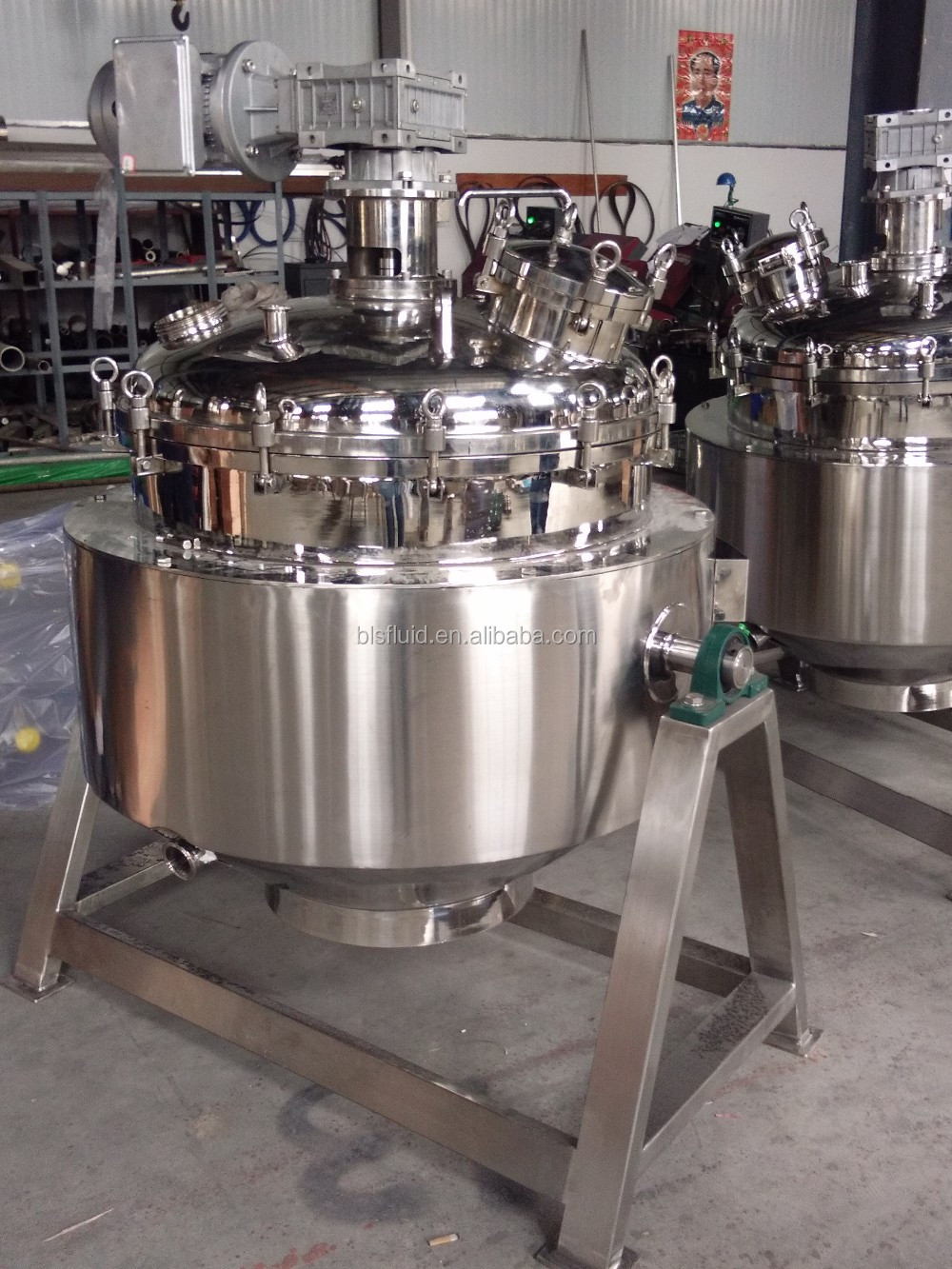

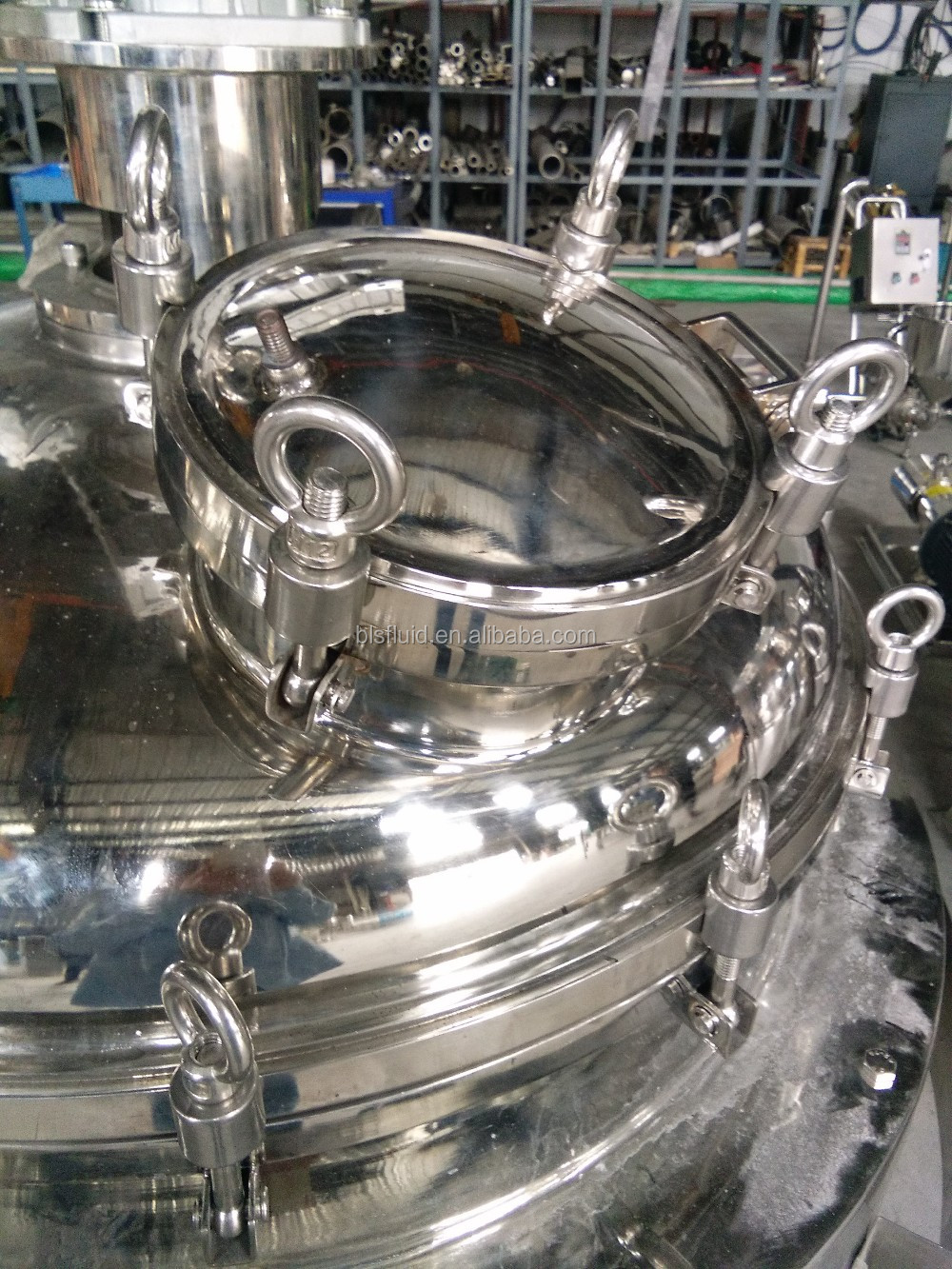

YAD pressure manhole


Creative handle, quick to open, conveniet for production

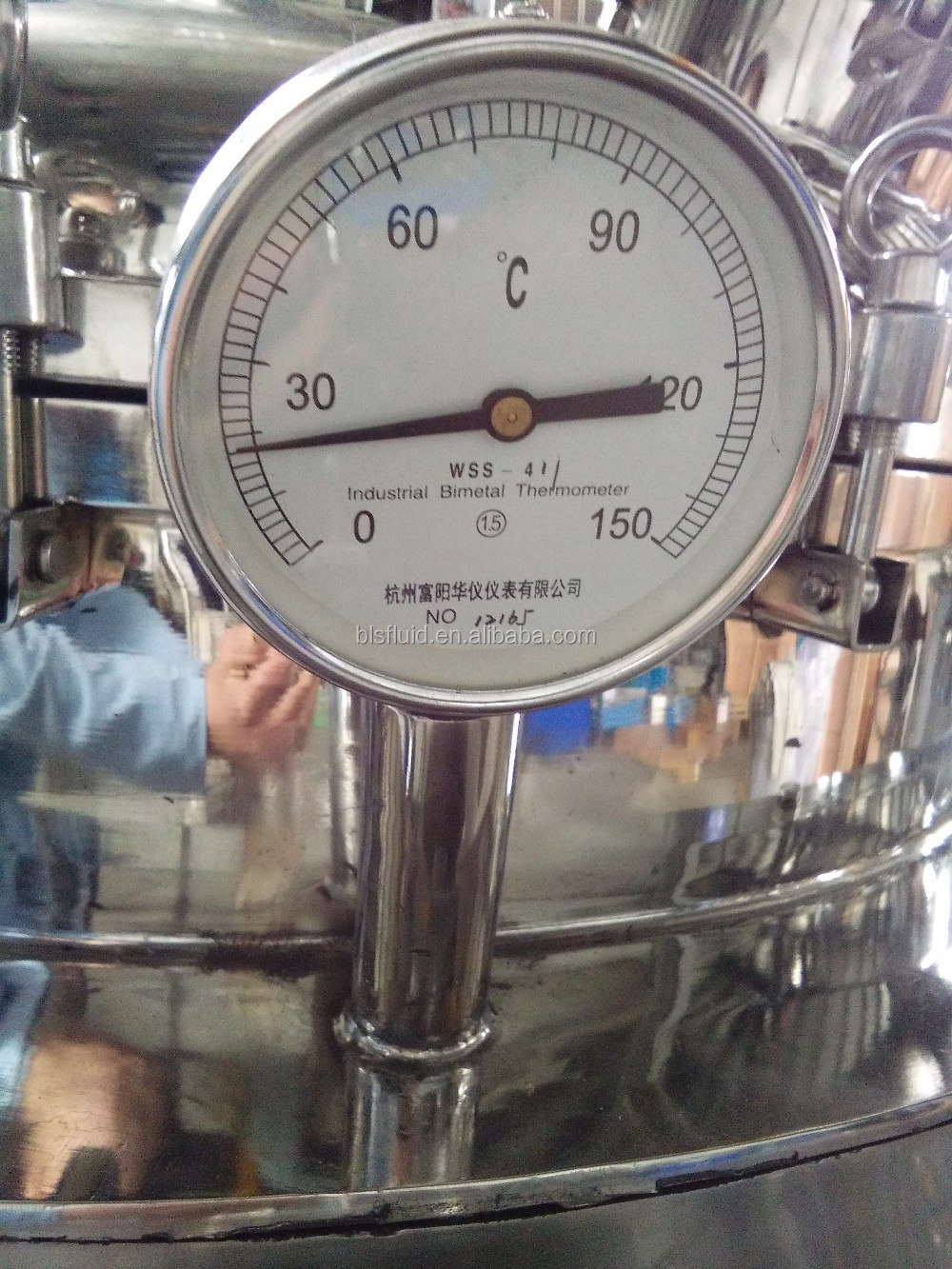

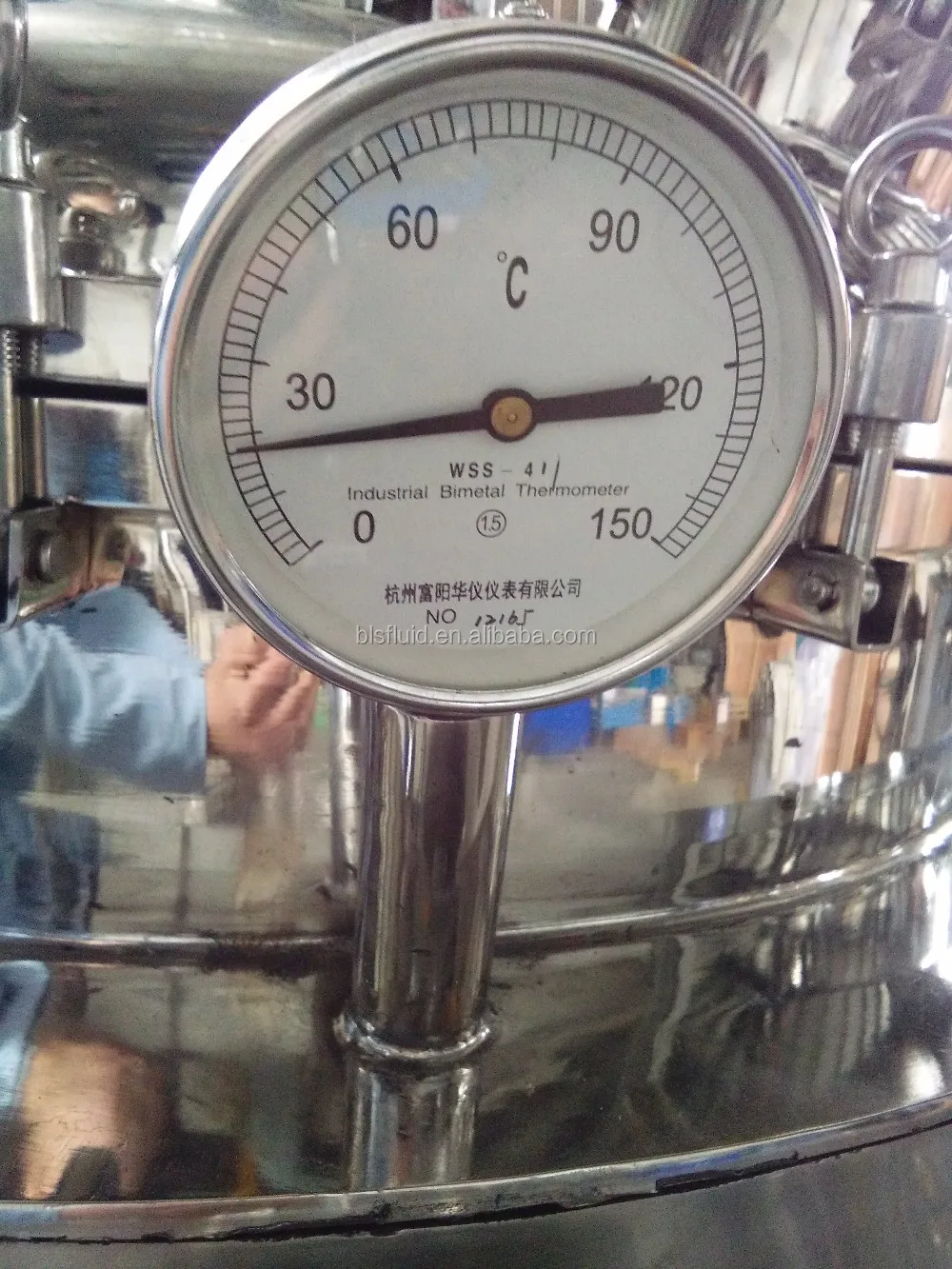

Thermometer


    show the inside kettle temperature




Scraper adopts



    Import Teflon material mixer, Resistant to 300 degrees temperature

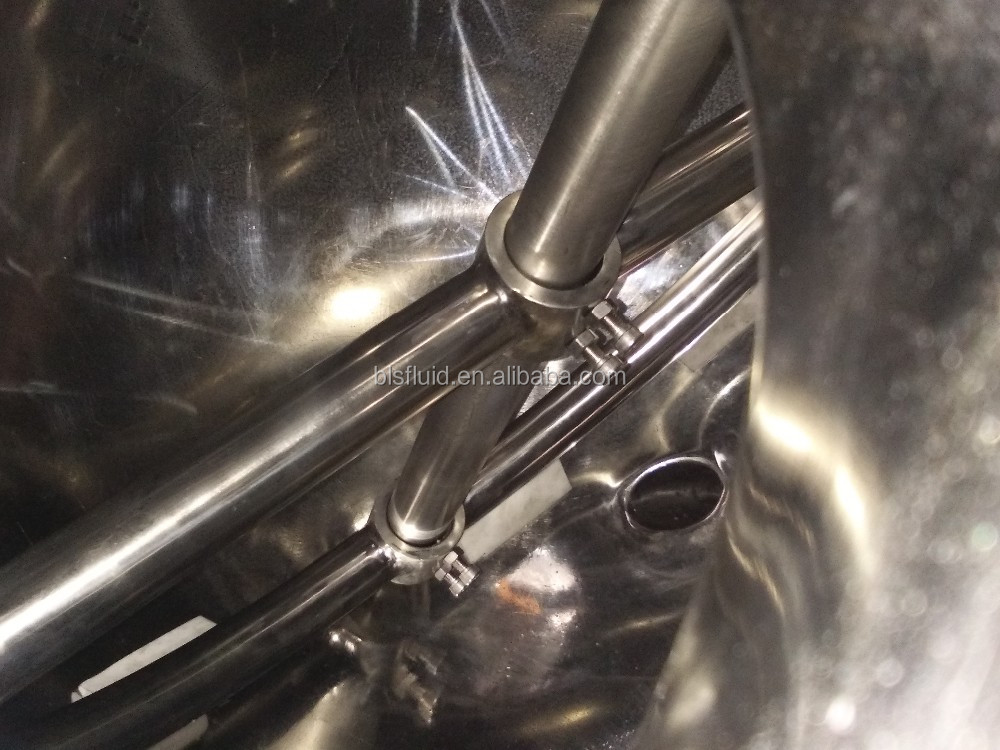

Stirring device

 adopt Import teflon material, easy to clean and disassemble, few dead angle, prevent viscous material from adhering on the wall.

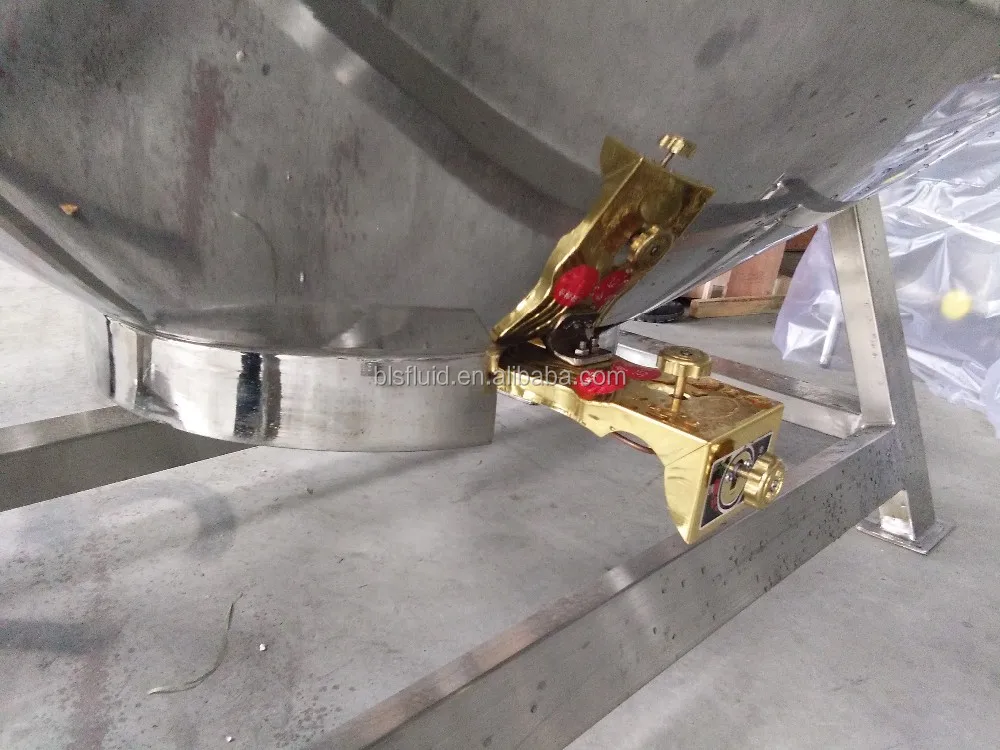

Heating device

LPG steam heating: be provided with gas burner

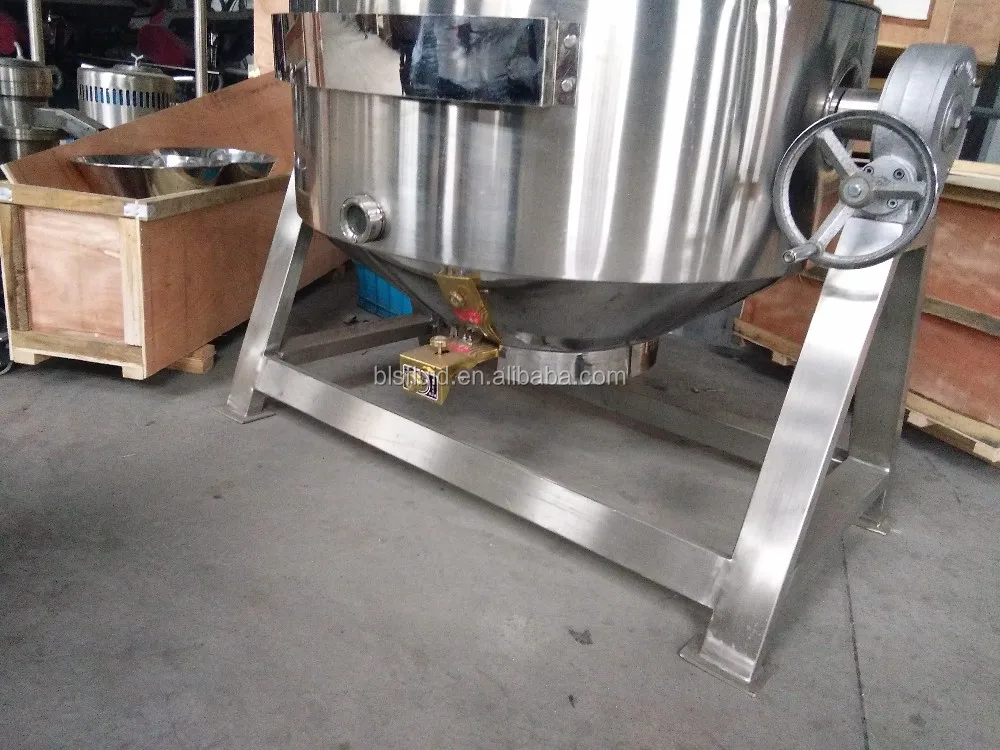

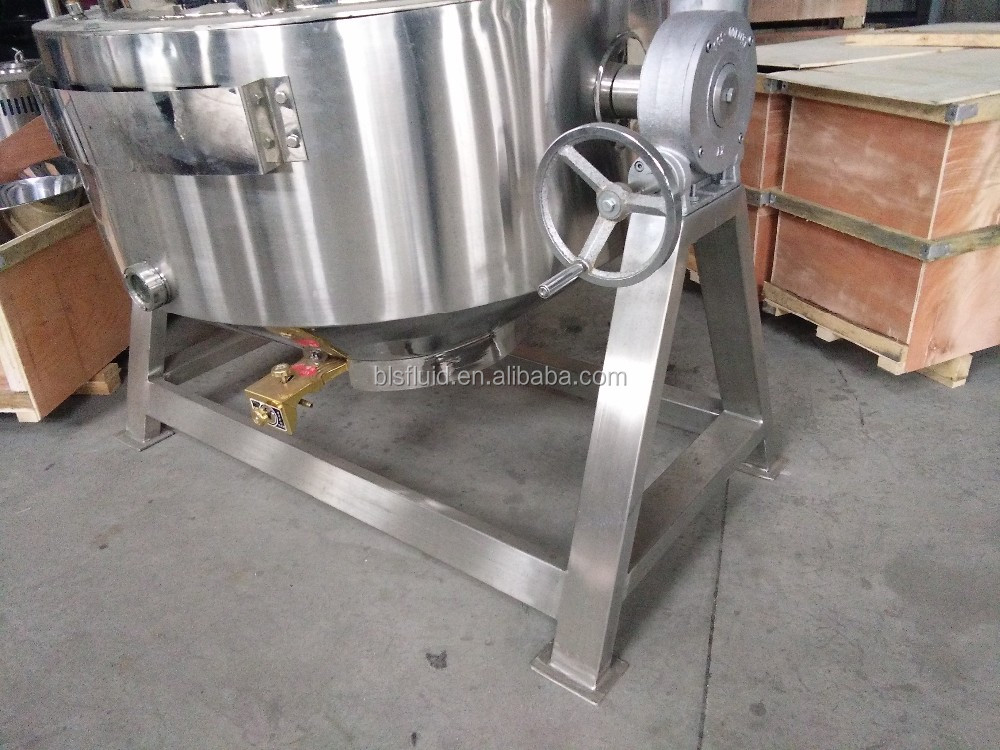

Swiveling mechanism:

    standard configuration, worm wheel and worm are cast iron; SS304 can be Optional. Bracket adopt stainless steel.




Full steel base

Can withstand greater pressure, stable work
