stainless steel tomato sauce transfer pump

FOB Reference Price:Get Latest Price
US $880-8,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
BLS-ZZB
Structure:
Gear Pump
Usage:
food
Application:
food transfer pump
Power:
Electric
Fuel:
Electric
Pressure:
High Pressure
name:
tomato sauce transfer pump
material:
stainless steel 304/316
flow:
0-43000L/H
speed:
200-500rpm
Theory:
Rotary Pump
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
8 Set/Sets per Day tomato sauce transfer pump
Packaging & Delivery
Packaging Details
standard packaging
Port
Shanghai port/Ningbo port
Lead Time :
Quantity(Pieces) 1 - 1 2 - 10 >10
Est. Time(day) 10 20 To be negotiated

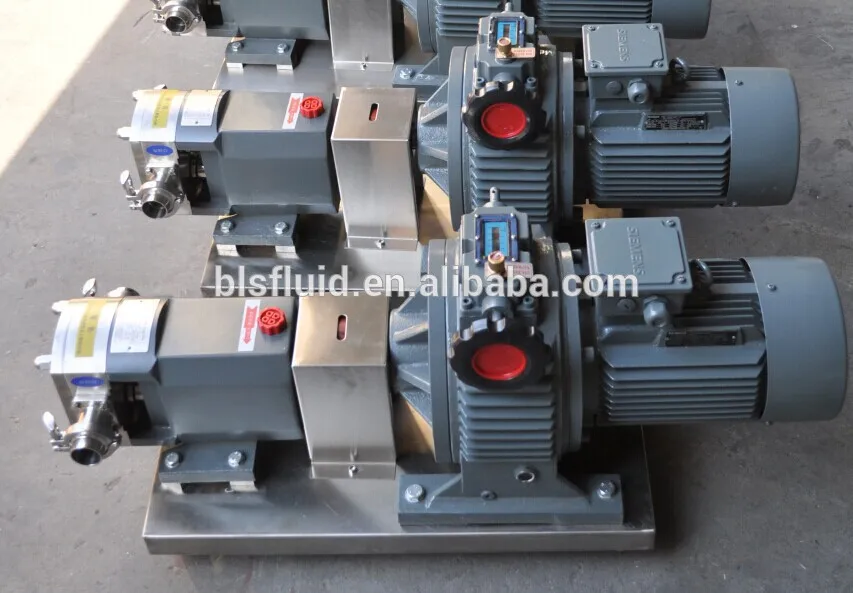

tomato sauce transfer pump
Brand: BLS
Material :304(L) 316(L)
Finish: Mirror or Matt Polish; Ra<0.4um
Connect:Tri Clamped,Flange

Rotor pump is widely used to transfer various special material, stiff material, mixture with different specific gravity, corrosive material and material with large particle, such as yogurt, cheese, fruit jam, shampoo, cosmetics, syrup, paint etc.



1. Driving System

Stepless Speed Regulation Rotor Pump. The speed regulator changes the speed by manual adjustment, which is safe, reliable and infinitive flow adjustment. But the non-automatic adjustment is also troublesome. Speed regulating should be done in operation not in shut-off state.



 Fix Speed Output Reducer Rotor Pump: The driving is easy with constant rotary speed of the rotor,which also leads to non-adjustablity of flow.



 Variable Frequency Motor + Frequency Converter Rotor Pump: It realizes both automatic adjusting and infinitive adjustment of flow. It is highly automatic and has large torque in low speed.



2. Connection type: clamp, flange, thread.

3. Contact material: SS304, SS316, 316L.



4. Seal: silicon rubber, fluorine rubber, EPDM, PTFE rubber, nitrile rubber etc.



5. Mechanical seal: single face with silicon carbide/ hard alloy faces standard.



ModelLiter Per 100RoundSuggest Speed(rpm)Flow(L/H)Power(KW)
BLS-33L200-500300-8000.55
BLS-66L200-500650-16000.75
BLS-88L200-500850-21601.5
BLS-1212L200-5001300-32002.2
BLS-2020L200-5002100-54003
BLS-3030L200-4003200-64004
BLS-3636L200-4003800-76004
BLS-5252L200-4005600-110005.5
BLS-6666L200-4007100-140007.5
BLS-7878L200-4009000-180007.5
BLS-100100L200-40011000-2200011
BLS-135135L200-40015000-3000015
BLS-160160L200-40017000-3400018.5
BLS-200200L200-40021600-4300022









...
