G type viscous liquid transfer progressive cavity pump

FOB Reference Price:Get Latest Price
US $800-3,600 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BLS
Model Number:
G10-G65
Theory:
Rotary Pump
Structure:
Screw Pump
Usage:
oil slurry,sugar,liquid,grease
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Electricity
Pressure:
Low Pressure
Application:
transport
Name:
stainless steel oil mono screw pump
Material:
Stainless steel
Voltage:
220v/380v
Motor:
Domestic
Feature:
Eco-Friendly
Warranty:
One Year
SupplyAbility
SupplyAbility:
1200 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
Standard Export Wooden Case
Port
Shanghai Port/Ningbo Port
Lead Time :
Shipped in 15 days after payment

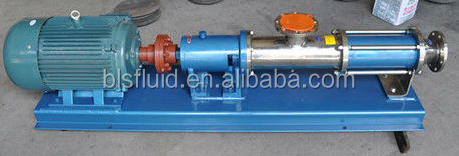

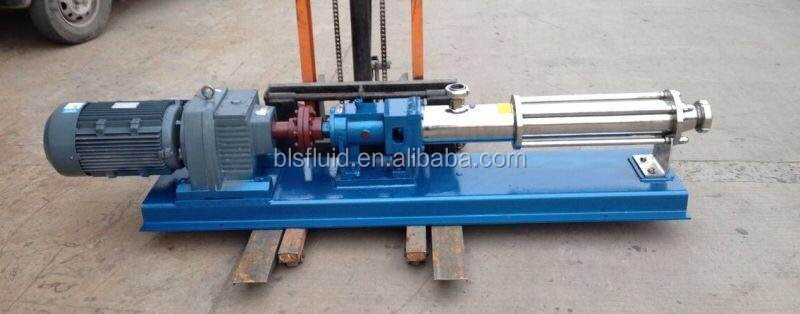

G type viscous liquid transfer  progressive cavity pump

mono screw pump2




Product Description



progressive cavity pump

Temperature:-20-+180 degree
Max:18bar
Contact part materail:SUS304/AISI316L;



Stator:standard in butyronitrile,can be customized and optional(rubber, Fluorine rubber ,EPDM etc.)



Motor:ABB,Explosion-proof ,FLP,Simens.etc.



Inlet/outlet:clamp.threaded,flanged.



The inlet/outlet size and direction is adjustable.








Progressive cavity pump,screw slurry pump is used in all fields widely to feel kinds of medium, running at a constant pressure continuously, without pulse and damage when feeding medium, and change the gauging aim through adjusting rotation speed.







This product is applicable for feeding medium which has following properties:



1. High solid content(diameter of the biggest particle is 50mm)or no solid content



2. Medium with all viscosities(1mPas~3,000,000mPas)



3. Medium that is easy to be generated and swelled



4. Shearing sensitive medium



5. Medium with/without self lubrication



6. Erosive medium(PH=0~14)



7. Adhesive medium



8. Toxicity hazard medium



Technology




mono pump(mm)(r/min)(m³/h)(kw)
ModelDiameterSpeedFlowPower
G10-12014000.50.37
G15-12596010.55
G20-1329601.50.75
G25-13296021.1
G30-14096031.5
G35-15096052.2
G40-15096073
507205.52.2
G45-15096094
5072073
G50-165960135.5
65720104
G55-165960187.5
65720135.5
G65-1807203011
G86-11007206015







Product-related



P15



screw pump.jpg



 20140610_165246



Company Information

Supply Mixing tank,Reactor tank,fermentation tank,Inline homogenizer,High shear emulsifier mixer,Colloid mill,Jacket cooking kettle,Rotor pump,screw pump,emulsion pump,transfer pump etc.



Wenzhou L&B Fluid Equipment co., Ltd have special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields. We have advanced CNC lathes imported from Japan. We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard). Our products can get to the international standard and meet the requiement of GMP, so they are widely used in many fields, such as dairy, beer, food, pharmacy, beverage, cosmetic etc.,exported to America, Europe, the Middle East.
